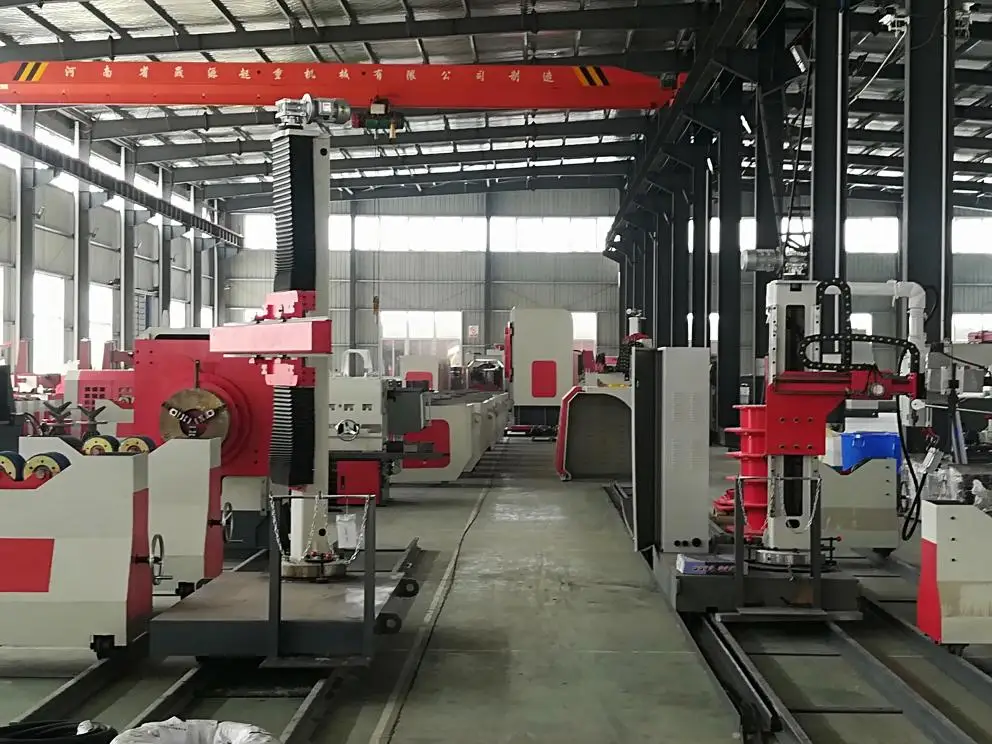

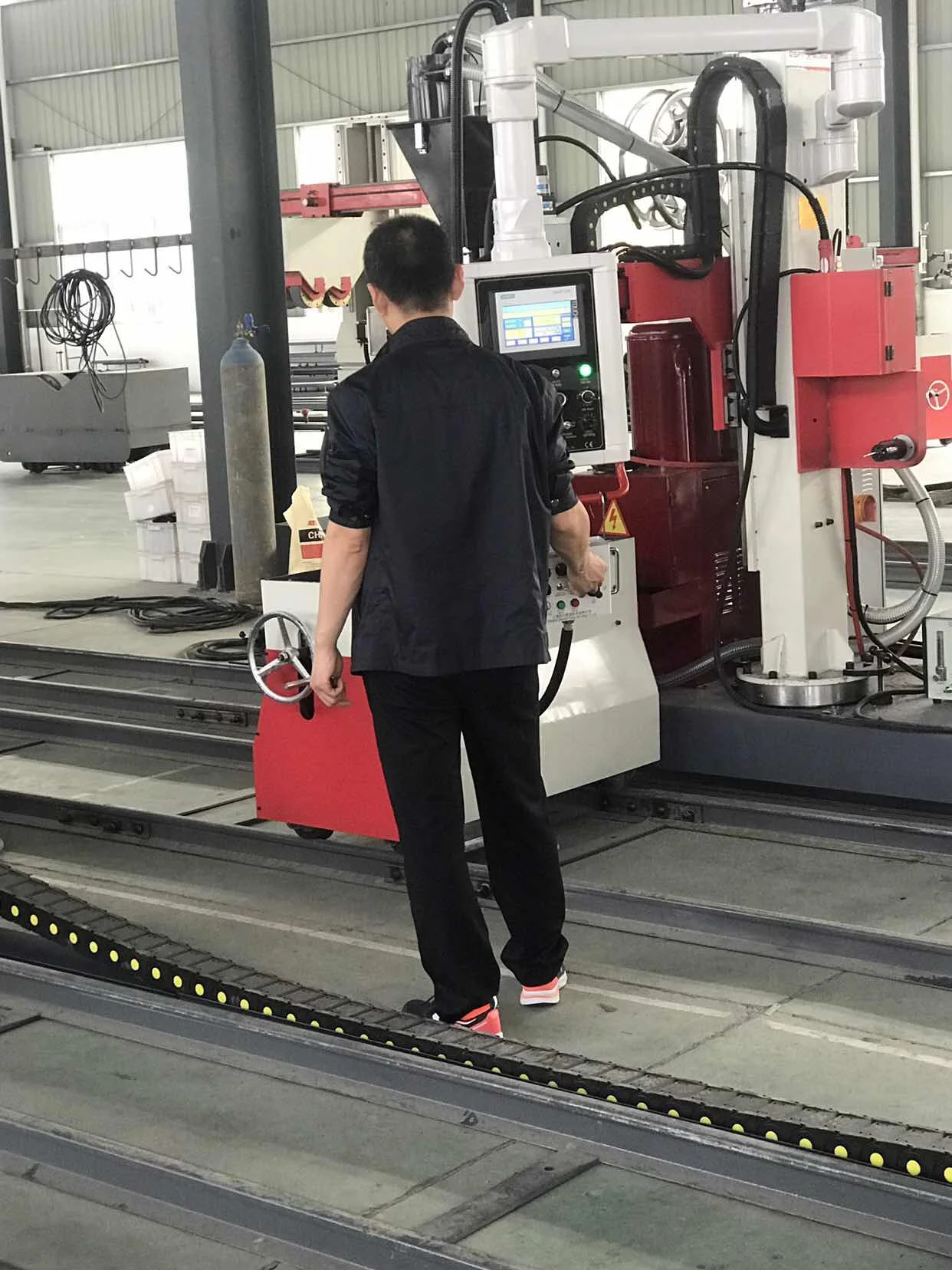

Трубосварочная машина для изготовления трубы
- Категория: >>>
- Поставщик: Shanghai Qianshan Piping Technology Co. Ltd.
Сохранить в закладки 218080249:
Описание и отзывы
Характеристики
Product Description

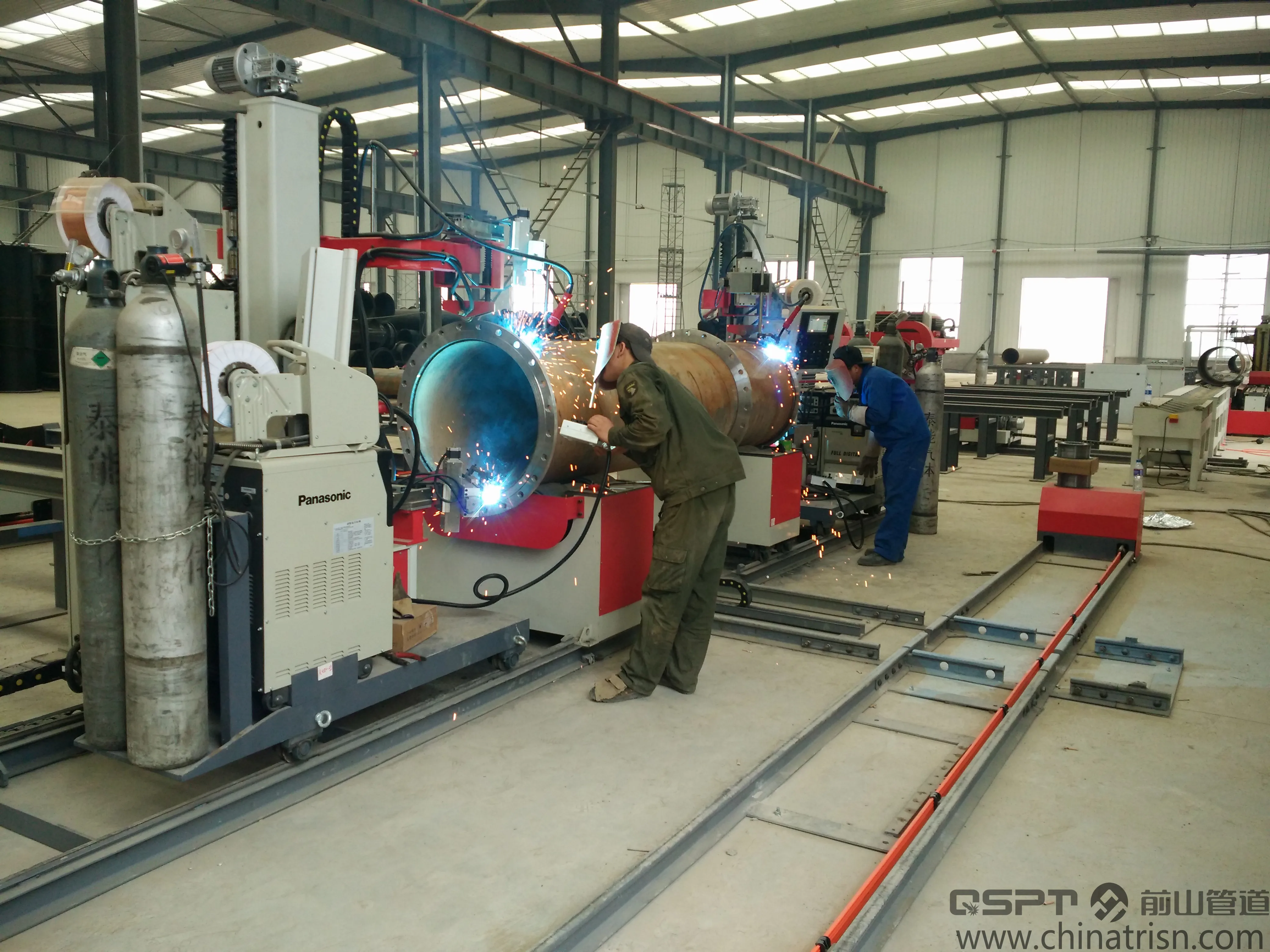

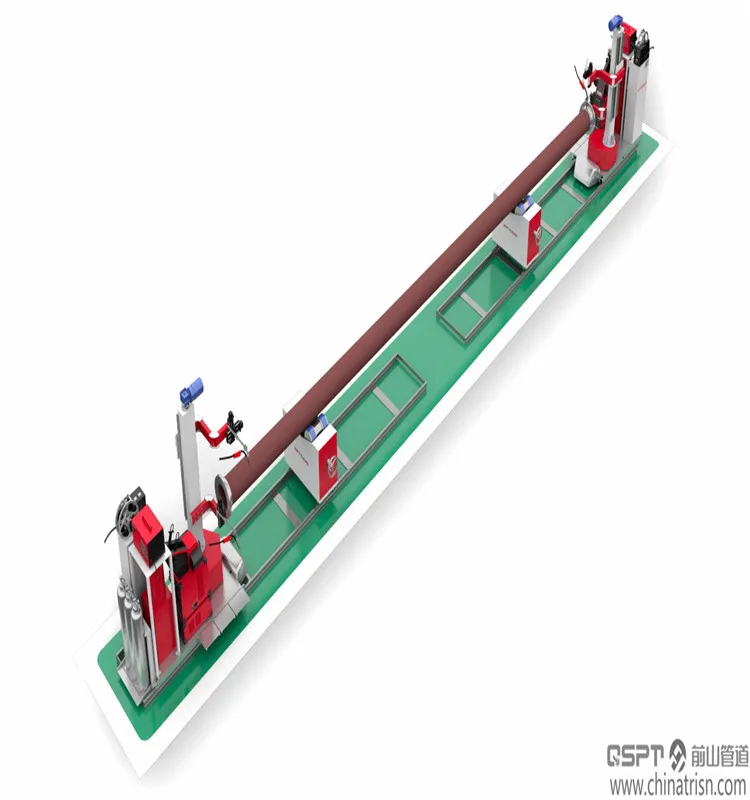

SLIP-ON FLANGE AUTOMATIC WELDING MACHINE(FCAW/GMAW)
MODEL& SPEC: PPAWM-32Da
Performance features
Online-performance: online equipment for the working of non production line
Application: Slipon Flange for the welding line of the internal and external incidence angle
Welding Capacity: Excellent (250-350 inch/day, which is 4 times higher than the manual welding)
Operability: very good (applicable and easy to operate even if you are a new user within a short period of time)
Surface Forming: Excellent (the welding gun will always be positioned in the optimum position)
Welding compliance rate: 98% min (without re-working for the skilled operator).
Driving Reliability: good
Price: with multiple machine heads, its price is higher than the Piping Cantilever Automatic Welding Machine
Technical parameters
Pipe diameter applicable: DN100-800(φ114-810)
Pipe wall thickness applicable: 3-60MM
Materials applicable: carbon steel, alloy steel, stainless steel and cryogenic steel,etc.
Welding line applicable: welding line of flangepipe
Machine head system: one single machine head two welding guns at one side (for Type A1)/two machine head four welding guns at two
sides (for Type A2).
Driving system: driven the motor of active idler wheel frame
Clamping system: Nil
Bracket system: two sets of active idler wheel frame are to be set and it is adjustable according to the pipe length along the
track.
Counterweight System: Nil
Speedregulation Mode:VF stepless speed control system
Adjustment Mode: manual cross regulator
Swaying system: a product of our patented technology, driven by step motor and oscillating adjusting with digital display.
Control system: a product of our patented technology, PLC control.
Welding Mode: CO2 gas shielded arc welding
Performance features
Online-performance: online equipment for the working of non production line
Application: Slipon Flange for the welding line of the internal and external incidence angle
Welding Capacity: Excellent (250-350 inch/day, which is 4 times higher than the manual welding)
Operability: very good (applicable and easy to operate even if you are a new user within a short period of time)
Surface Forming: Excellent (the welding gun will always be positioned in the optimum position)
Welding compliance rate: 98% min (without re-working for the skilled operator).
Driving Reliability: good
Price: with multiple machine heads, its price is higher than the Piping Cantilever Automatic Welding Machine
Technical parameters
Pipe diameter applicable: DN100-800(φ114-810)
Pipe wall thickness applicable: 3-60MM
Materials applicable: carbon steel, alloy steel, stainless steel and cryogenic steel,etc.
Welding line applicable: welding line of flangepipe
Machine head system: one single machine head two welding guns at one side (for Type A1)/two machine head four welding guns at two
sides (for Type A2).
Driving system: driven the motor of active idler wheel frame
Clamping system: Nil
Bracket system: two sets of active idler wheel frame are to be set and it is adjustable according to the pipe length along the
track.
Counterweight System: Nil
Speedregulation Mode:VF stepless speed control system
Adjustment Mode: manual cross regulator
Swaying system: a product of our patented technology, driven by step motor and oscillating adjusting with digital display.
Control system: a product of our patented technology, PLC control.
Welding Mode: CO2 gas shielded arc welding

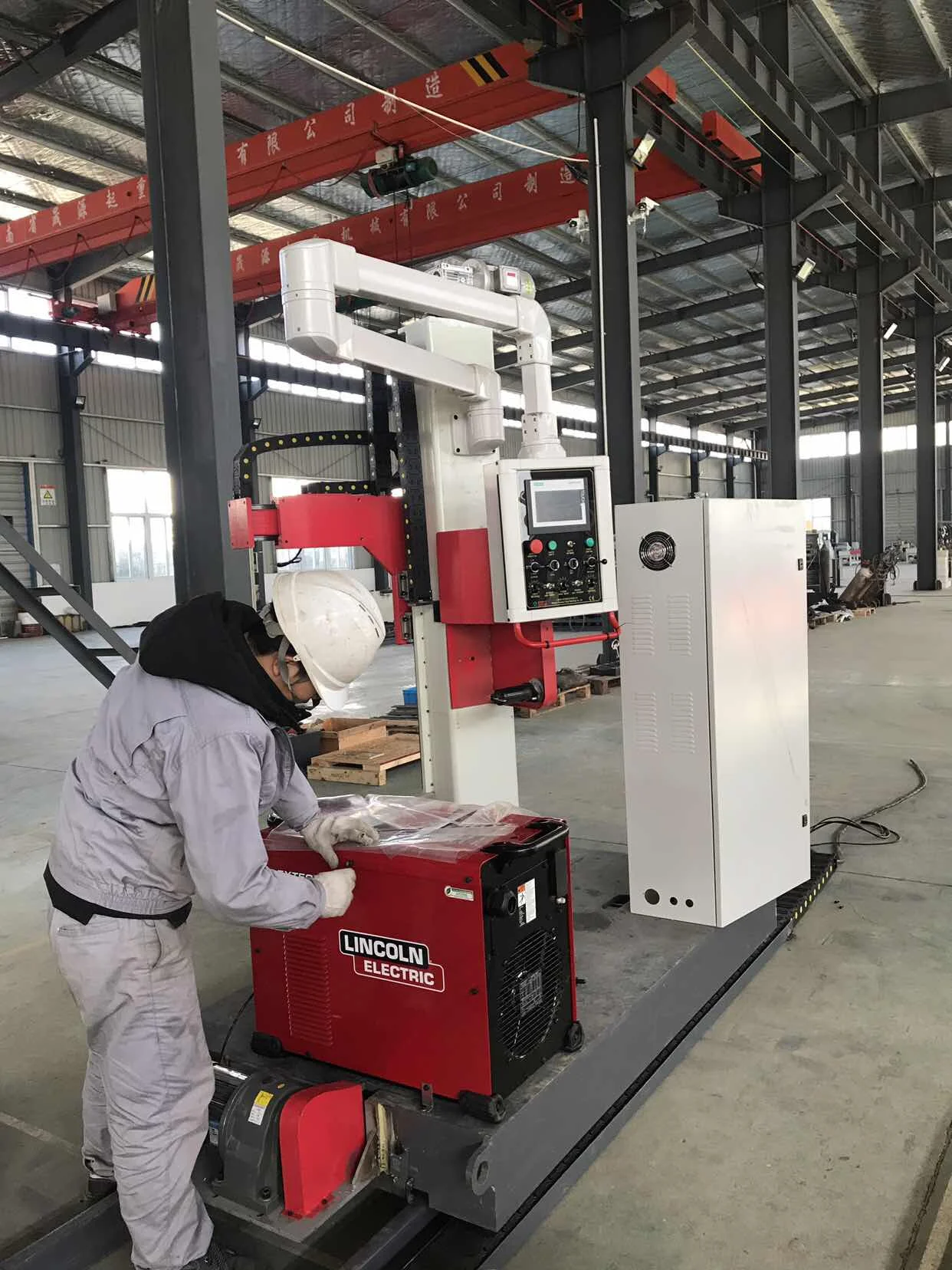

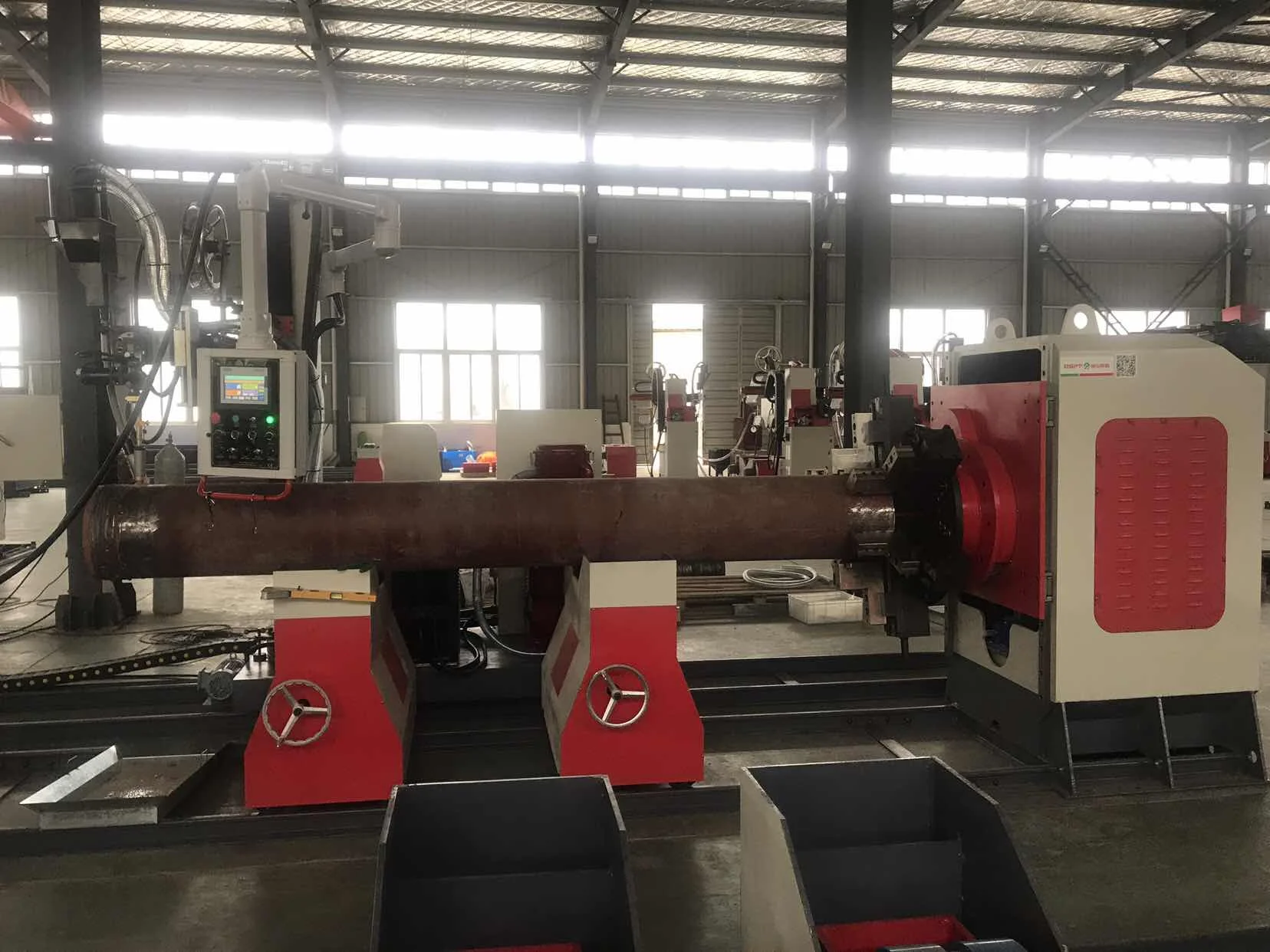

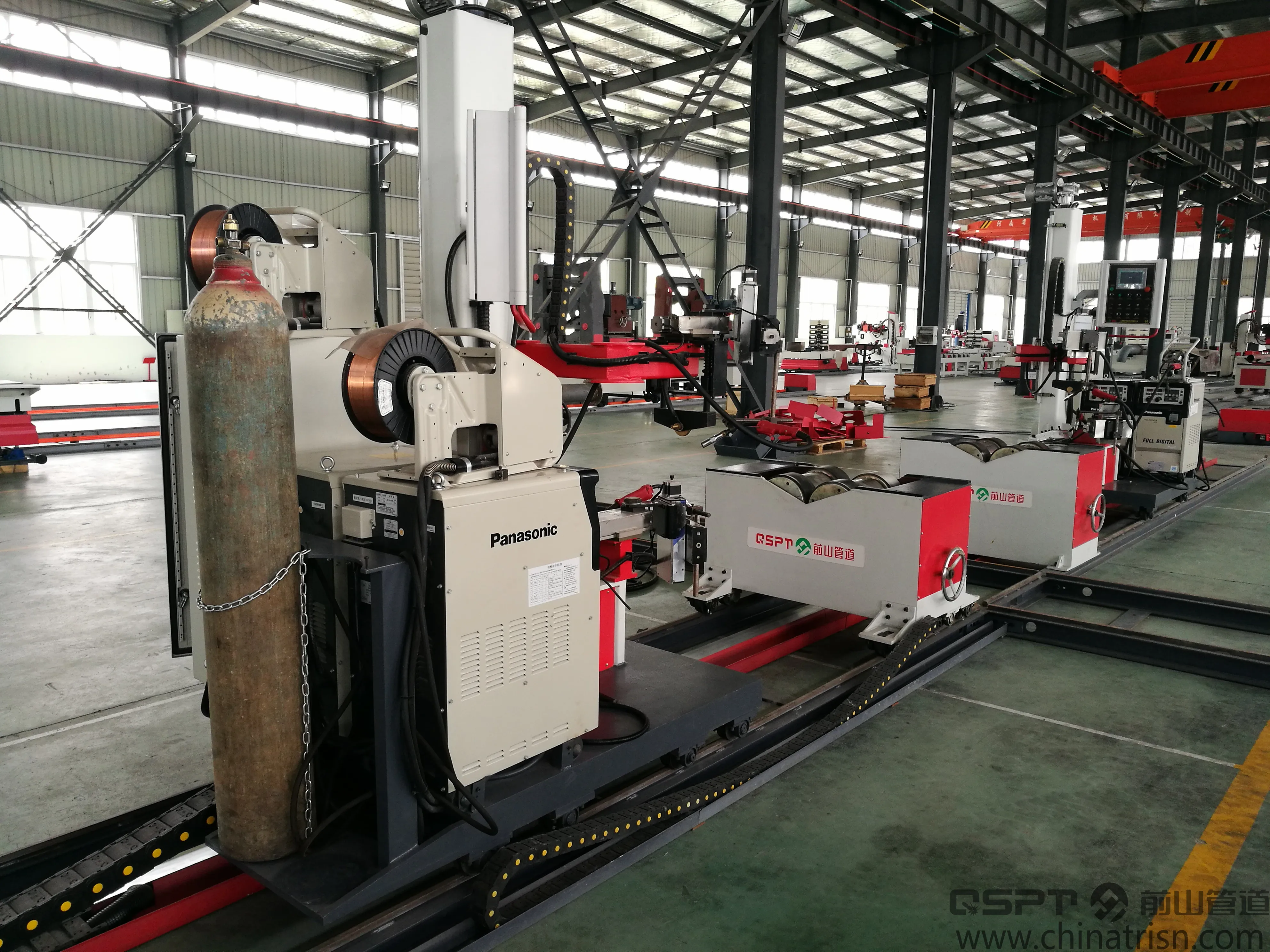

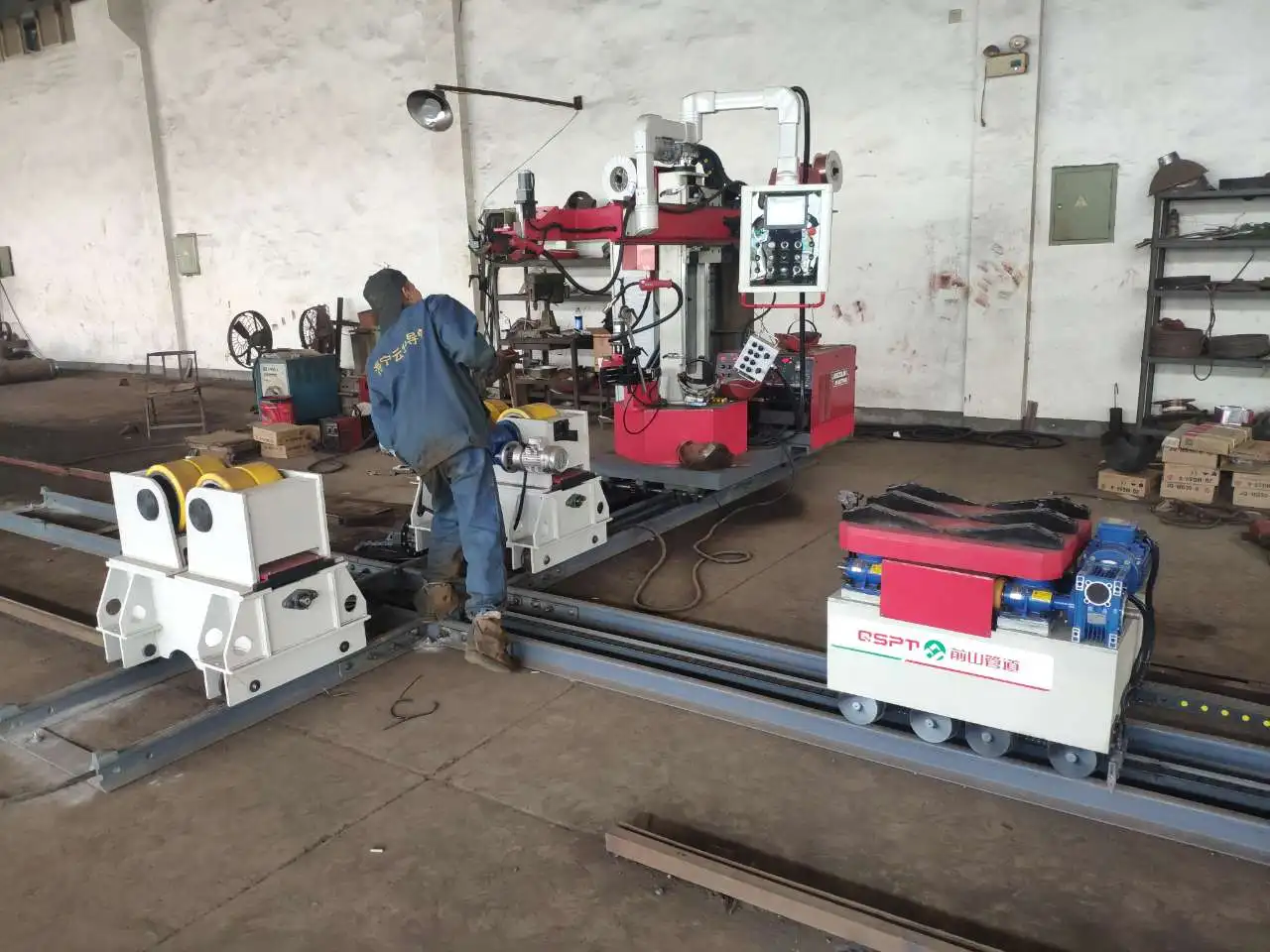

Detailed Images
Company Profile
Shanghai Qianshan Piping Technology Co,.Ltd
Shanghai QianShan Piping Technology Co., Ltd (Q. S. P. T) was established in 2005, is the most innovation ability provider of integrated solutions for piping fabrication, also is the unique provider of professional piping plant design software & management software system and piping equipments in China which included pipe spool fabrication line, cutting equipments, bevelling equipments, fitting up equipments, handling equipments, welding equipments, as well as offer the commercialize piping fabrication service, training & guidence management service for automation pipe spool fabrication engineering project of Oil & Gas,Petrochemical, Petroleum, Chemical Industry, Power Plant,Offshore & Marine Engineering, Shipbuilding Industry, Aerospace,
Electromechanical, Energy Engineering, Cement Plant, Boiler, Pressure Vessel, Heavy Industry, Heat Exchanger, Pipework
Construction and Erection Fields etc.
Electromechanical, Energy Engineering, Cement Plant, Boiler, Pressure Vessel, Heavy Industry, Heat Exchanger, Pipework
Construction and Erection Fields etc.
Certifications
Our Service
1.Classic solution for pipe shopfabrication
2.Customized solution for pipe shop fabrication
3.Intelligent solution for pipeshop fabrication
4.Total solution for pipe shop fabrication
Why Choose Us
Aim of after-sales service: standing in the customers' shoes
Team of after-sales service: Client satisfaction is lowest standard
Site of after-sales service: professional, comprehensive,detailed
promise of after-sales service: to quickly and efficiently resolve all after-sales issues raised by clients without being limited by conditions of costs.
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory based trading company
Q: How long is your delivery time?
A: Generally it is 30-40 days if the goods are in stock. or it is 60-80 days if the goods are not in stock, it is according to quantity.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 40% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us as below:
Похожие товары
700 Вт Роскошная электрическая рисоварка в новом стиле
20,99 $ - 25,00 $
Высокое качество инструмент для обжима кабеля AP-06WF2C Rachet медный обжимной инструмент
7,59 $ - 7,92 $
Отбеливающая травяная зубная паста хорошего качества по низкой цене
Фабричная оцинкованная угловая стальная башня, самонесущая GSM Bts, мобильная угловая стальная телекоммуникационная радар, телекоммуникационная башня
Dainty Necklace Butterfly Diamond Crystal CZ Necklaces Jewelry Gold Brass Charm Colar
1,69 $ - 2,05 $
Набор 3D для кукольных домиков, домашний кинотеатр «сделай сам», подарок на день рождения

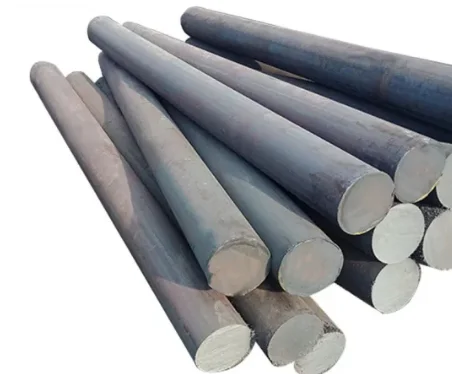

Черный стальной круглый стержень из углеродистой стали St37 стальной стержень
