Product Description

Product Application

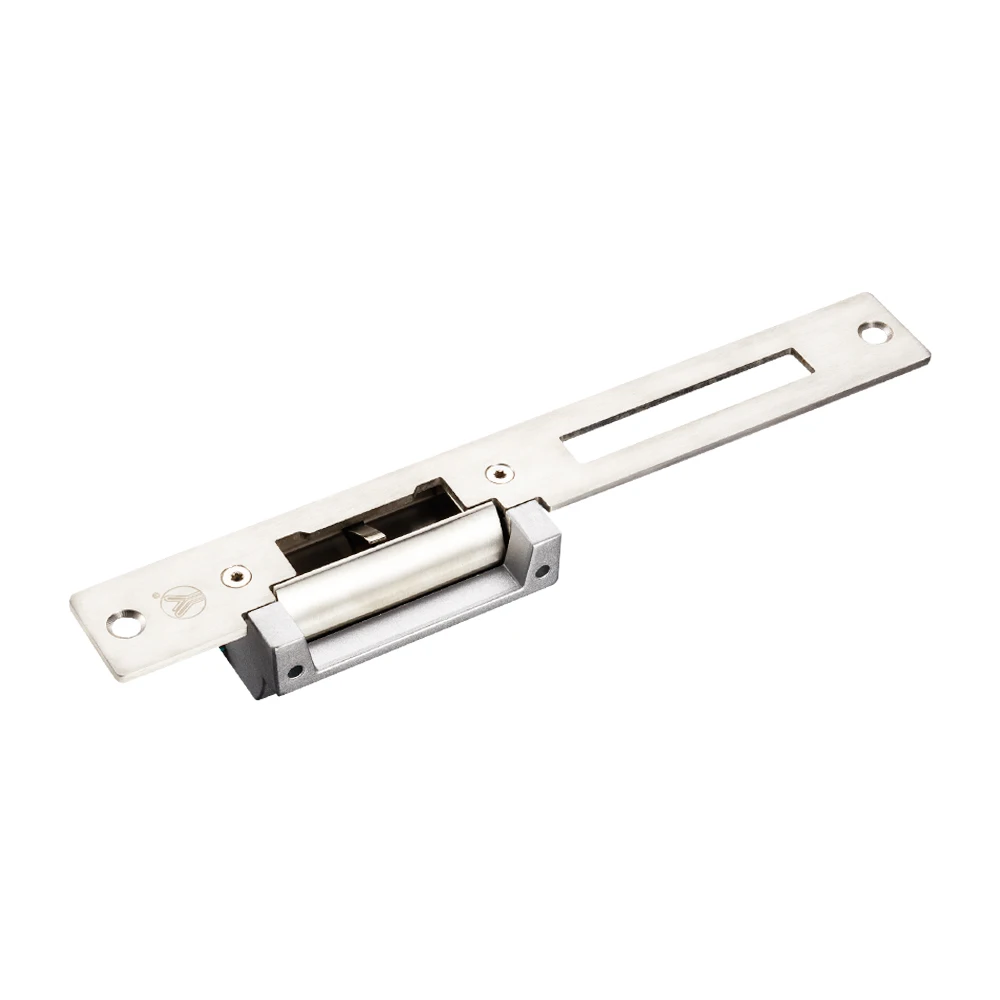

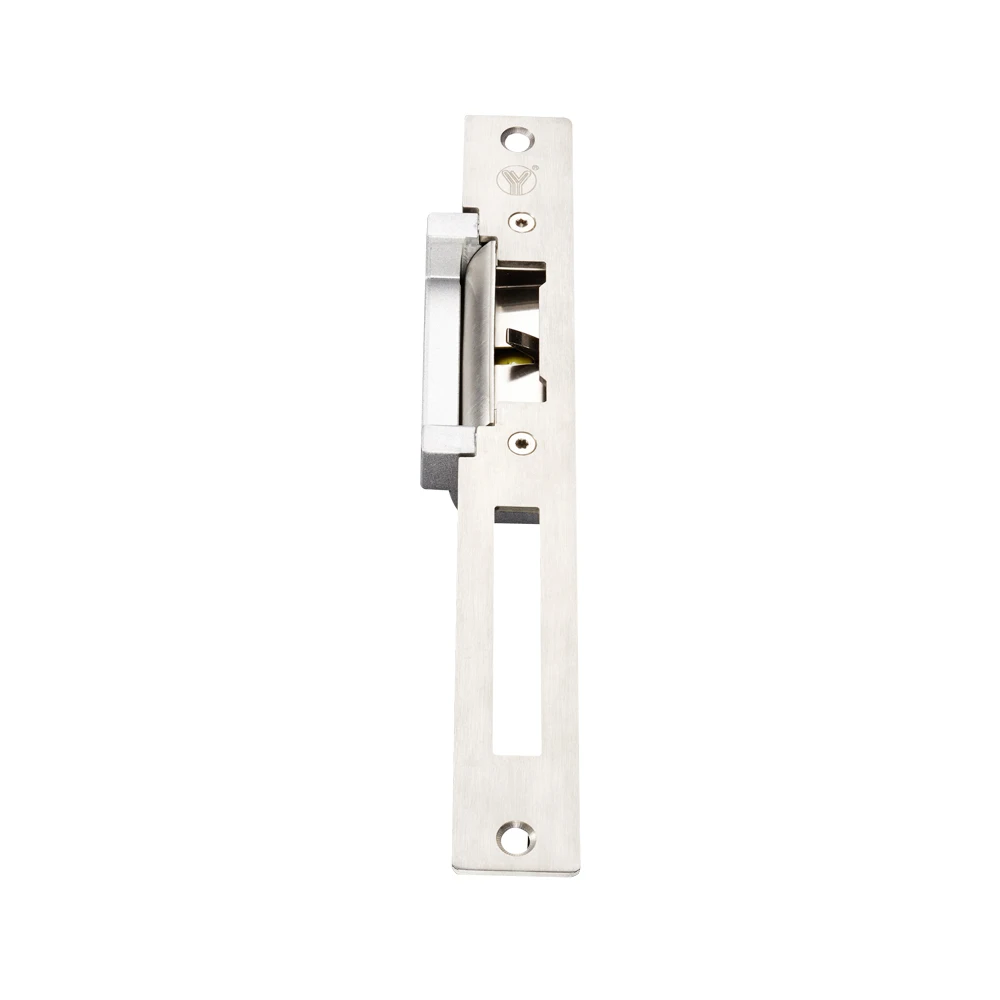

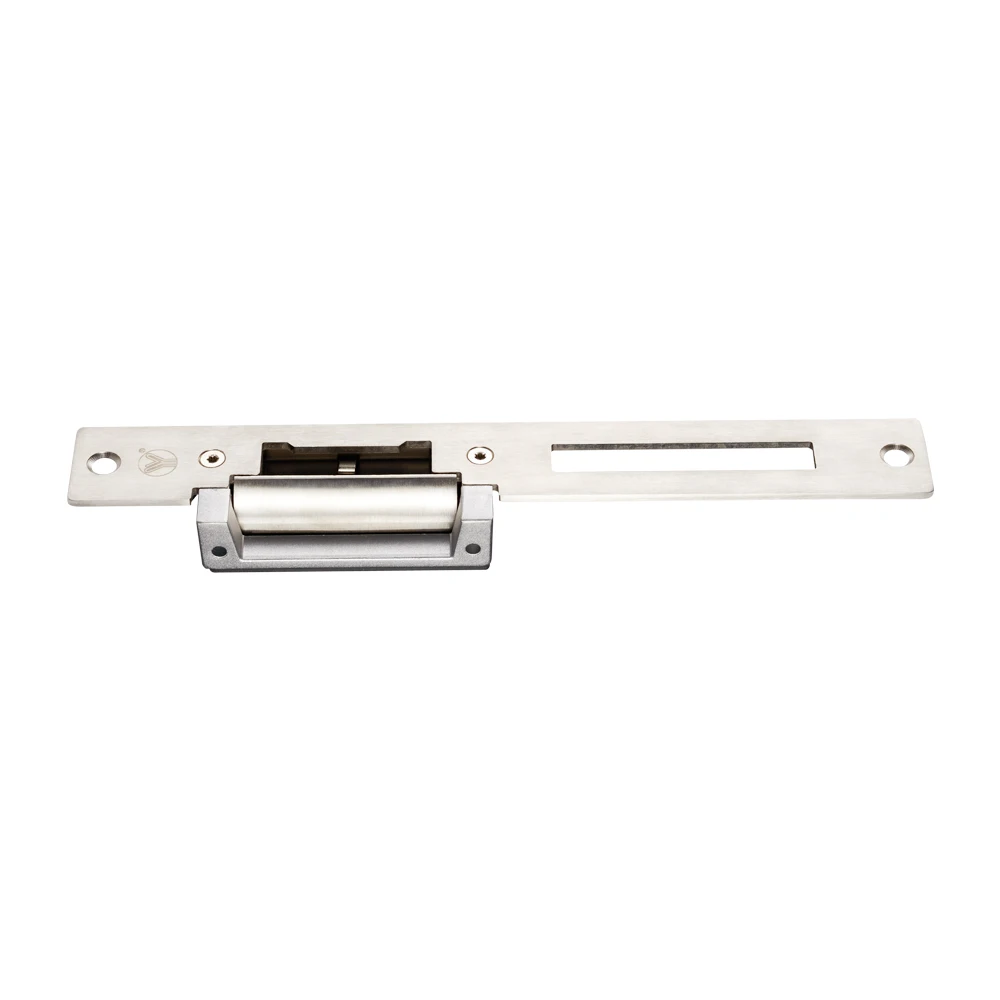

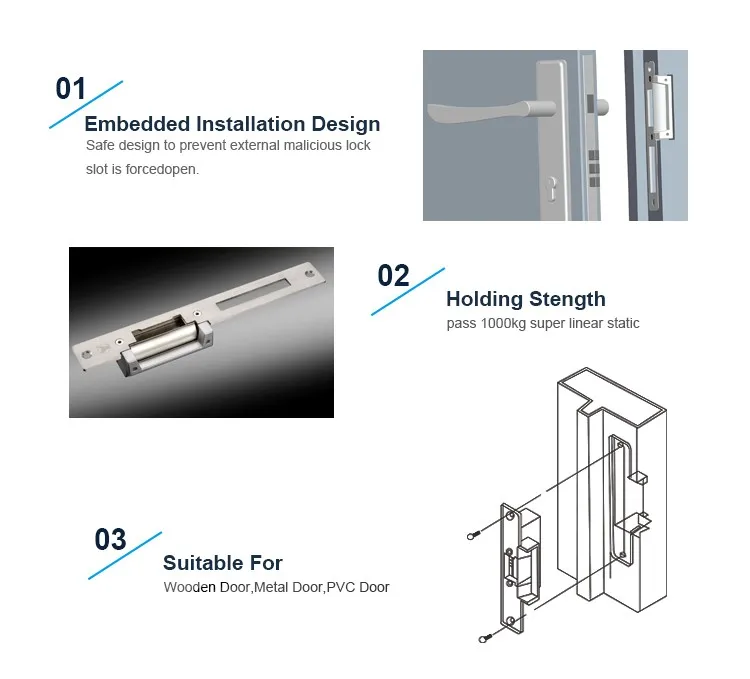

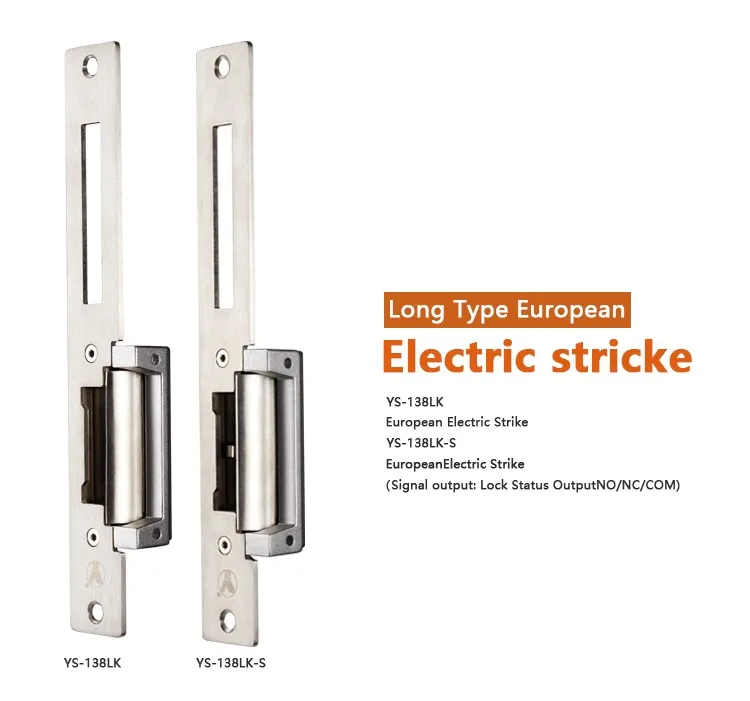

YS-138LK-S is the same as YS-138LK. The difference is that YS-138LK-S has signal output. YS-138LK-s is a Long Type European Electric Strike. Which is made of Stainless Steel. The Holding Force is 500KG. The Voltage is default DC12V. But DC24V is avaliable. The current is Fail Secure(YS-138LKNO); Fail Safe(YS-138LKNC). Which is suitable for Wooden Door,Metal Door,PVC Door.

\t
Lock Size
\t

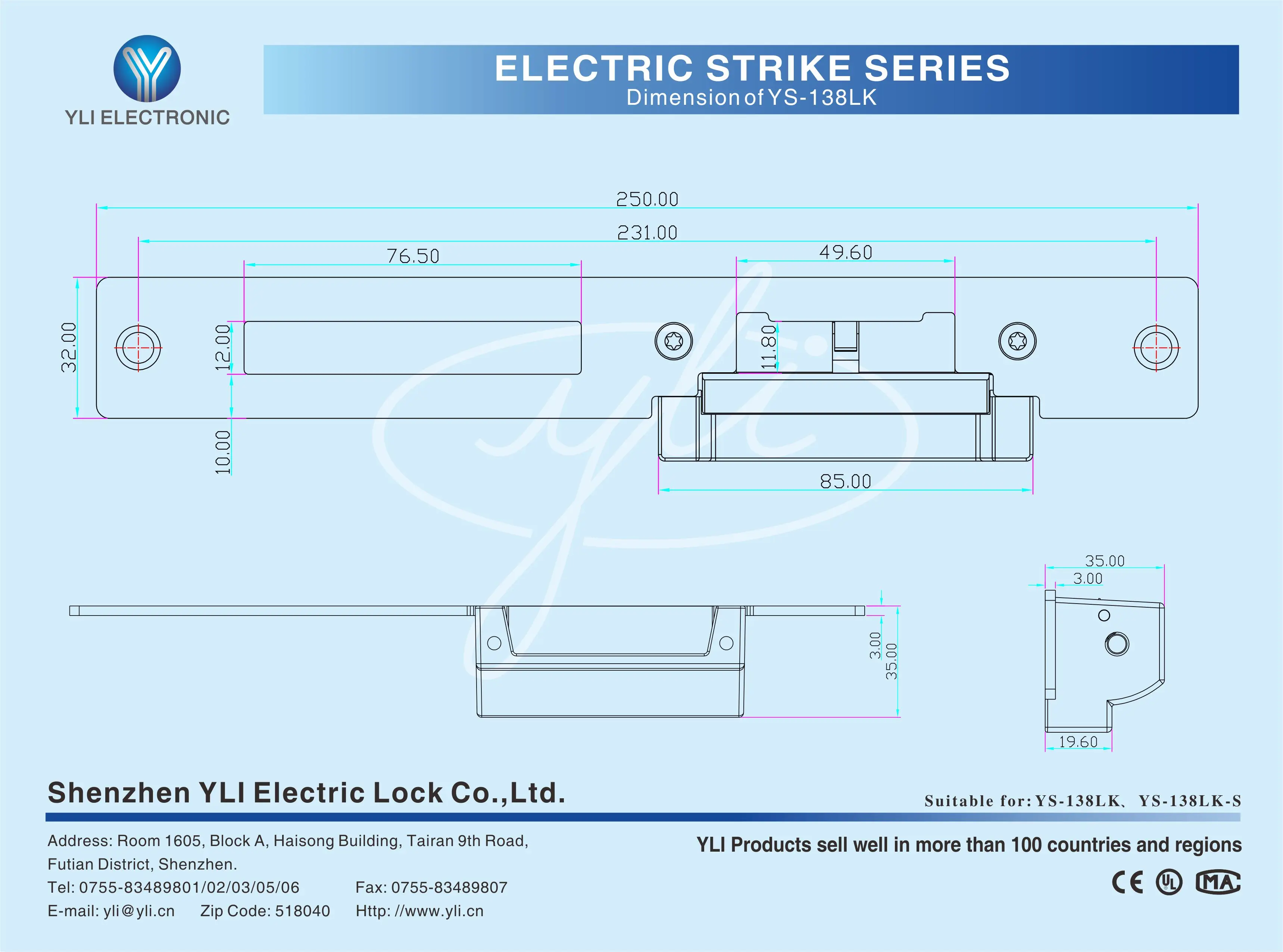

250Lx43.7Wx35H(mm)
\t
Strike Structure
\t
Stainless Steel
\t
Holding Force
\t
1000kg
\t
Voltage
\t
DC12V (Need Order DC24V)
\t
Current
\t
12V/320mA;24V/160mA
\t
Feature
\t
Fail Secure(YS-138LKNO-S); Fail Safe(YS-138LKNC-S)
\t
Suitable For
\t

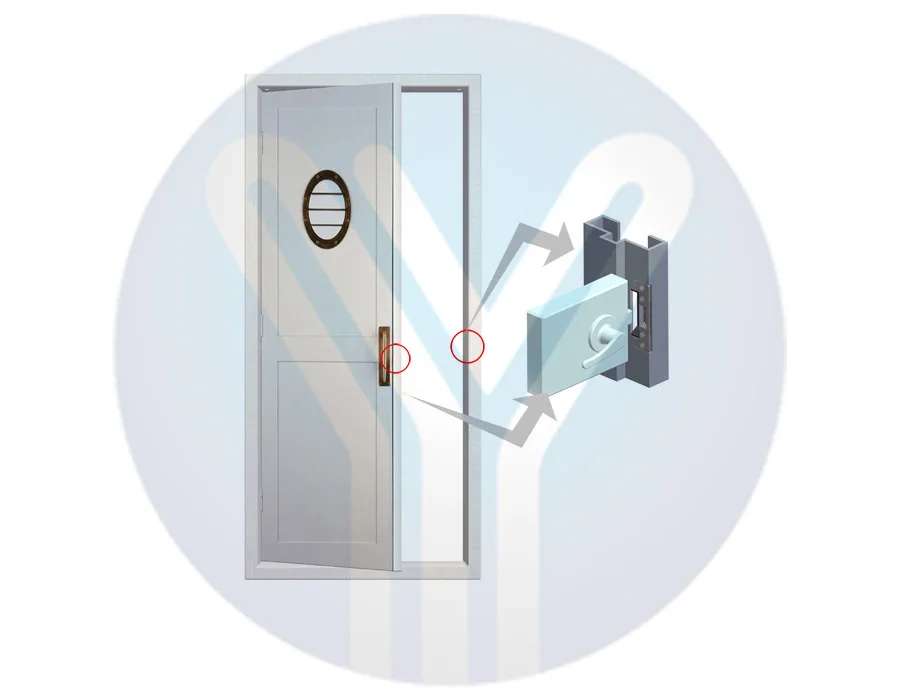

Wooden Door,Metal Door,PVC Door
\t
Signal Output
\t

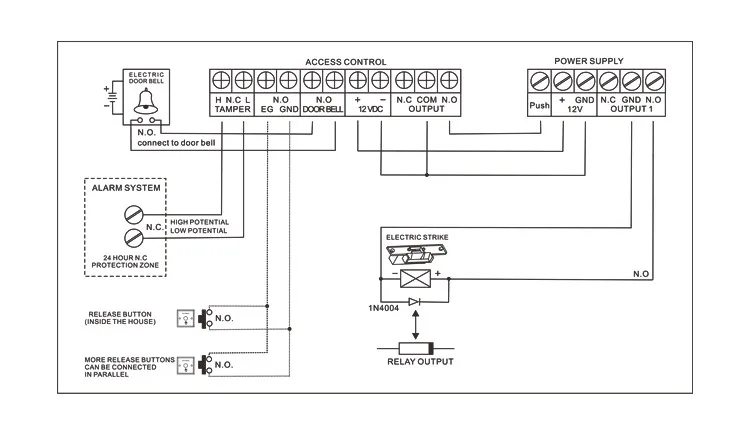

Door status Output,NO/NC/COM
\t
Surface Temperature
\t
Within +20℃
\t
Suitable Temperature
\t
-10~+55℃(14-131F)
\t
Operating Humidity
\t
0~90%(non-condensing)
\t
Face plate Housing
\t
Painted Steel
\t
Function
\t
Built-out MOV
\t
Optional Accessories
\t
YS-308
\t
Weight
\t
0.42kg
\t
Patent No.
\t
201320470904.1
