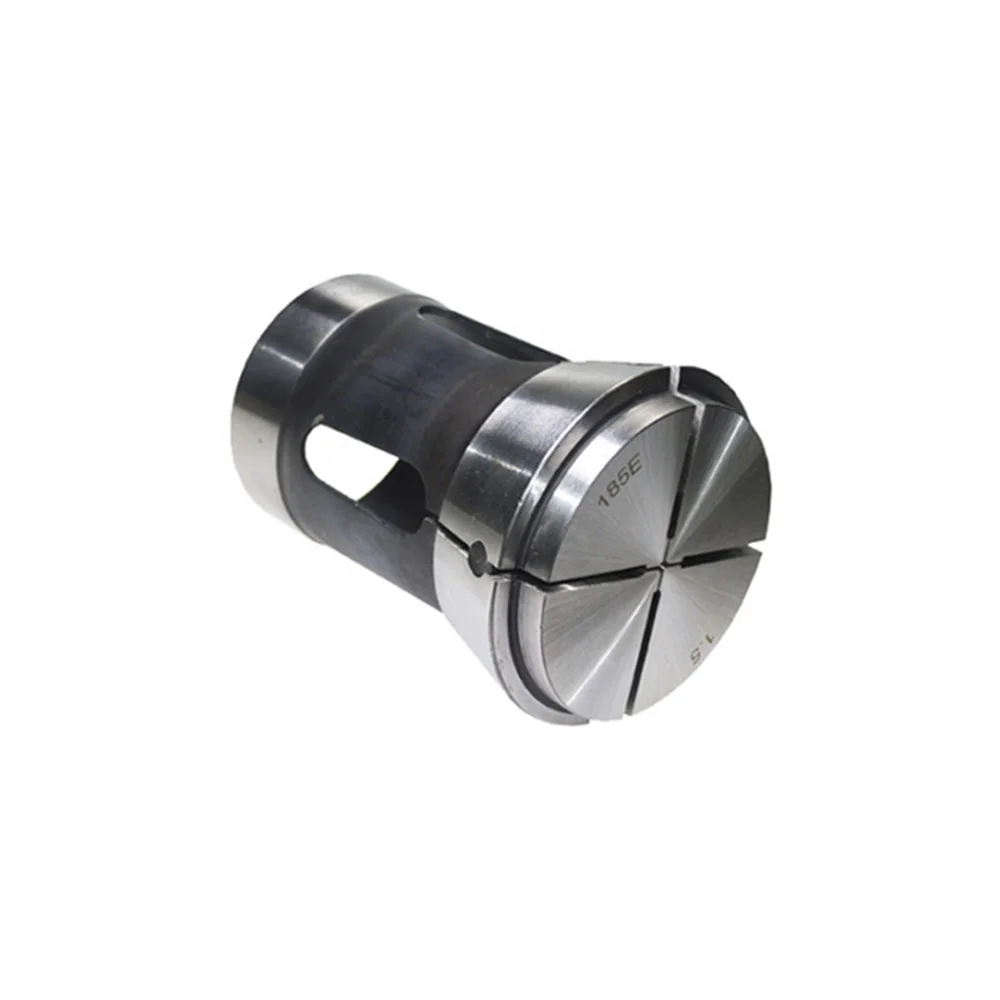

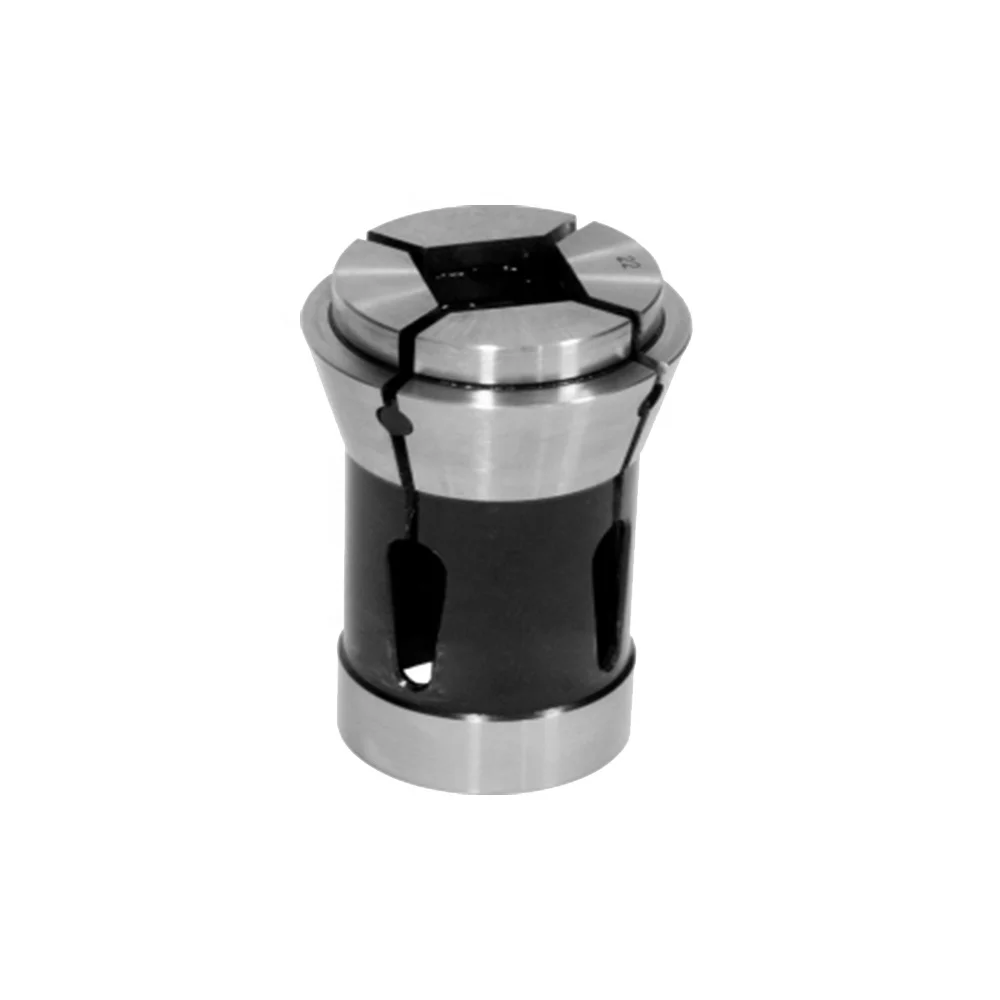

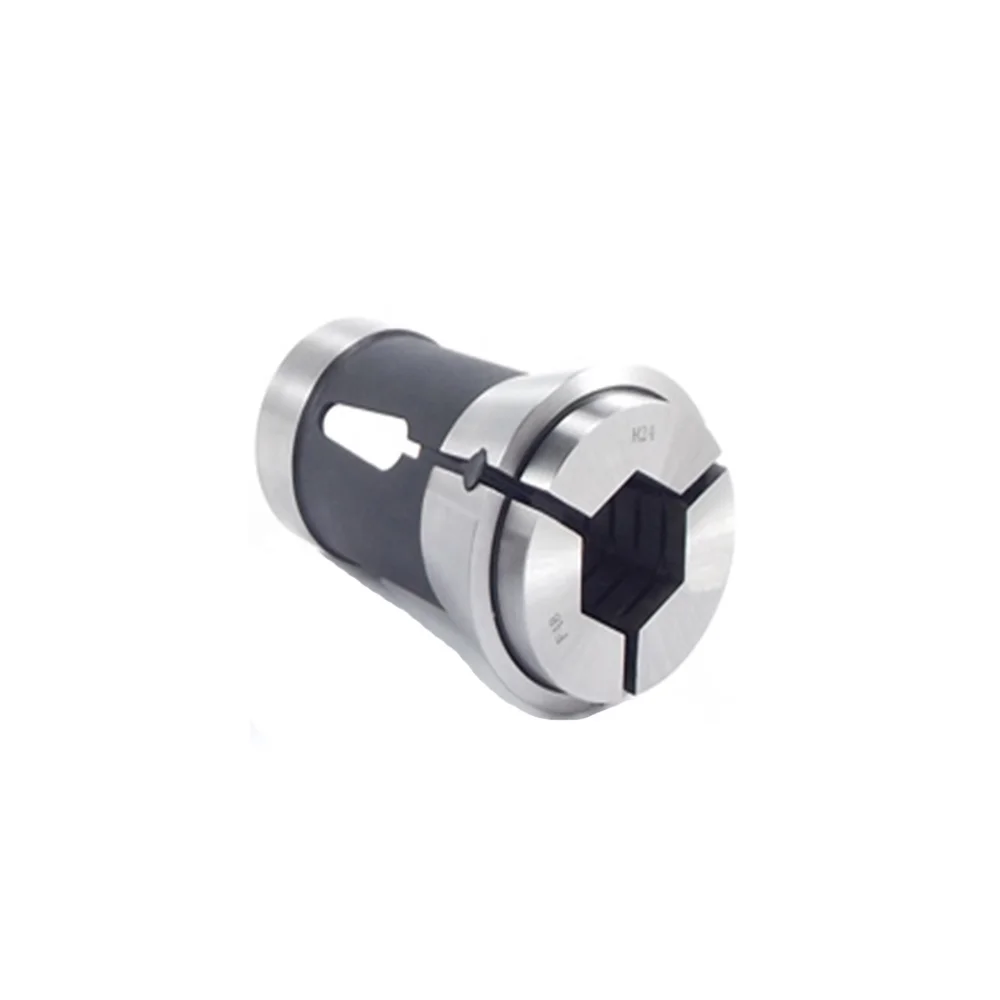

DIN6343 Цанга 173E F48

Описание и отзывы

Характеристики

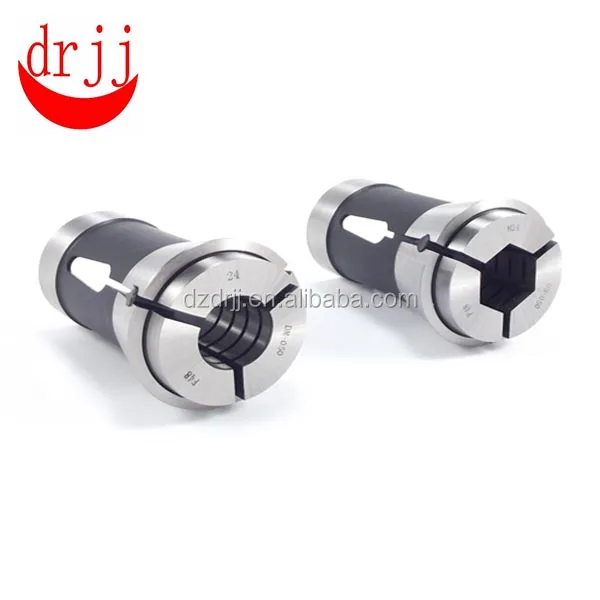

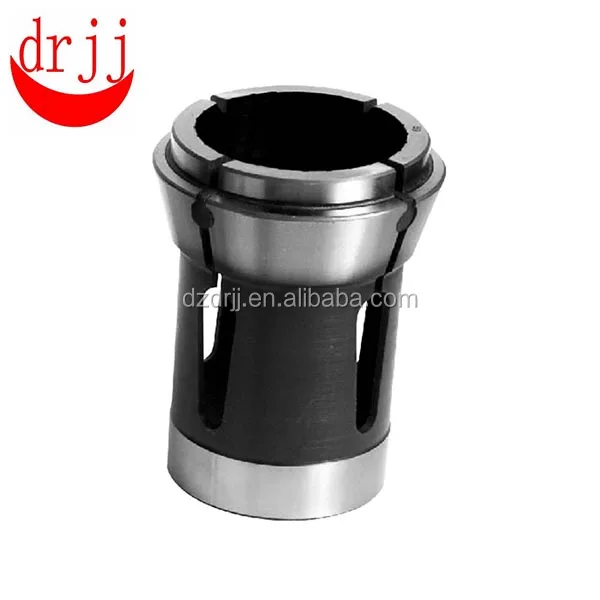

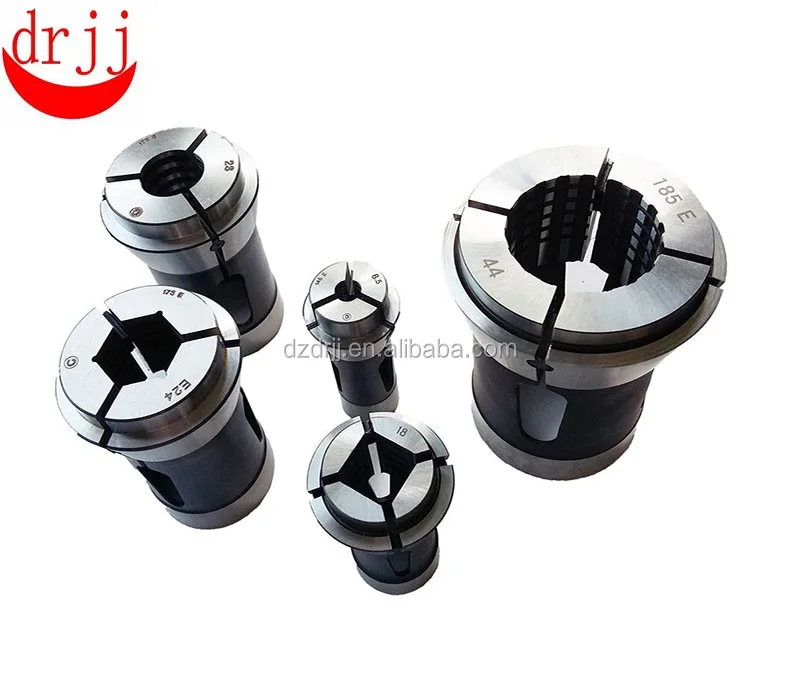

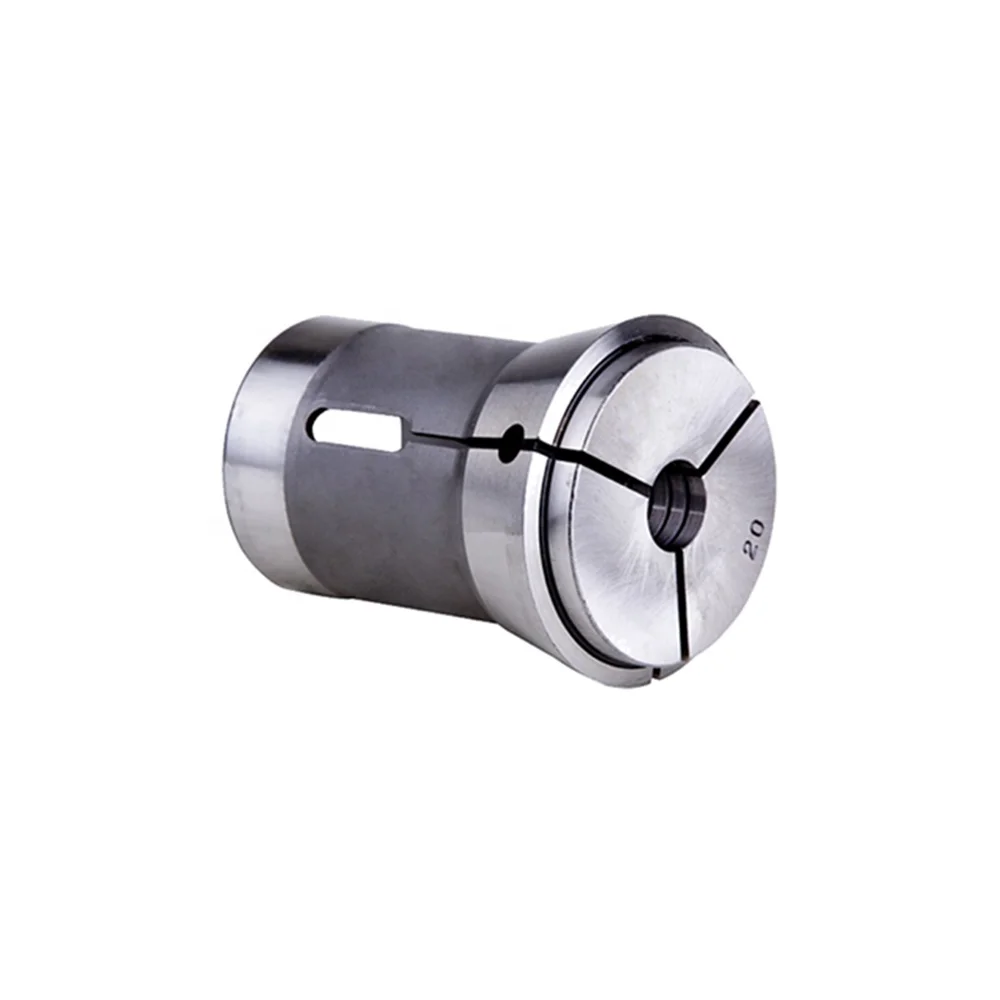

DIN6343  COLLETS 173E COLLET F48 COLLET

Specifications incl uding:

 F17.5   F22   F27   F28   F32   F35   F42   F48   F56  F66

1.ROUND

2.SQUARE

3.HEX

1.made by elastic steel 65Mn

2.power clamping ability, precise accuracy

3.used for boring, milling, drilling, tapping, grinding and engraving operation, etc.



Product information:

Product name	DIN6343 173E Collet/F48 Collet
Material	65Mn
Accuracy	0.008mm
type	round/square/hex
Color	Silver
Package	Plastic Box
Payment	100% T/T

Product information:

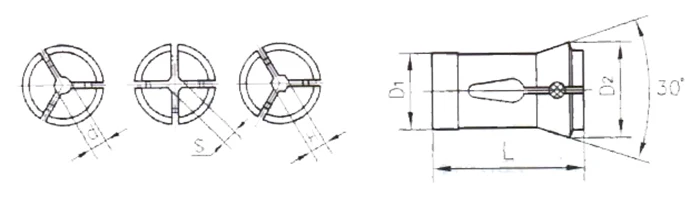

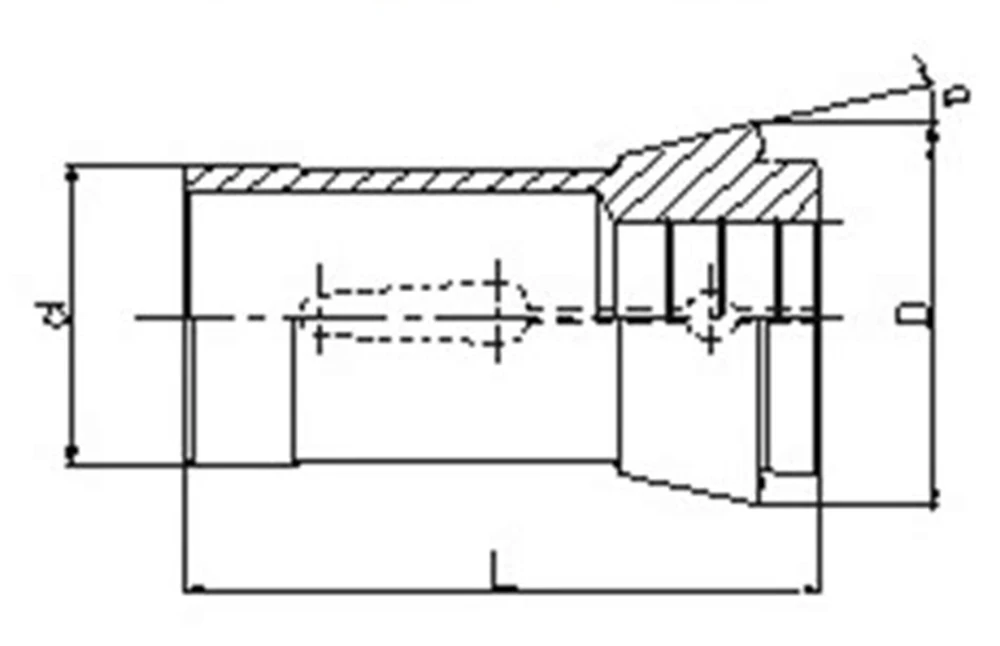

Size requirements:

D1(mm)	D2(mm)	L(mm)	Hole size(mm)			Wt(kg)
			Round	Square	Hex
42	55	94	36	25	30	0.49
48	60	94	42	29	36	0.57
56	68	94	50	35	42	0.65
66	84	110	60	42	52	1.16

Type		F17.5	F22	F28	F32	F35	F42	F48	F56	F66
Hole mm	ROUND	2~13	2~16	3~22	4~26	4~30	4~36	4~42	8~50	10~60
	SQUARE	2~8	2~11	3~15	4~18	4~212	4~25	4~29	8~35	10~42
	HEX	2~10	2~13	3~19	4~22	4~26	4~30	4~36	8~42	10~52

Package:

Shipping:

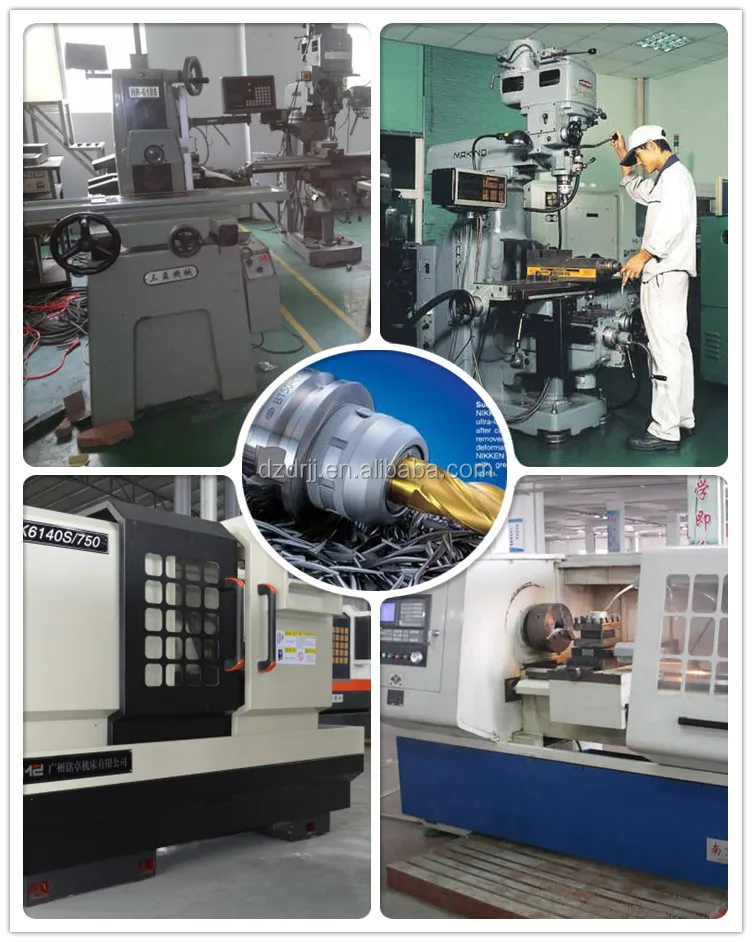

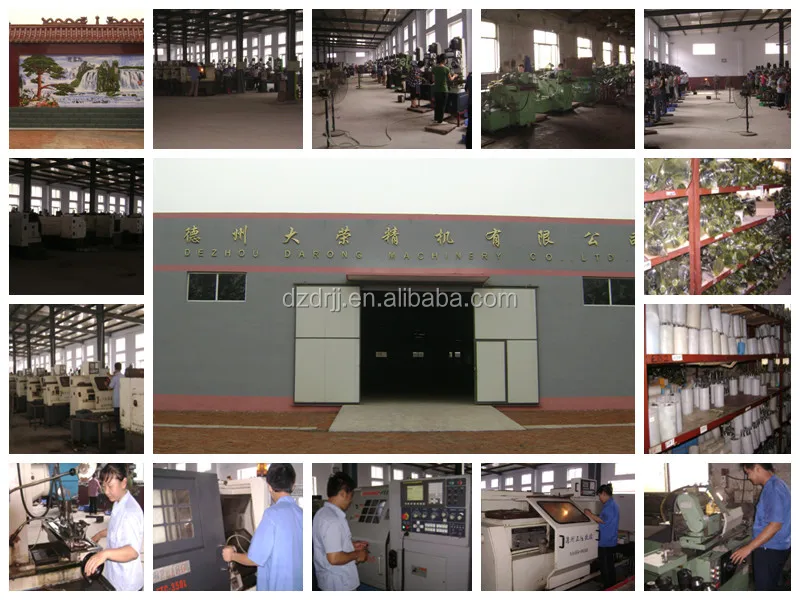

Company profile:

We are a manufacturer established in 2003.  Specialized in design, manufacture and marketing of machine tool accessories.



Production includes milling chuck series,CNC tool series,collet series,boring heads series,tapping chuck series,pull studs,er nuts,centers,mores taper sleeves,drill chucks,precision tool vises,parallel block series,V-block clamp,etc.



Sales covering the USA,Germany,Britain and regions in South Asia with increasing trust from customers.We are capable of supplying accessories with German standards,Japanese standards,American standards as well as national standards.



Daeung Precision Machinery Concept: Talent Management Innovation Management Development
Daeung Precision Machinery Education Principle: Create development space and cultivate outstanding talents.
Daeung Precision Machinery adheres to the principle of “Quality is the first, skills are the top, and the application is applicable”.
Daiei Precision Machinery Behavior Guide: Honest and trustworthy, proud to abide by the law, and proud of working hard.

The fundamental driving force of Da Rong Machinery Co., Ltd is talent
The biggest feature of Da Rong Machinery Co., Ltd is innovation
The biggest gain of Da Rong Machinery Co., Ltd is to grow
The biggest expectation of Da Rong Machinery Co., Ltd is development
