Нагревательный элемент ptc для самой маленькой бытовой техники

General Specification

1. Power: 5W-1500W

2. Rated Voltage:12V/24V,100V~120V,220V/230V/240V

3. Surface Temperature: 60°C~300°C , the temperature tolerance less than ±5°C
4. Lead wire spec: AWG24,  length:180mm

5. Certifications: UL,CQC,RoHS,Reach.

Note:

 The lead wire, fiber glass sleeve, insulate film and shells can customized.

Main Features

a.  High heating efficiency.

b.  Low electricity consumption : High temperature with low current.

c.  Self-regulating for temperature, safty & long life.

d.  Low noise level.

e.  Wide application area.

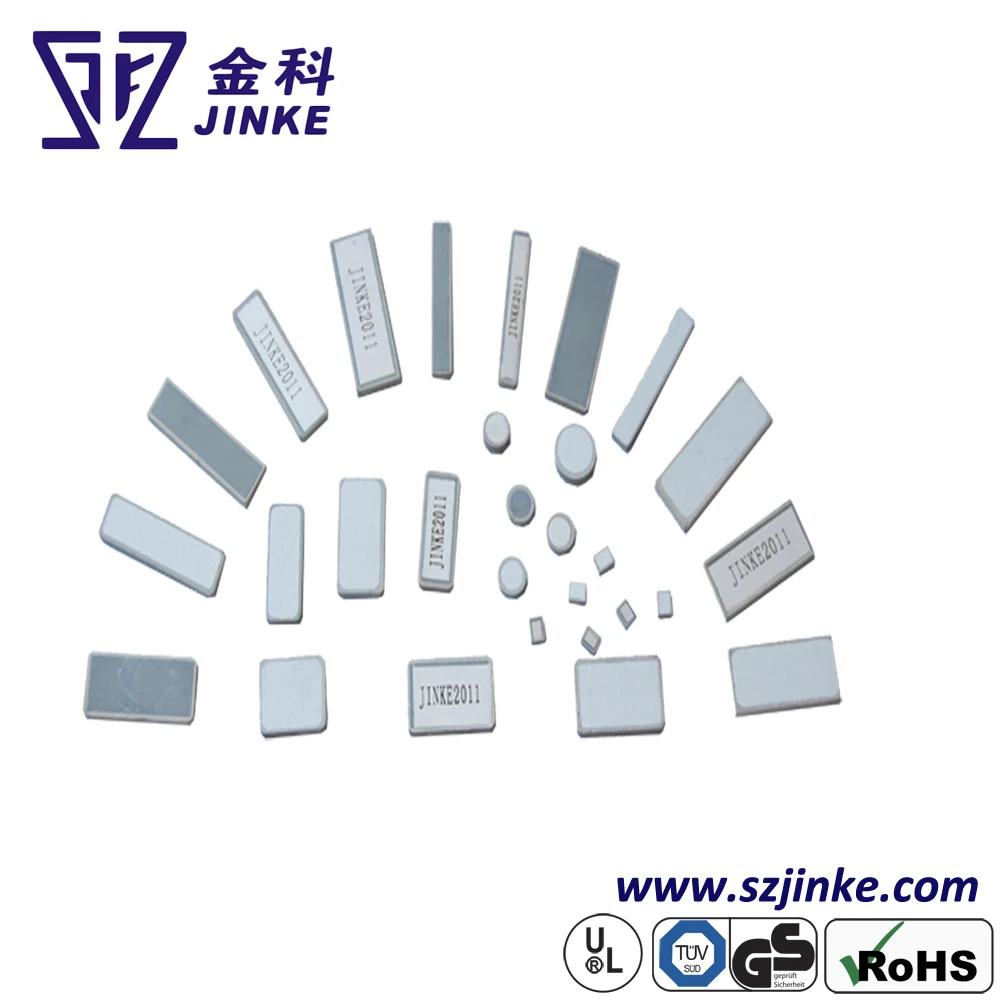

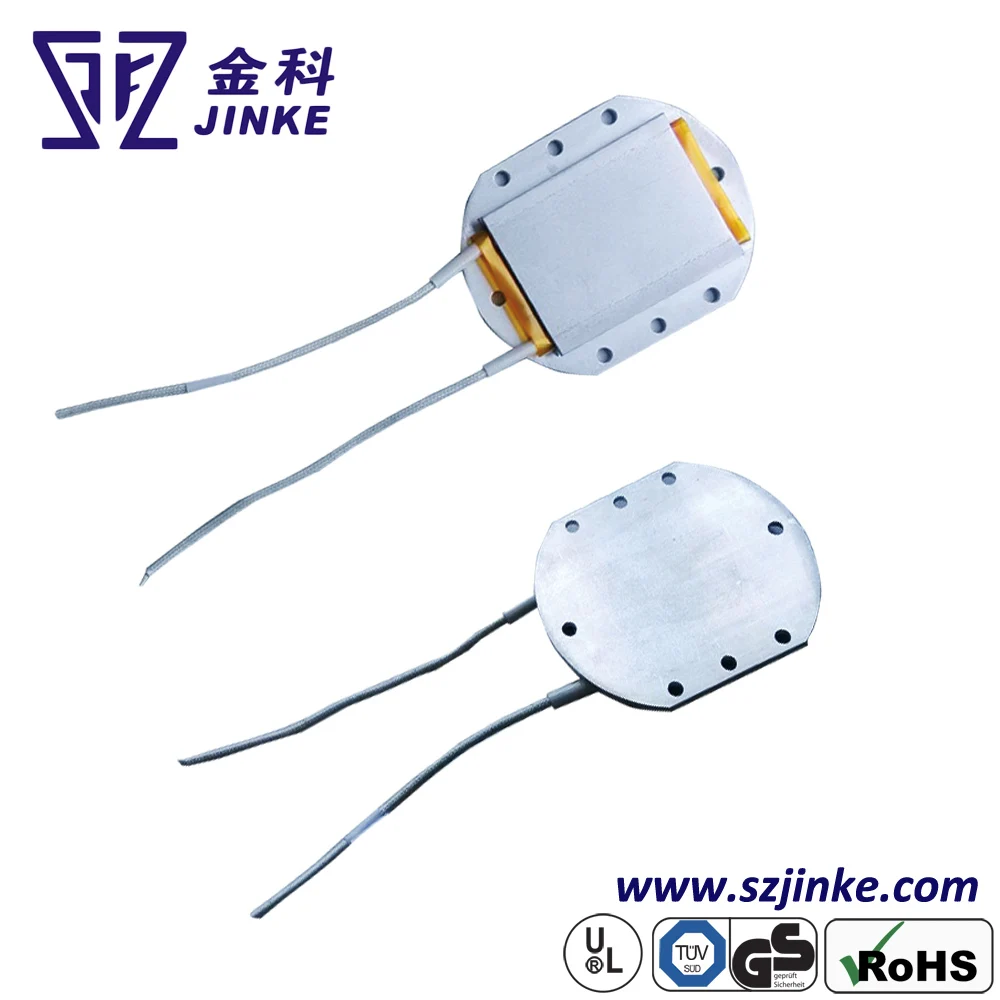

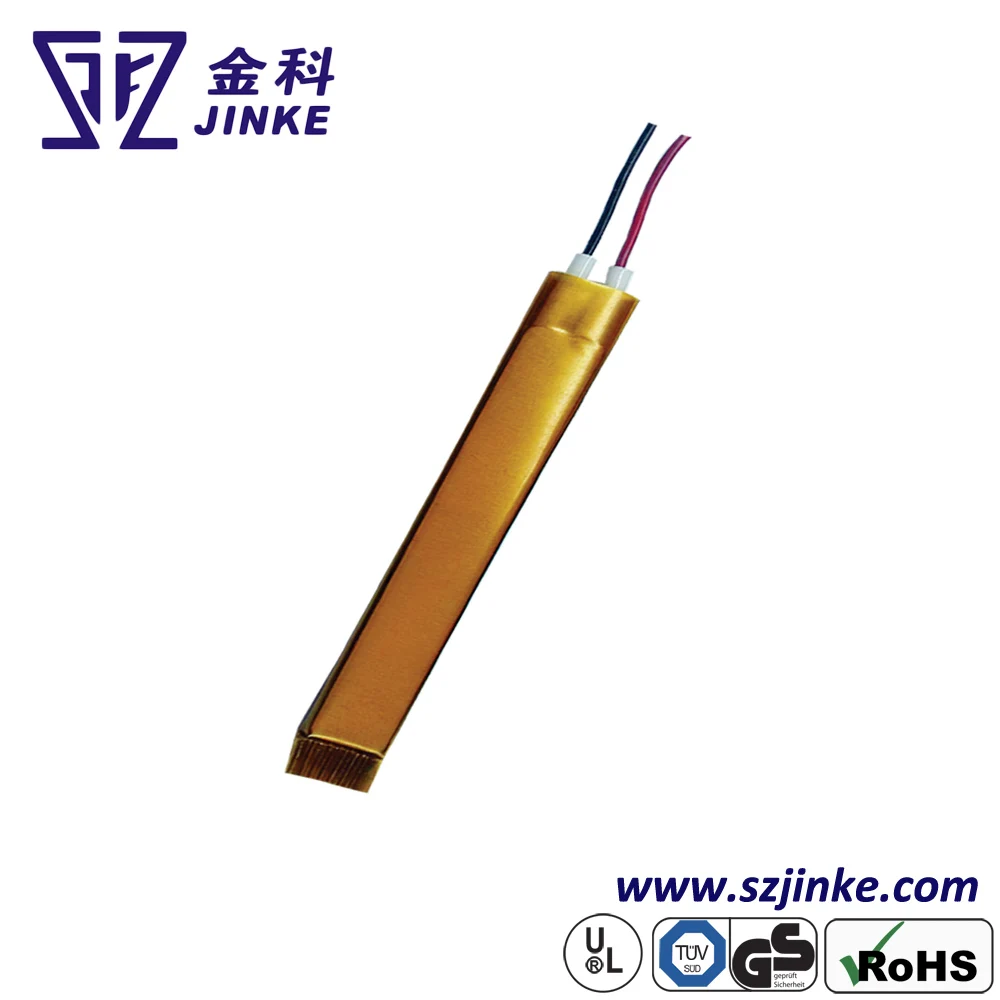

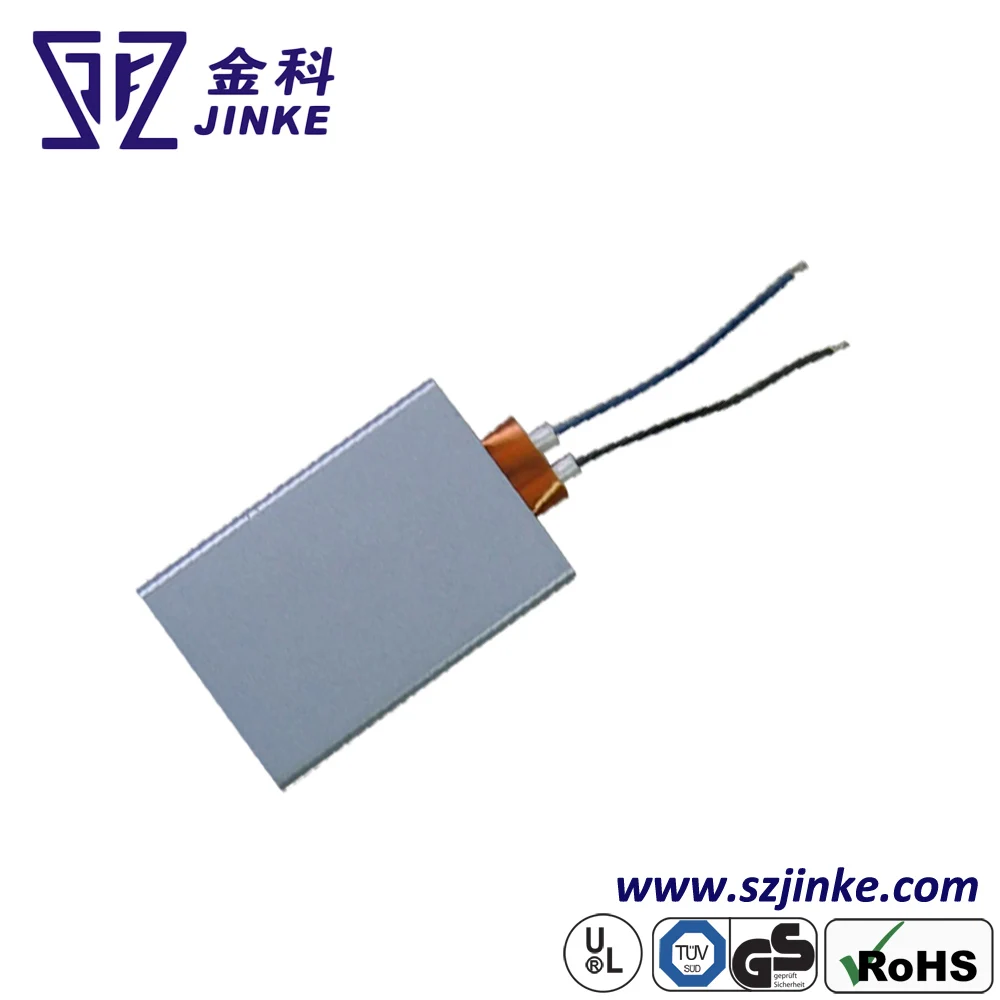

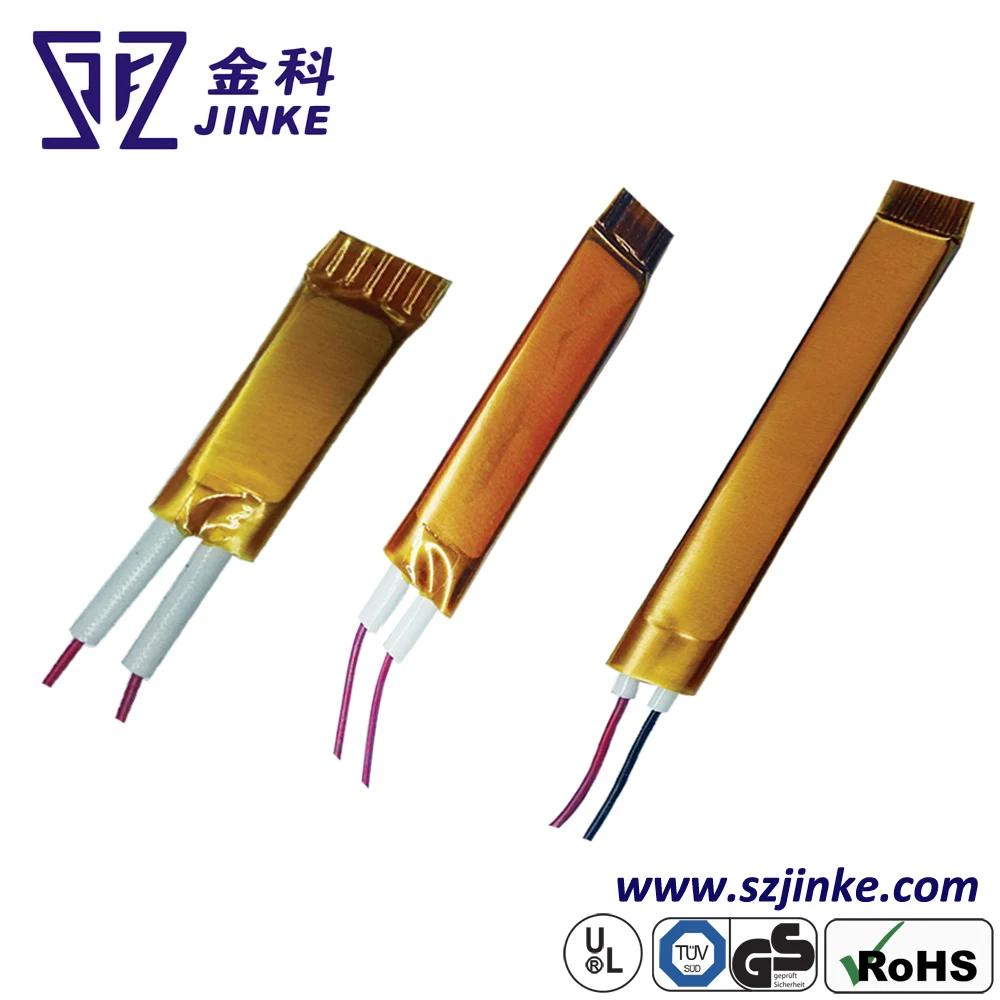

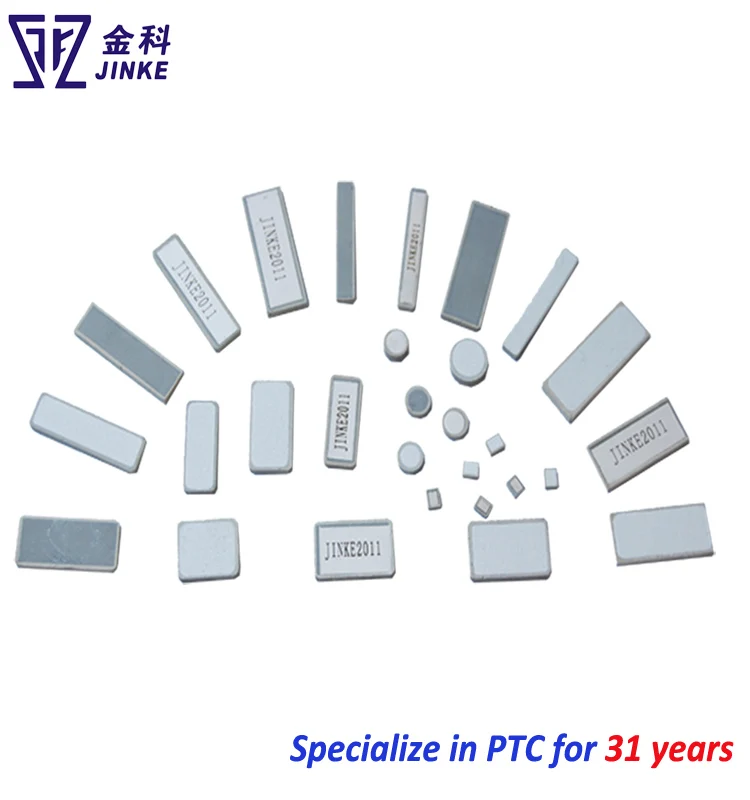

product pictures

Product Quality certification

UL & TUV & SA & CQC

ISO/TS16949:2009

ISO9001:2008

ROHS & REACH

Ptc heater workshop

Ptc heater other Main Applications

Notice in application

1)After switching on, the power is large, and then decrease, finally it become steady state. The steady state power changes with applied conditions. Faster is the heat conduction, higher is the steady state power; higher is the surface temperature, higher is the power.

2)The surface temperature of this kind PTC heater  can be controlled by itself, control circuit may be omitted in most appliances.
3)Our PTC products are high reliable, long lifetime, but if they are assembled improperly, the power or temperature may be instable.
4)Parallel connection is necessary for two or more solar water heater element connection

Our main customer

 packaging&shipping

Standard packing: Plastic bag + foam plates + Cartons

Carton size: 40cm * 22cm *19cm

Our services

Quick response: Your inquiries and quotation will be replied in 24hours

Sample support: 3 free samples are available in 5~10days.

ETD: Your orders will be finished in 20-60 days, depends on quantity.

Payment term: T/T, L/C, D/P,D/A, Western Union & Paypal (samples only)

Company informations

Shenzhen Jinke Special Materials Co.,Ltd was founded in 1987. We are the first & biggest PTC heating element manufacturer in China and an high technology enterprise of R&D, production & sales. Our company have the ISO9001:2008, ISO9001:14001, and TS16949 certifications.

Our main products include PTC heating element, PPTC resettable fuse, ceramic fan heaters, coolers, humidifiers, graphites, and carbon nanotubes. All the products have been approved by UL,ROHS,CE certifications. OEM & ODM are welcome!
