Тестер коэффициента теплового расширения
- Категория: >>>
- Поставщик: Hunan Zhenhua Analysis Instrument Co. Ltd.
Сохранить в закладки 244584646:
Описание и отзывы
Характеристики
Product Description

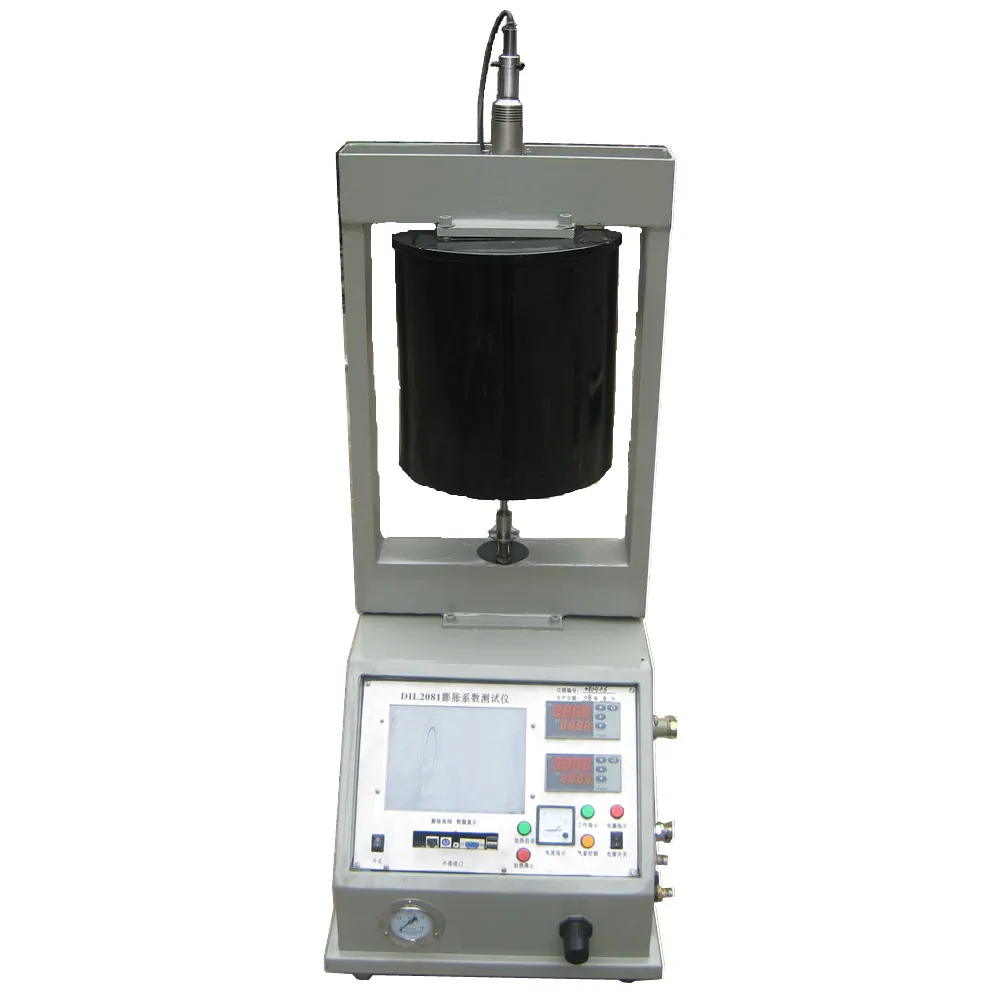

DIL2081 Materials thermal expansion coefficient tester
DIL0806 A/B Thermal Expansion Coefficient Tester main technical parameters:
1. Measuring
(1) Fundamental system of thermal expansion tester: vertical, horizontal two types for choice, with integration of integrated measuring amplifier and inductance displacement sensor measuring alloy head, vacuum sealed structure, constant temperature water-bath protection sensing base, measuring head location can be adjusted. High-precision adjusting contact pressure. Measurement range: 5000µm; resolution: 0.1µm; the contact presssure measurement of head: 15 ~ 45cN; length adjustable length range of sample: 25mm ~ 50mm; sample size and temperature range depends on sample’s frame,furnace and the protection furnace tube; diameter 10 ~ 50mm;
(2) Temperature range(oC): room temperature --- 300oC;
(3) Furnace power supply 2.0kVA, with enclosures;
(4) The length of stent devices sample 0 ... 50mm, sample the largest diameter: 50mm including casing, putt and sample thermocouple; (K, E, R, S, B, W-Re, etc.);
(5) Constant temperature circulating water bath with cooling function, cooling power 260W (at 20 ) (heating power :2000W), temperature stability ± 0.01K, multi-function display with 10-meter pipe and connection components, power supply :230V/50/50Hz.
2. Control, measurement and data collection:
Thermal Analysis System controller is made up of data acquisition and temperature control, which includes the following functional blocks: Dual analog input, resolution + / - 2.000.000; input is isolated by photoelectry; range switch preamplifier; do temperature programming for different types of temperature sensors; line heating / cooling rate is adjustable from 0.01 to 999.99K/min; thermostat time is changeable from 0-99 hours 59 minutes ; analog PID temperature controller with STC function; temperature compensation, thermocouples and disconnect protection; display temperature and all thefuntions through the external computer the software; connected computer PCI or USB2.0.
3. Software system:
(1) In MS WINDOWS XP, win7, 32-bit environment, the thermal analysis software package is for data acquisition, storage and analysis. Features: a graphical user interface, integrated detailed help system;
(2) Can be connected to the PCI board of USB, with 2 m cable.
4. Standard sample and vacuum device:
(1) Fused silica standard sample, d6 × 25mm, with expansion coefficient table;
(2) Vacuum system, two-blade rotor pump (4.2m3 / h), ventilation valve, stop valve, mechanical pressure gauge and oil mist separator.
Packaging & Shipping
1 Delivery date: 30days
2.Payment terms: TT 30% in advance as the deposit, the balance to be paid before shipment.
3.Package: standard exporting plywood case.
Our Services
Contract execution
² Machine production will be arranged strictly according to the contract;
² Machine photos will be sent to you for inspection during production;
² Send customs clearance documents by DHL;
² Update latest news after delivery and prepare customs clearance;
After-sale service
² 12 months warranty except for wear parts;
² Broken spare parts (except for wear parts) will be sent for free due to quality problems;
² In time response to customers technical problems;
² New products update for customers' reference
Company Information
FAQ
1,Is your company a trading company or factory?
A:Factory + trade (integration), has 15 years focusing on test instruments field, 9 years
exporting experience.
2,After an order is placed, when to deliver?
A:Generally about 10-25days, If we have inventory, we can arrange shipment within 3 days.
Please be aware that our production lead times depend on specific items and item
quantities.
3,What’s the payment term?
A:T/T,L/C and other payment terms could be negotiated.
4,What's the warranty and after-sales service?
A:12 months warranty. Feedback to you within 24h and help you to repair your problem
controller freely, even it's not from our factory.
5,What the standards do you adopt?
AWe have been adopting the world standards and regulation such as ISO, ASTM, DIN, EN, GB,
BS, JIS, ANSI, UL.
6,What about the product' services and quality?
A:Each instruments must be carried out 100% quality examination and test when shipping and delivery goods. Product use training, each of our product provide video training to show you how to install & operate. We can arrange engineer to train the operation of equipment to customer’s company when you need. And our Main clients : TUV, ITCO and Hantech.
7,What's the cooperation Process?
A:Inquiry - quotation - communication - order confirming - deposit payment - production -
testing and debugging - balance payment - packing - delivery - customer receiving - after
service.
8,Why choose us?
1, Considerate Service Different countries plugs, manually change the-voltage from 110V to
220V, insurance indicator.
2,Excellent After sale Service:
12 months warranty. Besides, we can help you to repair your problem controller freely, even
it's not from our factory. What you need to do is to send us the controller.
3,Commitment:
We will sign a letter of commitment while we sign the contract, which will improve your
confidence to us.
4,Good Packaging: Simulation Animatronic Customer Triceratops are covered with air bubble
film before put them into the wooden case, which not only has good shock absorption, impact
resistance, heat sealing and also has the advantages of nontoxic, odorless, moisture
corrosion, good transparency etc.
Main Product
 |  |
 |
|
Похожие товары

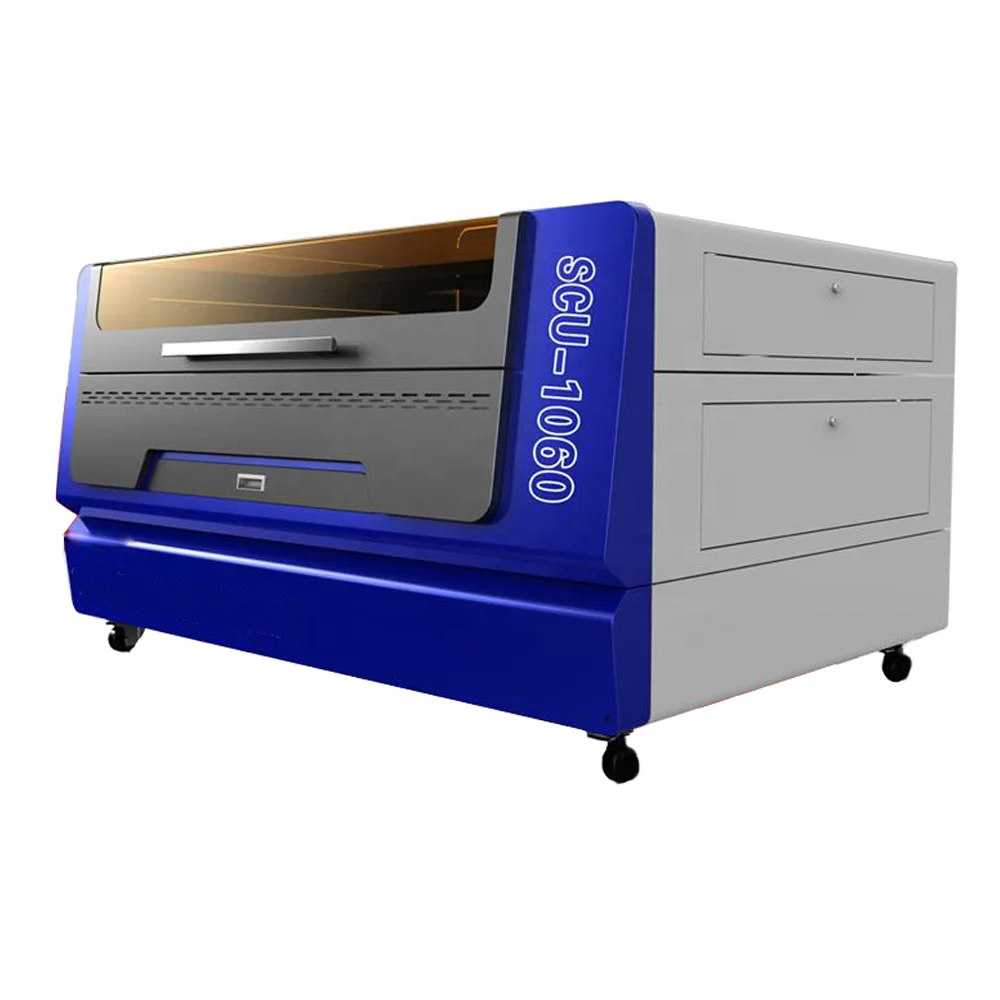

CO2 лазерный гравировальный станок 50 Вт 60 80 100 резак для дерева акрила
2 500,00 $ - 2 900,00 $

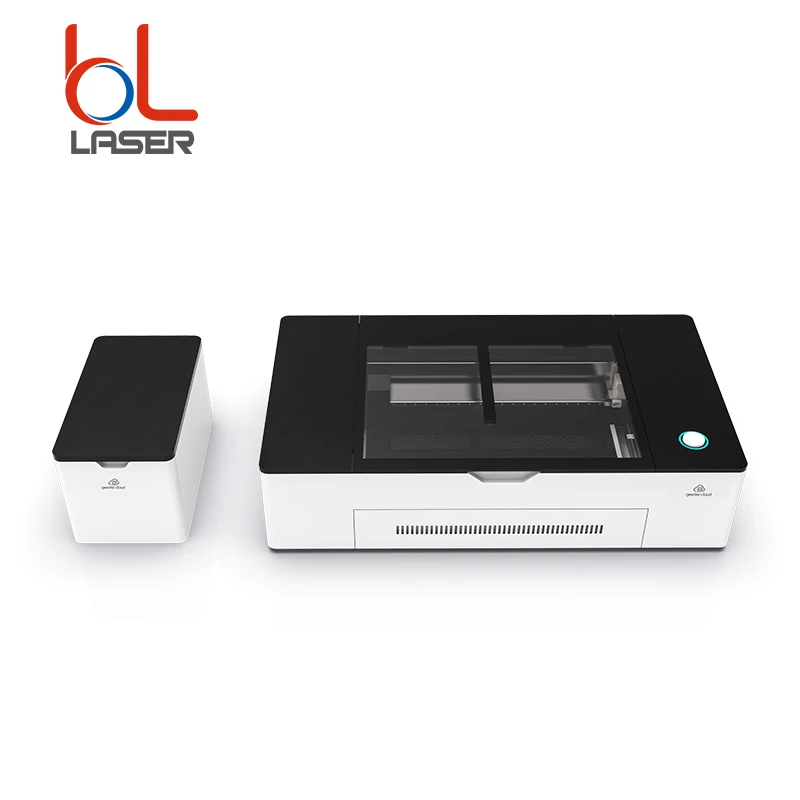

Машина для лазерной резки glowforge домашний лазерный резак

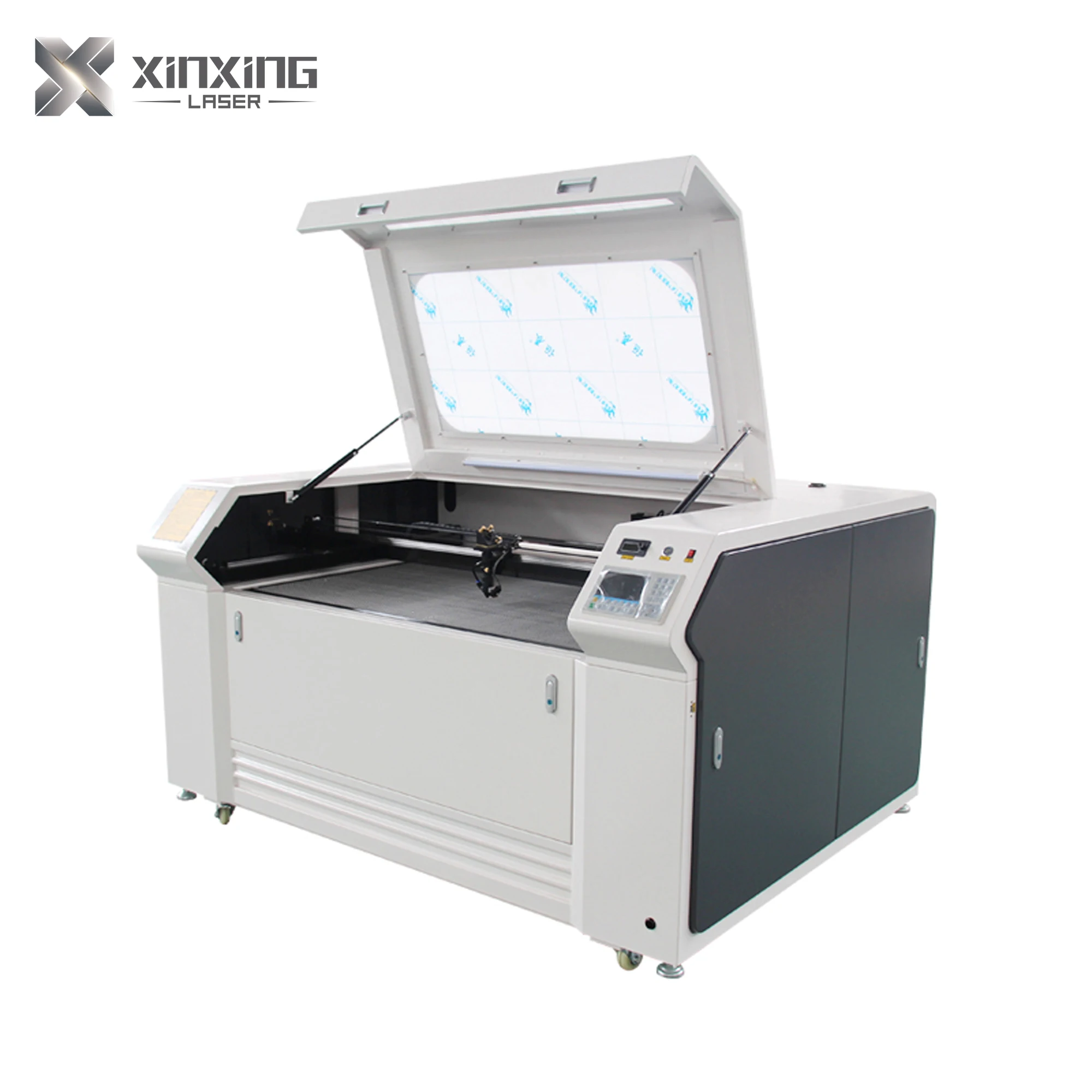

150W XX 1610Pro цены по прейскуранту завода-изготовителя CNC станок для лазерной гравировки и резки сделано в
Оптовая продажа дешевый 40 60 80 Вт аппарат с управлением через приложение и ЧПУ лазерный гравер K40 гравировальный
Гамак нейлоновый ультра легкий нейлоновый Шелковый спиннинг парашют ткань пэчворк москитная сетка гамак
6,50 $ - 7,98 $

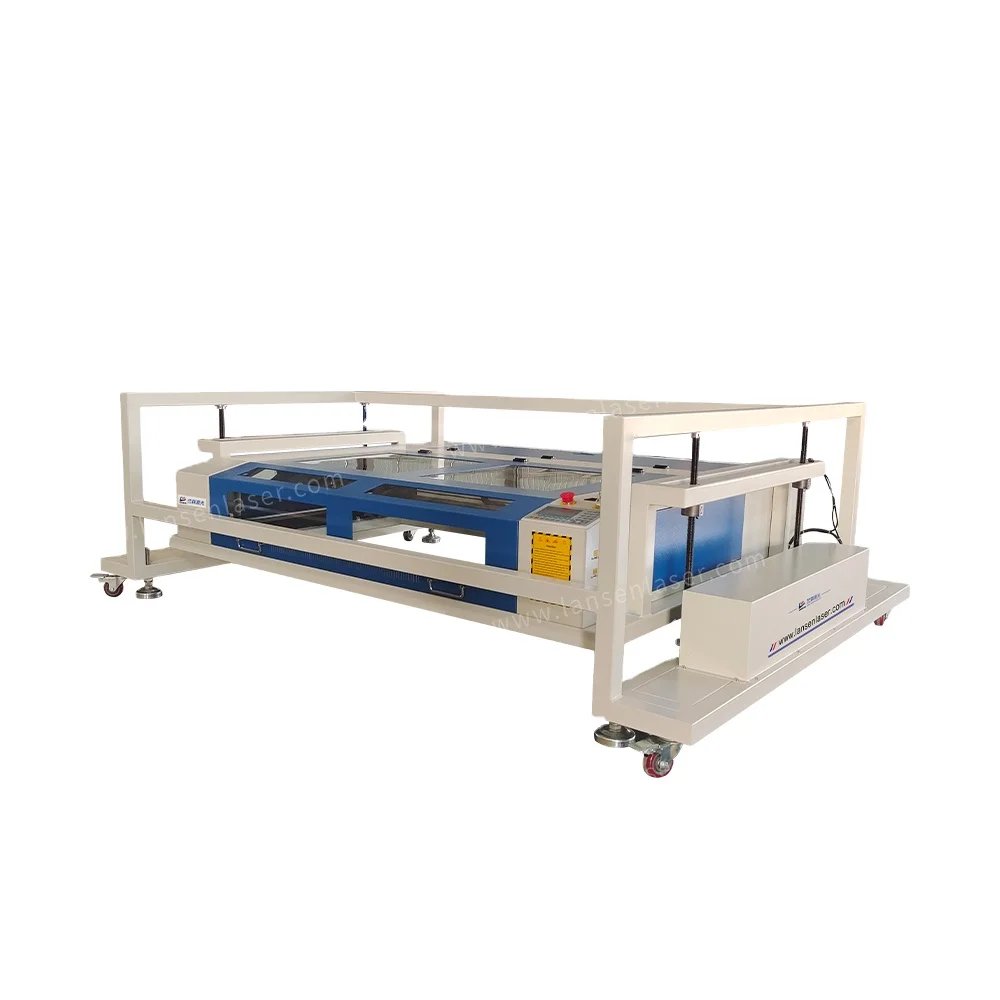

LM1390D горячая Распродажа вверх вниз моторизованный камень лазерная гравировка для мрамора гранита надгробие гравировальное
