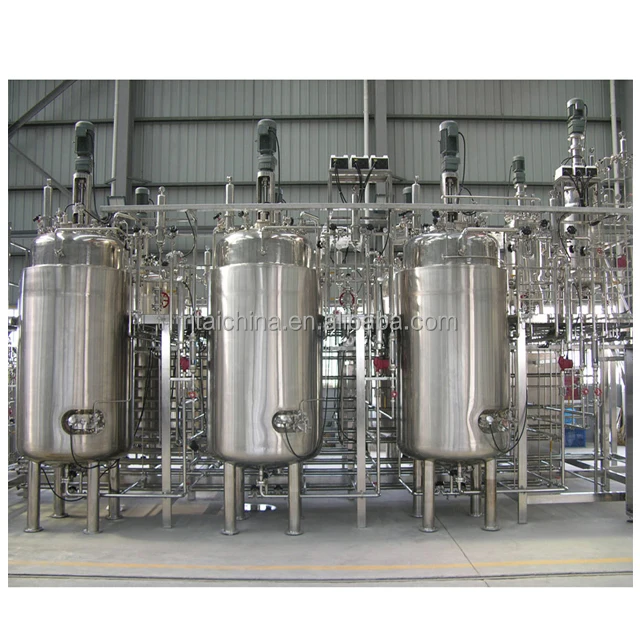

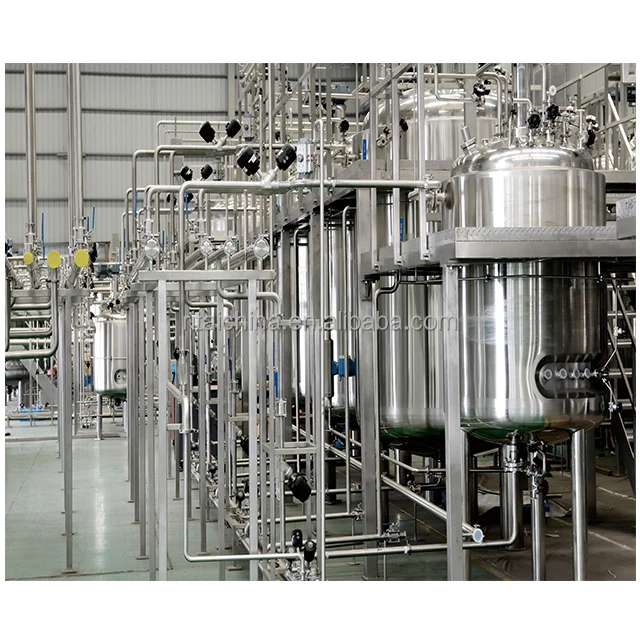

Био ферментер с ферментером семян
- Категория: >>>
- Поставщик: Shanghai Ritai Medicine Equipment Project Co. Ltd.
Сохранить в закладки 276132299:
Описание и отзывы
Характеристики
Product Description
Specification: 20L-200L 30L-300L 50L-500L 80-800L 100L-1000L (or made according to clients' specification, however within 5L-20LK)
Pressure: 0.1Mpa-0.6Mpa
Rotate speed: 50-400rpm for research scale, pilot scale, 50-200 for industrial scale
Material: Contacting parts is made by SS316L, other parts is made by SS304
Agitator type: Mechanical agitator
Surface finishes:
Inside surface Ra0.28μm - 0.4μm by mechanical polishing or electropolishing
Outside surface Ra0.6μm - 0.8μm by satin finishing
Feature: Fermentor is simens' PLC control system, and this system adopts simens' human-machine interface(HMI) and PID control, which can measure and automatically control parameters of temperature, rpm, pH, DO, feed, foam and etc. It possesses functions of digital setting, quick validation, data display, data storage, data print, password management and so on. It has commucation connection which can communicate with computer.
Pressure: 0.1Mpa-0.6Mpa
Rotate speed: 50-400rpm for research scale, pilot scale, 50-200 for industrial scale
Material: Contacting parts is made by SS316L, other parts is made by SS304
Agitator type: Mechanical agitator
Surface finishes:
Inside surface Ra0.28μm - 0.4μm by mechanical polishing or electropolishing
Outside surface Ra0.6μm - 0.8μm by satin finishing
Feature: Fermentor is simens' PLC control system, and this system adopts simens' human-machine interface(HMI) and PID control, which can measure and automatically control parameters of temperature, rpm, pH, DO, feed, foam and etc. It possesses functions of digital setting, quick validation, data display, data storage, data print, password management and so on. It has commucation connection which can communicate with computer.

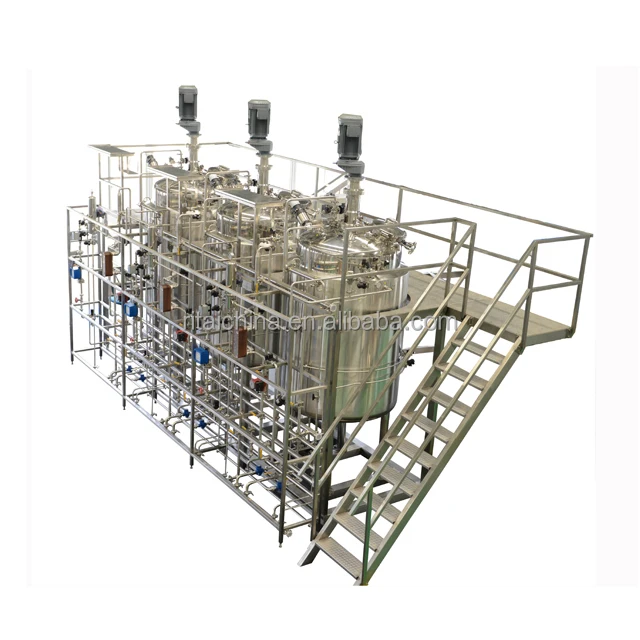

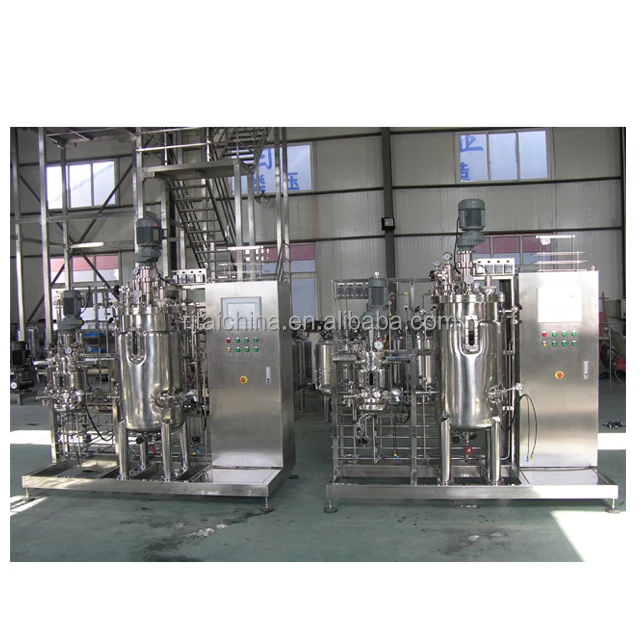

Structure: Two fermentor vessel (seed tank and fermentor) with one control system.
This series of tank are made of seed tank and fermentor, and installed on one platform. Two tanks can work independently and together at same time. This small seed tank can inoculate to the main fermentor.
| Control parts for fermentor | ||||||
| No. | Parameter name | Technical indicator | ||||
| 1 | PH | 1.On-line check and measure, and digitization fully automatic control; 2.PH, acid and base gang control. Peristaltic pump automatically adjust to feed acid and base; 3.Control range 2-12pH, measure precision ± 0.01 pH, control precision ± 0.01 pH; 4. It has auto alarm function. 5.pH sensor and signal transmission line. . | ||||
| 2 | DO control | 1.On-line check and measure, DO and rotate speed gang control; 2.Range 0-100% or 0-200%, precision ± 1%; 3. It has auto alarm function; 4. DO sensor and signal transmission line.. | ||||
| 3 | Foam control | 1.Automatically control and automatically alarm; 2.Eletrode check, peristaltic pump automatically add defoamer. | ||||
| 4 | Feed control | 1.Maunally control; 2.Automatically add according to fixed max. height . | ||||
| 5 | Temp. control | 1.PID fully digitization signal processing, digitization control settings 2.Circulating water automatically control temperature 3.Measure range 0-150 degree, control range 15-45 degree,control precision ± 0.5degree 4.Pt 100 Ω temp. Sensor | ||||
| 6 | Rotate speed | 1.Fully automatic control settings, With automatic alarm function 2.Speed range, please check the drawing, precision ± 1% 3.It is mechanical agitator, turbine type, vertical impeller 4.Speed:50-200/400rpm | ||||
| 7 | Sterilization | Manually control | ||||
| 8 | Pressure | Checked by pressure gauge, manually control, range 0-0.4Mpa. | ||||
| 9 | Air flow | Display on the rotormeter. | ||||
| Remarks: the table is only for reference, if client have difference requirement on the control points, we can also make according to client requirement. | ||||||
Packaging & Shipping
Packaging: wooden case
Shipping: by sea
Our Services
We offer design, customization, manufacture, installation, and maintenance services, etc.
Company Information
Shanghai Ritai Medicine Equipment Project Co., Ltd. mainly specializes in innovation and development of sanitary stainless steel pressure vessels, atmospheric pressure vessels, fermenters, valves and piping system which are widely used in the following fields, such as pharmacy, biology, chemistry, food and drinks industry.
Shanghai Ritai is qualified to design and manufacture pressure vessels with the certificates of ASME, PED 97/23/EC, NB, and ISO 9001:2008.
Похожие товары
Производитель DUKE2 YANSHIDA, бренд LANDAO, элегантный бюджетный гоночный велосипед, специальный дизайн, качество и гарантия
224,00 $ - 228,00 $

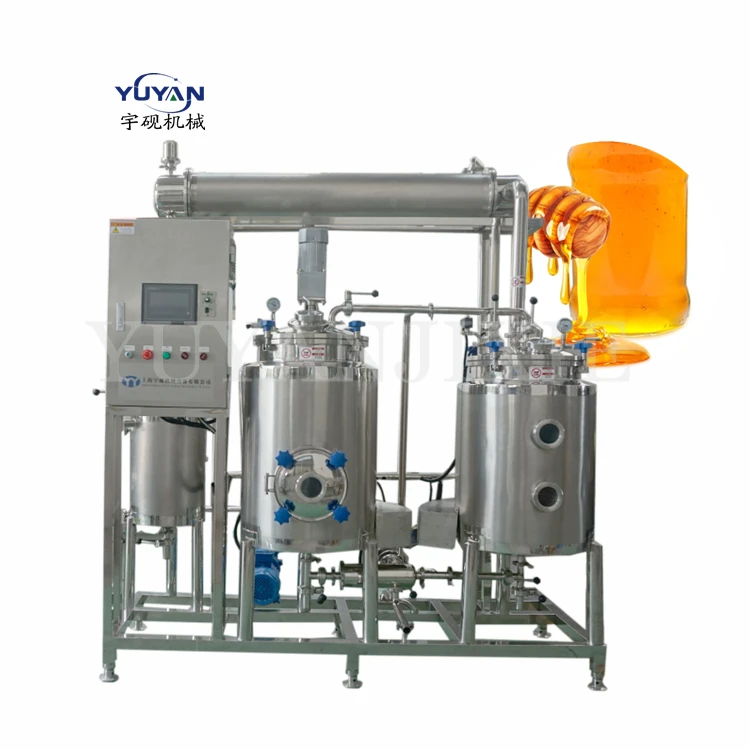

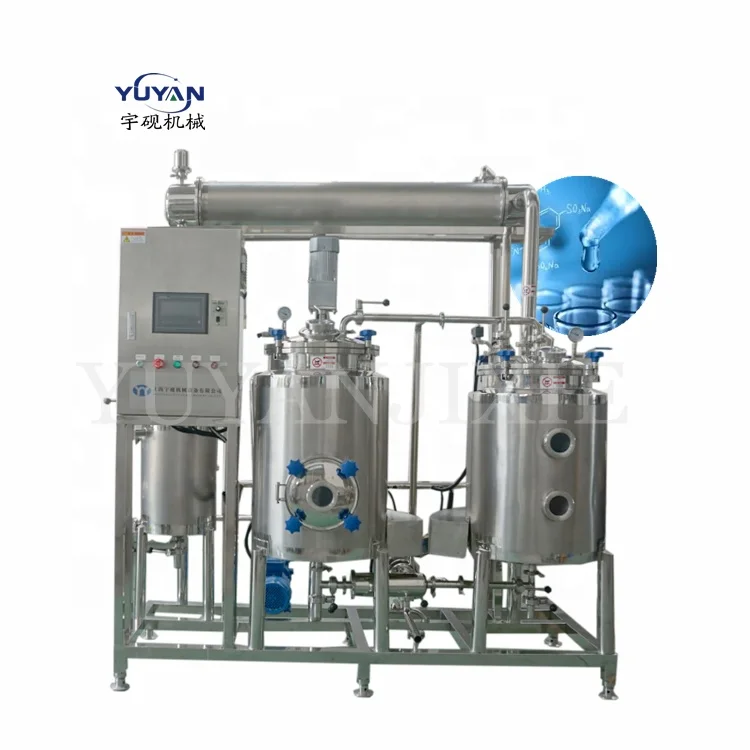

50 л/100 л/200 л, биофармацевтическая китайская травяная медицина, машина для извлечения и концентрации медового сока и джема
7 000,00 $ - 7 800,00 $

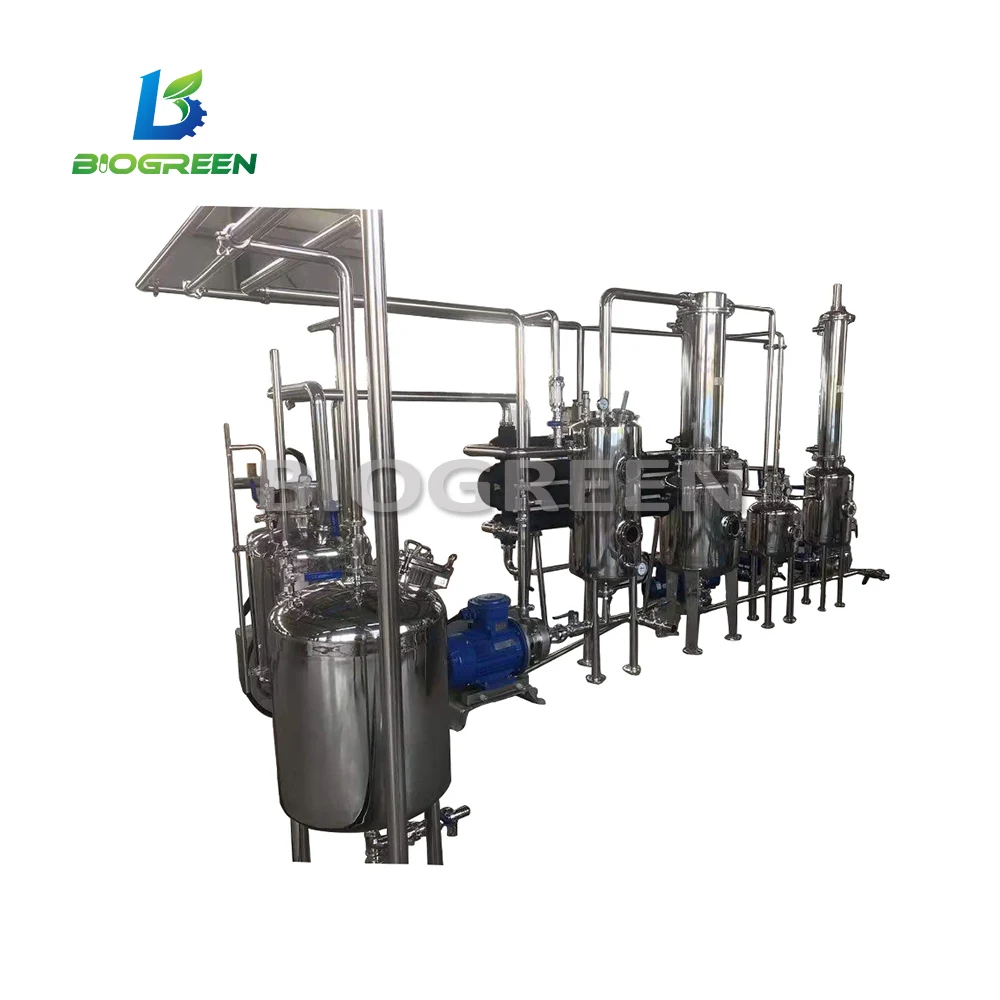

Оборудование для извлечения спирта из нержавеющей стали 200L
19 800,00 $ - 250 000,00 $
500 л/1000 л/2000 л, биофармацевтическая китайская травяная медицина, машина для извлечения и концентрации медового сока и джема
7 000,00 $ - 7 800,00 $

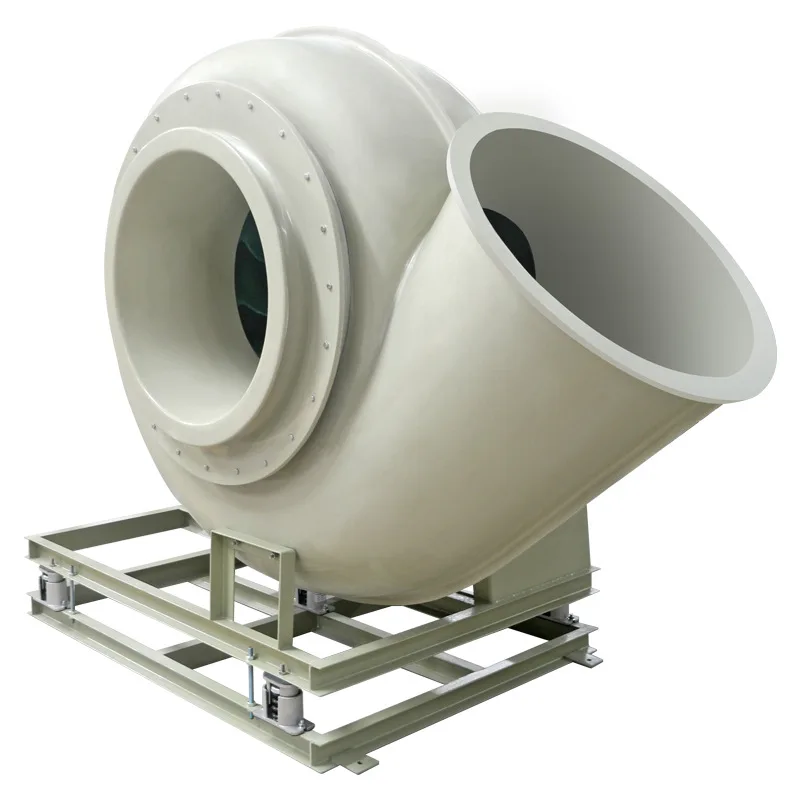

Лидер продаж 2021, антикоррозийный вентилятор, Стекловолоконный экстрактор из стекловолокна и стекловолокна, центробежный вентилятор для пищевой промышленности
2 000,00 $

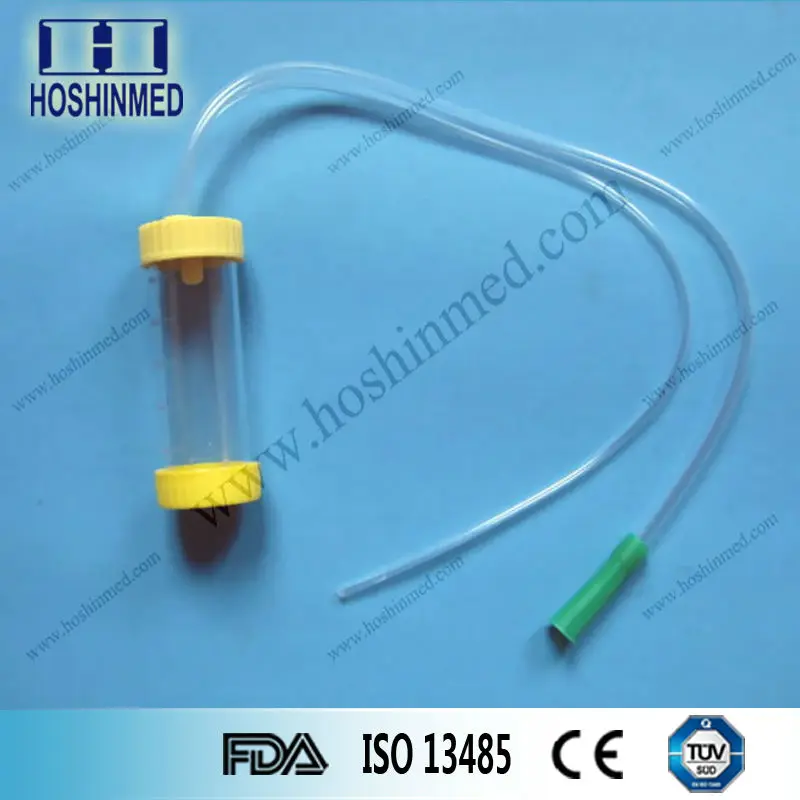

Устройства для вытягивания мокроты медицинский экстрактор мокроты всасывающий катетер для младенцев
