Product Description

Features:

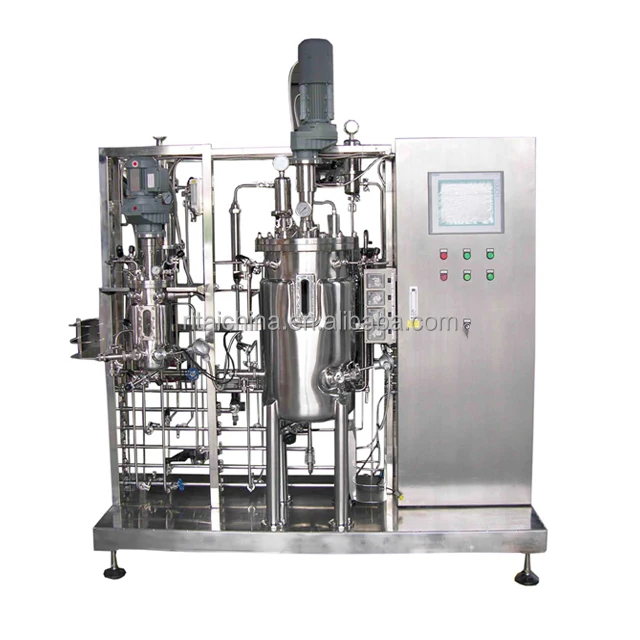

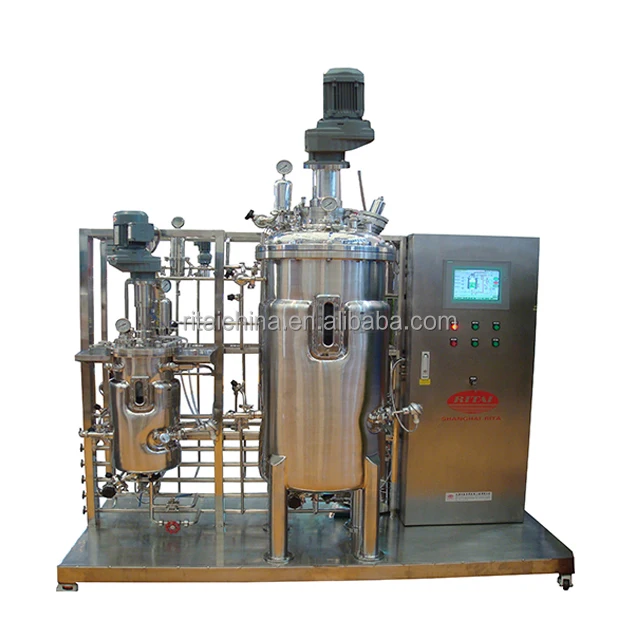

It is made up of seed fermentor and main fermentor. The two fermentors are controlled by a control system in a control cabinet.

The whole system is installed on a platform. The two fermentors can work independently and work together at the same time.

It adopts top mechanical agitation system, and the rotation speed can be adjustable. Parameters of temp., PH, DO, feed, foam, etc can be automatically controlled, recorded, stored and printed. It has the following features: excellent stability and convenient operation.

Application:

This series of products suits for various kinds of microbiology lab, pilot and industrial scale fermentation.It is an ideal

equipment for two steps pilot scale fermentation. Users can choose an appropriate model according to clients' detailed requirements. This can be widely applied to enzyme, fungi, vaccine, fertilizer, bactieria fermentation.

Control parts for fermentor
No.	Parameter name	Technical indicator
1	PH	1.On-line check and measure, and digitization fully automatic control; 2.PH, acid and base gang control. Peristaltic pump automatically adjust to feed acid and base; 3.Control range 2-12pH, measure precision ± 0.01 pH, control precision ± 0.01 pH; 4. It has auto alarm function. 5.pH sensor and signal transmission line. .
2	DO control	1.On-line check and measure, DO and rotate speed gang control; 2.Range 0-100% or 0-200%, precision ± 1%; 3. It has auto alarm function; 4. DO sensor and signal transmission line..
3	Foam control	1.Automatically control and automatically alarm; 2.Eletrode check, peristaltic pump automatically add defoamer.
4	Feed control	1.Maunally control; 2.Automatically add according to fixed max. height .
5	Temp. control	1.PID fully digitization signal processing, digitization control settings 2.Circulating water automatically control temperature 3.Measure range 0-150 degree, control range 15-45 degree,control precision ± 0.5degree 4.Pt 100 Ω temp. Sensor
6	Rotation speed	1.Fully automatic control settings, With automatic alarm function 2.Speed range, please check the drawing, precision ± 1% 3.It has mechanical agitator, turbine type, vertical impeller 4.Speed:50-200/400rpm
7	Sterilization	Manually control Automatic control(optional)
8	Pressure	Checked by pressure gauge, manually control, range 0-0.4Mpa. automatic control (optional)
9	Air flow	Display on the rotormeter. automatic adjust(optional)
Remarks: the table is only for reference, if client have difference requirement on the control points, we can also make according to client requirement.
