China Best Bale Cutter/Rubbr Cutting Machine

Whatsapp & Wechat: +86 13963993705

****** The biggest bale cutter which we have produced is 200tons with 2000mm blade.We are in a positon to design and produce non-standard equipments according to your requirments

Main technical spec.:

1. Type, mark at qdtoplit dot com	XQL-8	XQL-16
2. Width	600mm	1000mm
3. Piston stroke	680mm	680mm
4. Diameter of piston	150mm	200mm
5. Time take by the piston stroke	16-25	10-16
6. Power	5.5kw	5.5kw
7. Weight	1500	2000

Features:

1.This bale cutter mainly consists of rubber knife, frame, cylinder, base, auxiliary table, hydraulic system, and electric system.

2.This bale cutter mainly consists of rubber knife, frame, cylinder, base, auxiliary table, hydraulic system, and electric system.

3.The lead is casted on the base under the rubber knife for protecting the edge of the rubber knife.

When cutting the raw rubber, put the raw rubber under the rubber knife, then press the start button, the knife can cut the rubber.

4.Two limit switches are installed on the frame to control the reversal valve to change the movement direction of the rubber knife, at the same time it protects the cover of the cylinder

5.The bale cutter is mainly used to cut natural rubber, synthetic rubber, and plastics materials.

NOTE: And the biggest bale cutter which we have produced is 200tons with 2000mm blade.We are in a positon to design and produce non-standard equipments according to your requirments.

Contact Information:

E-mail: mark at qdtoplit dot com

Mobile Phone NO.: 0086 13963993705 ( also whats app)

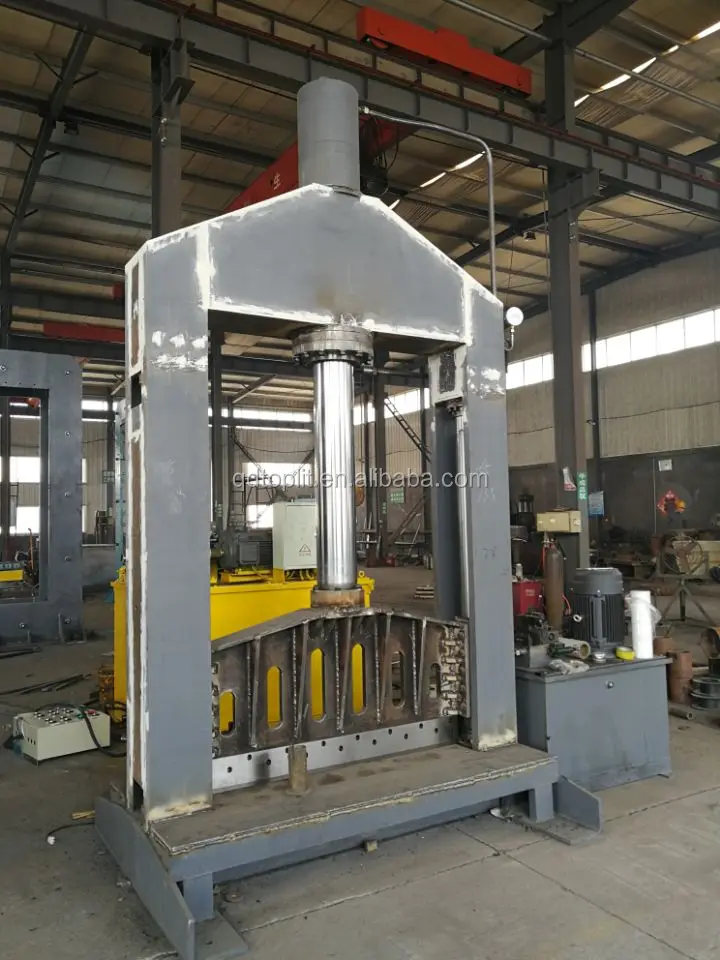

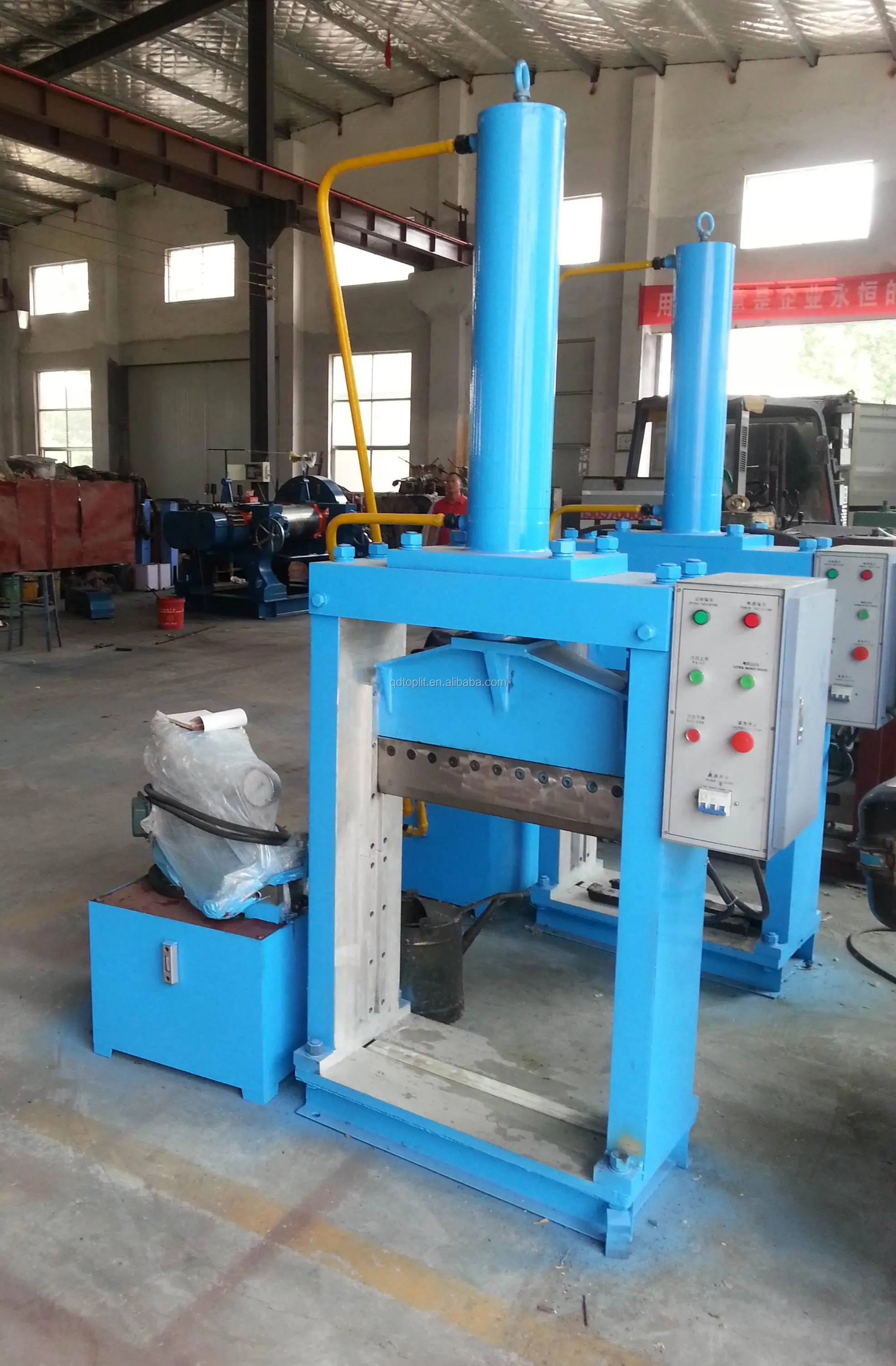

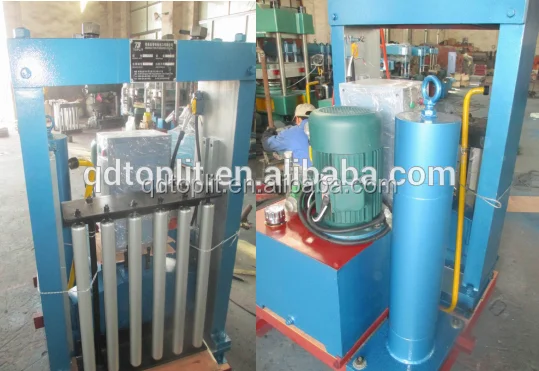

Reference photos:
