Масляный охладитель воздушного
- Категория: >>>
- Поставщик: Jiangmen City East-Alliance Thermal Equipment Co. Ltd.
Сохранить в закладки 288408728:
Описание и отзывы
Характеристики
Products Description
air compressor oil cooler | ||
SERIES | EATB50 | |
DESIGN PRESSURE(Mpa) | 1.0 OR 3.0 | |
LOWEST WORKING TEMPERATURE() | 180 | |
HIGHTEST WORKING TEMPERATURE() | 200 | |
SINGLE PLATE EXCHANGED AREA() | 0.062 | |
LIQUID LOAD PER CHANNAL(L) | 0.14 | |
CROSS-SECTIONAL AREA PER CHANNAL() | 0.0003 | |
PLATE MATERIAL | 316L | |
WELDING MATERIAL | 99.9% COPPER | |
HIGHT(mm) | 539 | |
WIDTH(mm) | 125 | |
THICKNESS(mm) | 2.76×N(number of plates)+8 | |
WEIGHT(Kg) | 0.25×N(number of plates)+2.5 | |

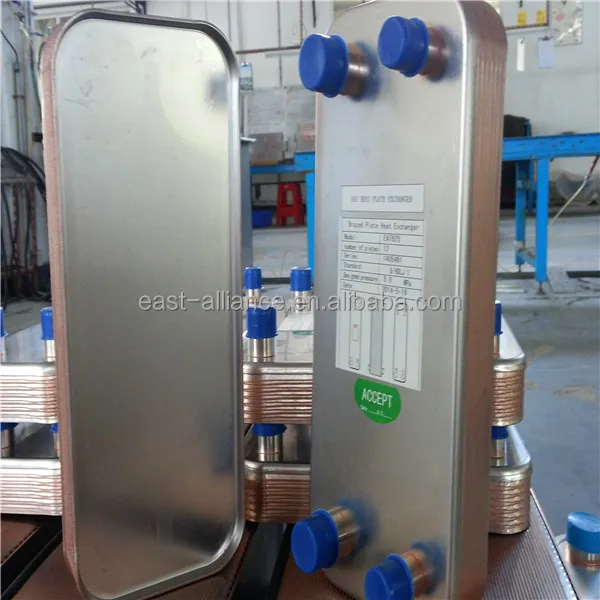

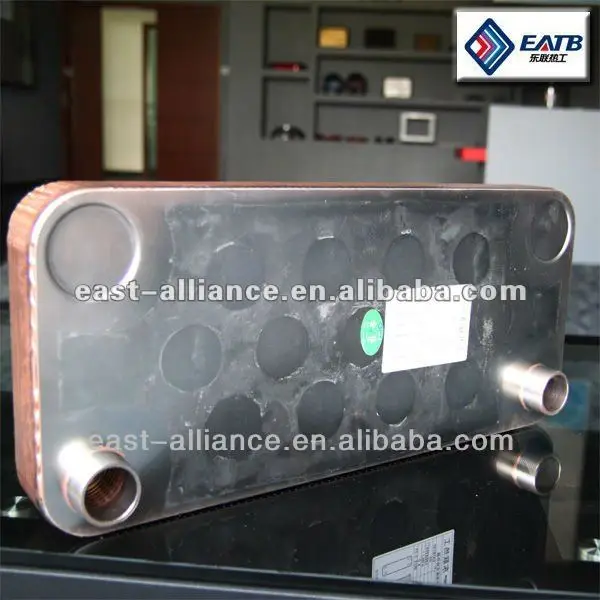

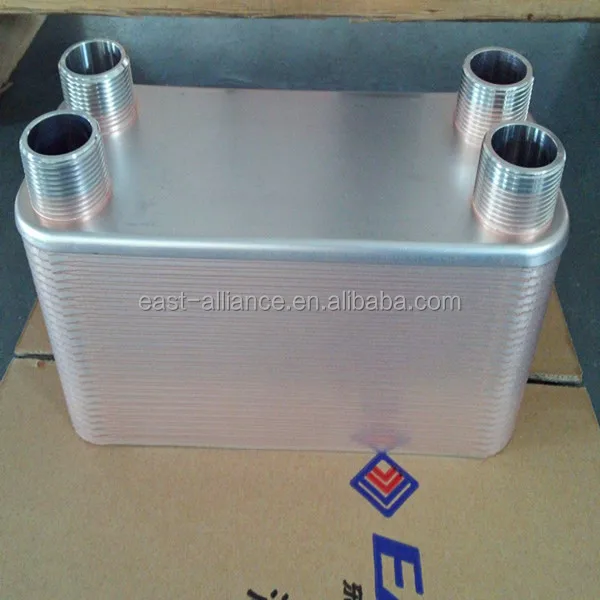

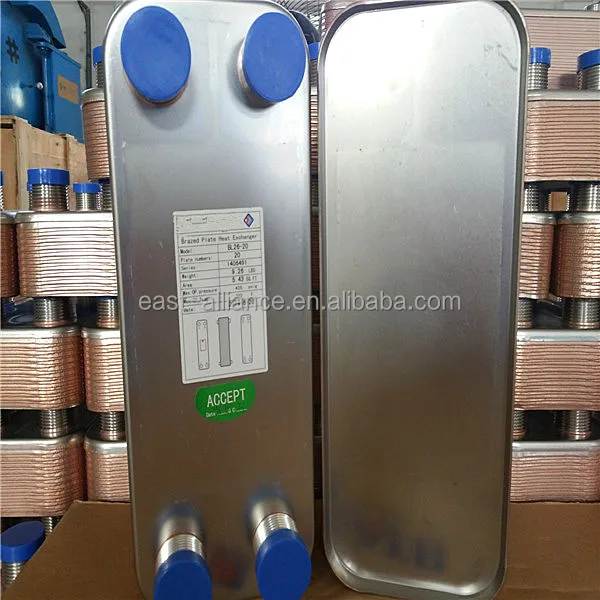

air compressor oil cooler consist of stainless steel plate packs, which have embossed chevron patterns. The plates are turned 180 degrees to each other, causing the plate ridges to intersect and creating a lattice of intersecting channels. Fluids can flow in counter-current and co-current way. The entire construction is nondismountable and scaled together by means of brazing in a special vacuum furnace.
Major advantage over a conventional air compressor oil cooler in that the fluids are exposed to a much larger surface area because the fluids spread out over the plates. This facilitates the transfer of heat, and greatly increases the speed of the temperature change.air compressor oil cooler are now common and very small brazed versions are used in the hot-water sections of millions of combination boilers. The high heat transfer efficiency for such a small physical size has increased the domestic hot water (DHW) flow rate of combination boilers. The small air compressor oil cooler has made a great impact in domestic heating and hot-water
How air compressor oil cooler Works:
Heat transfer occurs when there is a difference in temperature between two mediums. Heat will travel from the hot source to the cold source. The rate at which the heat transfer occurs at is determined by many factors such as the heat conductivity of the two materials and the difference in temperatures of the two mediums. Convectiuve heat transfer occurs when the materials are moving against each other
Corrosion protection for air compressor oil cooler stainless steel has a high resistance to most chemicals but is sensitive to chloride ion concentration so this must be limited to 280ppm or less(lower than 55 C),the copper used in the brazing process is mainly sensitive to strong acid and ammonia so the PH must be maintained between 6 to 8.in practical application.for example,hydrochloric acid should never be used to clean the air compressor oil cooler ;if air compressor oil cooler are applied in swimming pool heating,limit chloride ion concentration to 280ppm in the water;what's more,in chemical,pharmacy and other industries,solutions containing strong acid like hydrochloric acid and harshorn won't be proper fluid medium.
Recommend Products

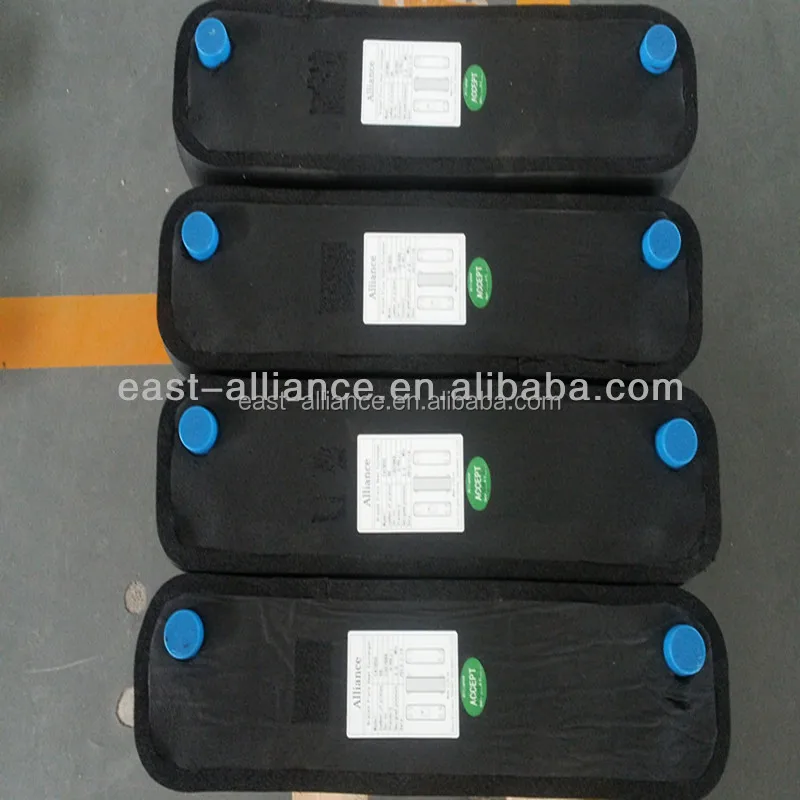

Product packaging
Company Profile
East-Alliance Thermal Equipment Co.,Ltd
a HK-funded enterprise located in Chaoyang Industrial Zone of Jiangmen City in Guangdong Province,China,belong to Guangdong DongXu Group. The Company has been specializing in brazed plate heat exchangers manufacture and sales, which are widely applied to the fields involved in cooling, heating, oil pressure, vessel, electric power, paper making,metallurgy.etc.
We possesses a complete set of professional production and detection equipment such as the stamping equipment, the vacuum brazing furnace and the high-vacuum helium leak detector, etc. Our mold design and development as well as the plate exchanger technology and application had achieved an international leading level.
As a Guangdong Province private technology enterprises,the products have complete independent intellectual property
rights,Obtained many the national invention patents , obtained the national technological innovation fund specialized to science and technology enterprises.It has been manufacturing high quality products with imported stainless steel by the most advanced vacuum welding furnace ensuring the first grade quality.
As a Guangdong Province private technology enterprises,the products have complete independent intellectual property
rights,Obtained many the national invention patents , obtained the national technological innovation fund specialized to science and technology enterprises.It has been manufacturing high quality products with imported stainless steel by the most advanced vacuum welding furnace ensuring the first grade quality.
Enterprise Culture
Serve the society and the public; respect team member and rely on the team; work together for common glory; develop together and share together.
Manufacturing Technique
We has been constantly carrying out the Quality Management System Standard of ISO9001:2000 and had passed the PED/CE and Rosh Certification to export to EU,by means of our high quality and elaborate products together with our professional and fast service,we are dedicated to satisfying the needs of all our clients worldwide
Certifications
Exhibition
FAQ
1. Where can I use EATB HE?
A1. EATB HE are suitable for almost any refrigerant-to-liquid or liquid–to-liquid application but without corrosive media, such as ammonia or seawater. Please see §6
Q2. Can I turn the unit around?
A2. Yes, all the EATB HEs are possible for all applications.
Q3. Can I use a EATB HE in swimming pool application?
A3. Yes. It is important to add the chloride after EATB HE, to avoid the risk of an unbalanced lever of chloride in the water
passing through EATB HE. Nevertheless a stronger chloride will react with the copper, which is obviously not good for EATB HE unit.
Q4. Can I use a EATB HE in a steam application?
A4. Yes. We strongly recommend to respect the four aspects:
l A free exit on the condense side avoids possible shocks
l Steam inlet has to be at the “marked side” on the upper connection. The “marked side” has once channel less and the steam will therefore be surrounded by the liquid side.
l Avoid formation of steam bubbles by adjusting the pressure on the secondary side correctly.
l Avoid temperature differences over 50℃ in the start up procedure. When EATB HE is in operation the temperature difference can be increased.
Q5. If the EATB HE was dropped on the floor or got other physically damaged, how can I be sure it is still OK?
A5. To be 100% sure you have to determine the same test as East-Alliance does to verify the right quality of the unit, see §2.4.
Q6. When we tested the unit it is no longer tight. Can we solder the unit on the outside and make it tight?
A6. Alliance does not recommend repair soldering. If the customer, nevertheless, wants to try to repair the unit, a silver
soldering of 45% should be used. Obviously there is no guarantee for a good result.
Q7. Can I use de-ionised water in the EATB HE?
A7. It is no problem for EATB HE itself to use de-ionised water. There might be a problem though, with the application, as the copper will react with the de-ionised water.
A1. EATB HE are suitable for almost any refrigerant-to-liquid or liquid–to-liquid application but without corrosive media, such as ammonia or seawater. Please see §6
Q2. Can I turn the unit around?
A2. Yes, all the EATB HEs are possible for all applications.
Q3. Can I use a EATB HE in swimming pool application?
A3. Yes. It is important to add the chloride after EATB HE, to avoid the risk of an unbalanced lever of chloride in the water
passing through EATB HE. Nevertheless a stronger chloride will react with the copper, which is obviously not good for EATB HE unit.
Q4. Can I use a EATB HE in a steam application?
A4. Yes. We strongly recommend to respect the four aspects:
l A free exit on the condense side avoids possible shocks
l Steam inlet has to be at the “marked side” on the upper connection. The “marked side” has once channel less and the steam will therefore be surrounded by the liquid side.
l Avoid formation of steam bubbles by adjusting the pressure on the secondary side correctly.
l Avoid temperature differences over 50℃ in the start up procedure. When EATB HE is in operation the temperature difference can be increased.
Q5. If the EATB HE was dropped on the floor or got other physically damaged, how can I be sure it is still OK?
A5. To be 100% sure you have to determine the same test as East-Alliance does to verify the right quality of the unit, see §2.4.
Q6. When we tested the unit it is no longer tight. Can we solder the unit on the outside and make it tight?
A6. Alliance does not recommend repair soldering. If the customer, nevertheless, wants to try to repair the unit, a silver
soldering of 45% should be used. Obviously there is no guarantee for a good result.
Q7. Can I use de-ionised water in the EATB HE?
A7. It is no problem for EATB HE itself to use de-ionised water. There might be a problem though, with the application, as the copper will react with the de-ionised water.
Похожие товары

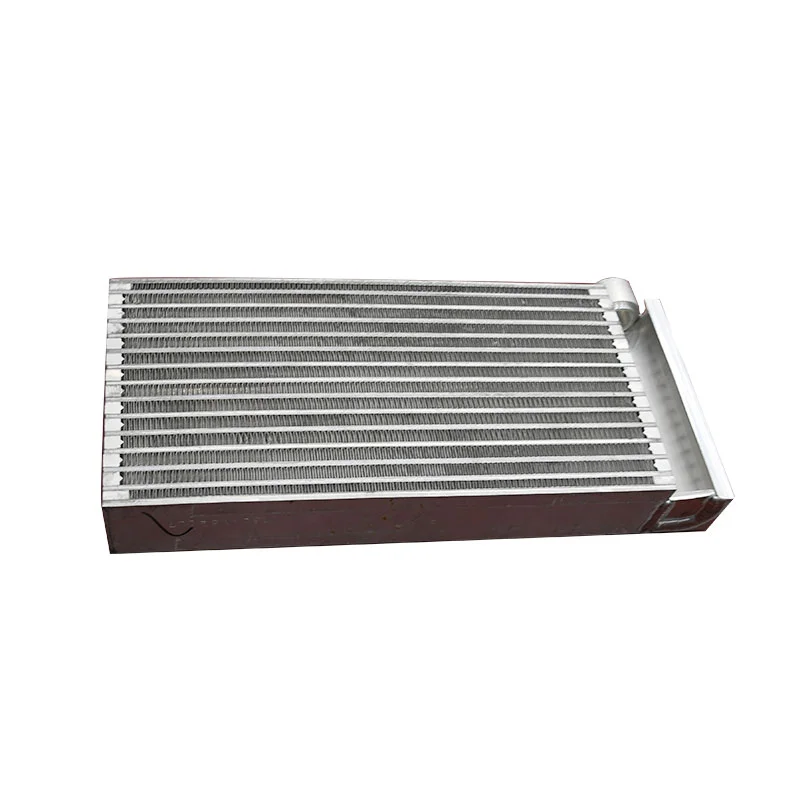

Изготовленный На Заказ охладитель воздуха и масла для

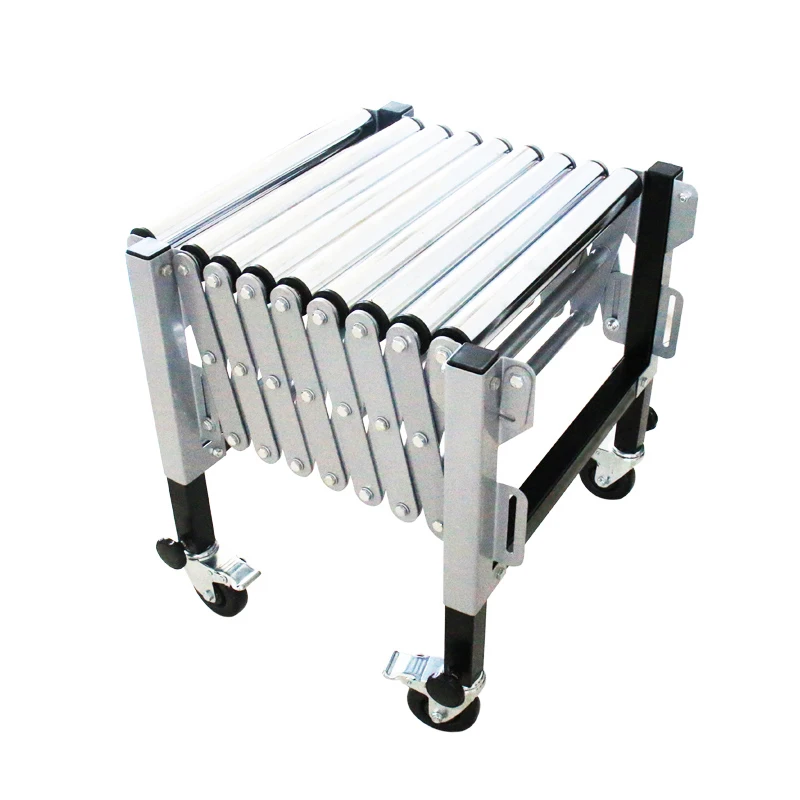

26133 роликовый конвейер, роликовый Настольный конвейер
105,00 $ - 125,00 $
Компрессор подходящий к масляному радиатору поверхностный конденсатор для Hyundai Accent IX20 IX35 I20 I30 I40 Kia
8,88 $

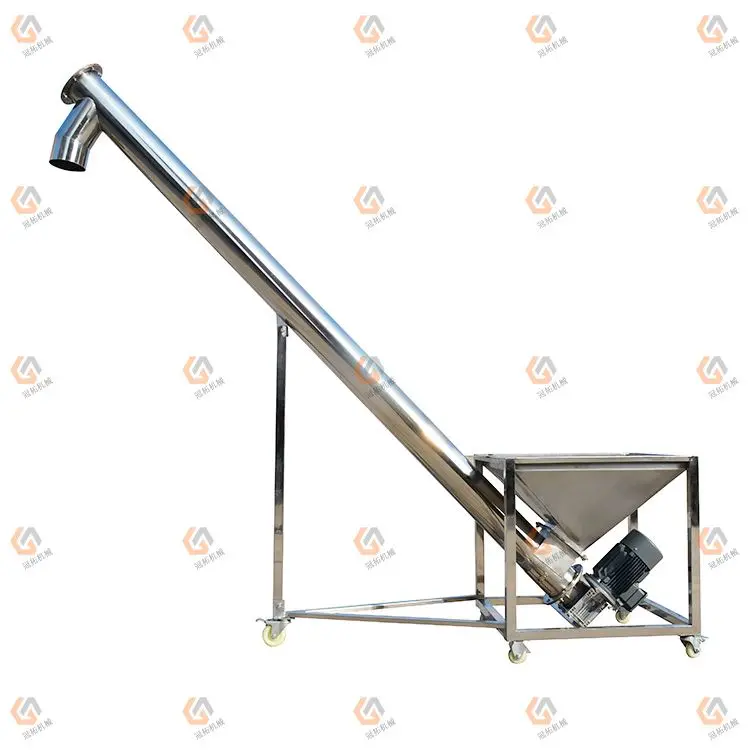

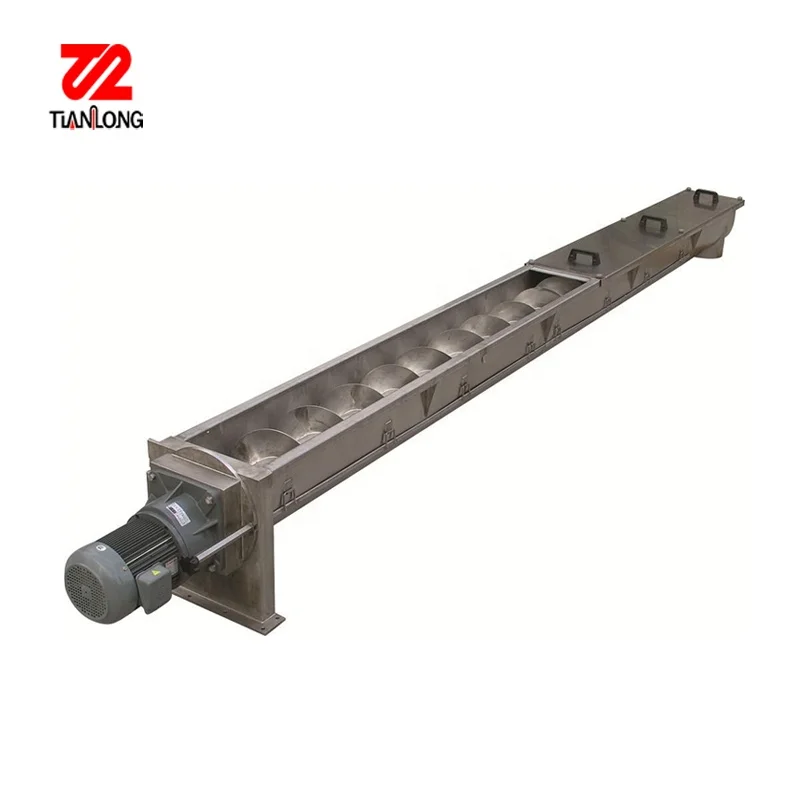

Цена по прейскуранту завода-изготовителя шнековый питатель частиц порошка мобильный шнековый конвейер для бетона
1 200,00 $ - 1 400,00 $

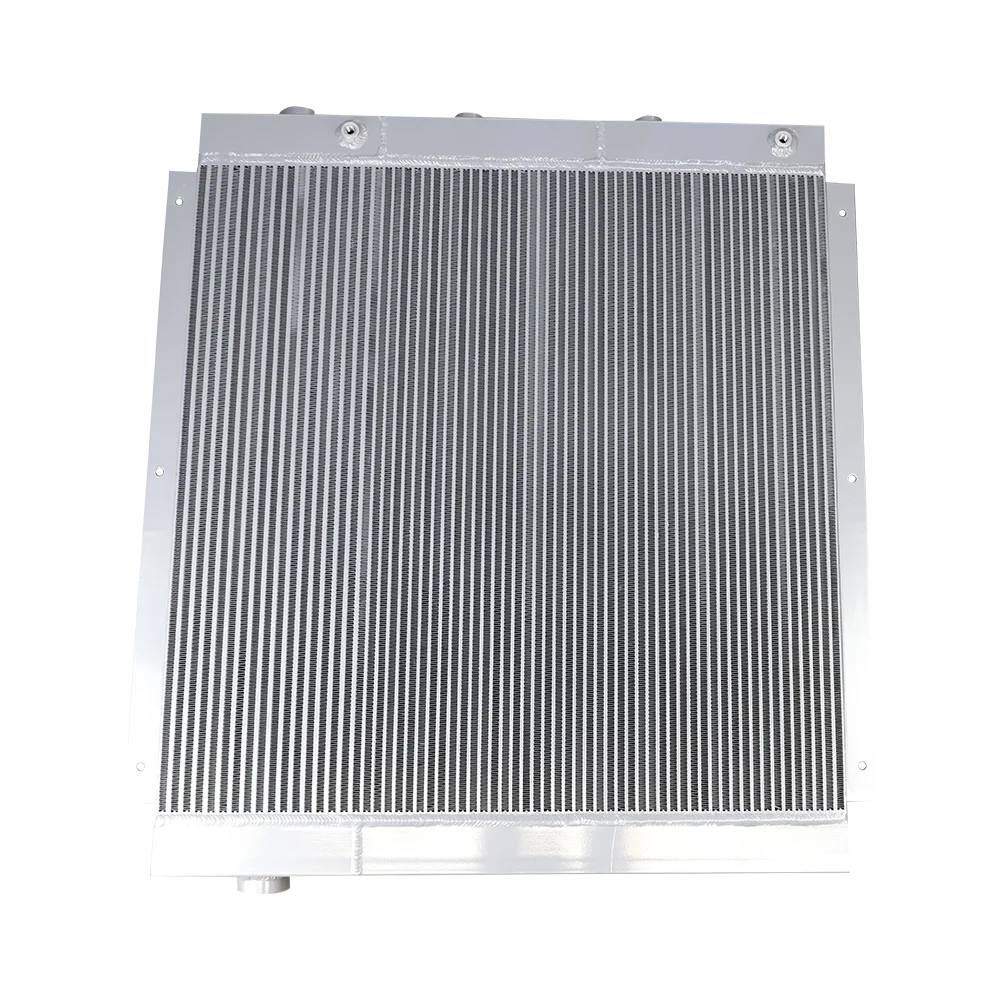

Воздушный компрессор масляный радиатор пластинчатый теплообменник для стандартного винтового воздушного
