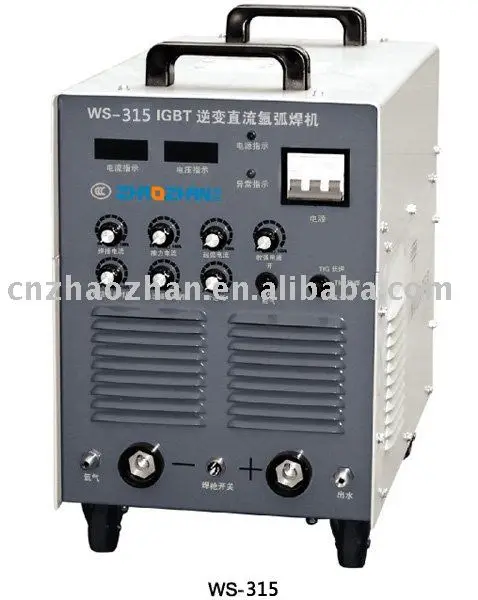

dc arc welder
WS Series utilize import, IGBT power switch device, PWM inverter technology, with high reliability
FEATURE & FUNCTION
It sets automatic protection system, when the welding machine has failure, it will show abnormal indication and stop welding.
Maunal arc welding /DC argon arc welding.
Arc force adjustment, anti sticking.
High frequency arc generating when argon arc welding, selection of long /short /manual welding, post flow (3-10 second adjustable ), down slope (0-10second adjustable) gas testing function.
Pulsed frequency is adjustable low frequency (0.5-15HZ adjustable), high frequency (15-500HZ adjustable)
Suitable for welding and sealing run of various plates made of carbon steel, stainless steel, alloyed steel, copper and titanium. Wide applications in thin plank manufacture, pipe installation, die repair, pertrochemical, architectural decoration and so on.
TECHNICAL PARAMETER
Model
|
WS-315
|
Rated current(A)
|
315
|
Input main voltage(V)
|
Three-phase; 380V±10%; 50HZ
|
Rated input power(V)
|
9.1
|
Current range(A)
|
10~315
|
Duty cycle(%)
|
60
|
Net weight(kg)
|
33
|
