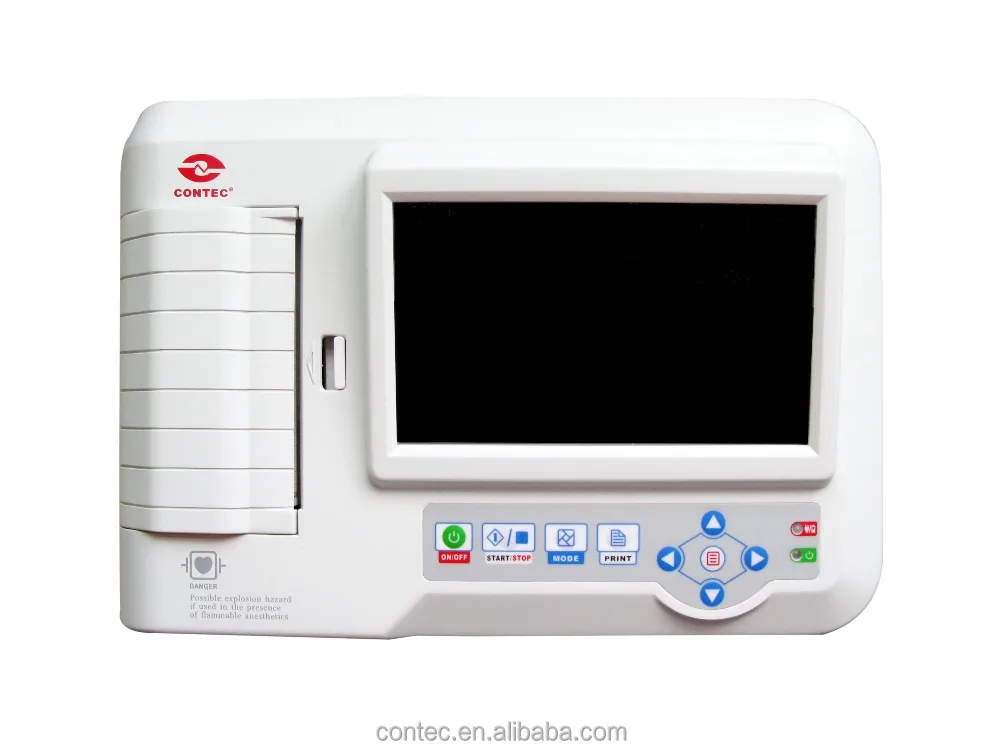

CONTEC ECG600G сенсорный экран 6 ти канальный электрокардиограф ЭКГ программное обеспечения для подключения к компьютеру

Описание и отзывы

Характеристики

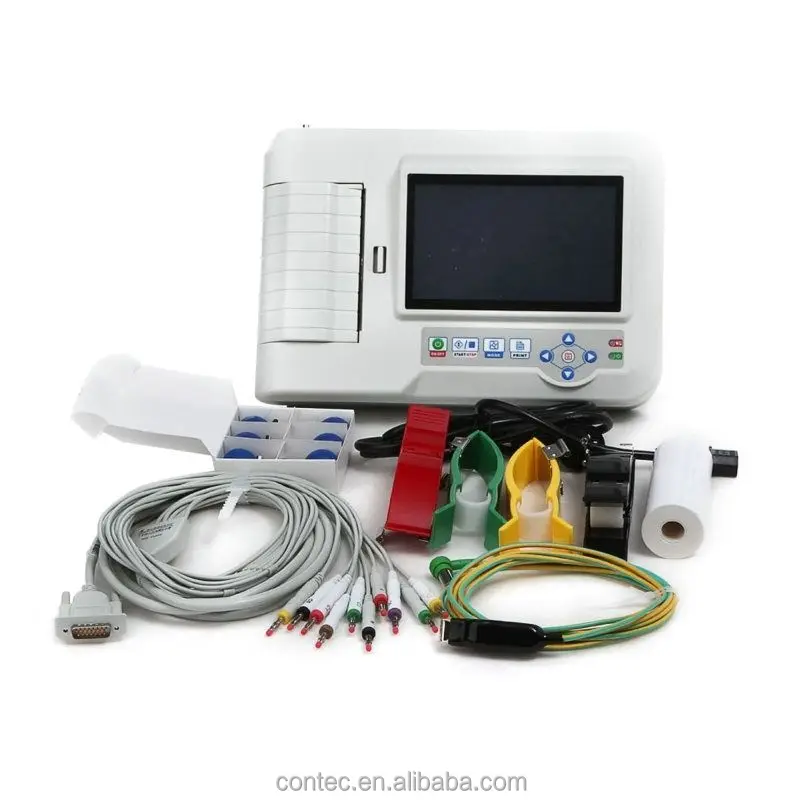

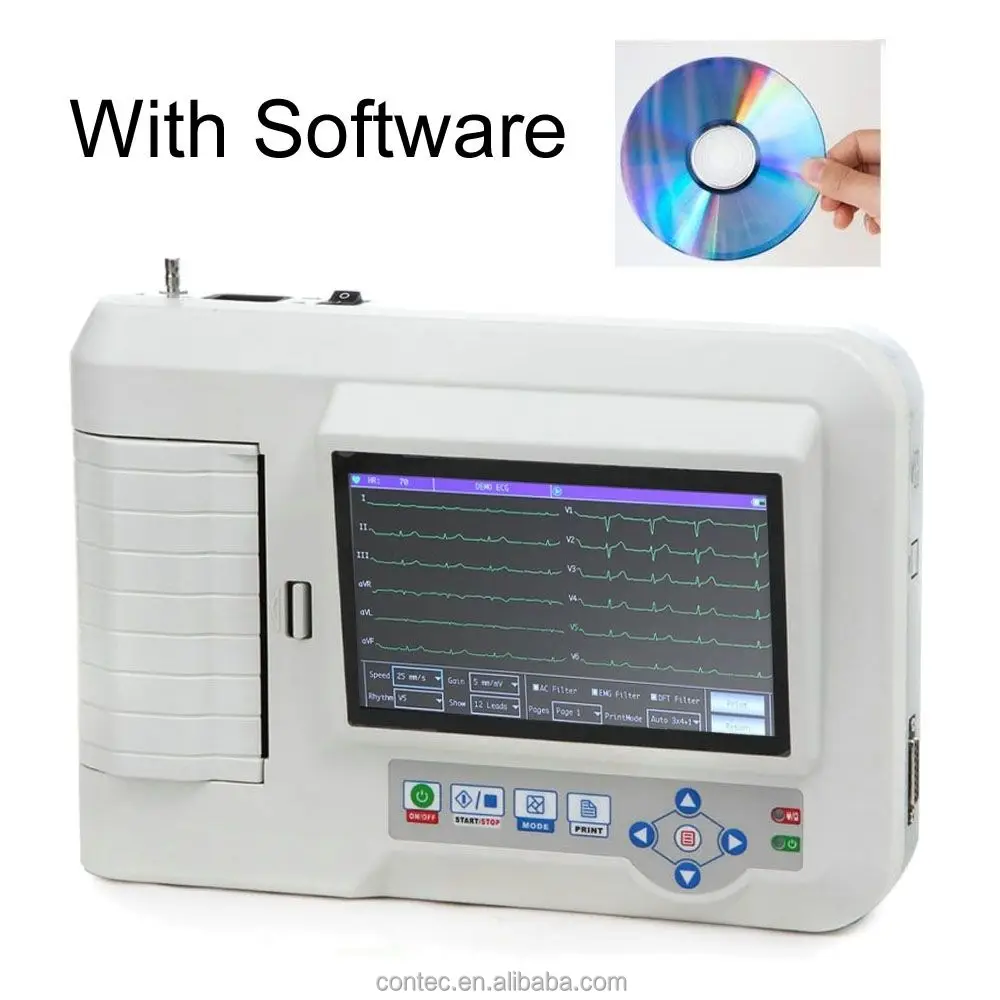

ECG600G Digital 3/6 Channel ECG Machine

MODEL: ECG600G

Features
Instructions

 ECG600G six channel ECG is such a kind of electrocardiograph,which samples 12 leads ECG signals simultaneously and prints out the ECG waveforms with thermal printing system. Its functions are as follows:recording and displaying ECG waveforms in auto/manual mode;auto-measuring and auto-diagnosing the ECG wave parameters;prompting the state of lead off and paper lack;switching the interface lauguages (Chinese/English);managing the case database.

 Main performance
 Safety Class: Class I, Type CF applied part. there is defibrillation circuit.

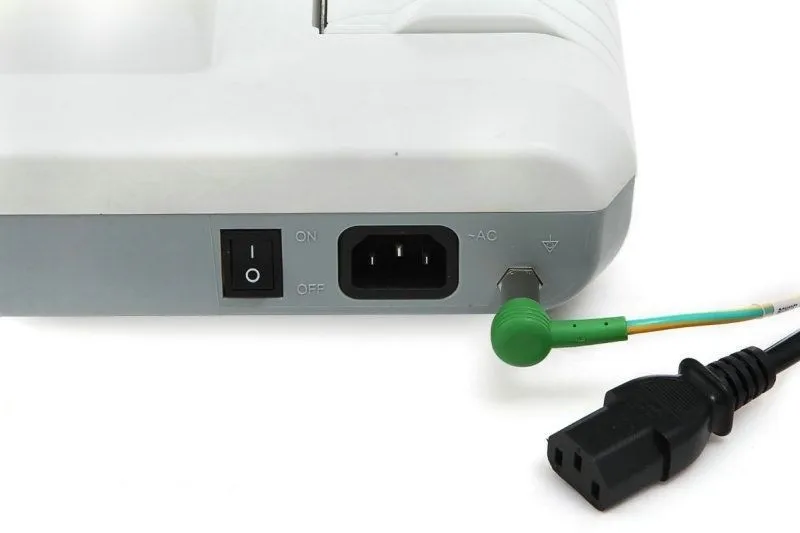

 Power supply:  AC:100V~240V,50/60Hz
                      DC: 7.4V, 3700 mAh rechargeable lithium battery
 Fuse Specification: 2 pcs φ5×20mm AC time lag; T1.6A/250V(Power Supply:220V)

Major Features

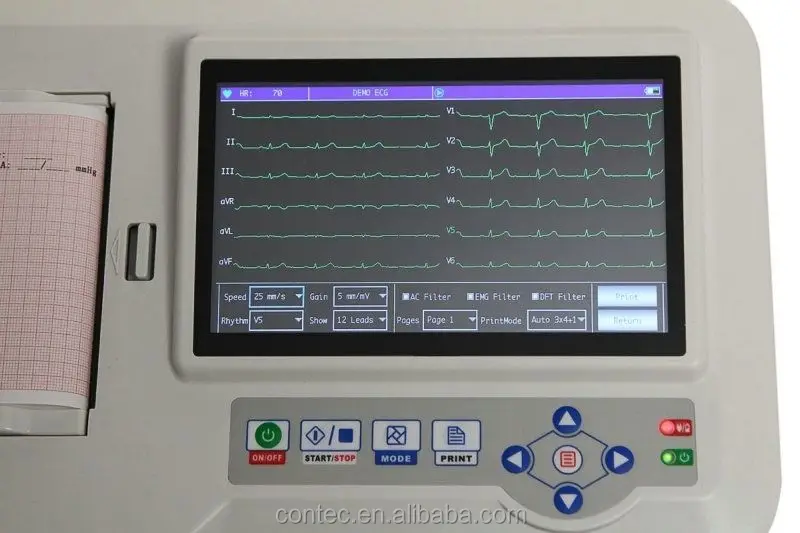

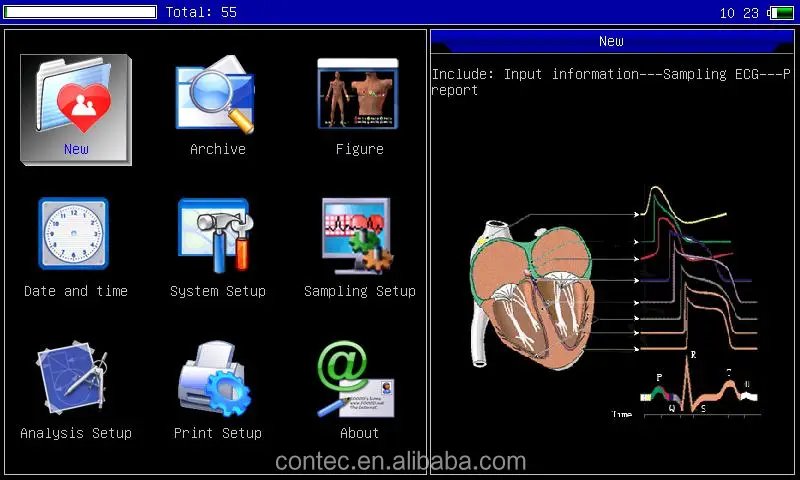

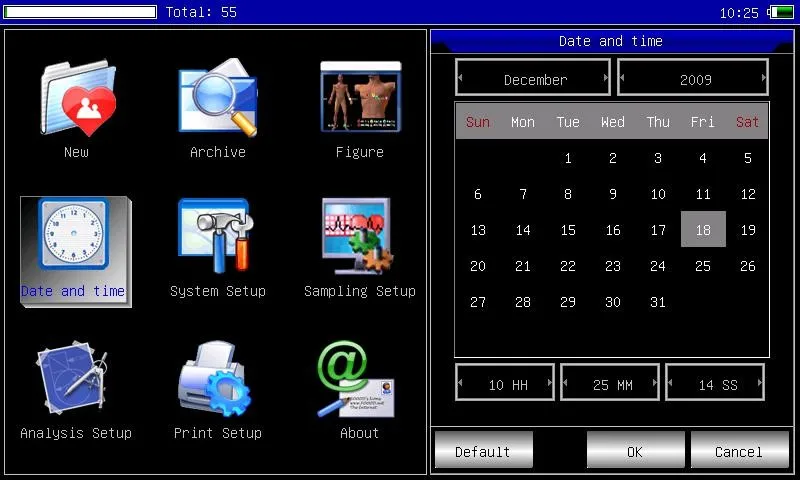

1. 800x480TFT Color LCD shows the working status and ECG waveform; Touch
   screen and soft keyboard control, more convenient for operation.
2. 12 Leads ECG simultaneous acquisition, digital signal processor, to get
   higher quality ECG waveforms through the AC filter, baseline filter and EMG
   filter of the ECG signals.
3. Simultaneous display of 3/6/12 leads ECG waveform, and the state of
   printing mode, sensitivity, speed, filter etc, to be easy for interpretation.
4. Sampling twelve leads ECG signal at the same time,analyzing 2×6+1
 (rhythm  lead),2×6,3×4,3×4+1(rhythm lead),4×3,4×3+1(rhythm
  lead),6×2,6×2+1(rhythm lead)recording mode at the same time,and
  reporting with multi-formats.
5. The power supply includes both AC/DC. This device includes built-in lithium
  polymer rechargeable battery. It can standby for 4 hours, print 150 pieces
  of  ECG waveform and print 90 minutes continually under the best DC state
  to satisfy the need of visiting patients and physical examination.
6. It has build-in storage with large capacity, and can memory more than 1000
  cases, which is easy for doctor review and statistic.
7. Under the review mode, you can see the saved ECG waveform, auto-
  analysis  and auto-interpretation of ECG waveform parameter, auto-
  interpretation conclusion.
8. Support Chinese, English, Italian and Turkish operating interface, can print out Chinese or Endlish, Italian, Turkish report.

Print

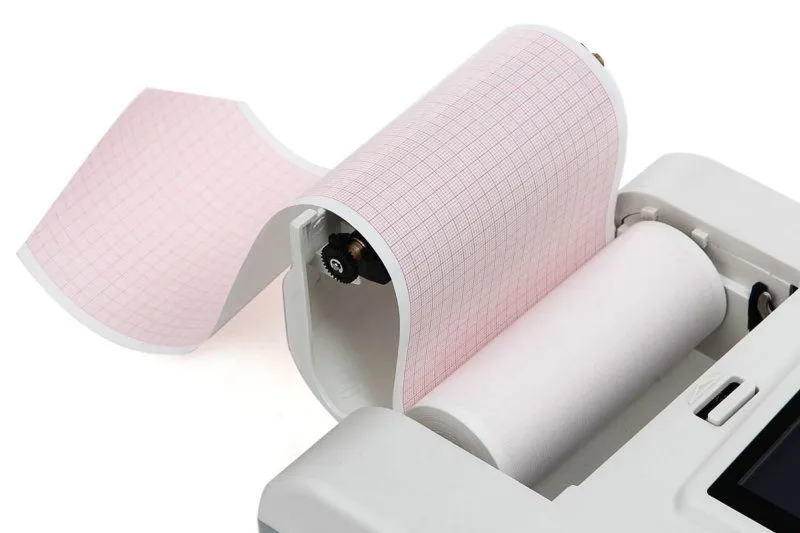

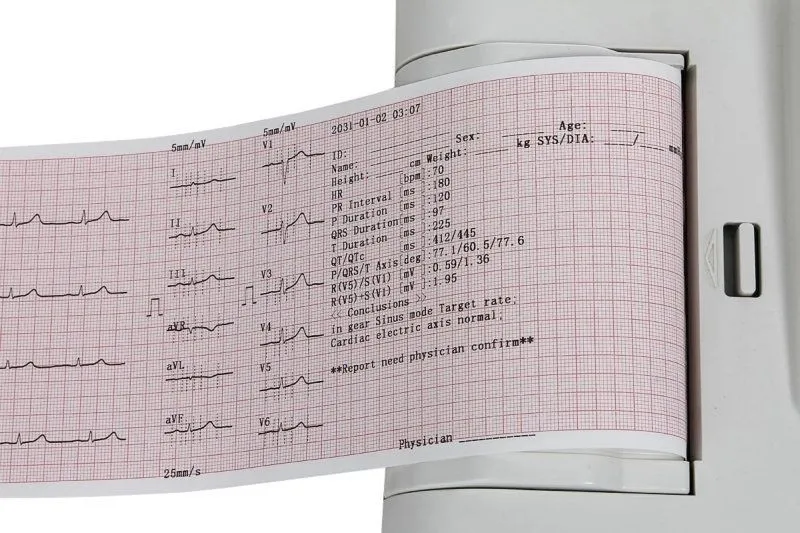

Recording way: Thermal printing system
Specification of recording paper: 110mm(W)×20m(L) High-speed thermal paper
Paper speed:
Auto-record:25mm/s,50mm/s,error:±5%
Rhythm record:25mm/s,50mm/s,error:±5%
Manual_record:5mm/s,6.25mm/s,10mm/s,12.5mm/s,25mm/s,50mm/s,100mm/s,error:±5%
