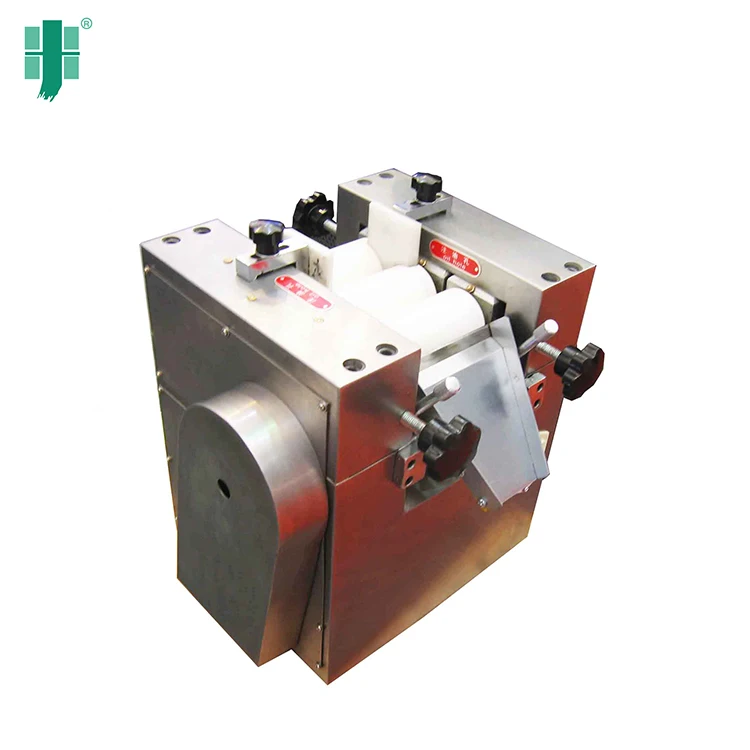

Гидравлическая трехвалковая мельница YS 260

Описание и отзывы

Характеристики

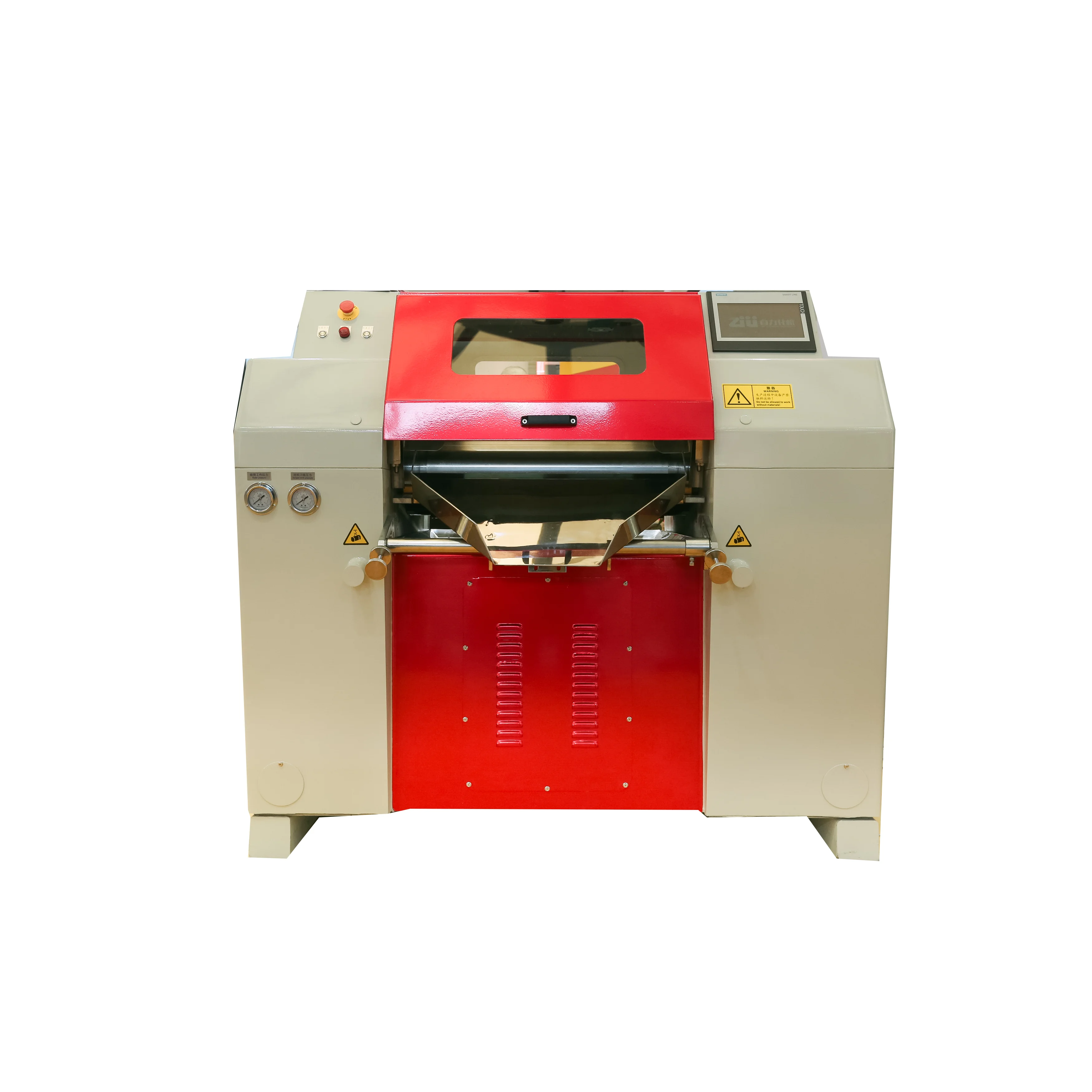

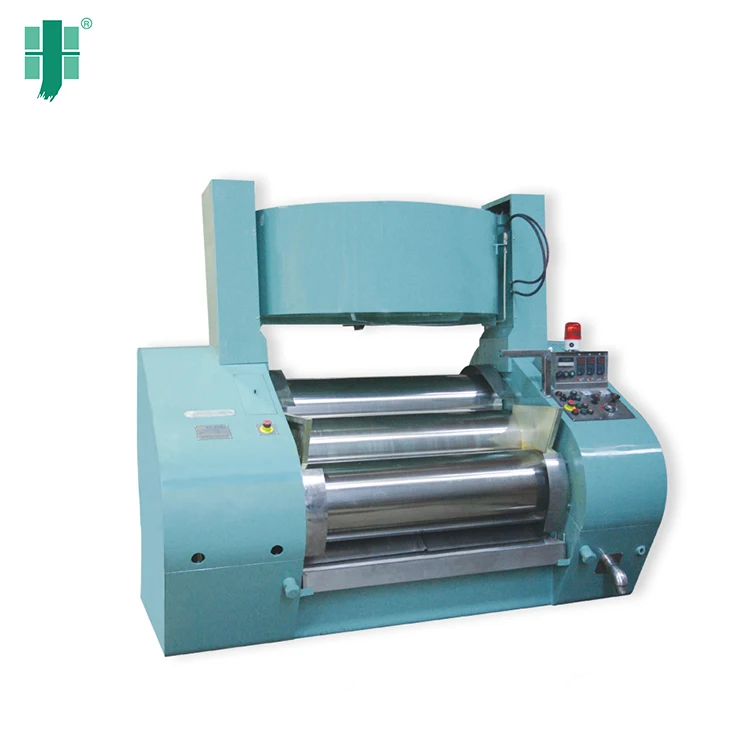

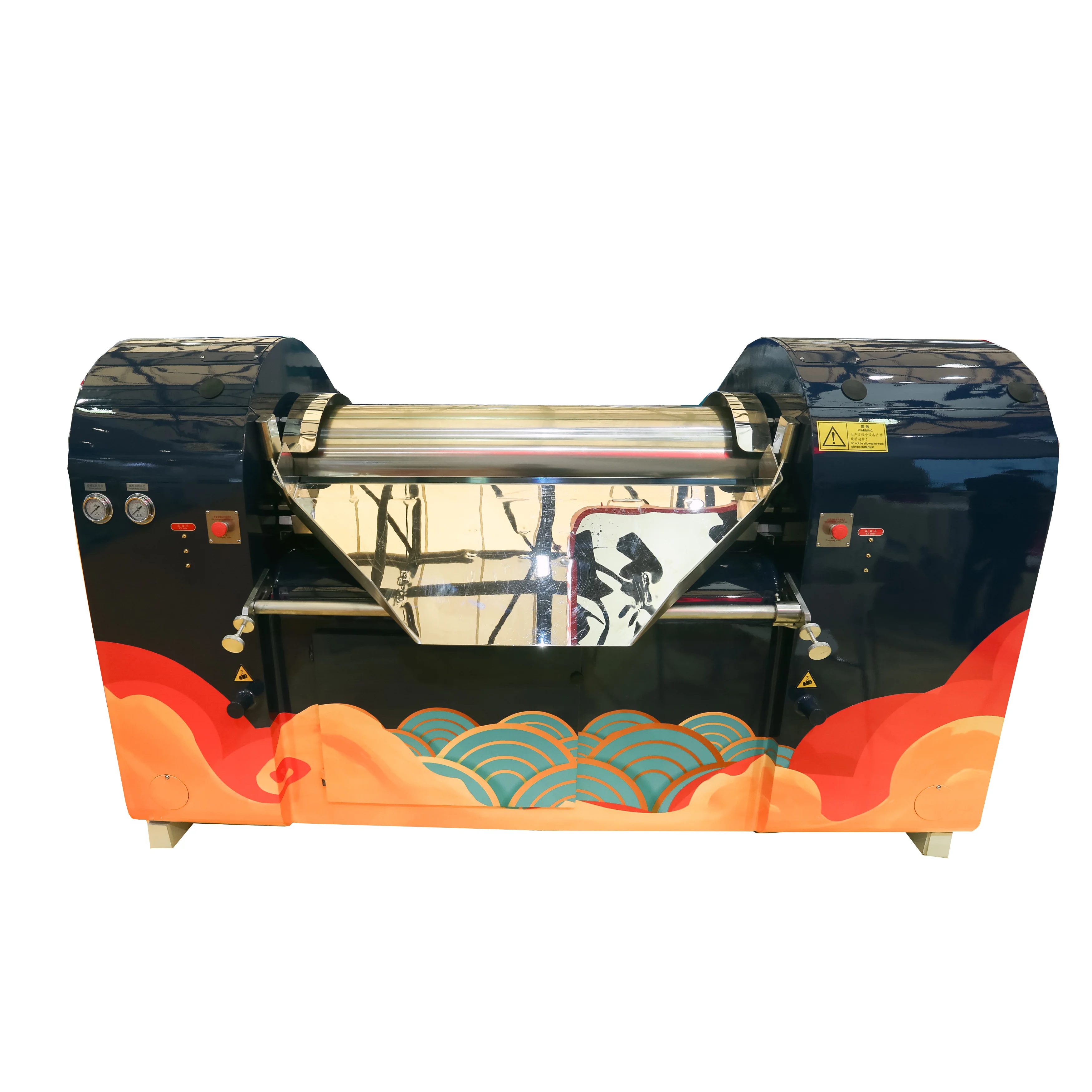

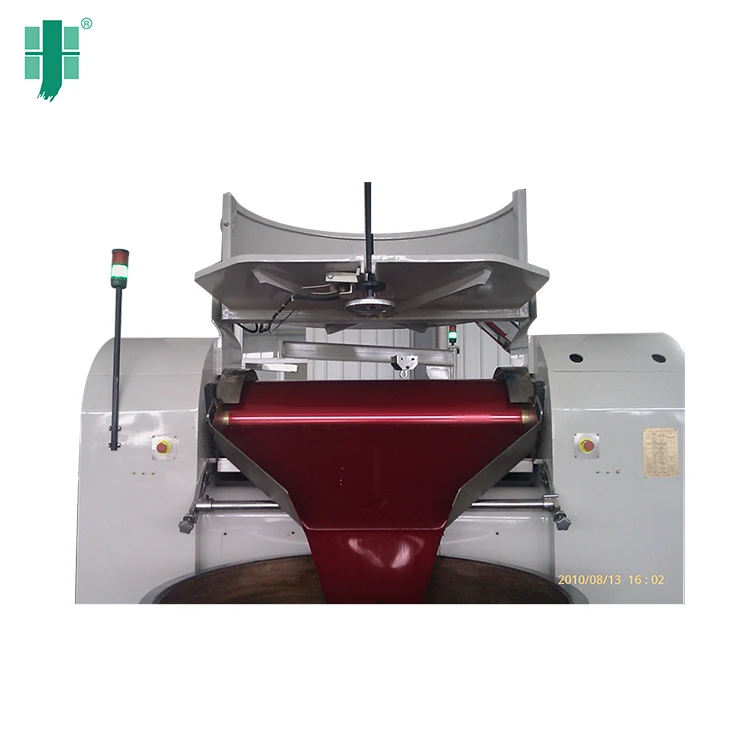

YS 260 Hydraulic Three Roll Mill Grinder Machine/Rolling Machine

three roll machine,   three roll grinder,   three-roll grinding machine

Introduction:

This three roll mill/grinder/mixer adopts a three rollers grinder controlled by hydraulic pressure from double-impeller pump. The basic work of machine has feeding and discharging and the size of material is controlled by hydraulic pressure. It features high automatization content. It is convenient to operate and use. Because the hydraulic system adopts a plate type structure, its arrangemen It is more reasonable. The roller is cast by special alloy, its strength is high and its surface has high hardness.

.
It has wearing resistance property. It is ideal equipment to grind high quality paste material....

Main technical data:

Roller diameter (mm): 260

Length of roller working surface (mm): 650

Roll rotating speed (rpm):

Low speed rolls (rpm): 58

Medium speed rolls (rpm): 153

High speed rolls (rpm): 408

Main motor power (kW): 22

Pressure of hydraulic system (MPa): 6.3

Pressure power (kW): 1.5

Machine weight (kg): 2000

Overall dimensions (L x W x H) (mm): 1558x 1280 x 1200

Packing: Wooden case

EX-proof standard: not only the motor, but also the electrical line, buttons;

Frequency converyor please inform us before place your order.

We supply three series twelve types three roll grinder for different standard requirement include the laboratorial types; Please ask for more details from us; .

Competitive price

Three Roll Mill/Grinder/Mixer, three rolls mill/grinding machines/roll grinder

three rolls mill/grinding machines/roll grinder,three roll mill.

.

Packing

International sea freight packing by wooden box.

Warrenty

one year guarantee with 24 hours service.
