Technical Parameters

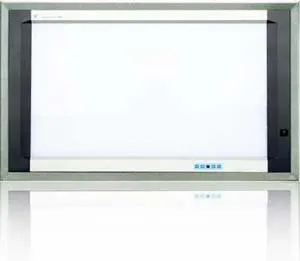

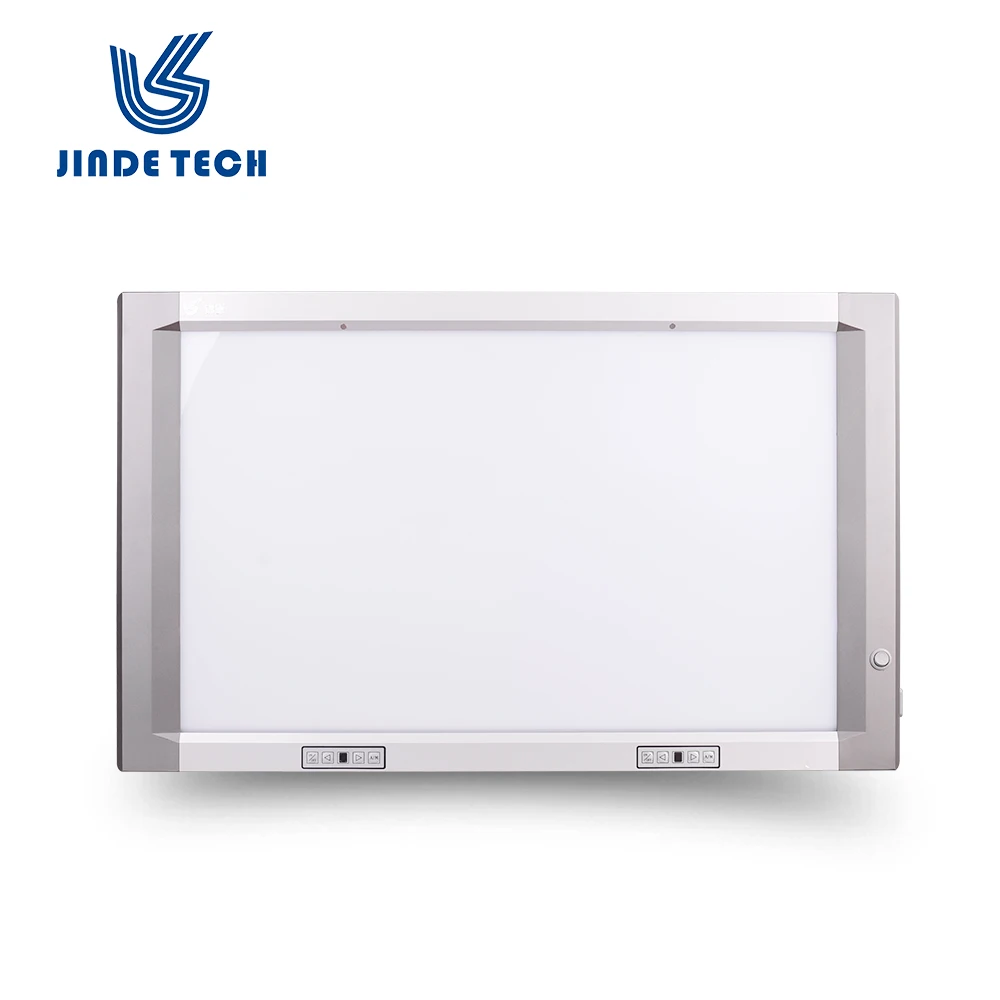

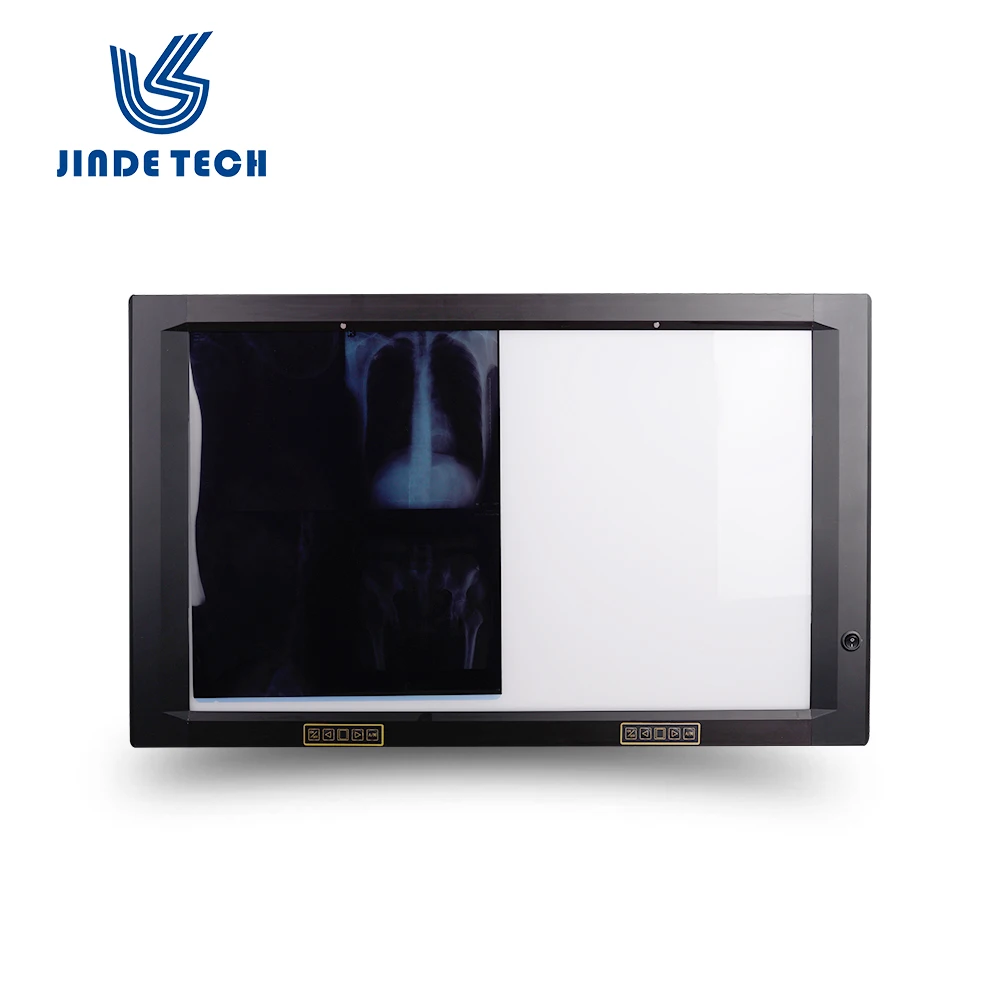

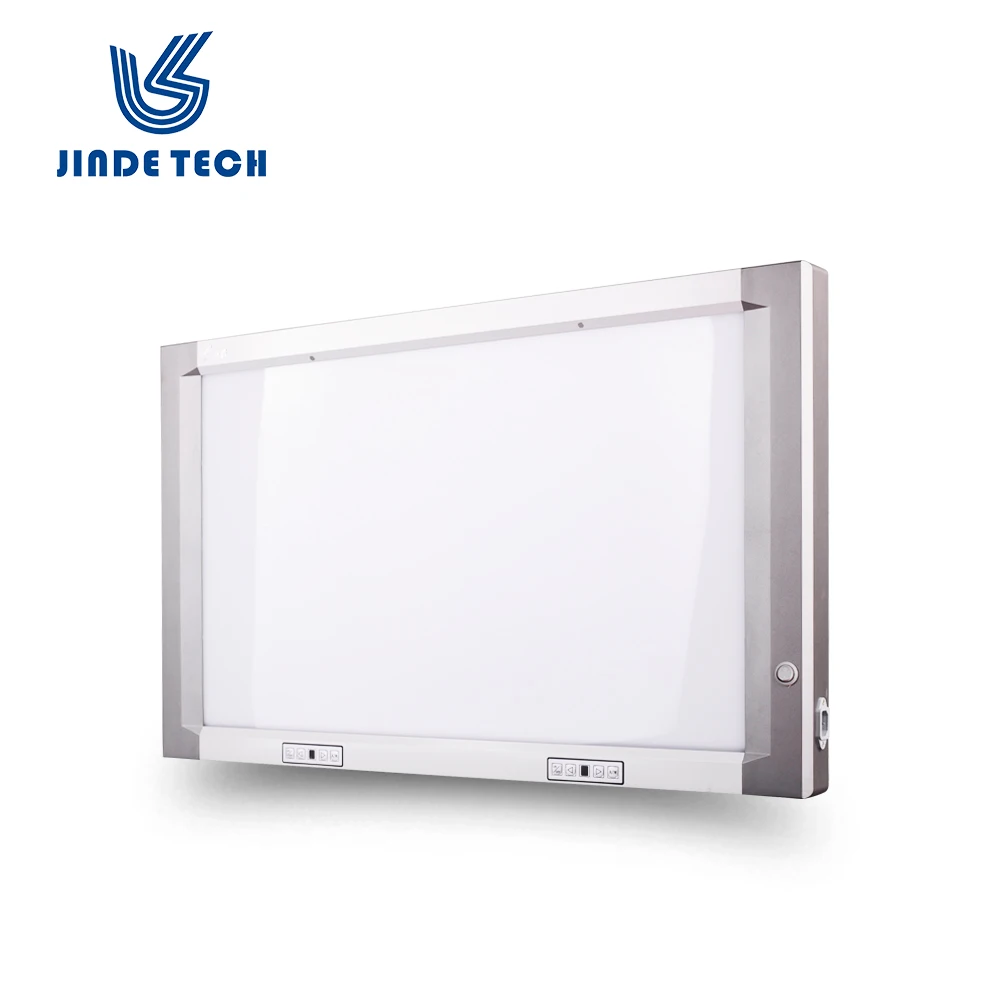

Product Name		LED X ray film viewers ( X-ray illuminator / X-ray view box / LED negatoscope )
Type		SINGLE SCREEN	DUAL SCREEN	TRIPLE SCREEN	QUADRUPLE SCREEN
Model		JD-01AIII	JD-01BIII	JD-01CIII	JD-01DIII
Dimensions (mm)	Frame (L x H x T)	500 x 510 x 45	850 x 510 x 45	1200 x 510 x 45	1570 x 510 x 45
Dimensions (mm)	Viewing Area (W x H)	360 x 440	736 x 440	1112 x 440	1488 x 440
Mitsubishi brand Screen		√	√	√	√
Film Sensor		√	√	√	√
Light Source		Matrix LED	Matrix LED	Matrix LED	Matrix LED
LED lifespan		> 100,000hrs	> 100,000hrs	> 100,000hrs	> 100,000hrs
Light Uniformity		> 98%	> 98%	> 98%	> 98%
Brightness		>15,000 lux >4,500 cd/m2	>15,000 lux >4,500 cd/m2	>15,000 lux >4,500 cd/m2	>15,000 lux >4,500 cd/m2
Dimming		√	√	√	√
Jinde Patent elastic silicon chips		√	√	√	√
Power Supply Input		AC100-240V 50/60Hz	AC100-240V 50/60Hz	AC100-240V 50/60Hz	AC100-240V 50/60Hz
Power Consumption		15W	30W	45W	60W
Built-in Power Adapter		√	√	√	√
Aluminum Alloy Board & frame		√	√	√	√
Net Weight (Kgs)		3 Kgs	5 Kgs	7.5 Kgs	9 Kgs
Gross Weight(Kgs)		5Kgs	7 Kgs	10 Kgs	13 Kgs
Single package size(mm)		600 x 610 x 110	960 x 610 x 110	1320 x 610 x 110	1680 x 610 x 110
All Jinde products are CE certified and manufacturer under ISO9001 system
