Морской система автоматического управления полётом пакет SY 668 (с цифровой компас)

Описание и отзывы

Характеристики

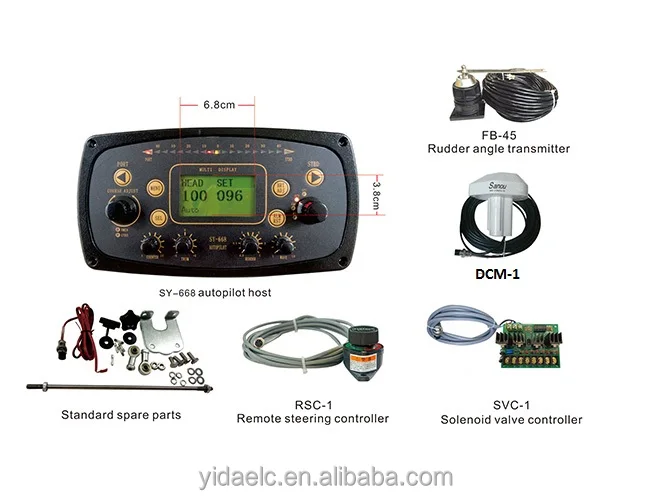

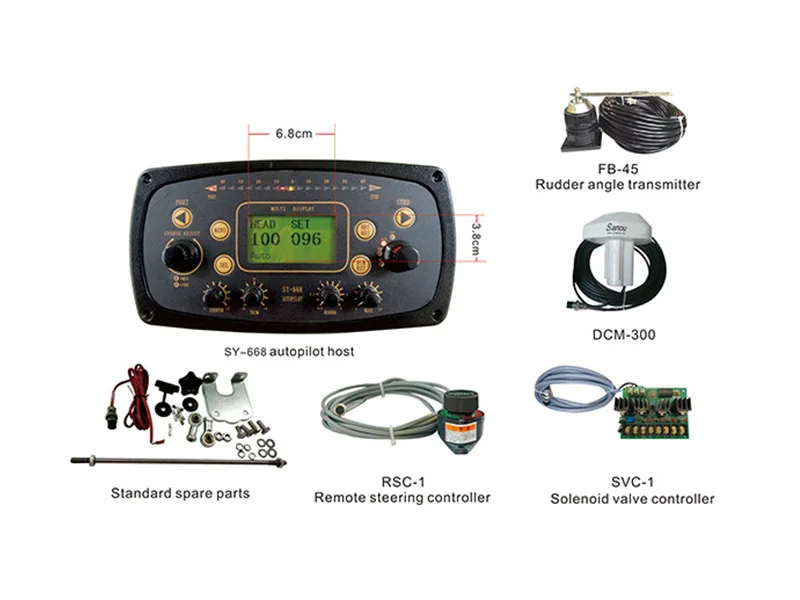

        marine autopilot system for ship and boat

              MODEL NO.SY-668     Control Panel

Screen:LCD display

Description:

(1)This product adopts precise military potentiometers as components for transmission and feedback;

(2)The output control is contactless SSR solid-state relay, and use precise integrated circuit control, have the advantage of high control accuracy, low noise, long service life, applicable to all kinds of ships for accurate control of hydraulic steering gear.

High-accurate sending unit

Hand follow-up[remote steering control]

  Solenoid valve

Mounting plate, power wire, connection rod.

Fixed Follow-up (steering control) optional

Fixed Course Switch(Optional) / Reset Switch

1.Power Input:DC24V+-30%,0.2A;

2.Steering rate:2.5deg~5deg/second;

3.Remote Sensitivity:<1.0deg rudder angle (adjustable)

4.Solenoid valve power: DC24V, 5A;

5.Operating mode:Manual,Remote,Auto,GPS;

1)Manual  (Press the button of Left[Red] or Right[Green] on the panel

to operate and to get the wanted rudder angle)

2)Remote (Through the remote steering control unit called "Hand follow-up"connected to the host

 to operate the ship' rudder at Different positions of the room )

3)Auto  (Set the heading orientation of the ship at first,

 then automatically operate ship at the setted orientation;1) when press the button of Left[Red] or Right [Green] on the panel , the mode

automatically enter into Manual mode,and it'll back to Auto mode for a few seconds

after loosing the buttons; 2)and when rotating the Hand follow-up's angle more than 5 deg,

the mode'll enter into Remote mode, and it'll back to Auto mode for a few seconds after rotating

the Hand follow- up back to the middle position.)

4)GPS  (under this mode, when the host connected to navigation device, it can fix the deviation

 caused by the wave or tide and keep the ship at the right setted destination.)

Application: 200 to 100,000 tons ships.

Autopilot  technical  parameter:

-----HOST-----

1.Input Volt:DC24V±30%;

2.Input current:0.2A;

3.work environment temp:-10~55°C;

4.Shell protection grade:IP43;

5.Hand follow-up Input/Output:3.3V/0~3.3V;

6.Magnetic Azimuth Sensor Input: RS422   NMEA0183 HDM

7.GPS Input:   RS232   NMEA0183  RMB BWC

8. Gyrocompass Input:  RS422   NMEA0183  HDT

9. Feedback unit Input:  RS422   NMEA0183 RSA

10. Orientation Output: RS422   NMEA0183  HDT HDM

---- Magnetic Azimuth Sensor-----

1.Input Volt:DC12V;

2.Input current:36mA;

3.work environment temp:-10~55°C;

4.Shell protection grade:IP54;

5.Angle:0~360°;

6.Output data: RS422   NMEA0183 HDT HDM

----feedback unit-----

1.Input Volt:DC12V;

2.Input current:60mA;

3.work environment temp:-10~55°C;

4.Shell protection grade:IP54;

5.Angle Rotation :±40°;

6.Output data: RS422   NMEA0183  RSA

More information/details, pls contact us !!
