FRP fiberglass glassfiber grp profiles
Product Description

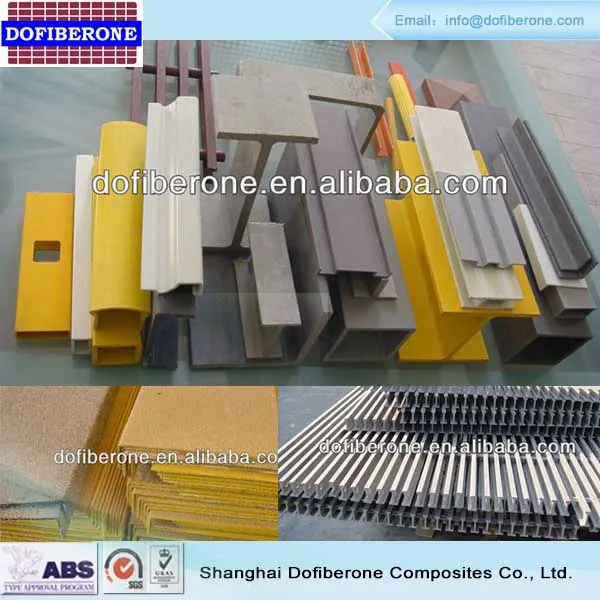

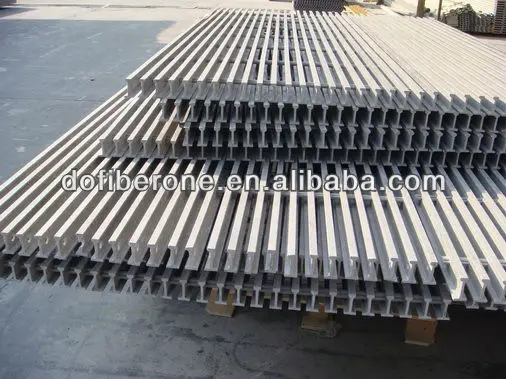

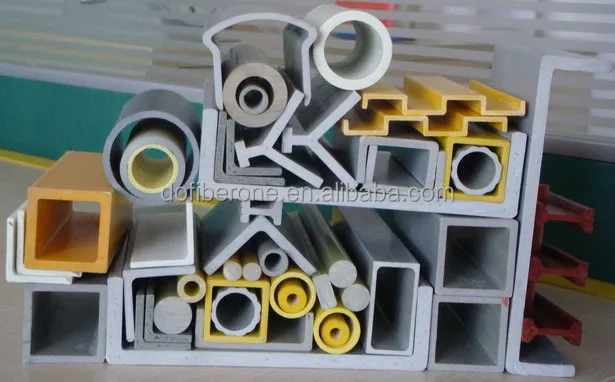

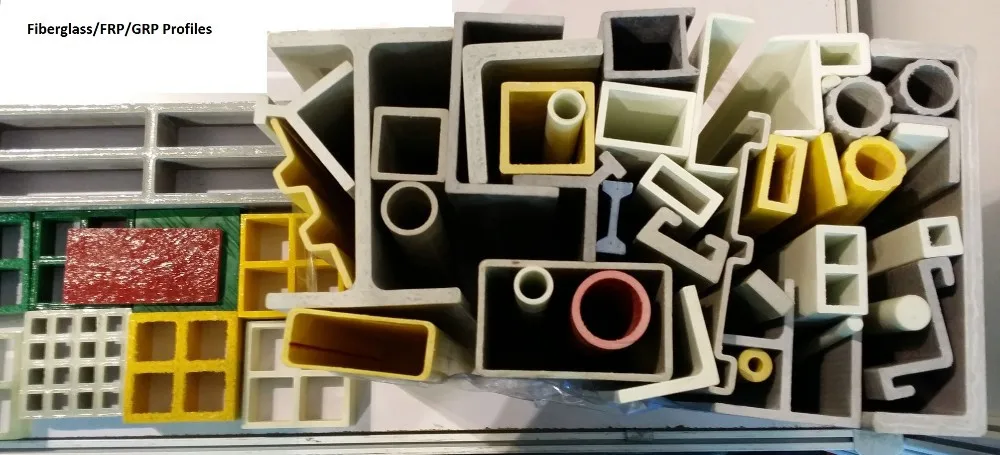

1. Product Pictures of FRP fiberglass glassfiber grp profiles, shapes, sections
2. Product Description of Pultruded FRP fiberglass glassfiber grp profiles
The following is our exsiting FRP GRP profiles, the materials can be orthophthalic resin, Isophthalic resin, vinyl ester, phenolc, it is UV protection.
| Item description | A (MM) | B (MM) | T (MM) | Weight (Kgs/m) | MOQ (m) |
| Round Tube | |||||
| RT14-3 | 14 | 8 | 3 | 0.21 | 1000 |
| RT18-3 | 18 | 12 | 3 | 0.28 | 1000 |
| RT18-5 | 18 | 8 | 5 | 0.41 | 1000 |
| RT20-2.5 | 20 | 15 | 2.5 | 0.27 | 1000 |
| RT30-3 | 30 | 24 | 3 | 0.51 | 1000 |
| RT32-3 | 32 | 26 | 3 | 0.55 | 1000 |
| RT40-4 | 40 | 32 | 4 | 0.90 | 1000 |
| RT50-4 | 50 | 42 | 4 | 1.16 | 1000 |
| RT50-6.35 | 50 | 37.3 | 6.35 | 1.74 | 1000 |
| RT60-5 | 60 | 50 | 5 | 1.73 | 1000 |
| RT65-6.35 | 65 | 52.3 | 6.35 | 2.34 | 1000 |
| RT75-5 | 75 | 65 | 5 | 2.20 | 1000 |
| Square Tube | |||||
| ST16.3-2.15 | 16.3 | 16.3 | 2.15 | 0.28 | 1000 |
| ST20-4.5 | 20 | 20 | 4.5 | 0.72 | 1000 |
| ST40-4 | 40 | 40 | 4 | 1.28 | 1000 |
| ST44-4 | 44 | 44 | 4 | 1.41 | 1000 |
| ST50-3.2 | 50 | 50 | 3.2 | 1.28 | 1000 |
| ST50-4 | 50 | 50 | 4 | 1.60 | 1000 |
| ST50-4.8 | 50 | 50 | 4.8 | 1.92 | 1000 |
| ST50-5 | 50 | 50 | 5 | 2.00 | 1000 |
| ST50-6.35 | 50 | 50 | 6.35 | 2.54 | 1000 |
| ST50.8-4 | 50.8 | 50.8 | 4 | 1.63 | 1000 |
| ST60-4 | 60 | 60 | 4 | 1.92 | 1000 |
| ST60-6.35 | 60 | 60 | 6.35 | 3.05 | 1000 |
| ST76-6.35 | 76 | 76 | 6.35 | 3.86 | 1000 |
| ST76-10 | 76 | 76 | 10 | 6.08 | 1000 |
| ST80-6.5 | 80 | 80 | 6.5 | 4.16 | 1000 |
| ST101.6-4 | 101.6 | 101.6 | 4 | 3.25 | 1000 |
| ST101.6-6.4 | 101.6 | 101.6 | 6.4 | 5.20 | 1000 |
| ST101.6-9.5 | 101.6 | 101.6 | 9.5 | 7.72 | 1000 |
| Rectangular tube | |||||
| RAT40-20-4.5 | 40 | 20 | 4.5 | 1.08 | 1000 |
| RAT45-25-4 | 45 | 25 | 4 | 1.12 | 1000 |
| RAT50-35-4 | 50 | 35 | 4 | 1.36 | 1000 |
| RAT52-32-5 | 52 | 32 | 5 | 1.68 | 1000 |
| RAT60-40-3.2 | 60 | 40 | 3.2 | 1.28 | 1000 |
| RAT100-60-3.5 | 100 | 60 | 3.5 | 2.24 | 1000 |
| ARR175-55-5 | 175 | 55 | 5 | 4.6 | 1000 |
| FRP Angle | |||||
| AL30-5.1 | 30 | 30 | 5.1 | 0.61 | 1000 |
| AL35-5.1 | 35 | 35 | 5.1 | 0.71 | 1000 |
| AL40-4 | 40 | 40 | 4 | 0.64 | 1000 |
| AL45-5.1 | 45 | 45 | 5.1 | 0.92 | 1000 |
| AL50.8-6.35 | 50.8 | 50.8 | 6.35 | 1.29 | 1000 |
| AL76-6.35 | 76 | 76 | 6.35 | 1.93 | 1000 |
| AL76-9.53 | 76 | 76 | 9.53 | 2.90 | 1000 |
| AL101-9.5 | 101 | 101 | 9.5 | 3.84 | 1000 |
| AL101.6-12.7 | 101.6 | 101.6 | 12.7 | 5.16 | 1000 |
| AL152-12.7 | 152 | 152 | 12.7 | 7.72 | 1000 |
| I-beam | |||||
| IB100-50-6.35 | 100 | 50 | 6.35 | 2.54 | 1000 |
| IB100-100-6.35 | 100 | 100 | 6.35 | 3.81 | 1000 |
| IB140-140-10 | 140 | 140 | 10 | 8.40 | 1000 |
| IB150-100-8 | 150 | 100 | 8 | 5.60 | 1000 |
| IB150-125-9.5 | 150 | 125 | 9.5 | 7.60 | 1000 |
| IB152-152-6.35 | 152 | 152 | 6.35 | 5.79 | 1000 |
| IB152-152-9.53 | 152 | 152 | 9.53 | 8.69 | 1000 |
| IB190-125-10 | 190 | 125 | 10 | 8.80 | 1000 |
| IB203-101-9.5 | 203 | 101 | 9.5 | 7.70 | 1000 |
| IB203-101.6-12.7 | 203 | 101.6 | 12.7 | 10.32 | 1000 |
| IB250-125-12-10 | 250 | 125 | 12/10 | 11.55 | 1000 |
| IB254-254-10 | 254 | 254 | 10 | 15.24 | 1000 |
| U-channel | |||||
| UC25.4-11.1-3.2 | 25.4 | 11.1 | 3.2 | 0.30 | 1000 |
| UC28.5-26.5-5 | 28.5 | 26.5 | 5 | 0.82 | 1000 |
| UC50-14-3 | 50 | 14 | 3 | 0.47 | 1000 |
| UC50-30-8 | 50 | 30 | 8 | 1.76 | 1000 |
| UC56.5-25-3 | 56.5 | 25 | 3 | 0.64 | 1000 |
| UC74.5-25-5 | 74.5 | 25 | 5 | 1.25 | 1000 |
| UC76.8-38.5-6.4 | 76.8 | 38.5 | 6.4 | 1.97 | 1000 |
| UC86.5-25-3 | 86.5 | 25 | 3 | 0.82 | 1000 |
| UC88-15-5 | 88 | 15 | 5 | 1.18 | 1000 |
| UC88-35-5 | 88 | 35 | 5 | 1.58 | 1000 |
| UC140-80-10 | 140 | 80 | 10 | 6.00 | 1000 |
| UC150-40-10 | 150 | 40 | 10 | 4.60 | 1000 |
| UC150-45-8 | 150 | 45 | 8 | 3.84 | 1000 |
| UC150-60-10 | 150 | 60 | 10 | 5.40 | 1000 |
| UC178-60-6.35 | 178 | 60 | 6.35 | 3.78 | 1000 |
| UC203-55-9.5 | 203 | 55 | 9.5 | 5.95 | 1000 |
| UC800-50-5 | 800 | 50 | 5 | 9.00 | 1000 |
| T-bar | |||||
| TB45-54-6 | 45 | 54 | 6 | 1.19 | 1000 |
| TB46-62-10 | 46 | 62 | 10 | 2.16 | 1000 |
| TB50-52-6 | 50 | 52 | 6 | 1.22 | 1000 |
| TB55-52-6 | 55 | 52 | 6 | 1.28 | 1000 |
| TB60-52-6 | 60 | 52 | 6 | 1.34 | 1000 |
| TB140-80-10 | 140 | 80 | 10 | 4.40 | 1000 |
| Handrail profile | W | H | T | ||
| HP71-60 | 71 | 60 | 4.5 | 1.36 | 1000 |
| HP76-50 | 76 | 50 | 4.5 | 1.35 | 1000 |
| Round Rod | DIA | ||||
| RR7 | 7 | 0.077 | 1000 | ||
| RR8 | 8 | 0.101 | 1000 | ||
| RR10 | 10 | 0.157 | 1000 | ||
| RR12 | 12 | 0.226 | 1000 | ||
| RR15 | 15 | 0.353 | 1000 | ||
| RR18 | 18 | 0.509 | 1000 | ||
| RR20 | 20 | 0.628 | 1000 | ||
| Rectangular rod | A | B | |||
| RAR44-44 | 44 | 44 | 3.87 | 1000 | |
| RAR54-40 | 54 | 40 | 4.32 | 1000 | |
| RAR50-52 | 50 | 52 | 5.20 | 1000 | |
| RAT50-54 | 50 | 54 | 5.40 | 1000 | |
| RAR30-20 | 30 | 20 | 1.20 | 1000 | |
| RAR35-20 | 35 | 20 | 1.40 | 1000 | |
| RAR10-3 | 10 | 3 | 0.06 | 1000 | |
| RAR15-3 | 15 | 3 | 0.09 | 1000 | |
| RAR50-3 | 50 | 3 | 0.30 | 1000 | |
| RAR54-2.5 | 54 | 2.5 | 0.27 | 1000 | |
| RAR30-6 | 30 | 6 | 0.36 | 1000 | |
| RAR30-10 | 30 | 10 | 0.60 | 1000 | |
| RAR40-6 | 40 | 6 | 0.48 | 1000 | |
| RAR25-9.7 | 25 | 9.7 | 0.49 | 1000 | |
| RAR25.4-6.35 | 25.4 | 6.35 | 0.32 | 1000 | |
| FRP board | A | T | |||
| FB100-4 | 100 | 4 | 0.80 | 1000 | |
| FB120-10 | 120 | 10 | 2.40 | 1000 | |
| FB130-10 | 130 | 10 | 2.60 | 1000 | |
| FB140-12.5 | 140 | 12.5 | 3.50 | 1000 | |
| FB150-3 | 150 | 3 | 0.90 | 1000 | |
| FB150-4 | 150 | 4 | 1.20 | 1000 | |
| FB180-3 | 180 | 3 | 1.08 | 1000 | |
| FB220-10 | 220 | 10 | 4.40 | 1000 | |
| FB228-12.5 | 228 | 12.5 | 5.70 | 1000 | |
| FB300-3.5 | 300 | 3.5 | 2.10 | 1000 | |
| FB550-12 | 550 | 12 | 13.20 | 1000 | |
| Kick board | |||||
| KB101-14-3.4 | 101 | 14 | 3.4 | 0.81 | 1000 |
| KB148-12-3 | 148 | 12 | 3 | 0.99 | 1000 |
| KB150-12-3 | 150 | 12 | 3 | 1.00 | 1000 |
| 1000 | |||||
| Ladder rung | D1 | D2 | T | 1000 | |
| LR32-30-2.75 | 32 | 24.5 | 2.75 | 0.53 | 1000 |
| LR32-29-2.5 | 32 | 24 | 2.5 | 0.55 | 1000 |
| LR33.8-31-2.75 | 33.8 | 25.5 | 2.75 | 0.6 | 1000 |
| LR32-30-4.5 | 32 | 21 | 4.5 | 0.8 | 1000 |
| Weight | |||||
| FRP Y-angle | A | B | T | (kgs/m) | |
| FY26 | 26 | 39 | 6.35 | 1.1 | 1000 |
| FY39 | 39 | 39 | 6.35 | 1.3 | 1000 |
| FY51 | 51 | 39 | 6.35 | 1.4 | 1000 |
| weight (kgs/m) | |||||

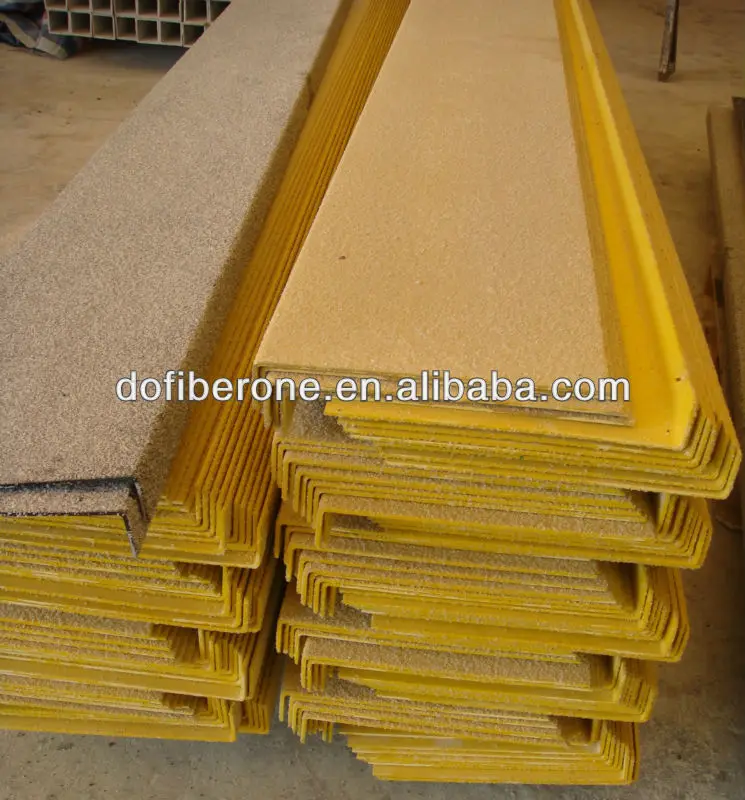

| Tread cover /nosing | A | B | T | No grit | with grit |
| TC30-70-4 | 30 | 70 | 4 | 0.75 | 0.91 |
| TC55-55-4 | 55 | 55 | 4 | 0.8 | 0.96 |
| TC55-100-3 | 55 | 100 | 3 | 0.83 | 1.2 |
| TC55-100-4 | 55 | 100 | 4 | 1.16 | 1.5 |
| TC55-200-4 | 55 | 200 | 4 | 1.91 | 2.5 |
| TC55-250-4 | 55 | 250 | 4 | 2.37 | 3.1 |
| TC35-320-3 | 35 | 320 | 3 | 2.24 | 3.3 |
| TC55-350-3 | 55 | 350 | 3 | 2.5 | 3.3 |
| TC55-350-4 | 55 | 350 | 4 | 3.14 | 4.1 |

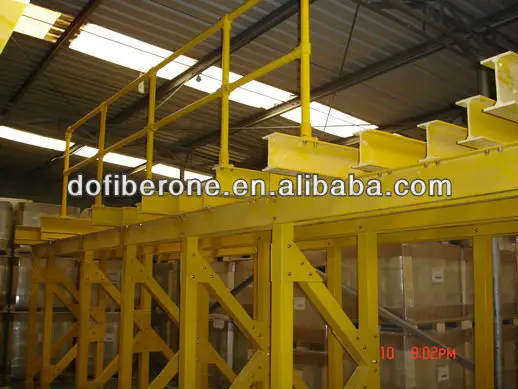

3. Applications of grp profile
Our Services
4. More Products for You to Choose
Company Information
1. About us
Our factory was founded in 1992. After more than 20 years of development, our company has become an expert of Fiberglass/ FRP /GRP raw materials and product in China.
As a FRP/GRP leader in China, we have had fruitful development during the past years.
Our FRP products made from the FRP materials have been widely accepted in the world market. Our FRP materials include fiberglass, SMC, BMC and others.
Our rich experience in Fiberglass/FRP/GRP production and exporting service is our most competitive advantage in China.
Our quality and scale of our factories have been improved and are the top1-2 in China. Our working team can supply you with high quality products and professional design services.
2.Why Choose
Has been in terms of size, technology, markets and profitability in a leading position.
welcome to visit the factory in anytime.we are try to keep our prices competitive as per market trend.(factory price)
we are confident that you will be satisfied with our various services and wide range of products with good quality.
We believe in customer satisfaction, so we offer discounts and incentives to our valued customers frequently throughout year.
3. Certifications
QA/QC Introduction
ABS certificate, every year ABS will check and confirm it
Test Equipment and Facilities
ISO 90001 certificated
Our factory is ISO9001 certificate.
ABS certificate
4. Contact
Mike Chow
Shanghai Dofiberone Composites Co., Ltd.
Add: 325 Mytech Park | No.1999 East Jinxiu Rd|Pudong Shanghai 201206| China
T: 86 21 50560718 |F: 86 21 6085 2585 |M & Whatsapp: 86 13701986459 |Skype: dofiberone
www.dofiberone.com | info at dofiberone.com | mikech18 at hotmail.com
