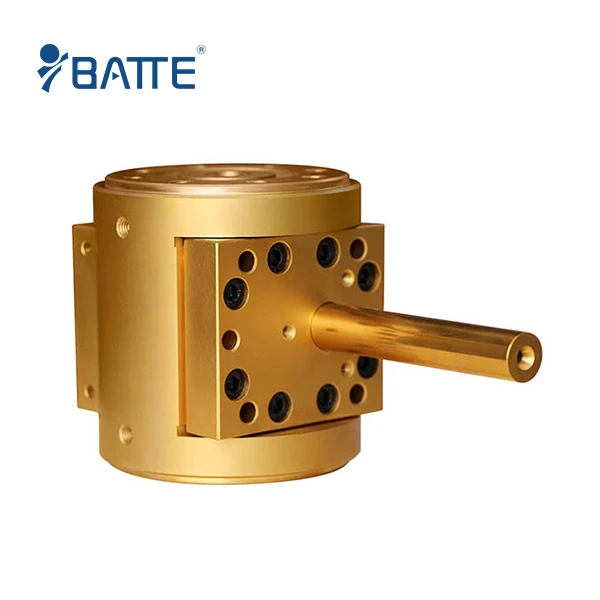

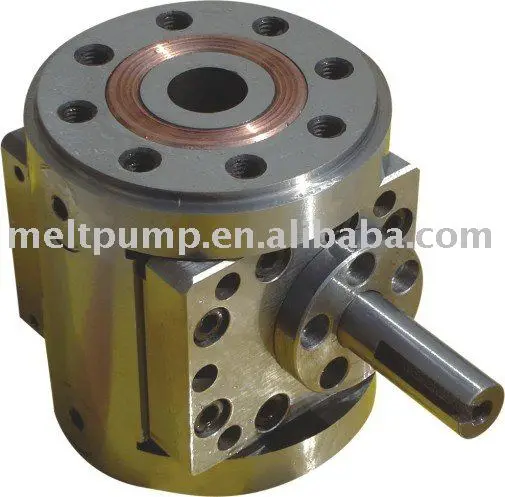

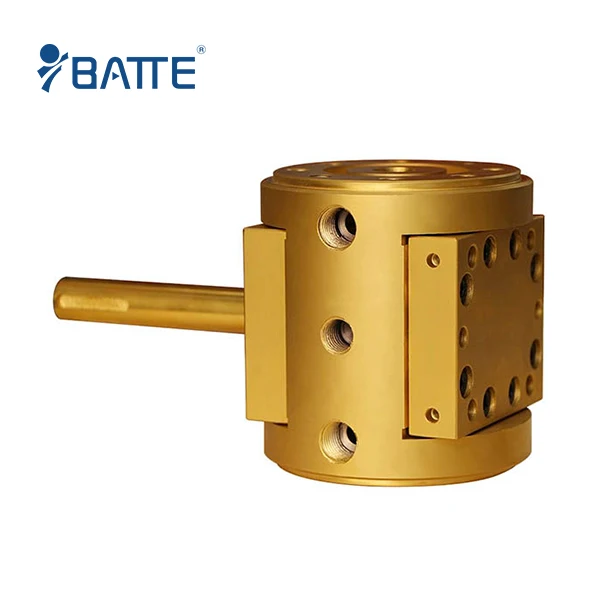

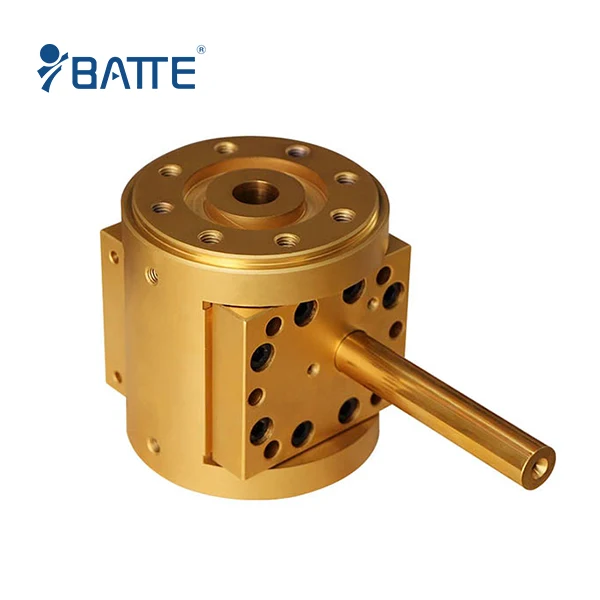

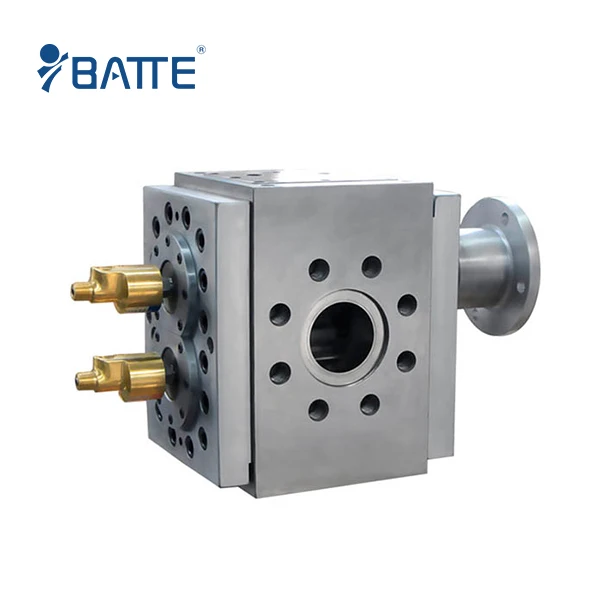

Полиуретановые насосы для дозирования горячего расплава шнекового экструзионного насоса экструзии пластика
- Категория: >>>
- Поставщик: Zhengzhou Bate Melt Pumps Co. Ltd.
Сохранить в закладки 391318124:
Описание и отзывы
Характеристики
Products Description
Batte zb-e melt extruding pump is used for extruder or high viscosity polymer pressurization and stable flow. It is suitable for PS, pet, PVC, PC, PMMA, PA, HDPE, LDPE, PP and other processes.
Technical parameters:
Pump body: high temperature tool steel
Gear: high temperature tool steel, nitriding steel
Sliding bearing: high temperature tool steel, special material and wear resistant coating
Shaft seal: spiral seal, packing seal
Heating system: electric heating
Specification / flow range: 0.5cc-3200cc
Gear: high temperature tool steel, nitriding steel
Sliding bearing: high temperature tool steel, special material and wear resistant coating
Shaft seal: spiral seal, packing seal
Heating system: electric heating
Specification / flow range: 0.5cc-3200cc
Operating Parameter of Extrusion gear pump
◆ Volume Range: 0.5CC - 12000CC
◆ Viscosity: ≤40000 Pas
◆ Working Temperature: ≤400°C (750°F)
◆ Cleaning Temperature: ≤450°C (850°F)
◆ Outlet Pressure: 40MPa(6000psi)
◆ Viscosity: ≤40000 Pas
◆ Working Temperature: ≤400°C (750°F)
◆ Cleaning Temperature: ≤450°C (850°F)
◆ Outlet Pressure: 40MPa(6000psi)
Operating parameters:
Viscosity: ≤ 40000 Pa. s
Working temperature: ≤ 400 ℃ (750 ℃)
Cleaning temperature: ≤ 450 ℃ (850 ℃)
Outlet pressure: ≤ 40MPa (6000PSI)
Working temperature: ≤ 400 ℃ (750 ℃)
Cleaning temperature: ≤ 450 ℃ (850 ℃)
Outlet pressure: ≤ 40MPa (6000PSI)
One Whole Set of BATTE hot melt glue pump (ZB-d Series) Comprise :
1. Melt Pump
2. Driven System: Motor + Reducer
3. Control System: PLC Touchscreen System
2. Driven System: Motor + Reducer
3. Control System: PLC Touchscreen System
Structure of Extruding pump

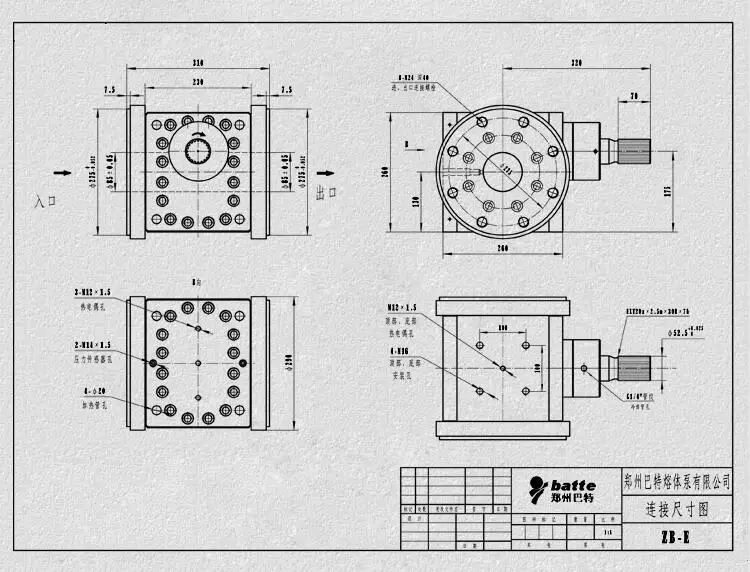

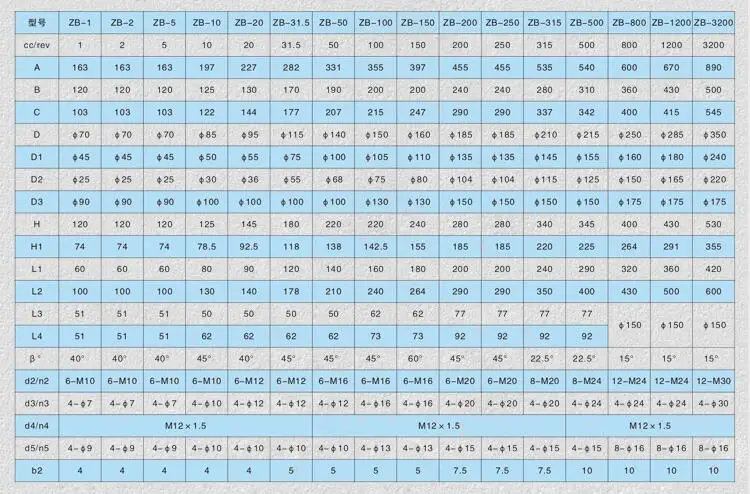

Outline connection dimension drawing of melt pump
Certifications
Technical Parameter
Type | CC/Rev | Capacity (L/H) | Heating power (kw) | Dirven system (kw) | Pressure | Temperature |
ZB-0.2 | 0.2 | 0.2-0.6 | 0.5 | 0.37 | Inlet pressure:≥0Mpa Exit pressure: ≤35Mpa | Operating temperature:≤350℃ Clearing temperature:≤450℃ |
ZB-1 | 1 | 1-3 | 1 | 0.5 | ||
ZB-2 | 2 | 2-6 | 1 | 0.75 | ||
ZB-5 | 5 | 5-15 | 1 | 1.1 | ||
ZB-10 | 10 | 10-30 | 1 | 1.5 | ||
ZB-20 | 20 | 20-60 | 2 | 2.2 | ||
ZB-31.5 | 31.5 | 30-90 | 2 | 3 | ||
ZB-50 | 50 | 50-150 | 2 | 4 | ||
ZB-100 | 100 | 100-300 | 3 | 5.5 | ||
ZB-150 | 150 | 150-450 | 4 | 7.5 | ||
ZB-200 | 200 | 200-600 | 4 | 11 | ||
ZB-250 | 250 | 250-750 | 5 | 15 | ||
ZB-315 | 315 | 300-900 | 6 | 18.5 | ||
ZB-400 | 400 | 400-1200 | 8 | 22 | ||
ZB-500 | 500 | 500-1500 | 10 | 30 | ||
ZB-630 | 630 | 600-1800 | 12 | 37 | ||
ZB-800 | 800 | 800-2400 | 15 | 45 | ||
ZB-1000 | 1000 | 1000-3000 | 18 | 55 | ||
ZB-1500 | 1500 | 1200-4500 | 20 | 75 |
Exhibition
Installation of Our Melt Pump
The Installation of Our Melt Pump
Installation Method: Motor+Reducer+Universal Coupling+Melt Pump You can use control or direct current governor for the motor, and can adjust the flow to your demands optionally. Please well check our installation method below:
Company Profile
1). OEM services provided;
2). Excellent quality assurance;
3). Fast delivery;
4). Worldwide dealer or agent wanted.
Batte Melt Pump Zhengzhou Co., Ltd is one of the biggest manufacturer for melt pump, gear pump or metering pump products in China.
Being a professional supplier for melt pump products, we have been accumulating adequate experience on the application-specific
technique. In addition to providing services and spare parts for our own pumps, we also provide comprehensive service packages for
melt pump produced by other manufacturers.
Batte melt pump is mainly used for metering, transfer and pressure boosting of low or high viscosity polymer melt. The pump parts
can be selected to counteract abrasion and conform to various materials characteristics of the pumped media.
2). Excellent quality assurance;
3). Fast delivery;
4). Worldwide dealer or agent wanted.
Batte Melt Pump Zhengzhou Co., Ltd is one of the biggest manufacturer for melt pump, gear pump or metering pump products in China.
Being a professional supplier for melt pump products, we have been accumulating adequate experience on the application-specific
technique. In addition to providing services and spare parts for our own pumps, we also provide comprehensive service packages for
melt pump produced by other manufacturers.
Batte melt pump is mainly used for metering, transfer and pressure boosting of low or high viscosity polymer melt. The pump parts
can be selected to counteract abrasion and conform to various materials characteristics of the pumped media.

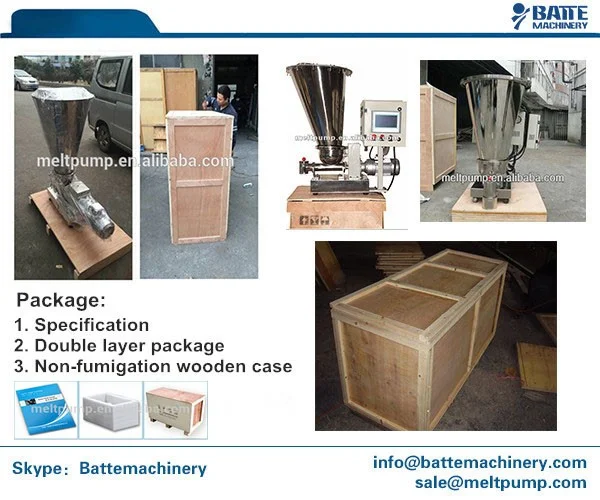

shipping
Batte will choose the most reasonable packing material and packing dimensions for our product, all wooden case package is fumigated, and dimensions are designed to be economical to container shipment. For shipping, we usually work on FOB/CFR/CIF.
We will supply related report and packing pictures of products before shipment to customers.
We will supply related report and packing pictures of products before shipment to customers.
FAQ
1. Which melt pump size we can use?
Before recommending our proper melt pump model for you, we need to confirm with you the following points:
1.1. The production line and the final product;
1.2. The material you deal with;
1.3. The viscosity of your material;
1.4. The hourly output;
1.5. The working temperature;
1.6. The working pressure;
2. What is your MOQ;
At present, our MOQ is 1 set;
3. How long is the delivery time?
In general, the delivery time is 4-5 weeks.
4. What is your guarantee term?
The warranty period for our products is one year.During the warranty period, the seller is responsible for replacing free
damageable parts , while the buyer pays for freight.
5. How about the oversea installation and debugging?
Our engineer can be assigned for installation and debugging. Or we can use long-distance technical assistance based on Industry
4.0.
Before recommending our proper melt pump model for you, we need to confirm with you the following points:
1.1. The production line and the final product;
1.2. The material you deal with;
1.3. The viscosity of your material;
1.4. The hourly output;
1.5. The working temperature;
1.6. The working pressure;
2. What is your MOQ;
At present, our MOQ is 1 set;
3. How long is the delivery time?
In general, the delivery time is 4-5 weeks.
4. What is your guarantee term?
The warranty period for our products is one year.During the warranty period, the seller is responsible for replacing free
damageable parts , while the buyer pays for freight.
5. How about the oversea installation and debugging?
Our engineer can be assigned for installation and debugging. Or we can use long-distance technical assistance based on Industry
4.0.
Quality Control System
• Fixed Q/C Equipments;
• Materials Qualified before Reaching Warehouse;
• Randomly Checking before Shipment.
• Materials Qualified before Reaching Warehouse;
• Randomly Checking before Shipment.
Our Value-added Service Package
1. Installation Services: During the period of installation and debugging, we shall offer training about effective operation and maintenance.
2. Technical Services: We can assist our clients to solve all kind of technical problems with our capable technical team, and we own adequate experience for production line transformation project.
3. Warranty Services: We offer free after sale service except the engineers' traveling expense for any quality problem occurs during our 12 months warranty period.
2. Technical Services: We can assist our clients to solve all kind of technical problems with our capable technical team, and we own adequate experience for production line transformation project.
3. Warranty Services: We offer free after sale service except the engineers' traveling expense for any quality problem occurs during our 12 months warranty period.
Похожие товары

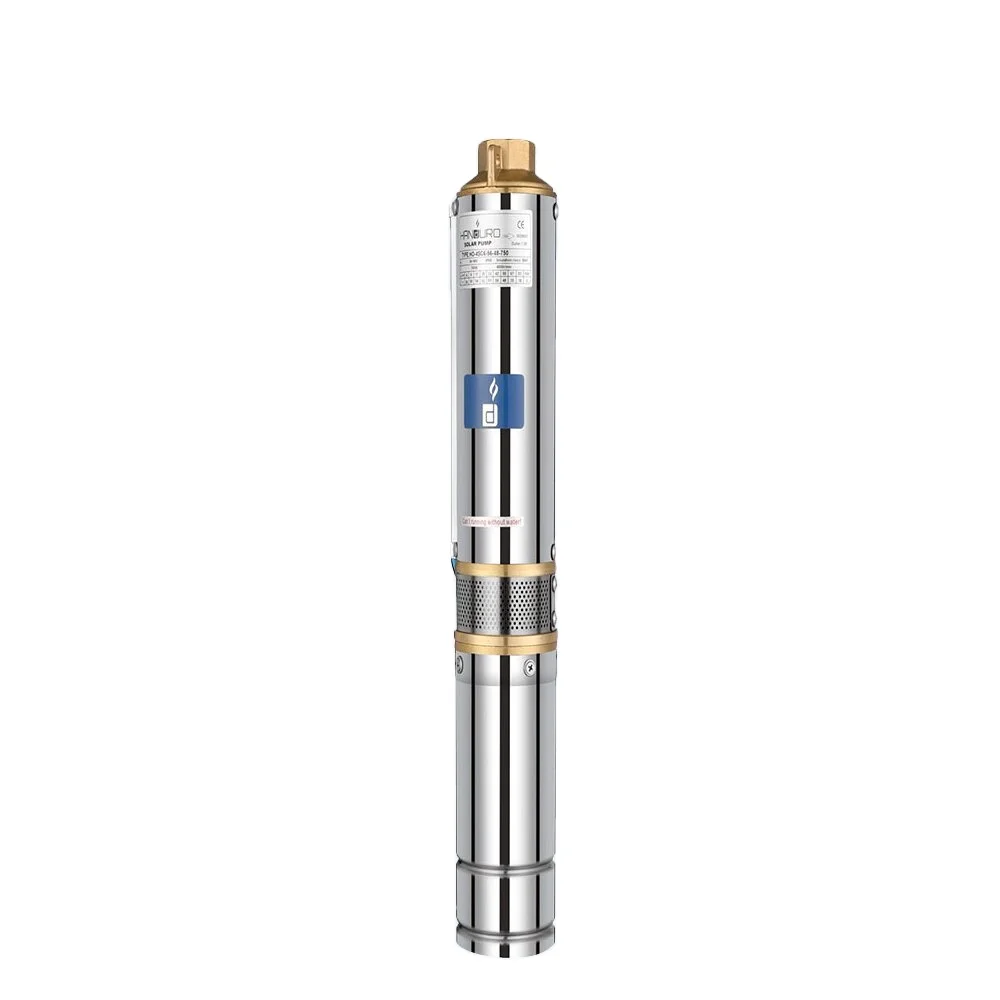

1100 Вт HD 3-дюймовый рабочий Солнечный погружной ирригационный насос 8 кубических метров в час 110 В винтовой для глубоких скважин DC OEM домашнего использования
Распродажа небольшой мини Перистальтический дозирующий насос постоянного тока 3 В 5
109,65 ₽ - 208,34 ₽

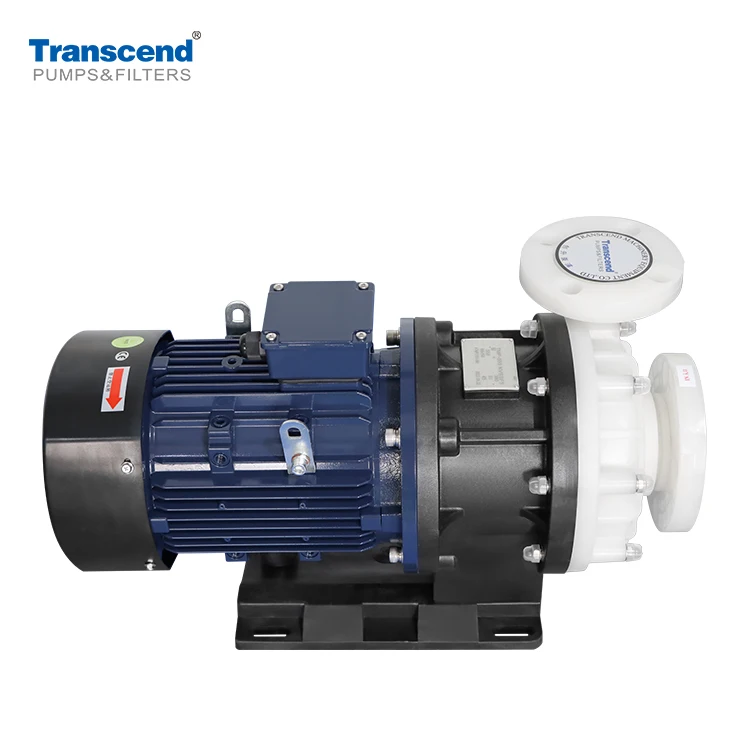

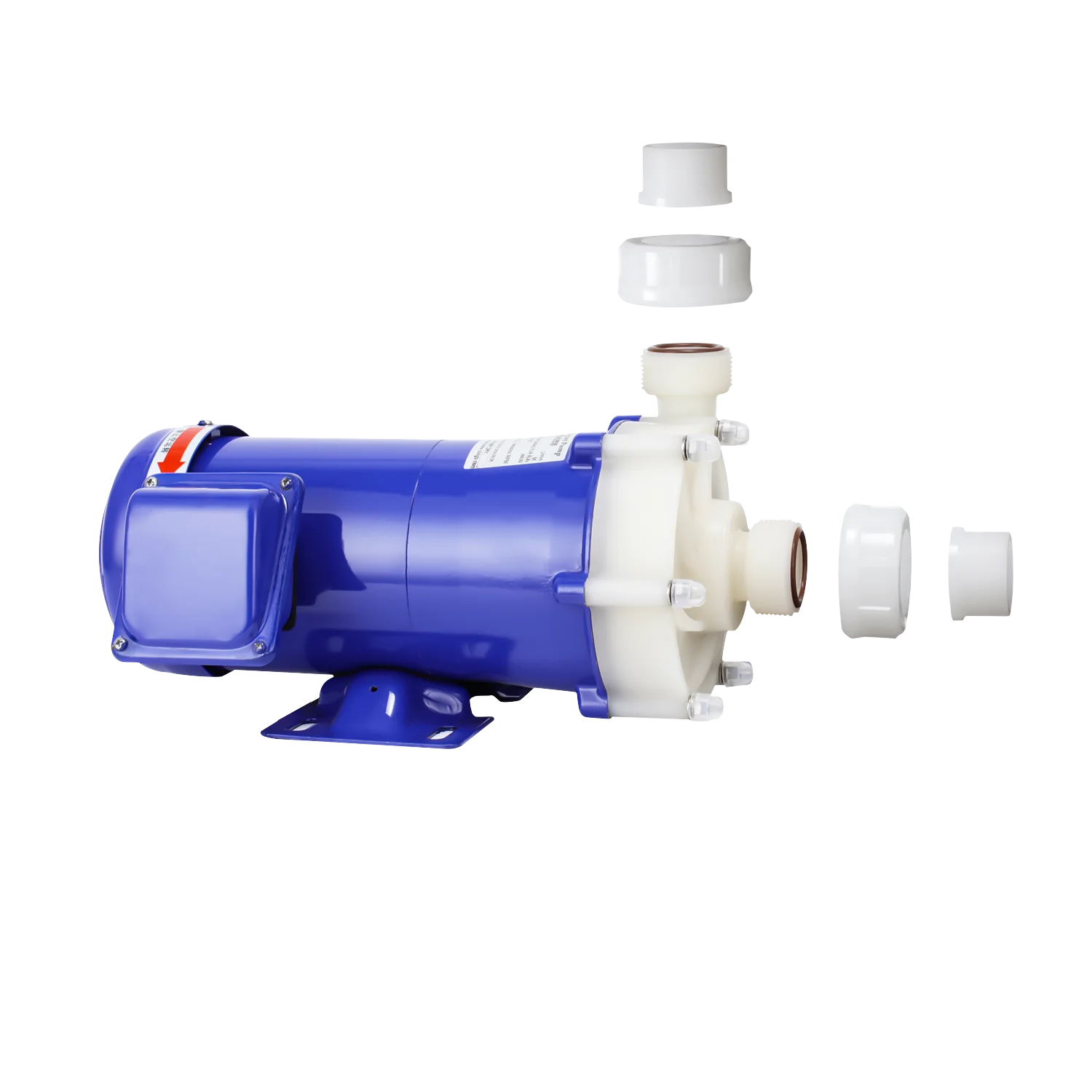

Транскондент TMP муравьиная кислота для переноса жидкости химические растворы коррозионно-стойкие центробежные магнитные приводные насосы одноступенчатые
38 925,19 ₽ - 43 859,36 ₽
Небольшой химический насос для очистки промышленных сточных вод
38 925,19 ₽ - 43 859,36 ₽
Заводская цена химический насос с магнитным приводом для транспортировки хлорной воды
105 152,82 ₽ - 184 099,67 ₽

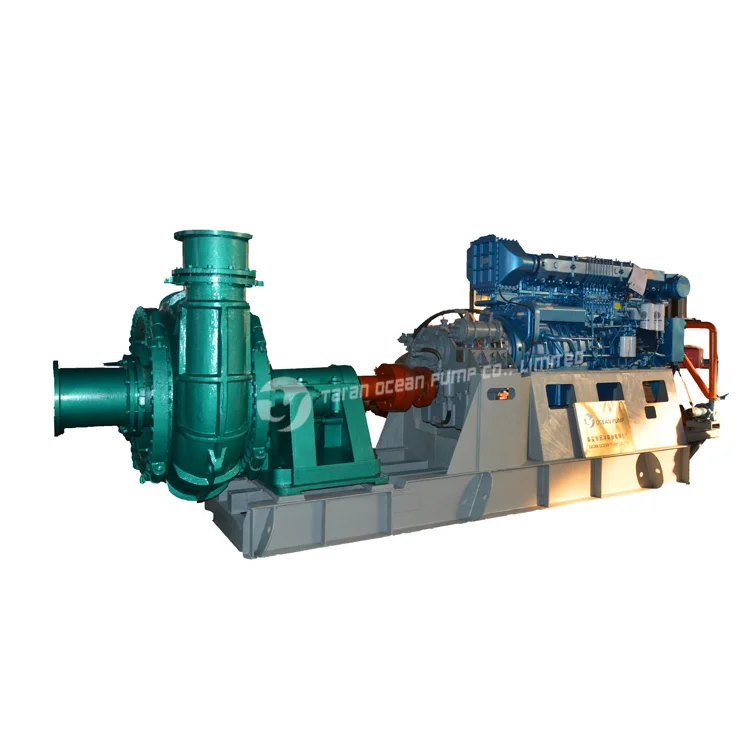

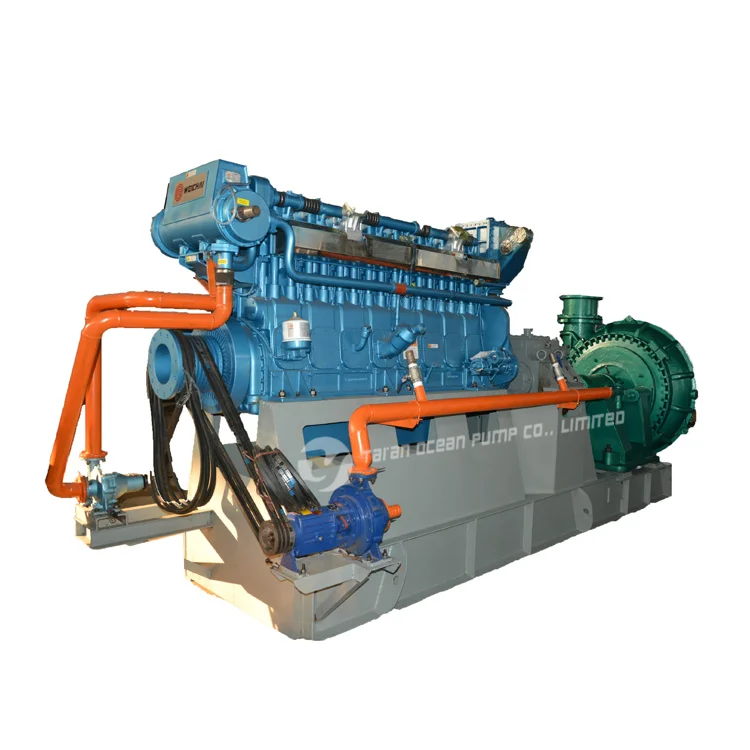

Речной дноуглубочный насос 8 дюймов дизельный двигатель песчаный шламовый
