\t\t\t\t\t\t\t\t\tFRP panel \t\t\t\t\t\t\t

FRP Sheet features:

1) Machine continuously made flat panels, no limit on length;
2) Anti-impact: much better stiffness and strength than plastic, due to fiberglass reinforced;
3) Fire resistant: made by thermosetting resin;
4) Mildew resistant: Effectively inhibit the growth of mildew;
5) Easy install: No other tools are needed except for rivet or glue only;
6) Anti-corrosive: stay good condition immerged into 10% Hydrochloric acid or 3% NAOH solvent for long time;
7) Easy cleaning: It can be easy cleaned by steam or high-pressured squirt gun;
8) Extreme temperature resistant: Withstand temperature at -40 -110 degree C for long time;

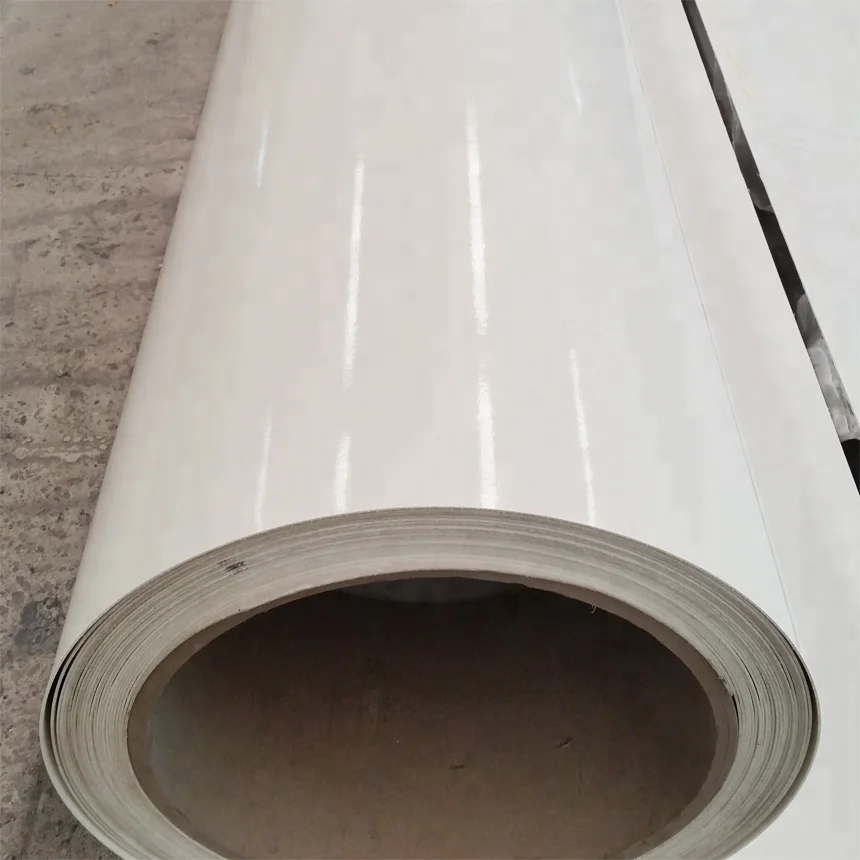

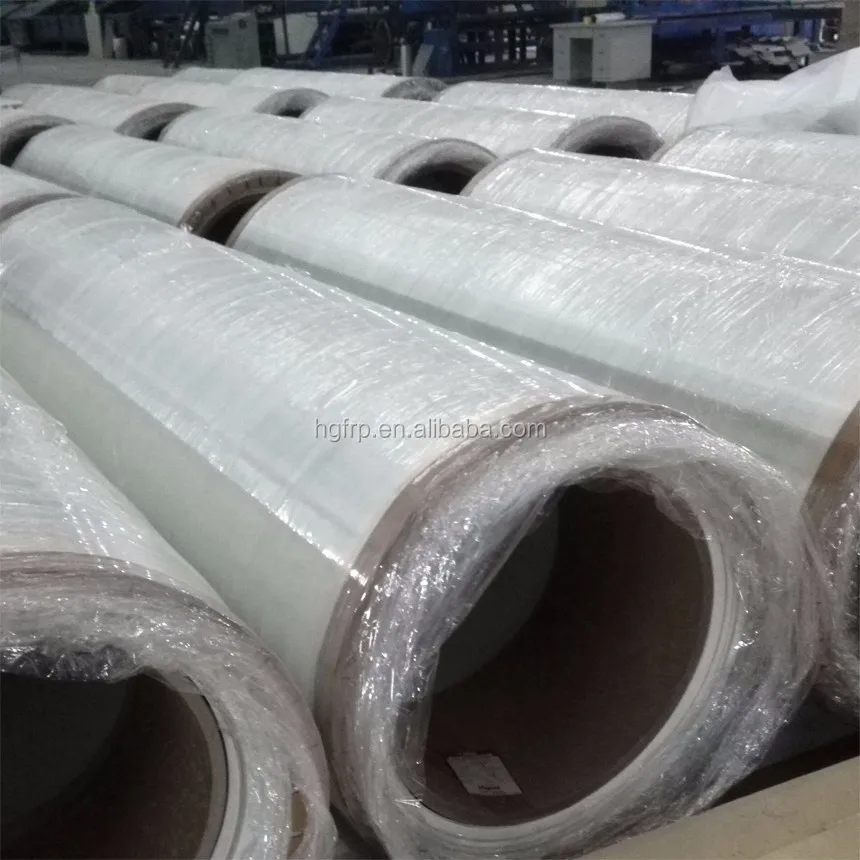

9) Rolled up by machine with 50-100m length as a coil, to save shipping cost.

Higoal Panel Options

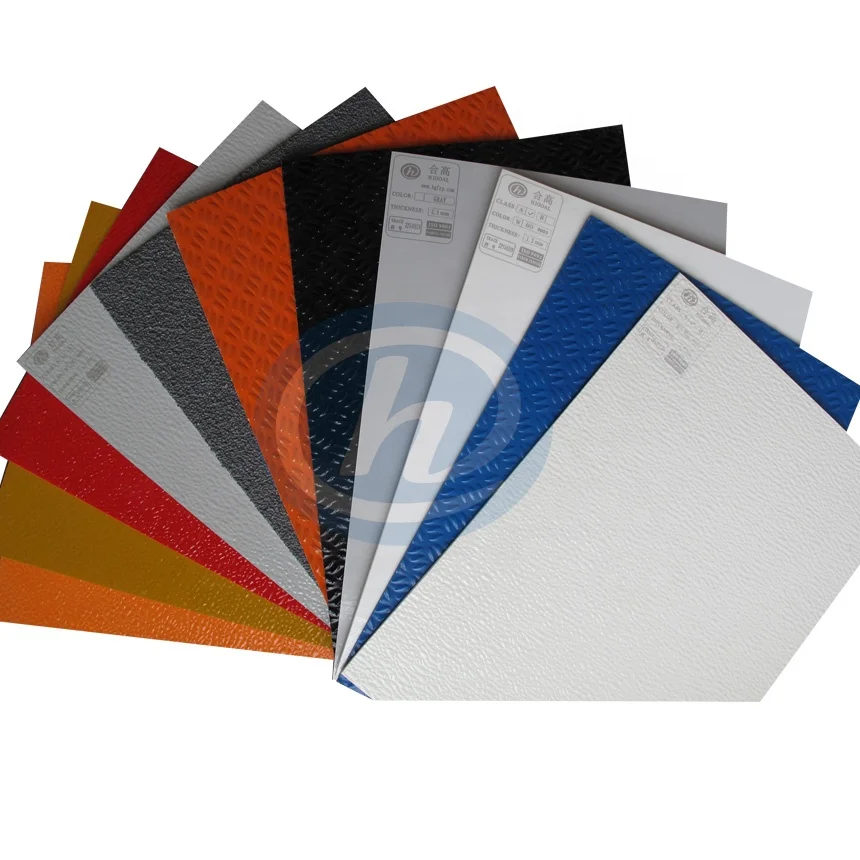

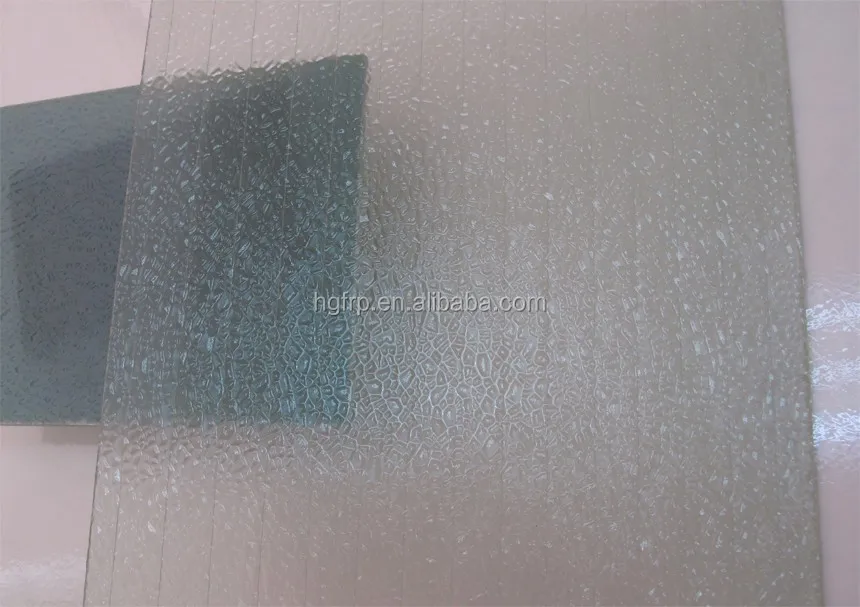

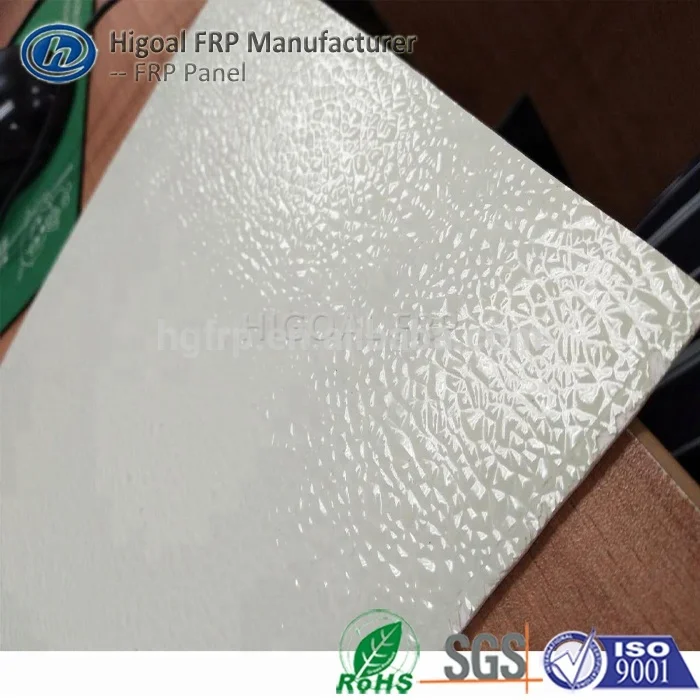

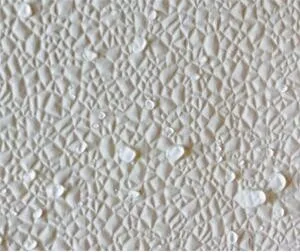

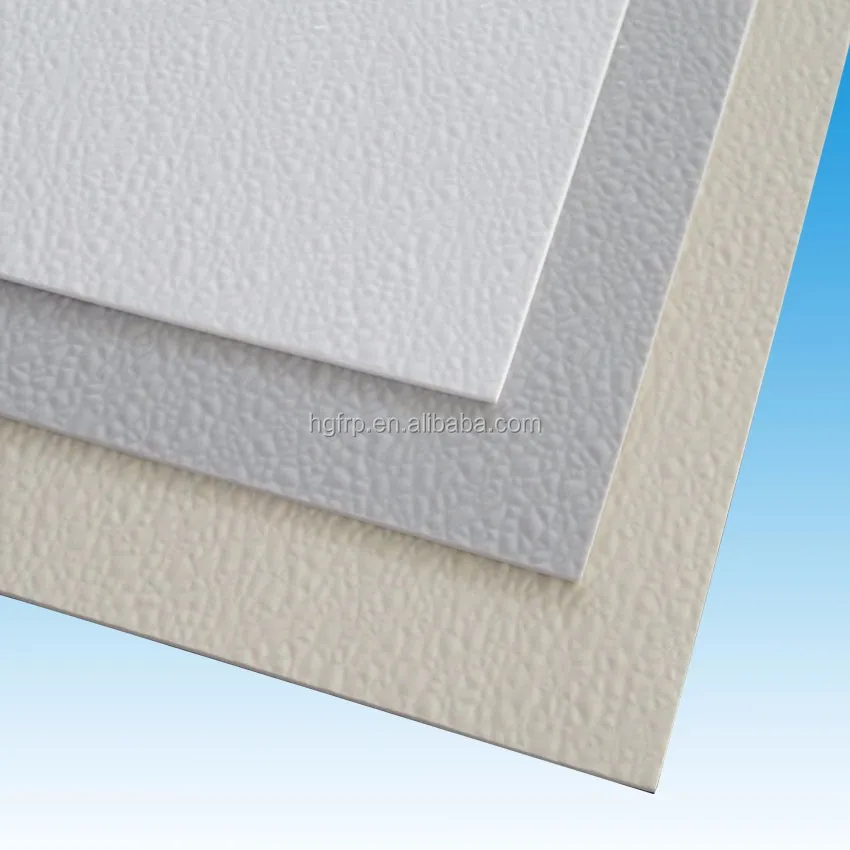

Pebbled texture panel

Thickness:1.2mm-3.0mm

Max width: 2750mm
Feature: anti-aging, good decorative surface, impact resistant.
Standard color: white creamy, Black

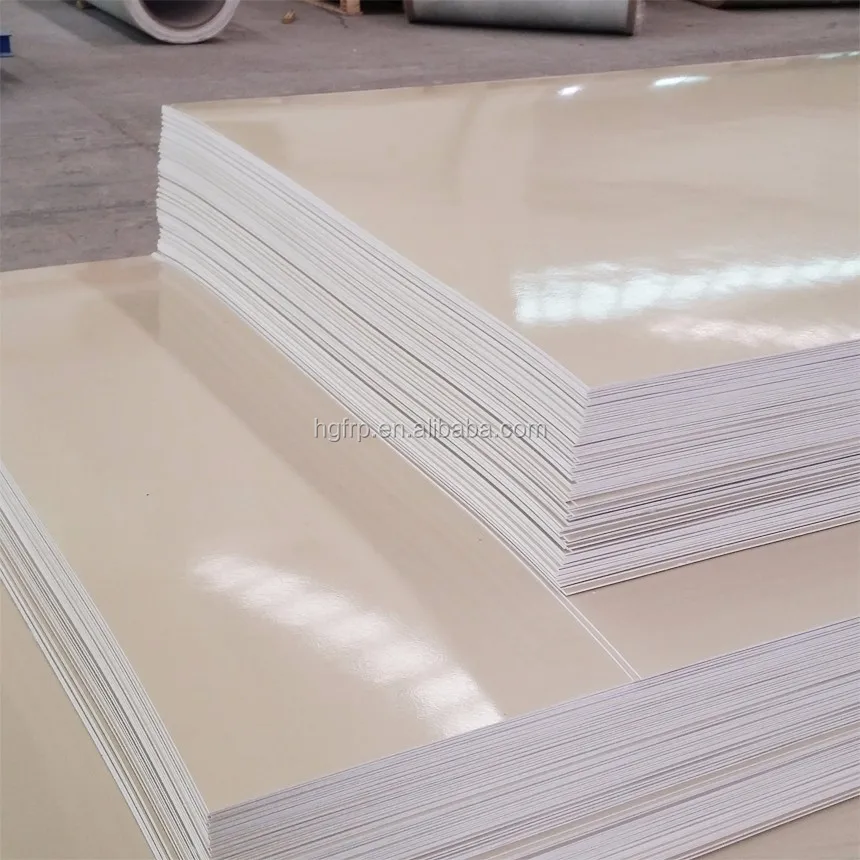

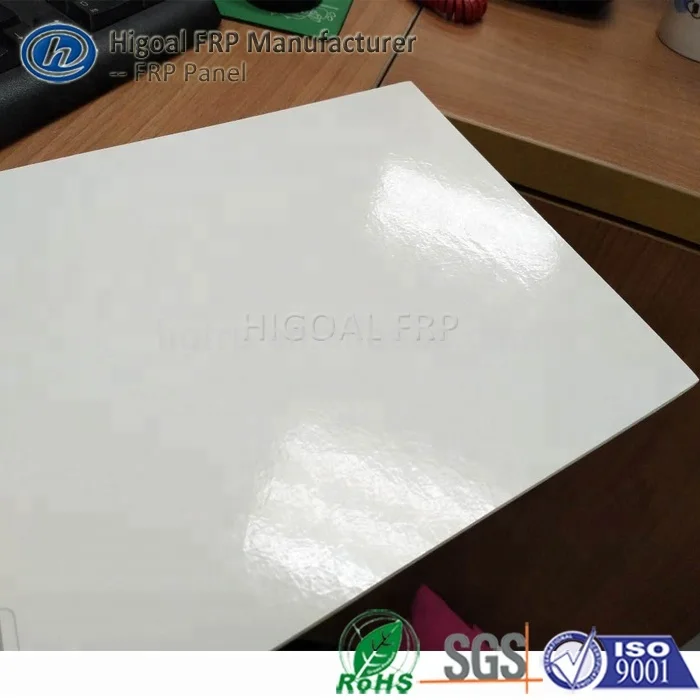

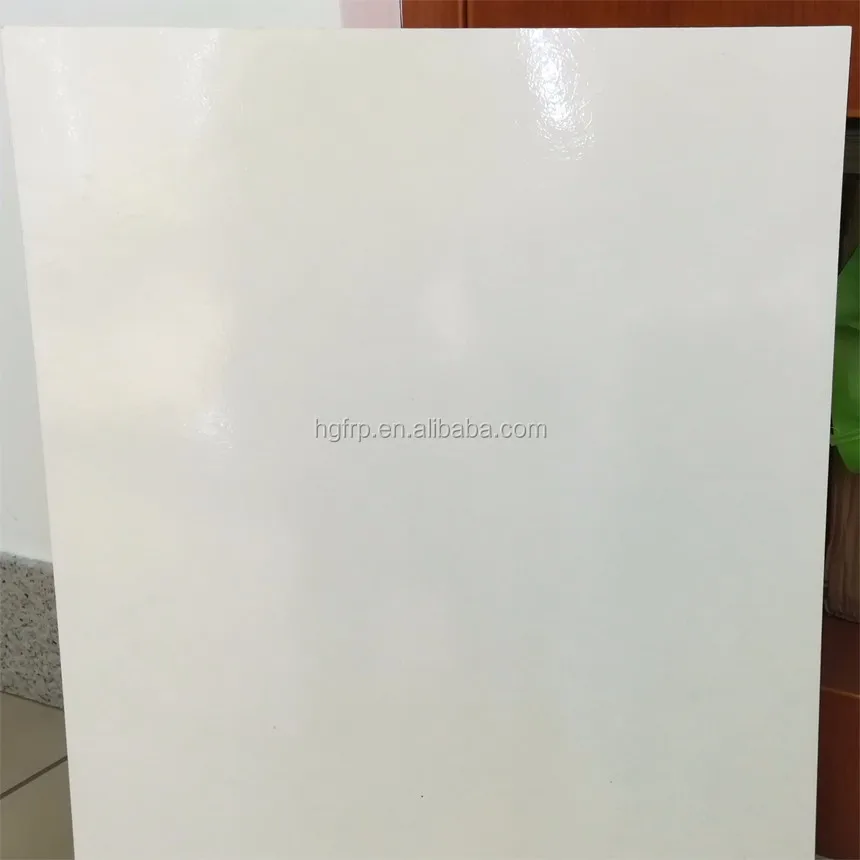

Smooth panel

Panel type: Gel coating flat panel & Non-gel coating flat panel

Thickness:1.2-3.0mm
Feature: anti-aging, smooth glossy surface.
Standard color: White Creamy Black

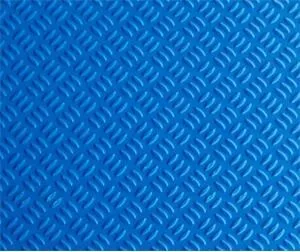

FRP Leaf Texture Panel

With 300μm gel coating on surface, anti-skid
Thickness:1.2-3.0mm

Standard color: White Grey Blue

The above mentioned panels can be combined with the froth, gypsum, polywood, aluminium honeycomb ,the lsandwich panels is a more strengthen, better rigidity panel, sandwich panels will be easier to install, the installation efficiency will be improved greatly, furthermore, the requirement of wall coarseness will be reduced also.

Specification
\t
Items
\t
Performance
\t
Material
\t
Gel coating: 300um ISO-phthalic polyester gel coat
Matrix resin: unsaturated polyester resin
Reinforce fiber: E-glass
\t
FRP panel size
\t
Thickness: 1.0mm-3.0mm
Width: ≤2750mm ;   Length: customer length
\t
Tensile strength
\t
≥75MPa
\t
Tensile modulus
\t
≥4800MPa
\t
Bending strength
\t
≥120MPa
\t
Bending modulus
\t
≥5GPa
\t
Impact strength
\t
≥35KJ/m2
\t
Compression strength
\t
≥35MPa
\t
Distortion temperature(1.8MPa)
\t
>230℃
\t
Thermal expansivity
\t
2.4×10-5℃-1
\t
Gravity
\t
1.6-1.7g/cm3
\t
Water Absorption
\t
0.16%/24hrs, 25C
\t
Stickiness
\t
≥42dyne
\t
Approval test standards:
\t
ASTM-E84, RoHS 2002/95/EC
\t
Chemical resistance
\t
Can be used in foggy environment of 10% HCl and 3% NaOH solvent for long. For usage in other solvent, please contact our engineer.
pictures

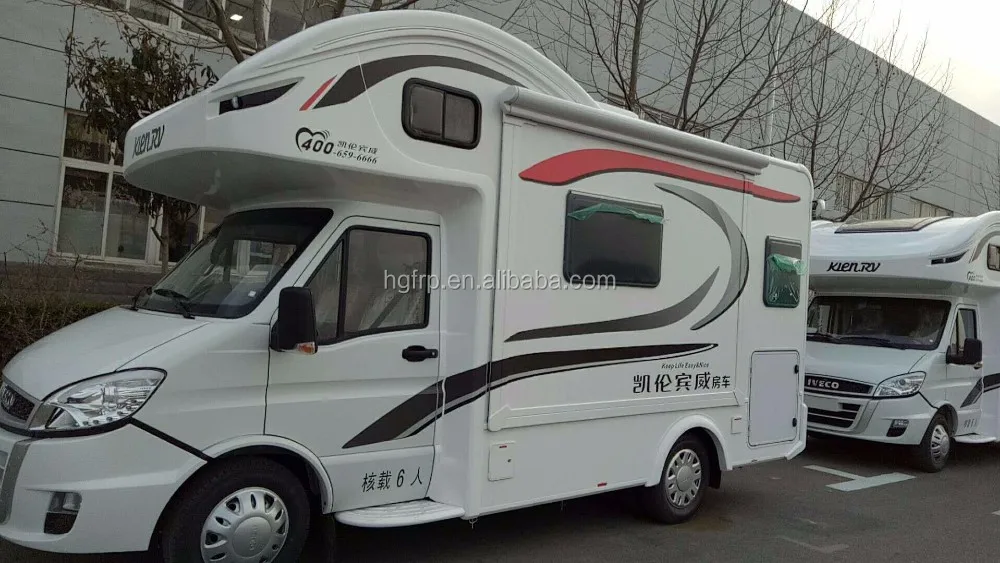

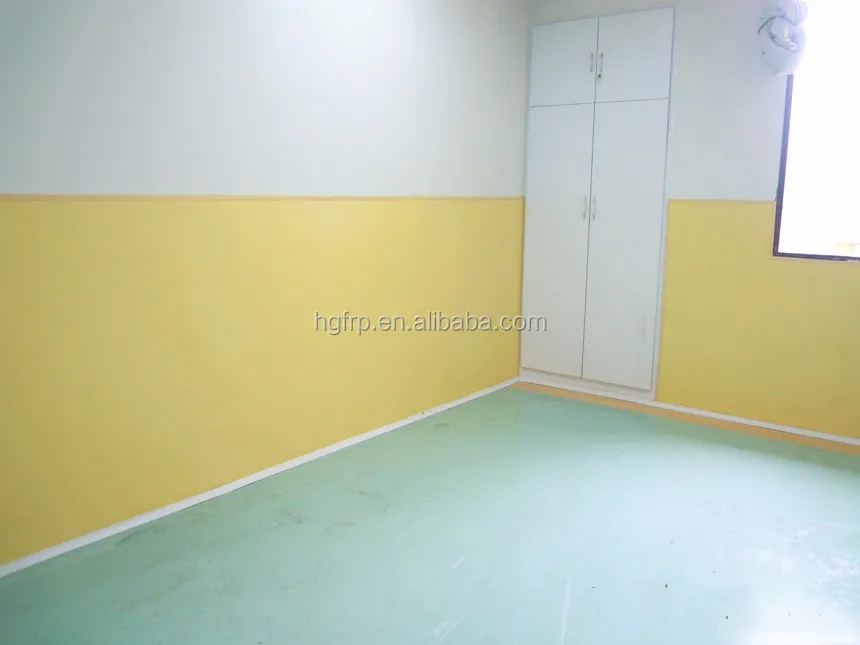

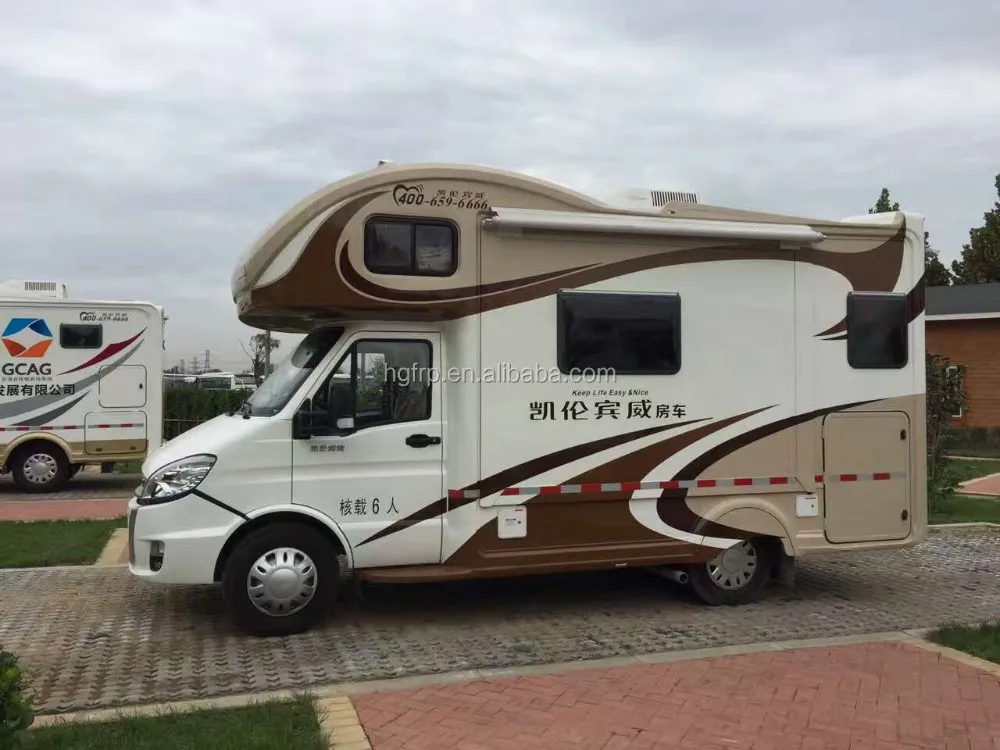

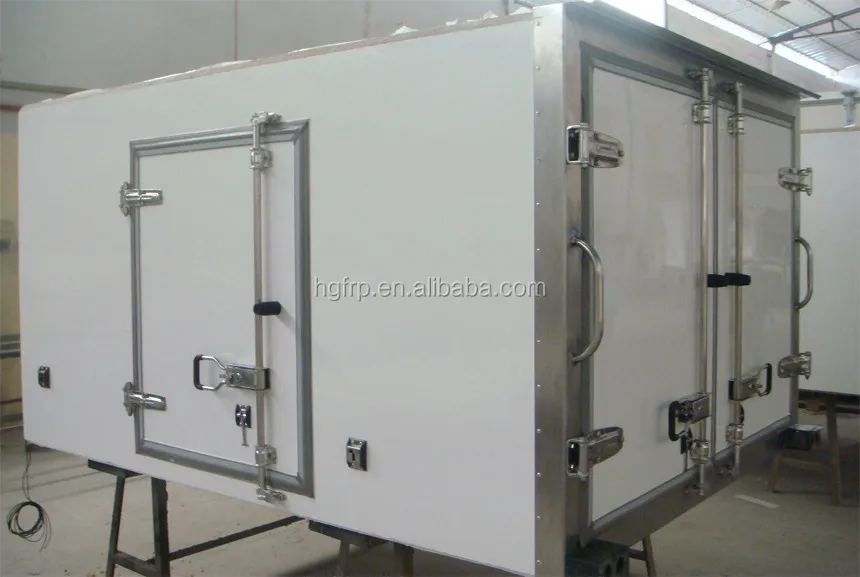

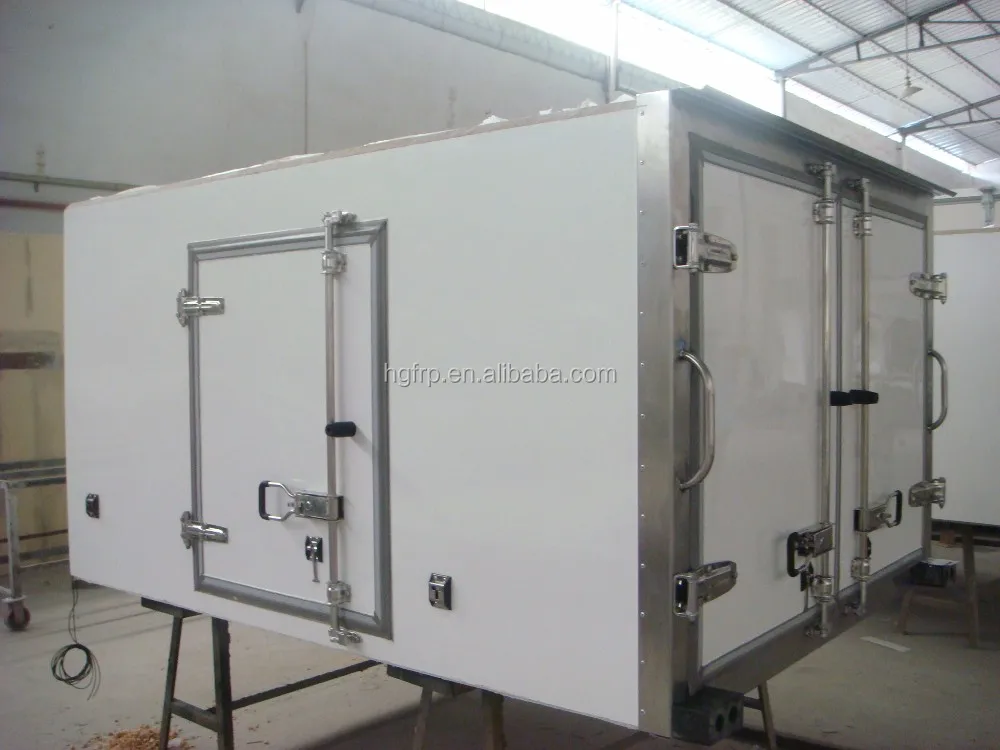

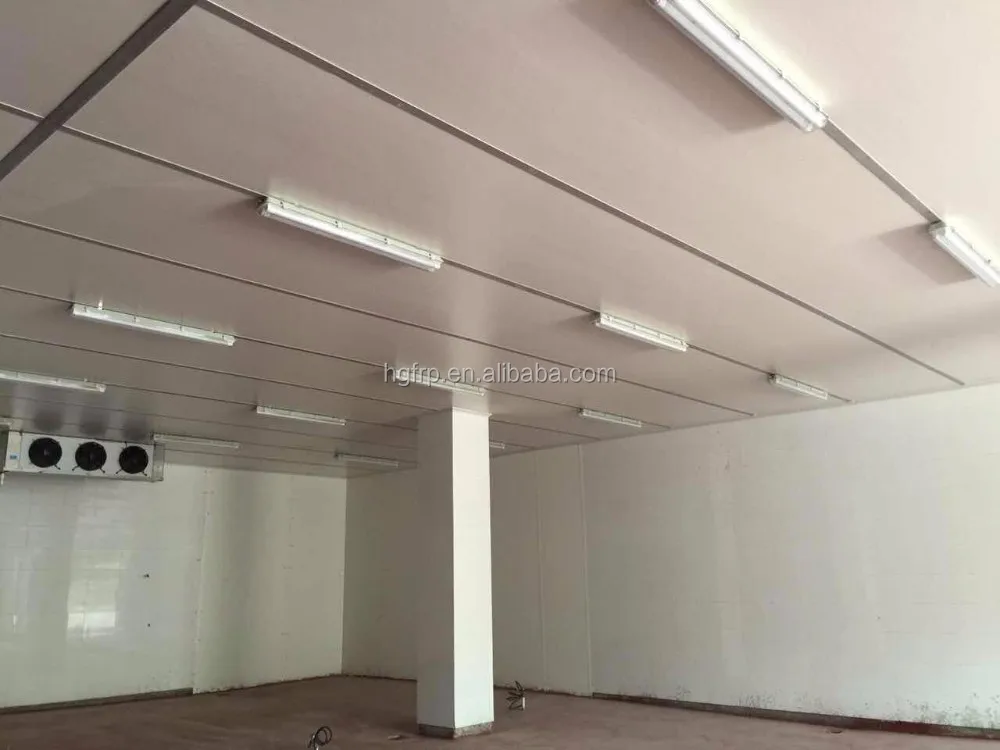

Panel Application

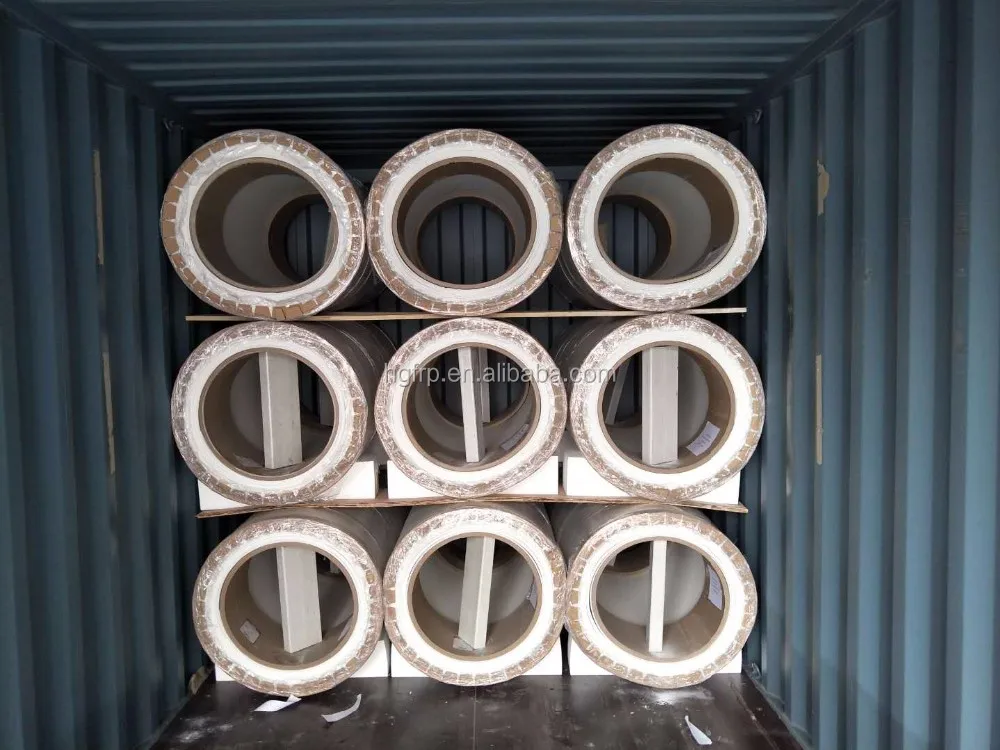

Packing & Delivery
\t
FRP sheet
\t
Packing
\t
1. Protected by stretch film;
\t
2. Fasten by packing banding and packed on pallet;
\t
Delivery
\t
1. Stock panel: 3-5 working days.
\t
2. Manufacturing: 1-2 weeks, or depends on the order quantity.
About Higoal FRP


Professional manufacturer of FRP


Established in Dongguan City in May 1995, Higoal FRP is as a technology enterprise in composite application field, dedicated to manufacturing, developing and marketing high-quality fiberglass products. As pioneer in Chinese composite field, Higoal is more than an unitary manufacturer on FRP products, but a total solution provider for anti-corrosion of industrial building.


Higoal five main products series:


1. FRP gel-coating skylight panel - for lightweight steel structure

2. Anti-corrosion building material - for highly corrosive industrial plant

3. FRP grating - for drainage cover (Anti-corrosion & anti-slip & load-bearing)

4. FRP flat panel - for shelter, carriage, wall

5. FRP pultrusion profile


Higoal owns both advantages of mature technology and competitive price. The design, production and quality service system of international standard, the price of localization and the punctual delivery, enable Higoal and customers develop into a mutually beneficial system.
