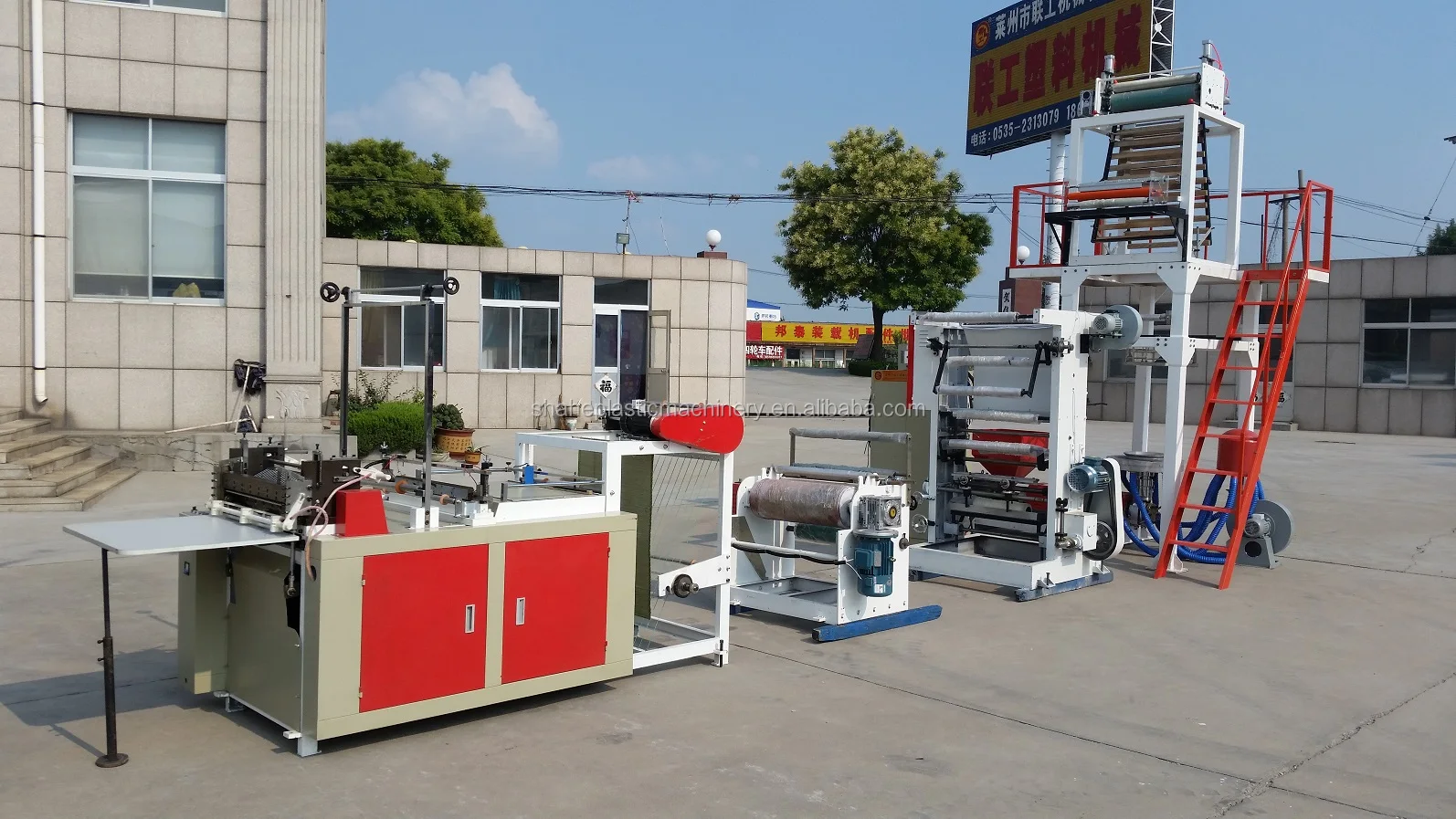

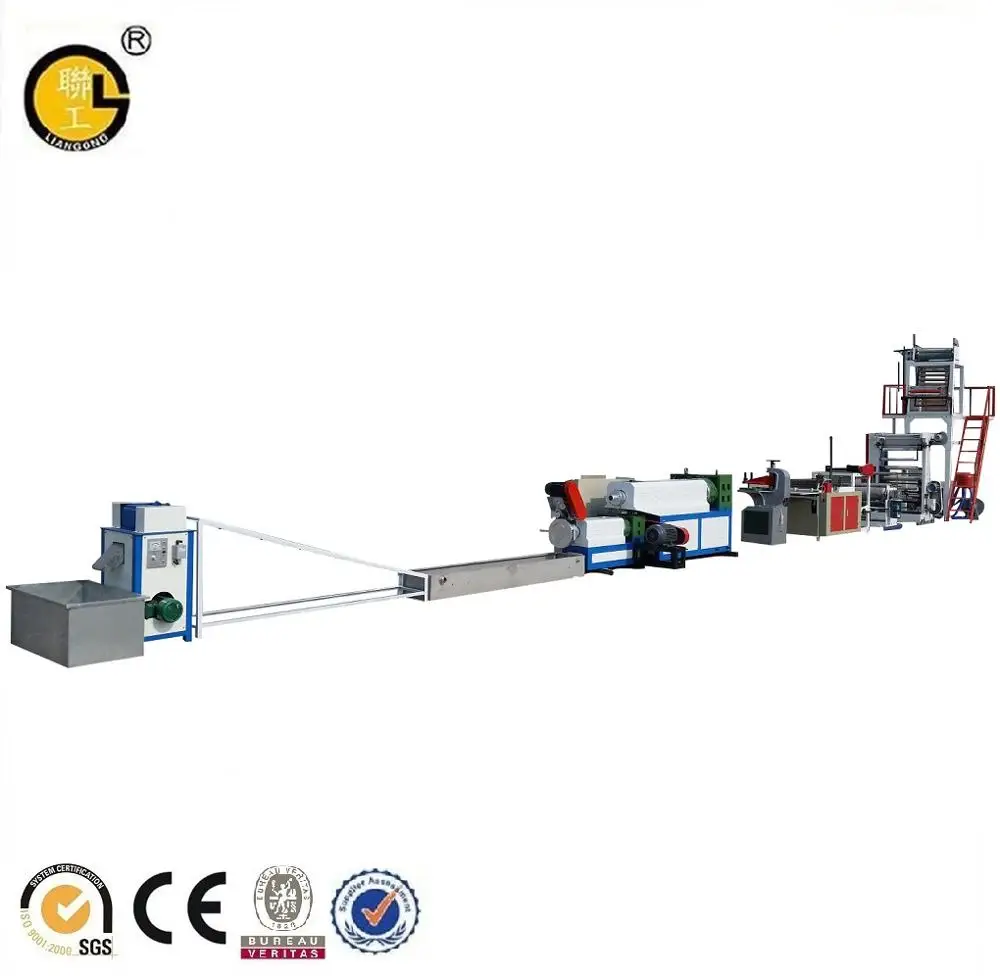

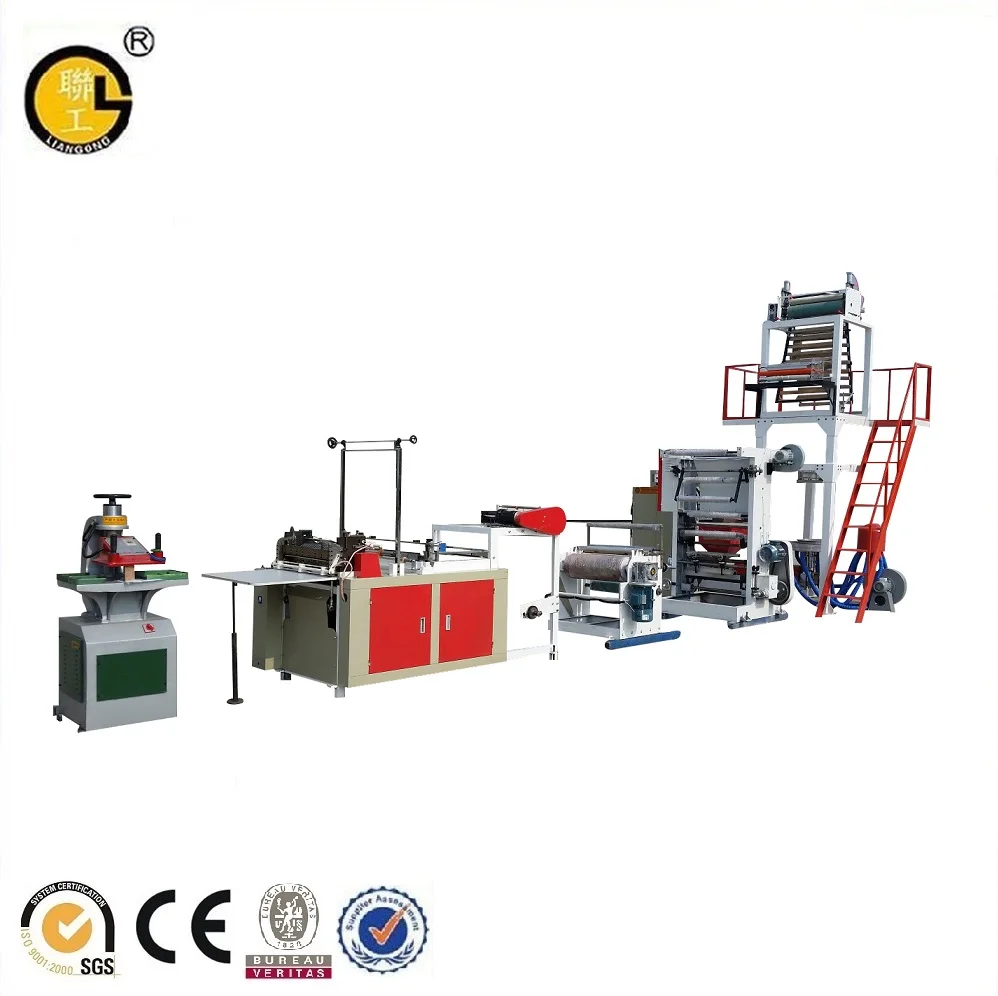

Высокоскоростная машина для производства пластиковых пакетов по низкой цене

Name

Uses

Specifications

Plastic film blowing machine

The plastic film blowing machine is to be use for blowing the LDPE,LLDPE,HDPE films. Which is used for making vest bags and flat pockets.

Raw material: LDPE,LLDPE,HDPE grains.

Model: SHSM-50FM-700

Screw diameter: 50mm

Film folding diameter:100-650mm

Single film thickness: 0.08-0.2mm

Maximum yield: 40 kg / h

aspect ratio: 28:1

Host Power: 11kw

Traction motor power:1.1kw

Dimension(L×W×H): 3.2m×4m×1.6m

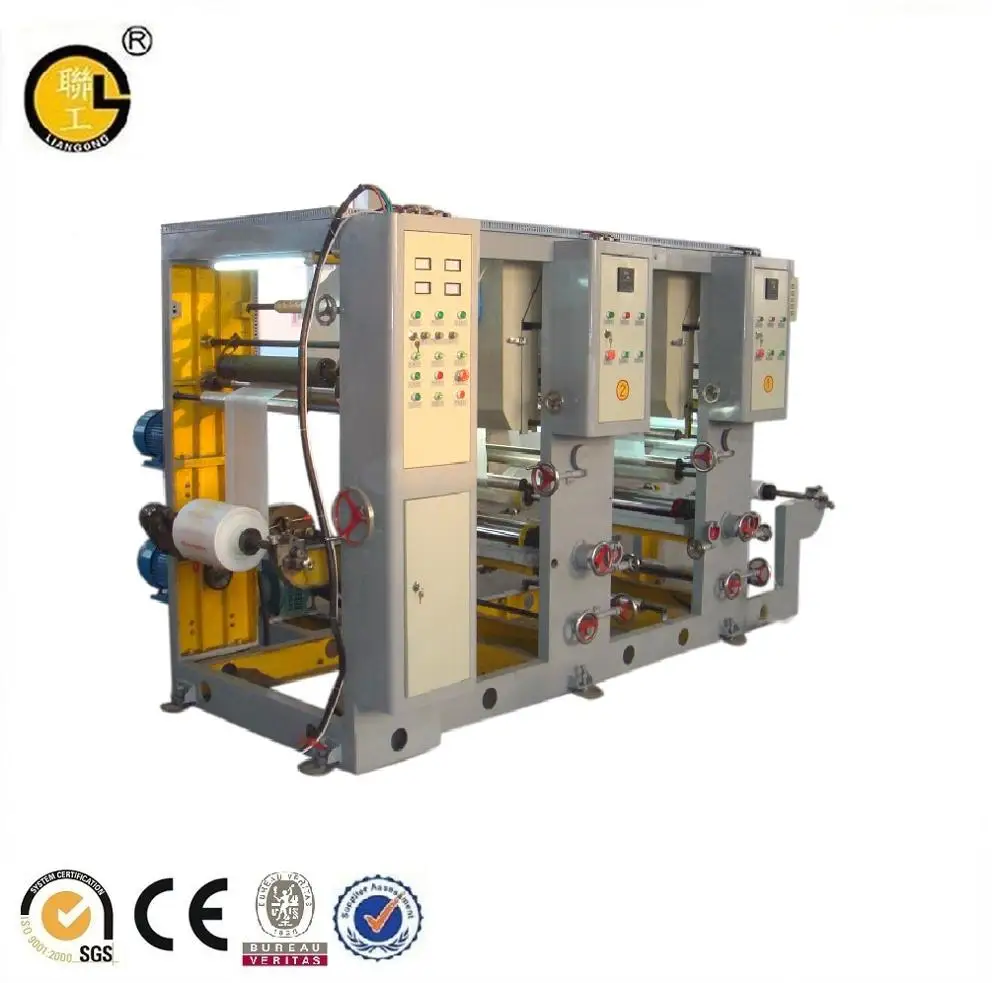

Plastic bag printing machine

This printing machine is used to print plastic bags, plastic film, single-double-side printing will be finished in one time.

Raw material: plastic film or plastic bags.

Model: 600

Printing colors: two

Printing width:600 (mm)

Printing length:200-1250 (mm)

Max. printing speed: 10-60 (m/min)

Register precision:0.15 (mm)

Moter power:4 (kw)

Blower power:0.19 (kw/set)

Galvanothermy power:3.2 (kw)

Dimension(L×W×H): 8.8m×1.2m×1.7m

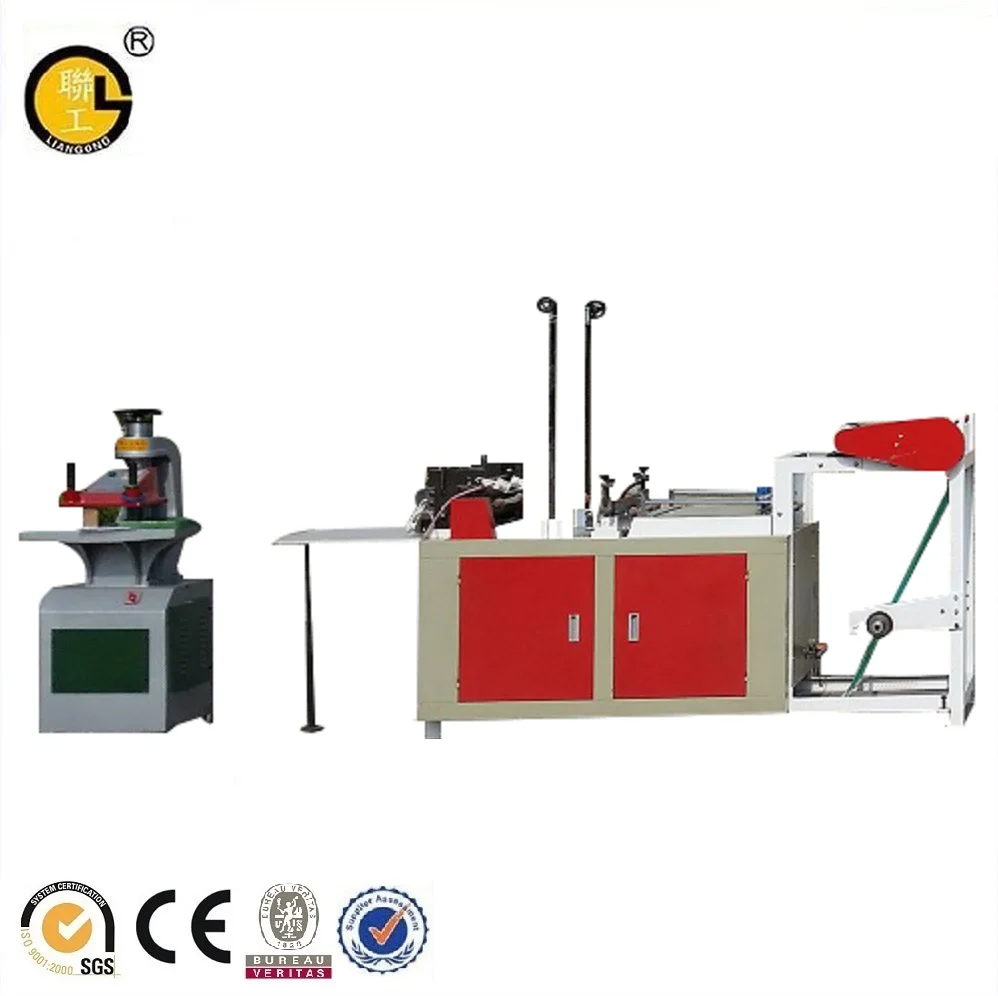

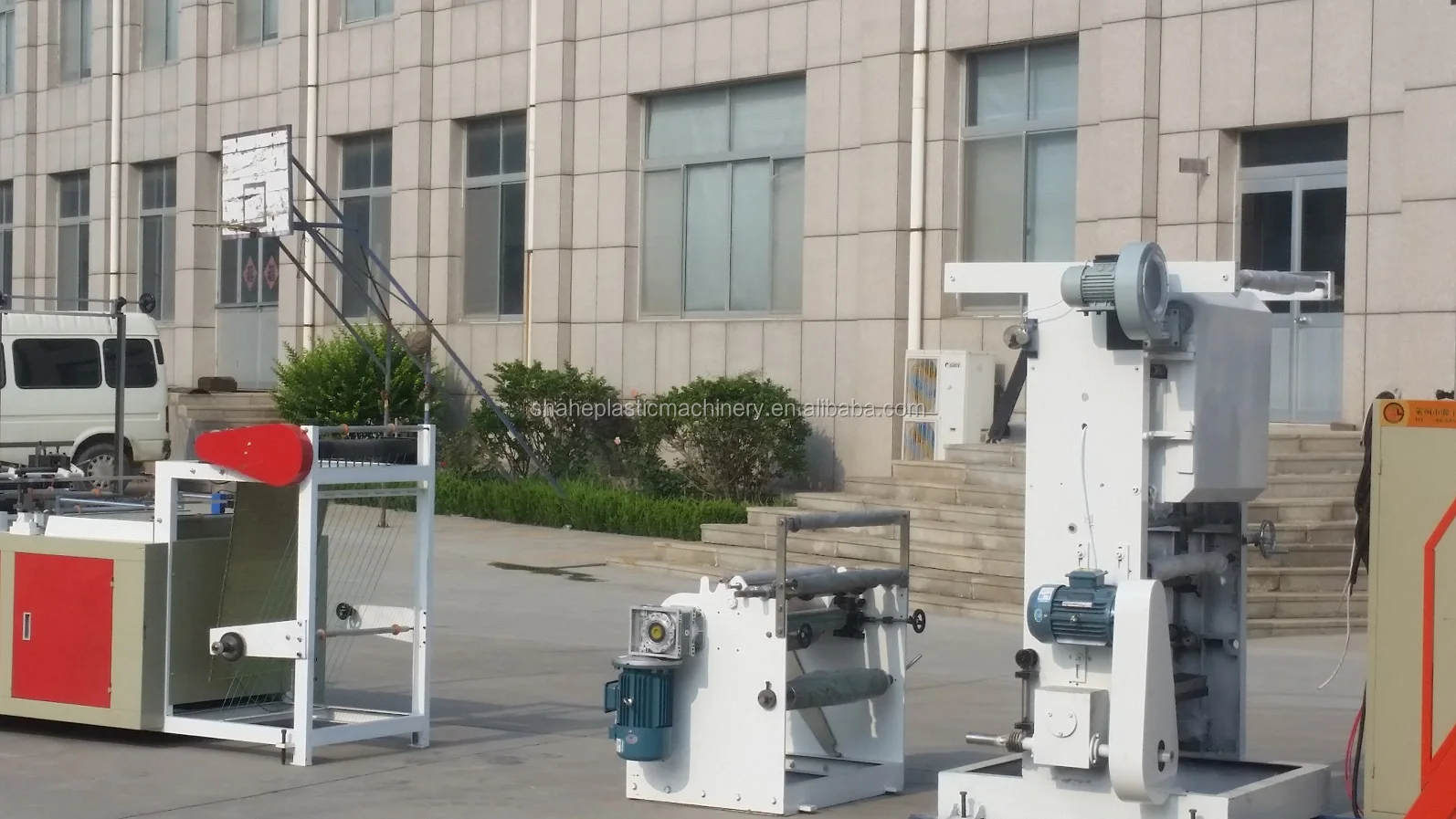

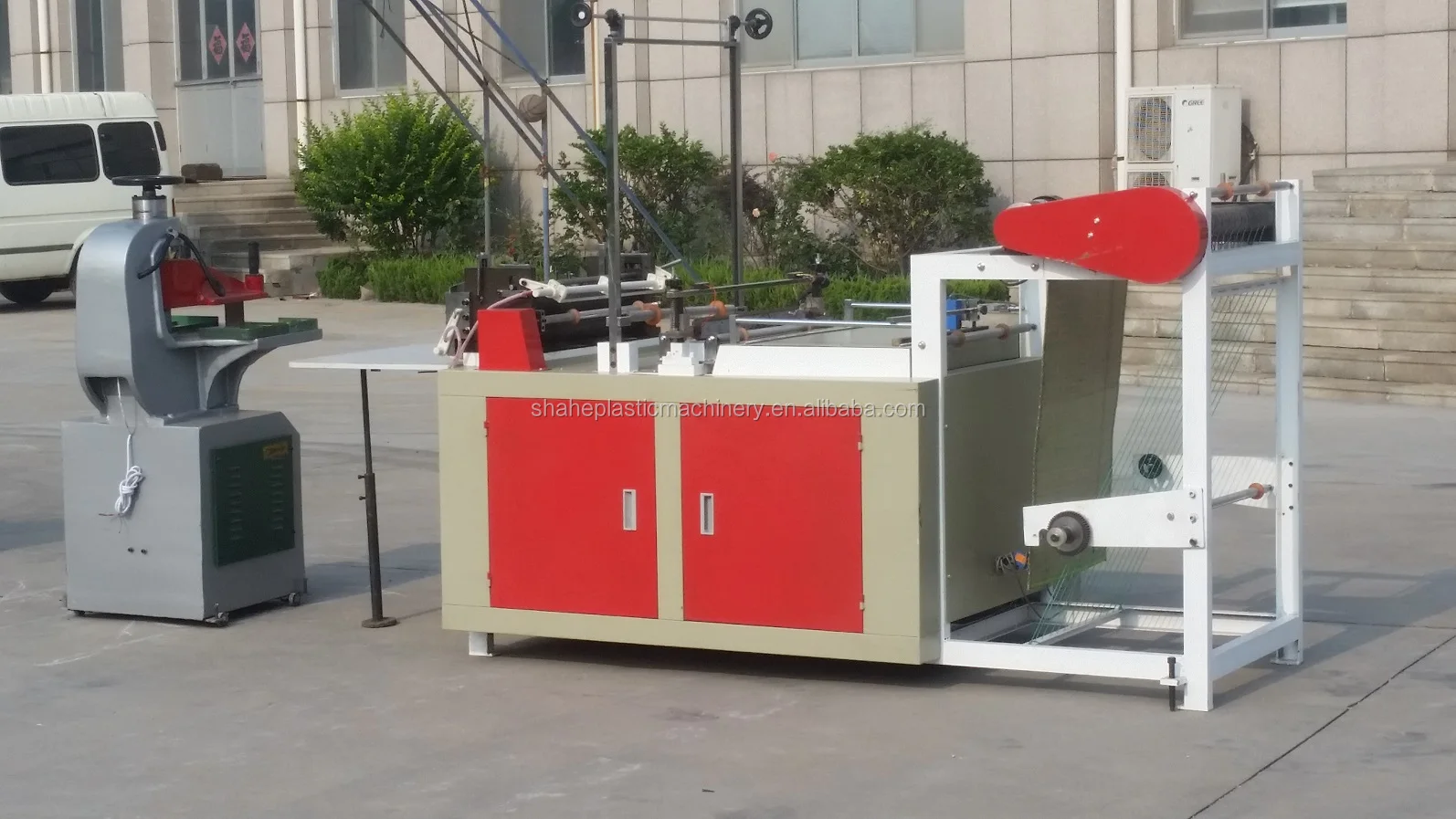

Hot sealing cold cutting bag making machine

The machine could cut and seal the plastic film, it is suitable for making vest bags, flat pocket.

Raw materials: PP, PE Double-layer thin-film.

Model: 600

Max Bag-making Width : 30-550 mm

Max Bag-making Length: 800mm

Bag-making speed: 30-150 pc/min

Power of motor: 1.1kw

Machine Weight: 750 kg

Dimension(L×W×H):2.9m×1.35m×1.65m

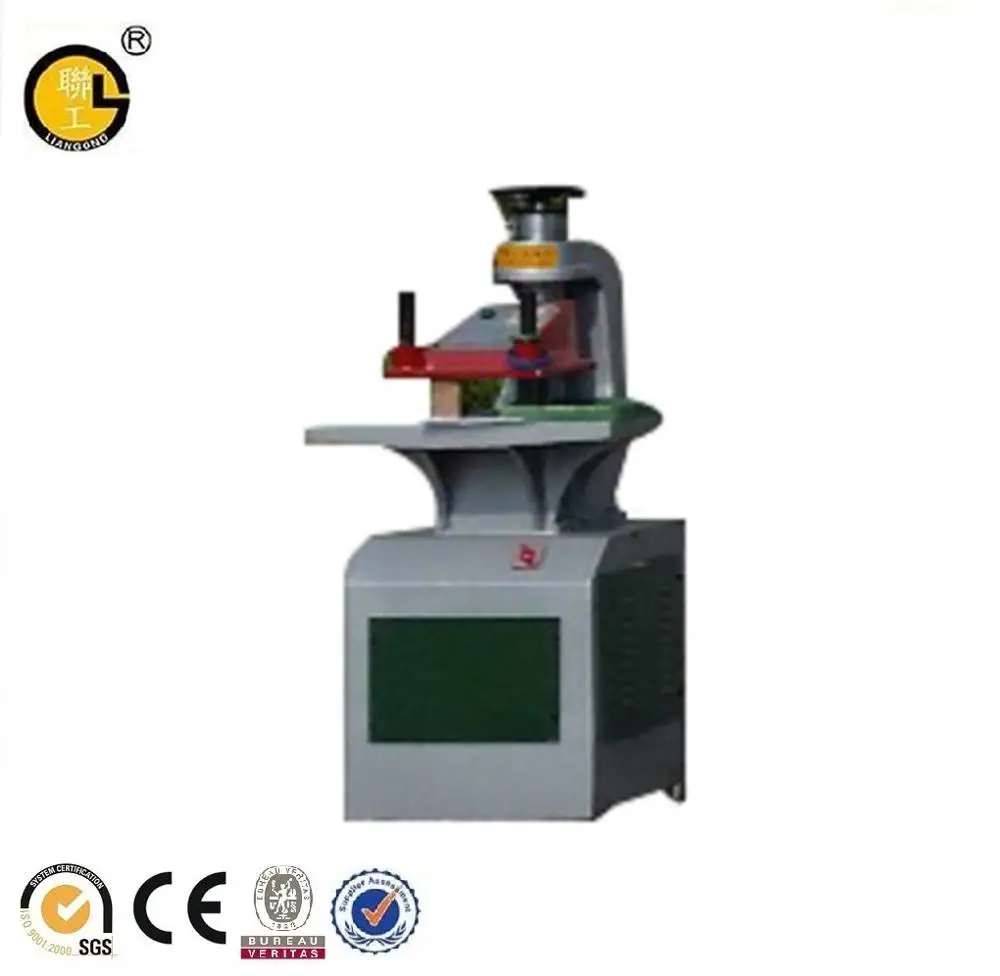

Punching machine

It is used to punching the shape of the T-shirt bag, hole bag, You can punch all kinds of design of the bag by changing the punching knife.

Raw materials: plastic bags, plastic film.

Model: 5T

Moter power: 1.1kw

Machine weight: 5T

Platen Stroke: 28mm

Platen distance:150-215mm

Machine Weight: 500kg

Dimension (L×W×H): 1.2x0.8x1.2m

Okiguchi size:400-500mm
