Glutomatic

The world standard for gluten quantity and quality determination

When baking bread and producing noodles or pasta, the flour gluten content and strength will determine the quality of the finished product. The Glutomatic System is the world standard for determination of gluten quantity and quality.

The effect of gluten quantity and quality in the flour used for breads, cookies, crackers and pasta is dramatic. In the photo of bread loafs above it is clear that the wet gluten quantity of the flour strongly influences bread volume. Using the Glutomatic System you will be able to determine the baking quality of wheat and flour.

Features and benefits

• Determine gluten quantity and quality - Improve the quality of your finished products.
• Official world standard - Ensure that trade contracts are fulfilled.
• For flour and grain - Determine gluten characteristics both for wheat and flour.
• Measure true gluten - Only the Glutomatic can measure true gluten. In a number of situations
  protein content is not indicative of gluten characteristics

This machine is used to measure the gluten in the wheat flour is an important step to test quality. This method is to measure the quantity and quality of wet gluten with gluten washing instrument and gluten index determinator and dryer.

This machine now is widely used in purchasing, breeding, warehousing, flour-making, baking, food and dry gluten processing and other industries.

Specification

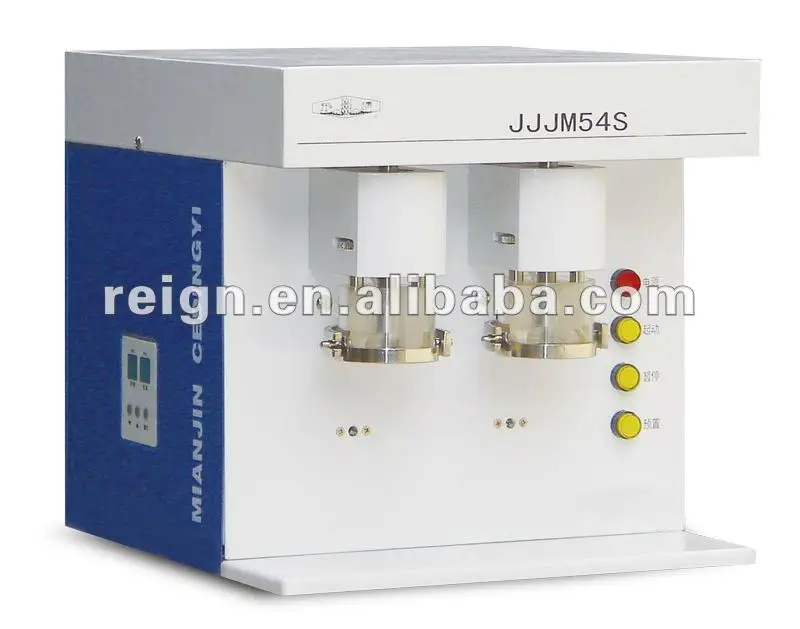

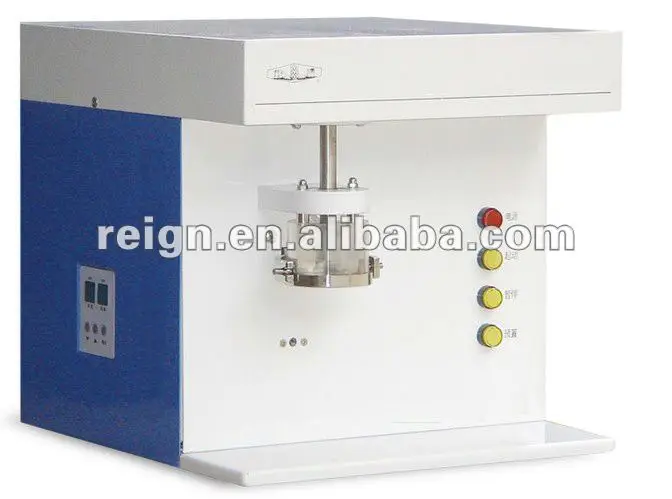

Gluten washing instrument(Double-head Single-Head):

Voltage of Power Supply:   AC220 and 10V more or less

Power Frequency: 50Hz

Main shaft Speed: 120 and 2  more or less r/min

Fine washing mesh Specs.  200 holes

Rough Washing mesh Specs.  26 holes

Sample Size  10g *2

Mixing time: 5-75s (one circle per 5s)

Liquor Flow  52 and 3 more or less  ml/min *2

Physical Dimension 364mm*328mm*319mm

Weight  Approx. 22kg

Gluten Centrifugal and Index determinator:

Gluten washing instrument(Double-head):

Voltage of Power Supply:   AC220 and 10V more or less

Power Frequency: 50Hz

Motor Horsepower:  25W

Motor Speed: 3000/6000 r/min(adjustable)

Screen box pore plate( hole diameter * hole distance)   0.6mm*1.25mm

Working time:0.5-5 min(adjustable)

Physical Dimension: 265mm*220mm*165mm

Weight:  Approx. 6kg

Dyrer

Voltage of Power Supply:   AC220 and 10V more or less

Power Frequency: 50Hz

Rated Powerr:  650W

Working temperature: 180-200C

Physical Dimension: 230mm*250mm*110mm

Weight:  Approx. 2.5kg
