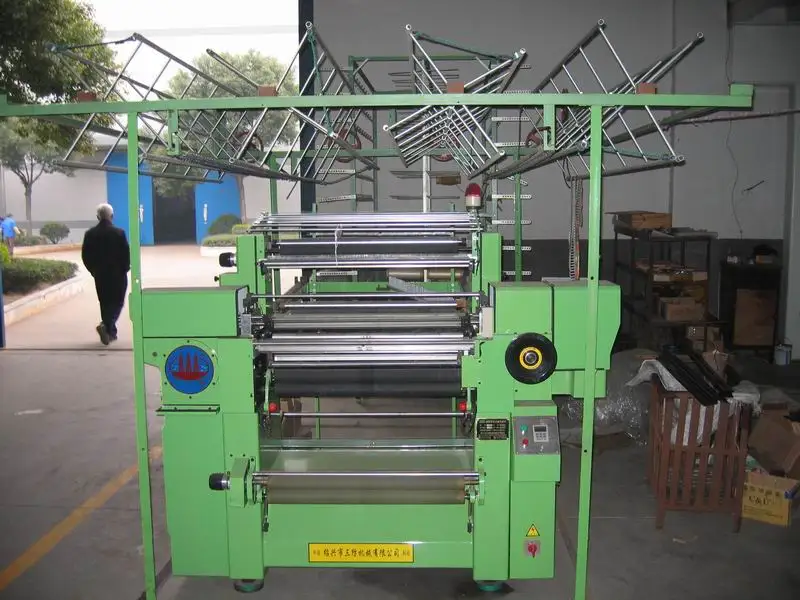

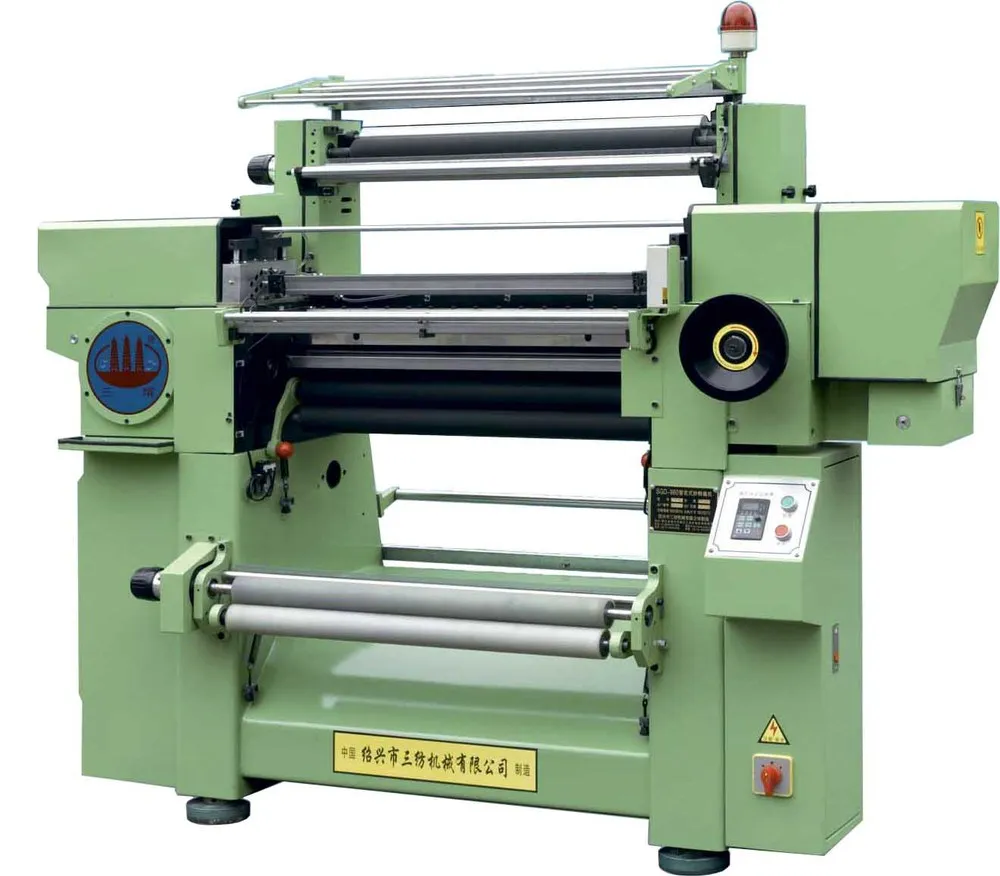

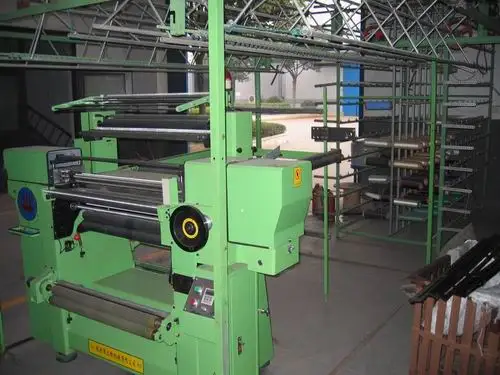

SGD 980 полный автоматический китайской машина для вязания крючком

SGD 980 полный автоматический китайской машина для вязания крючком

Категория: >>>
Поставщик: Shaoxing Sanfang Machinery Co. Ltd.

Цена:*

Количество:

В избранное

Описание и отзывы

Характеристики

Product Description

SGD-980 Chinese Crochet Machine is high speed crochet machine can make kinds of fancy yarn,laces and so on

SGD-980 High Speed automatic crochet knitting machine is high speed crochet machine with muti functions can make fancy yarn and laces, The machine first knits cloth with warp and weft yarn, then cuts the warp yarn to form the final yarn. Otherwise it knits warp and weft yarn to straightly kit belt yarn. machine is sutable to knit various kind of yarns and lace, both natural fibers(wool, silk, cotton, linen, etc.) and synthetic fibers (polyester, acrylic etc.) This entire material can be dyed before or after knitting, in accordance with its mattress. The finished yarn and lace is of flat shape.

SGD-980 High Speed automatic crochet knitting machine which can produce all various pattern yarns through changing the mechanical controller.The machine speed is controlled by a frequency converter, starting at slow speed with stepless changes, fast breaking to low speed according to meet the test production demand. The machine is divided into three main sections.

SGD-980 High Speed automatic crochet knitting machine can adopt with PLC computer system ,it is selected by customers,it has a servo system to replace the former mechanical controlled link mechanical system based on pattern designed by link chains.make the machine for higher automatic.this called SGD-980 C model ( with computers)

Technical parameter:

Operational breadth: 762mm(30 inch)

Needles Per inch(Gauge): 10,15, 18, 20G

Weft Bar: 2-8 bars

Stitch Density: 5-20S/cm

Link Chain: 12-50 sections

Main Shaft Speed: Max. 1500r/min

The Girth of Rack Frame: 170cm

Whole Machine Power: 1.5kw

No. of Yarn Bobbin: 260 position - 520 position bobbins

Gaugo of Yarn Spindle: 200mm

Main Machine(L×W×H): 1750×1950×1750mm
