Golf club ultrasonic cleaner | |
Related file of ultrasonic cleaning technology | |
With cavitation effect Ultrasonic cleaning technology is widely used in ultrasonic golf club cleaning, semi-conductor silicon chip cleaning, optical glass cleaning, parts of watch and cock cleaning, jewelry cleaning, polyester filtration core cleaning, widow blind cleaning | |
Mainly introduction | |
Ultrasonic technology has been used for over forty years to clean medical, electronic and other high precision equipment. Ultrasonic produce millions of tiny bubbles in a solution that implode when coming into contact with any surface. This quickly and safely removes any surface contamination. Ultrasonic technology works wonders when cleaning golf clubs as the solution reaches all parts of the club head and grips far quicker and more effectively than any other cleaning method. The Ultrasonic Golf Club Cleaner will clean your club heads and grips in a solution that has no moving parts. Ultrasonic cleaning preserves the life of your golf clubs. Golfers with clean club heads and grips play better golf. This innovative and highly reliable machine has been used over the years by thousands and thousands of satisfied golfers. | |
Character Of ultrasonic golf club cleaner | |
Token-operated vending machine for self service; Automatically water discharging and filling Fast heating power to reach requested temperature Better collection of tokens inside the machine Minimum fill line on the inside of the tank Each machine in a separate crate High quality token system Built-in separately exciting Generator Built-in Transducers 304 Non-Magnetic Stainless Steel Built-in Thermostatically controlled Heater Built-in Counter Built-in Time | |
The application of golf club ultrasonic cleaner | |
Ultrasonic golf club cleaner mainly used to clean the golf club head, golf club grip, and golf club balls remove the surface contamination within five minutes without polution | |
Parameter of ultrasonic golf cleaning machine | |
model | KLE-1012F3 |
Brand | KEEPLEADER |
Ultrasonic power | 600W up to 1200w( made to order) |
Power frequency | 50hz or 60hz under request |
Power voltage | 110v or 220v under request |
Heating power | 2kw or 4kw, under request |
connection | Single phase, Neutral+live+earth wire |
Ultrasonic frequency | 28khz or 40khz |
Tokens | 100pcs per machine |
Temperature control | 0°C to 100 °C |
Cleaning time | 0°C to 999°C |
Generator power | 600w. |
Generator type | PCB type, with 2pcs power board |
Power of vibrator | 50W or 60w |
The quantity of vibrator | 12pcs or under request |
Interior Tank dimensions | 406*381*305mm or under request |
Exterior tank dimensions | 700*480*700mm or under request |
Capacity | 40L |
Net weight | 100kgs |
Gross weight | 120kgs |

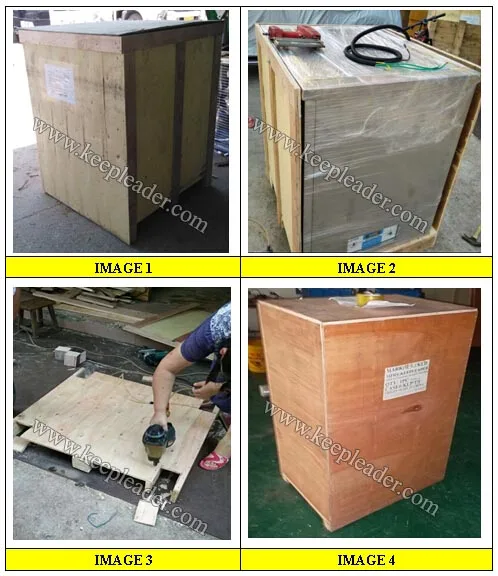

Packages | Wooden case, make of fumigation-free material |
Cleaning step | |
Fill the water to be over the minimum fill line Plug in, connect the power supply Regulate the temperature controller (50°C to 70°C) Regulate the timer controller ( 3 minutes to 5 minutes) Switch on the ultrasonic and heating Put the tokens into the slot of token system | |
Special notice | |
Must be sure of the water is over minimum fill line on the inside of tank when heating The size of cleaning tank is under request, which depends on the where the machine is used, home or club shop or golf course You can decide if cradle in need or not, cradle is convenient to load and unload the golfball. You can choose one circle to clean the golf club heads and golfball, another circle to cleaning golf club grips You can make trolley to let keepleader’s machine sit in for convenient movement, keepleader’s machines also have Universal wheel OEM, ODM order is available, we also accept customized design | |
MFR: KEEPLEADER™ have modified and designed model for our customers’ unique and special requirements, please contact KEEPLEADER™ for updated details
01: How does ultrasonic golf club cleaner work?
Ultrasonic cleaning has been used for many years to clean stubborn and difficulty to reach soils and dirty, ultrasonic generator generates sound waves at 28khz or 40khz, and transmitted by vibrators mounted the beneath of stainless steel tank, which cause the tank vibrating, the positive and negative sound compression can produce microscopic bubbles, the bubbles grow like a balloon until they implode, this is called cavitations, the function just like a balloon bursts and you fell the force of implosion against your face, but it is a micro scales, the result of this technology is to loosen then dislodge all the dirty from the golf clubs and grips through the microscopic blasts
02: How long does it take to clean clubs and can it damage clubs?
Ultrasonic cleaning process takes 3 minutes to get a thoroughly cleaned clubs and grips, is for more effective that traditional hand cleaning, also can save your elbow force, ultrasonic cleaning is microscopic scales suctioning force to take away the contamination without hard scrubbing, so, won’t cause any damage for precision surface treatment
03: How often clubs should be cleaned
Two factors always decide the cleaning frequency of your clubs, your handicap and the frequency of play, if you have a very low handicap (below 5) then you really want to looking at cleaning your clubs every 1 to 2 rounds of golf, if you have a high handicap (above 18) then you would want to be cleaning your clubs at least every 4 rounds, if you only play a round of golf per week then your frequency of cleaning would be higher, this is because, the mud and grime would be left on the clubs and grips for longer, causing long-term damage and shorten the life-span of your clubs, also left un-cleaned for a week, the mud hardens in the grooves like cement marking it much harden to clean
04: How many clubs can be cleaned in a circle?
The standard model is built with inner size, can hold 14pieces clubs, if more that this are put into the tanks, will influence the cleaning effect, KEEPLEADER™ always to build customized size as your required
05: What features does your golf club ultrasonic cleaning machine have?
High power transducer for superior cleaning results
Large tank capacity for professional cleaning
Smart control of timer, counter, water level, token system, and ultrasonic trigger
Isolated-circuit design, keep water away for enhanced safety
Isolated cabinet to room ultrasonic generator with high power cooling fan
KEEPLEADER™ SERVICE
ABOUT PRODUCT
Customized design; Safe and convenient operation
ABOUT FACTORY
Comprehensive management process, leading technology and service team
EXPERIENCE
Internationalization of business process; Rich experience of Non-standard design
AFTERSERVICE
Uniform standard with special difference for each, Professional and Experienced service
MARKET
Yearly 30% Market share increased, One-to-one service
SERVICE PROCESS AT KEEPLEADER™
the clients offer information of the workpieces being cleaned (eg: picture, materials, sizes, requirements, etc) if have samples, it’s better to send KEEPLEADER™ some sample to perform the cleaning test, if can be cleaned, we provide offer sheet, once confirmed, sign a contract, the clients paid the deposit, KEEPLEADER™ start equipment building, after passing the acceptance, and receive the balance payment, KEEPLEADER™ delivery the device to clients
After purchasing at KEEPLEADER™ is first step of our after-service, all of machines at KEEPLEADER™ has one year guarantee, we provide free samples for defected parts to do replacement except for human damage, under information for your notice
01: KEEPLEADER™ always posts the new technical file in our homepage that can help our client in new technical information of machines’ design, character, application, operation, maintenance,
and related, KEEPLEADER™ also welcome our clients feed back the machines’ working condition that can get one to one service
02: If the machine you purchased has any defects, please contact sales representative at KEEPLEADER™, we will assign our experienced engineer analyze your case and provide technical support, in case of damaged parts that cannot repair, KEEPLEADER™ will provide a new parts to replace the defect
03: For any replacement and maintenance, KEEPLEADER™ has user manual and training video
04: KEEPLEADER™ can go to oversea for on-site training
05: KEEPLEADER™ can provide electric diagram if in need

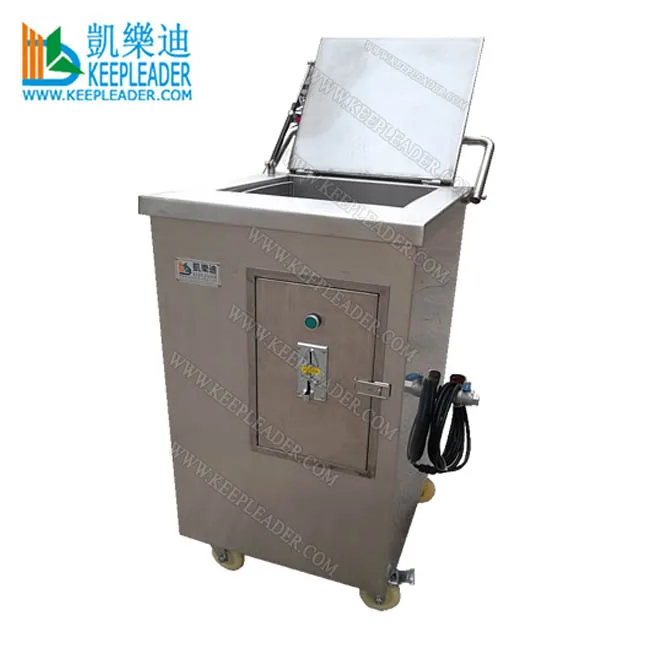

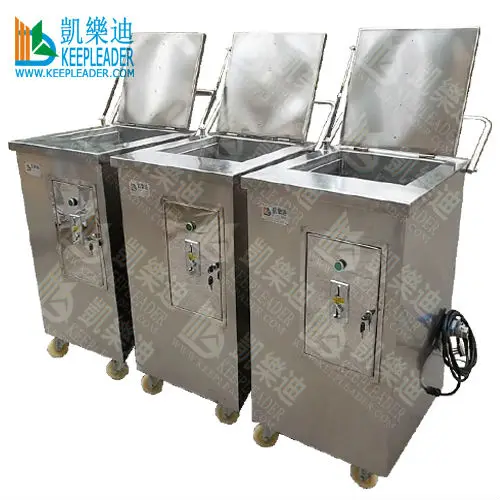

Golf club ultrasonic cleaning machine with token system, counter, timer, thermostat
