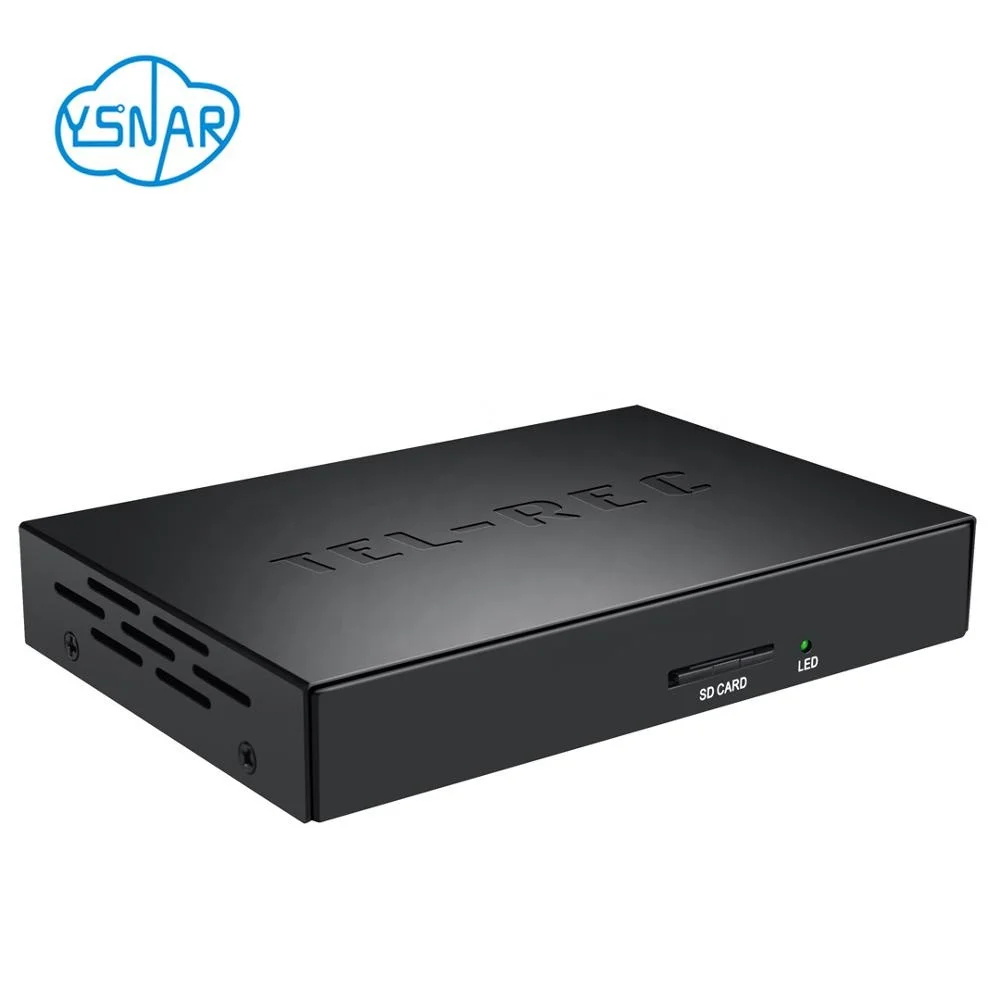

NAR6101S голосовой регистратор 1 линия телефонной записи (с 16G SD карты)

Описание и отзывы

Характеристики

 Voice Announcement:

After the agent answers the call, NAR-6100 will play a pre-recorded voice file to announce this call is been recorded.

Answering Machine:

Programmed timer to turn On/Off this feature.

While this feature is ON, NAR-6100 answers the call, play greeting message and take caller’s message.

When no one answer the call, the answering machine will be triggered automatically.

Pre-Recorded TC Verification(Music On Hold via the different DTMF key groups):

 Music on hold (MOH) is the business practice of playing recorded music to fill the silence that would be heard by telephone callers who have been placed on hold. It is especially common in situations involving customer service.

Recording Interfaces:

· PSTN lines and analog phones;

· PBX and Ext;

· Radio Voice Lines:;

· Live Recording(meeting);

· Intercom Audio Lines;

· Fixed Wireless Telephone.

PABX SMDR(RS232):

User needs to analyze original data of PABX channel number, extension number from followed main parameters and input them to program setting.

Outbound call

1.    Call symbol: The mark to distinguish the call type (Outbound/Inbound call) in character string. Most PABX show “TO “ to indicate outbound call.

2.    Extension position: User have to count the extension number starting position in character strings.

3.    Extension number length: Extension number length.

4.    PABX channel number position: User has to count the channel number starting position in character strings.

5.    Channel number length: PABX channel number length.

From followed example, user can read out outbound call information

1.    Call symbol: $TO

2.    Extension position: 14th

3.    Extension number length: 2.

4.    PABX channel position: 24th

5.    Channel number length: 2

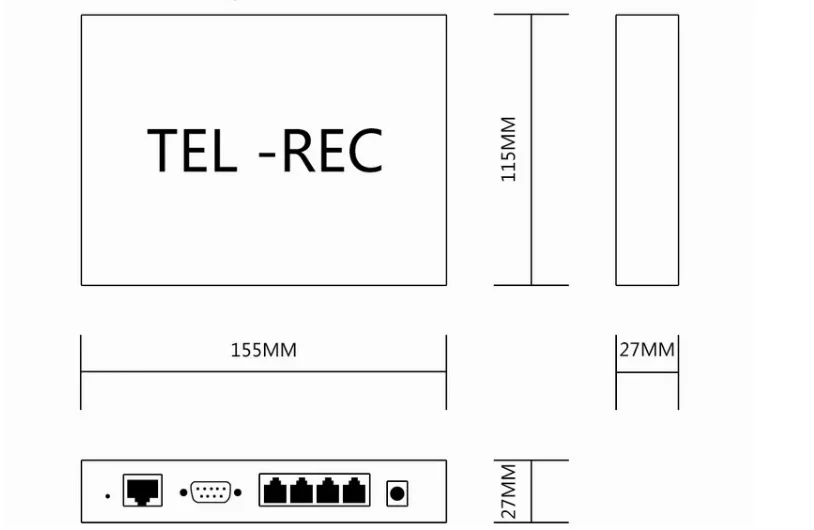

 NAR6100  Specification:

     NAR6100 1/2/4CH Standalone P2P Cloud Network Voice Logger Data Sheet
