Лидер продаж китайская машина для производства твердых печенья.
- Категория: Biscuit making machine >>>
- Поставщик: Guangdong Shunde Huaji Machinery Industrial Co. Ltd.Guangdong Ltd.
Сохранить в закладки 473955629:
Описание и отзывы
Характеристики
Product Description
Hot Selling China Biscuit Machine for Producing Hard Biscuit.

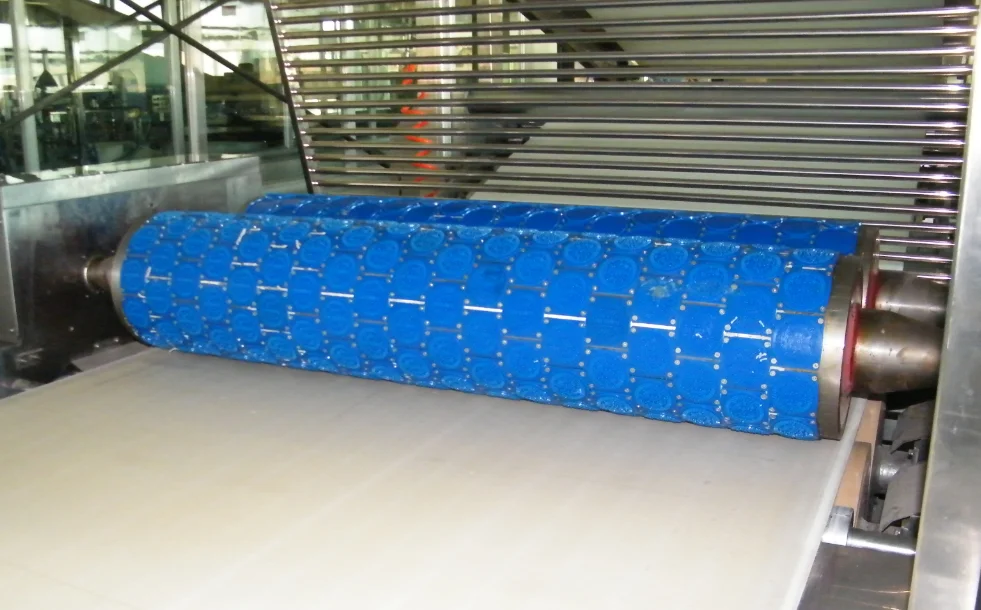

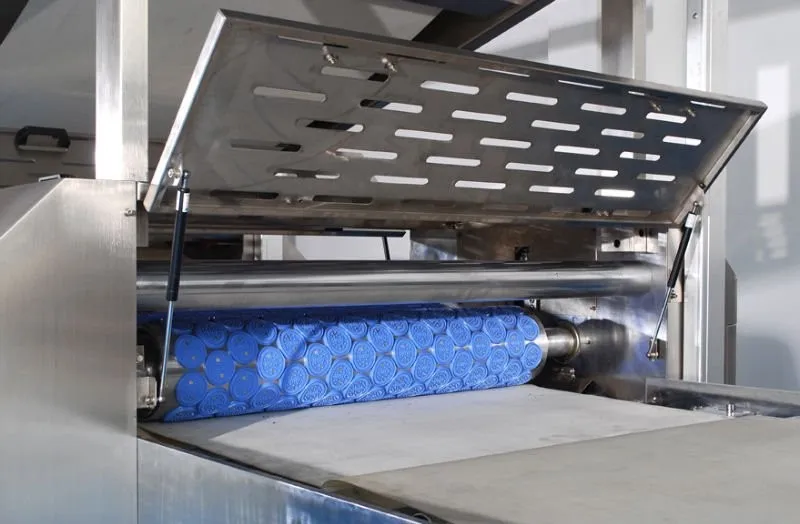

Rotary cutter machine is one very important part of hard biscuit production line.
Rotary cutter machine is one very important part of hard biscuit production line.

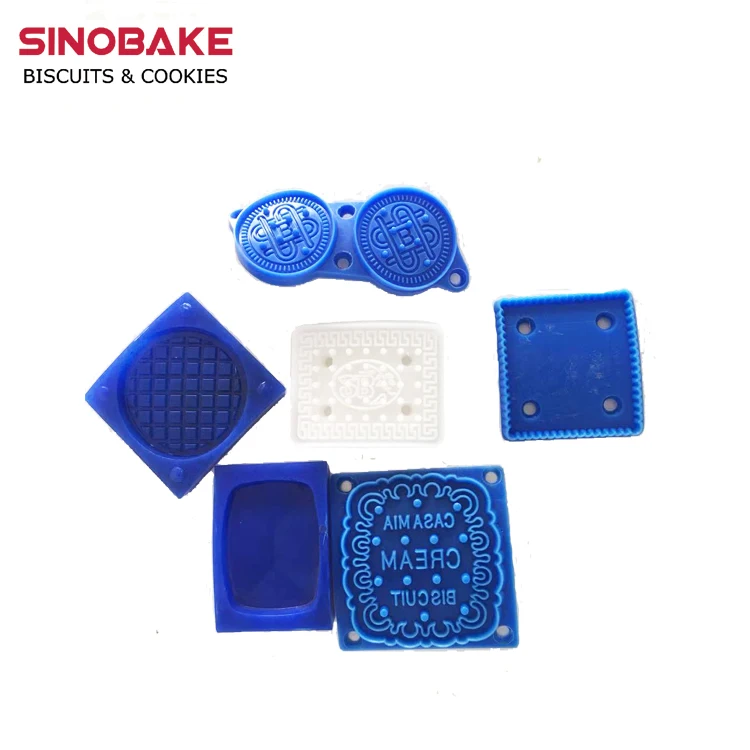

Roatry cutter --mould
PROCESS:
Rotary cutter--mould cup
A whole line consists of:
1.Horizontal dough mixer 150-750kg/batch;500kg Vertical dough mixer
2.Tilting machine
3.Auto dough feeding system
4.Metal detector
5.Laminator/overlapping machine

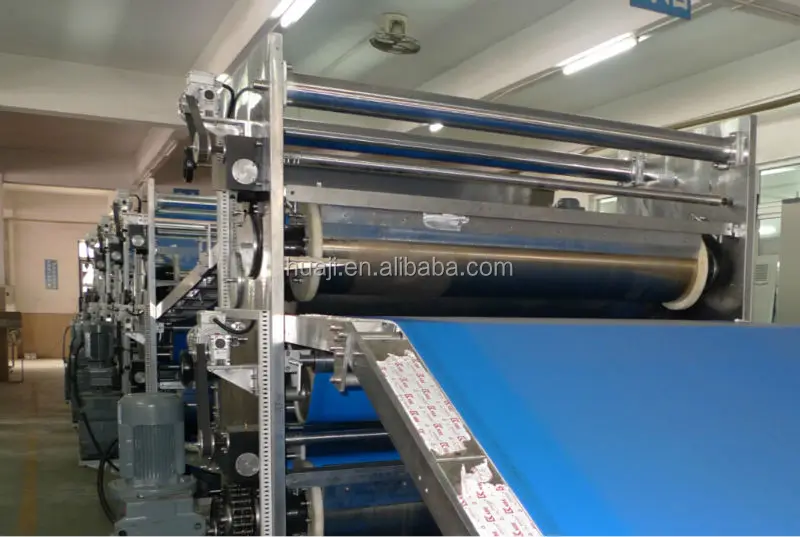

6.Gauge rollers(standard line includes 3 sets)
7.Dough relaxing machine

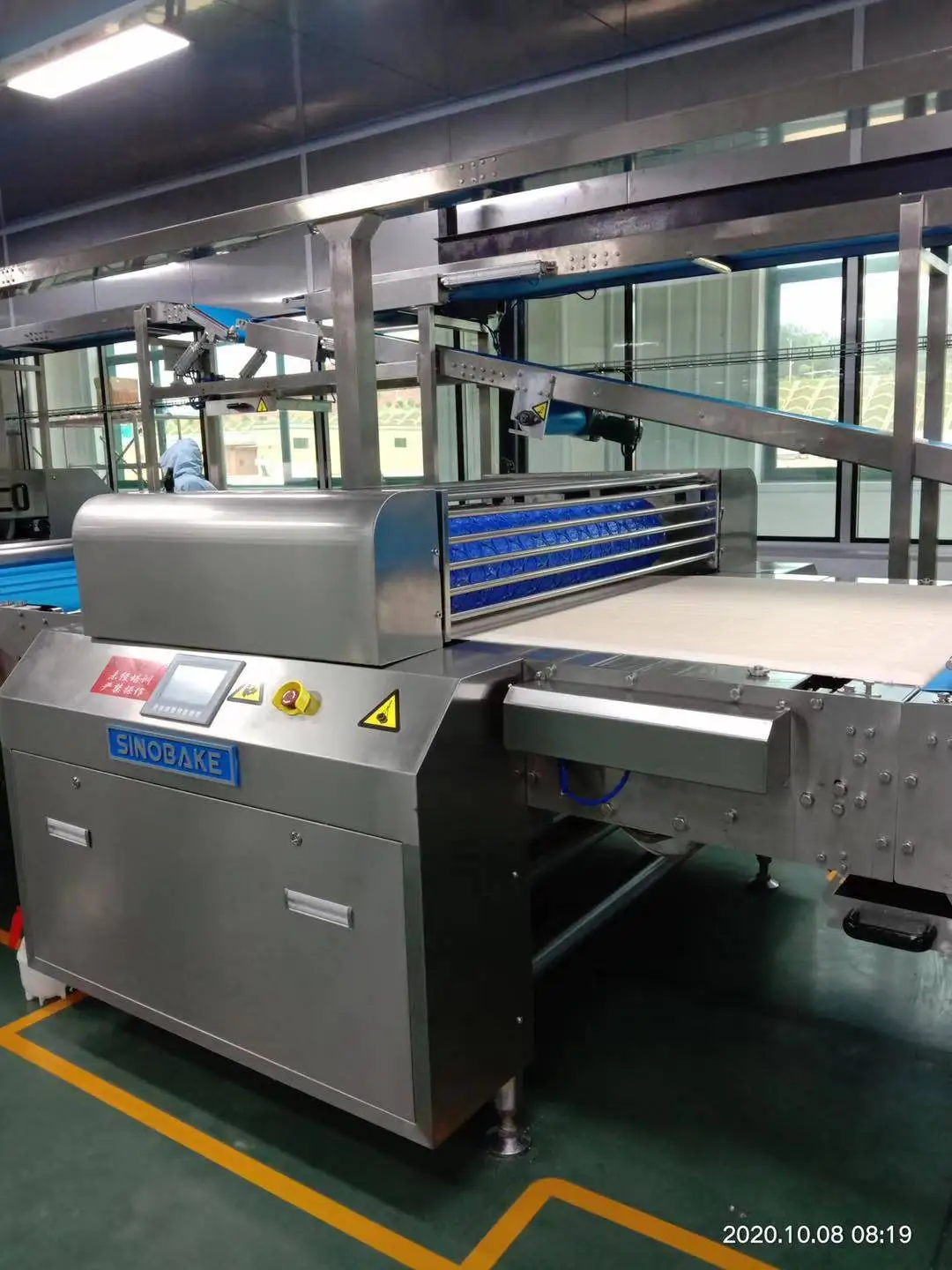

8.Rotary cutter
9.Separating machine
10.Side type scrap return system
11.Sugar sprinkler
12.Enter oven machine
13.Oven drive and belt tension system
14.Oven(Gas,electric and diesel oven can be provided)
Length is depends on the capacity(capacity option:150-3000kg/h)
15.Out-oven machine
16.Oil sprayer
17.180 degree plane turning conveyor
18.Cooling conveyor
19.Star wheel stacker
20.Packing table
2020 Latest technology biscuit machine for hard biscuit, cracker biscuit, animal biscuit, number biscuit, etc
It can be customize according the customer requires. The dough can be fed from second floor or same floor.
It can be customize according the customer requires. The dough can be fed from second floor or same floor.
If you need to make soft biscuits,a dough feeding system for soft biscuit dough and rotary moulder are needed.
To make a various of tasty biscuits, you can equip your production line with salt & sugar sprinkler, egg sprayer, egg painter, printing machine etc. And oven can bake raw biscuit pieces into delicious food. You can choose different types of ovens to bake different biscuits.
To make a various of tasty biscuits, you can equip your production line with salt & sugar sprinkler, egg sprayer, egg painter, printing machine etc. And oven can bake raw biscuit pieces into delicious food. You can choose different types of ovens to bake different biscuits.
Capacity(for reference):
Working width(mm)&length of oven | Capacity(kg/h) | ||||||
400(below 15m) | below 150 | ||||||
600(below 30m) | below 500 | ||||||
1000(above 30m) | above 500 | ||||||
1200(above 30m) | above 600 | ||||||
1500(60m-81m) | 1500-3000 | ||||||
Above capacity data is only for reference. Capacity is influenced by many factors, like:recipe,baking time,baking temperature and so on.Above dates are just for reference. Pls let us know the capacity you need and your factory size to make a suitable solution for you.
Machine components:
1) AC Motors and gear box are imported brand SEW / SIEMENS
2) Industrial Bearings are Japanese brand NSK.
3) Cylinders are Korean brand YSC.
4) Electrical Units are French brand Schneider / SIEMENS.
5) Guarantee period of 12 months.
1) AC Motors and gear box are imported brand SEW / SIEMENS
2) Industrial Bearings are Japanese brand NSK.
3) Cylinders are Korean brand YSC.
4) Electrical Units are French brand Schneider / SIEMENS.
5) Guarantee period of 12 months.
biscuit making machines main characteristics:
Horizontal dough mixer: --vertical mixer, horizontal dough mixer, different mixers are provided for different dough.
Features: This type of mixer is suitable for both soft and hard biscuit dough.
We have 50,150,250,350,750kg types for your choose.
Tilting machine
Tilting machine is used to pour the dough into the hopper of the dough feeding system.
We have 500kg/time and 1000kg/time for your choose.
Dough feeding system with metal detector
Auto Dough feeding system is used for cutting the dough into small pieces and sending them to the feeding machine(overlapping machine, three roll sheeter, rotary moulder etc.). Automatic feeding.
Metal detector is fixed up on the Dough feeding system, Metal Detector is designed for checking the metal particles in the mixed dough.
Hard and soft biscuit forming parts
We provide different solutions according to the type of dough and the space of workshop.This production line has three standard width: 1000mm,1200mm and 1500mm. Capacity: 500-3000kg/h (depend on the length of oven and different products)
For 400 and 600mm model, compact soft and hard biscuit forming machine are suggested, and the oven length is below 30m we suggest.
Oven belt drive and tension machine
mainly provide motive power to oven belt,drive the mesh belt,the mesh belt can be tensioned and offset adjusted automatically. It has functions such as mesh belt cleaning and power cut automatic UPS device. It includes oven drive and oven driven--two set of it before oven and after oven.
For steel band oven, the oven drive comes with an oil device.

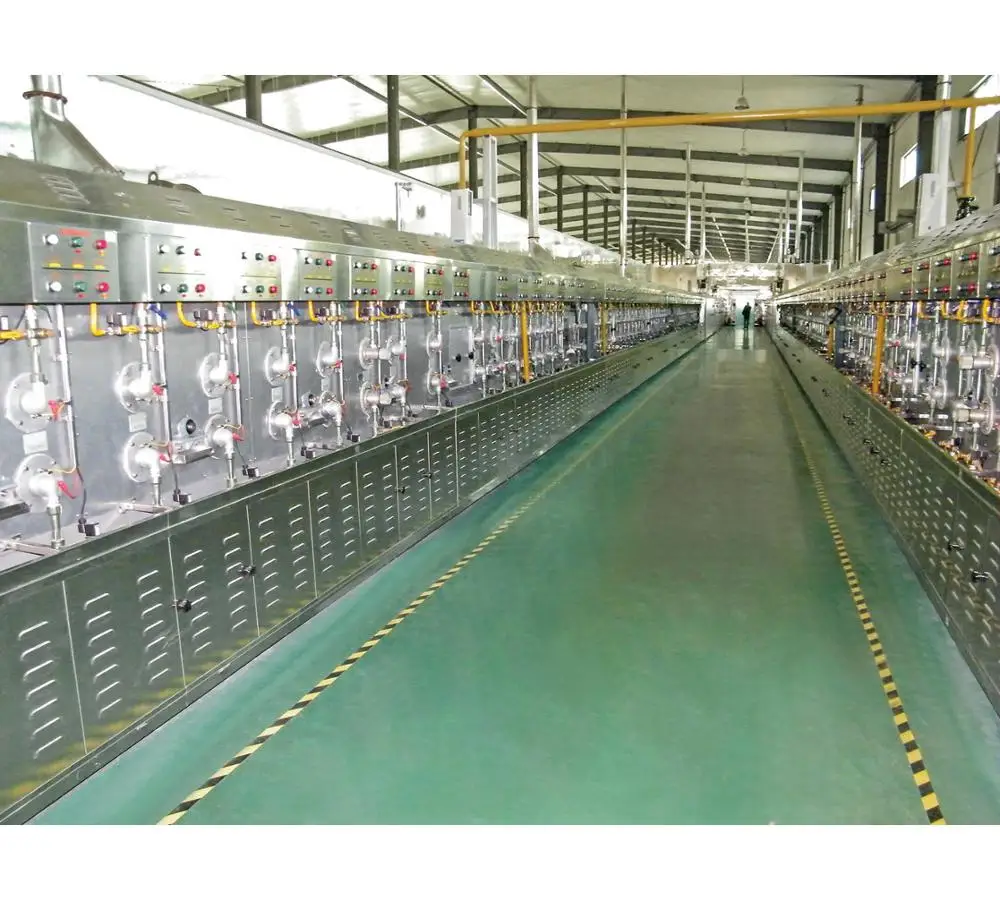

Tunnel oven
Gas,electrical and diesel ovens.can be chose – depending on your products.All ovens are pre-manufactured and supplied in 3meters per section or each independent temperature zone has built up before shipment.
Out oven machine
Out oven conveyor is neccessary device to convey the baked biscuits to cooling conveyor
Cooling and stacking parts
Staright type cooling conveyor or Z type cooling conveyor, penny stacker or star wheel stacker can be choosed according to your biscuits and your factory size.
Finished products
Company Introduction
SINOBAKE (Guangdong Shunde Huaji Machinery Industrial Co.,Ltd) has been supplying biscuit machine and process technology to biscuit industry since1994.We have been export our biscuit production lines and machines all over the world for more than 60 countries.
Thanks for the well professional staffs and engineers,with their experience and know-how we can meet your requirements when supply either single biscuit machines or complete production lines and the turn-key projects.Our company operates the production and assembly in strict compliance with ISO 9001 and CE standards to provide reliable and safety products for customers all over the world.
Thanks for the well professional staffs and engineers,with their experience and know-how we can meet your requirements when supply either single biscuit machines or complete production lines and the turn-key projects.Our company operates the production and assembly in strict compliance with ISO 9001 and CE standards to provide reliable and safety products for customers all over the world.
Our Services & Strength
(1)We have more than 26 year's experence in manufacturing food processing machine.
(2)Professional technical team,Company own's research and development team ,Top quality ,Reasonable price,Timely delivery and first-class service.
(2)Professional technical team,Company own's research and development team ,Top quality ,Reasonable price,Timely delivery and first-class service.
FAQ
1.Are you manufacturer? Yes, we are professional biscuit and cookie machinery manufacturer. We have professional engineers and manufacturing technologist to help you make a suitable solution.
2.Why SINOBAKE can do better than other factories?
Our company specialize in biscuit and cookie machine for 26 years, we start base on the recipe and Europe technology, at the same time, we develop and improve our machinery year by year from our partner and long term relationship customer. Sinobake machine already supply to more than 150 countries, as well as leading in china local market. We provide the best service for all of clients and have good relationship. we looking forward to start new long term relationship with you.
3.How is the package?
We clean the machine first then pack almost all with PE foam and outside with plywood suitable for safety transportation.
4.How is the delivery time?
It depends on the line you purchased. the delivery time is within 30-120 working days. Pls contact us to know the detailed time.
5.How is the installation and commissioning?
Supervision of Installation and commissioning work will be carried out by technical staff together with the technical staff from SINOBAKE GROUP LTD.
2.Why SINOBAKE can do better than other factories?
Our company specialize in biscuit and cookie machine for 26 years, we start base on the recipe and Europe technology, at the same time, we develop and improve our machinery year by year from our partner and long term relationship customer. Sinobake machine already supply to more than 150 countries, as well as leading in china local market. We provide the best service for all of clients and have good relationship. we looking forward to start new long term relationship with you.
3.How is the package?
We clean the machine first then pack almost all with PE foam and outside with plywood suitable for safety transportation.
4.How is the delivery time?
It depends on the line you purchased. the delivery time is within 30-120 working days. Pls contact us to know the detailed time.
5.How is the installation and commissioning?
Supervision of Installation and commissioning work will be carried out by technical staff together with the technical staff from SINOBAKE GROUP LTD.
