x ray view box x ray view box dental x ray film viewer
Product Description
Internationally technically advanced ultra-bright LED is adopted in this product as the backlight source, suitable for the viewing and diagnosis of high-density mathematical films and mammography films.
It is designed to have an ultra-thin and vivid three-dimensional layered panel frame. Moonlight silver and dark grey are selected as the color combination for the panel frame. With such new-type materials as high-strength electrophoresis aluminum alloys and plastic alloys, the entire illuminator is only 4cm thick.
It is with the function of automatic switching on upon film-inserting. The film-viewing area will illuminate once the film is inserted, and the delayed switching-off function after a film is removed is set up, which may effectively increase the service life of the product.
The large scope of brightness adjustment (300~5000cd/m²) fully meets the requirements of viewing and diagnosis of films of various densities such as analog, digital and mammography films.
The service life of the LED light source is as long as 100,000 hours.
Imported acrylic transparent panel is adopted, with high fineness and more uniform and soft light. The service life is long, and it is deformation-resistant and discoloration-resistant.
With an advanced LED backlight source technology, there is no dark zone in the film-viewing area. The brightness uniformity of viewing screen exceeds 90%.
The 90V~240V global voltage self-adaptation built-in power supply is with advanced technologies and saves space.
TECHNICAL SPECIFICATION:
| External dimensions(mm): 1190*545*40 |
| Film-viewing area(mm): 1080*440 |
| Backlight source type: LED Color temperature: 9,300K |
| Service life: 100,000 hours |
| Average brightness: 300 cd/m2-4000 cd/m2 |
| Average illuminance: 900 lux-13,000 lux |
| Brightness uniformity coefficient of viewing screen:≥90% |
| Appropriate films: ordinary analog x-ray film |
| high-density digital x-ray film |
| mammography medical film |
| Power supply:voltage self-adaption built-in power supply |
| Voltage:AC90V-240V Power: 150W±15% Frequency: 50/60HZ |
| Operating conditions: |
| the ambient illuminance in the room shall not exceed 100 lux |
PRODUCT ADVANTAGE:
| automatic switching-on upon film-inserting |
| delayed switching-off after a film is removed |
| wall-mounted type and bracket type(the bracket is optional) |
Optical parameters and function table
Technical parameters specifications | Power system | Overall dimensions (L×H×D) (mm)±10 | screen size (C×M) (mm)±10 | Lamps brightness adjustment control mode | Insert automatic induction function | Don't operate the automatic extinguishing function | Brightness memory function |

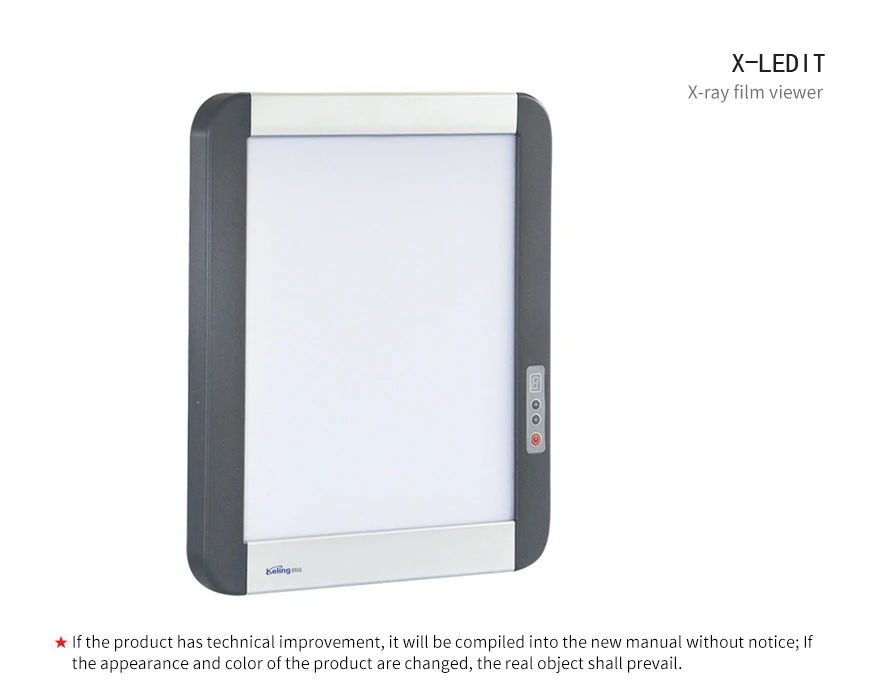

X-LEDIT | 30 | 465×550×37 | 360×440 | 0-9 Adjustable gear digital display | Insert induction | 30 minutes | yes |

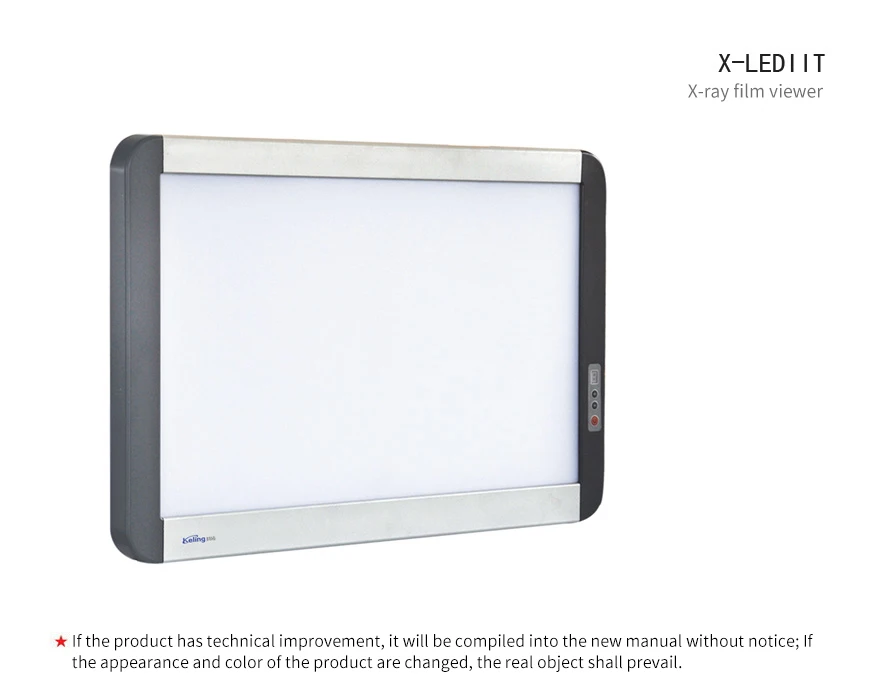

X-LEDIIT | 60 | 825×550×37 | 720×440 | 0-9 Adjustable gear digital display | Insert induction | 30 minutes | yes |

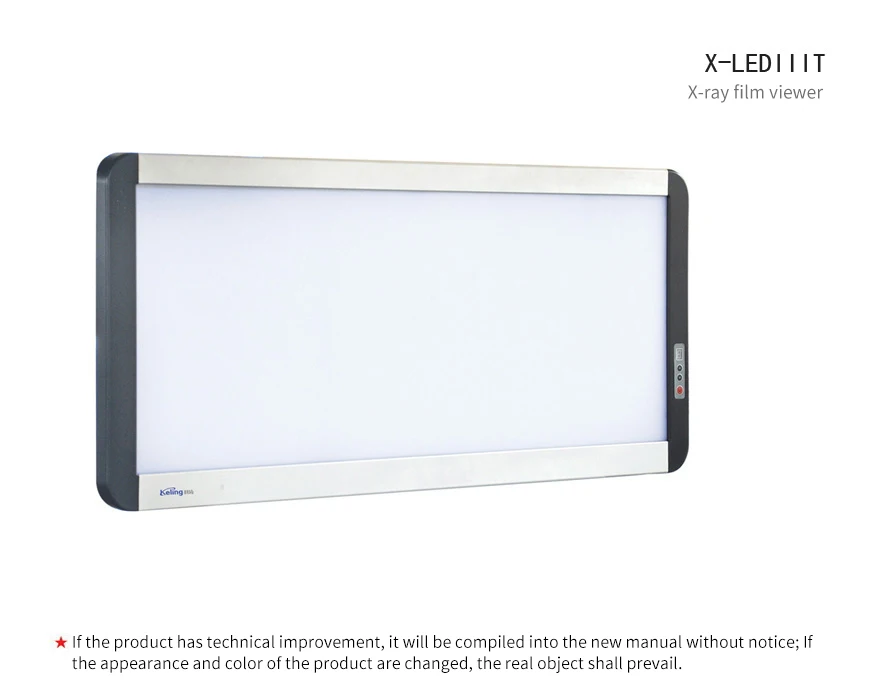

X-LEDIIIT | 90 | 1185×550×37 | 1080×440 | 0-9 Adjustable gear digital display | Insert induction | 30 minutes | yes |
X-LEDIVT | 120 | 1545×550×37 | 1440×440 | 0-9 Adjustable gear digital display | Insert induction | 30 minutes | yes |
