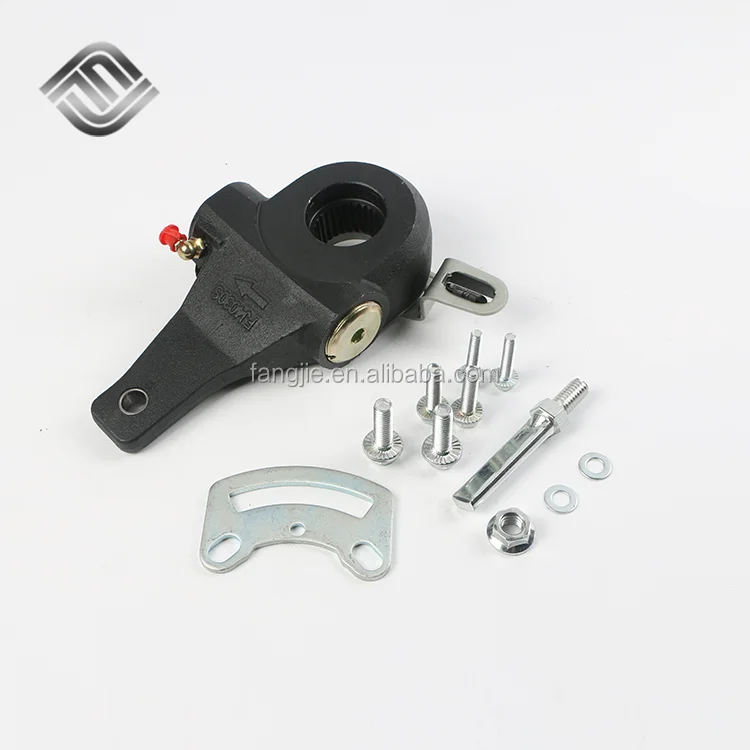

Тормозная система для грузовика, прицепа, автобуса 40010211 haldex, автоматический/ручной тормоз, регулирующий предохранитель
17,00 $ - 18,00 $
ZBG Вакуумная сушилка грабли/вакуумная сушильная машина для порошковых материалов
- Категория: >>>
- Поставщик: Nantong Kneading Mixing Machine Co. Ltd.
Сохранить в закладки 490697846:
Описание и отзывы
Характеристики
Product Description

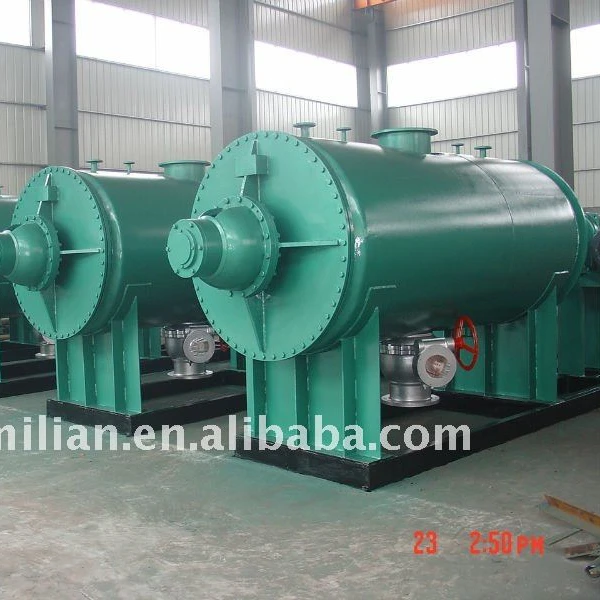

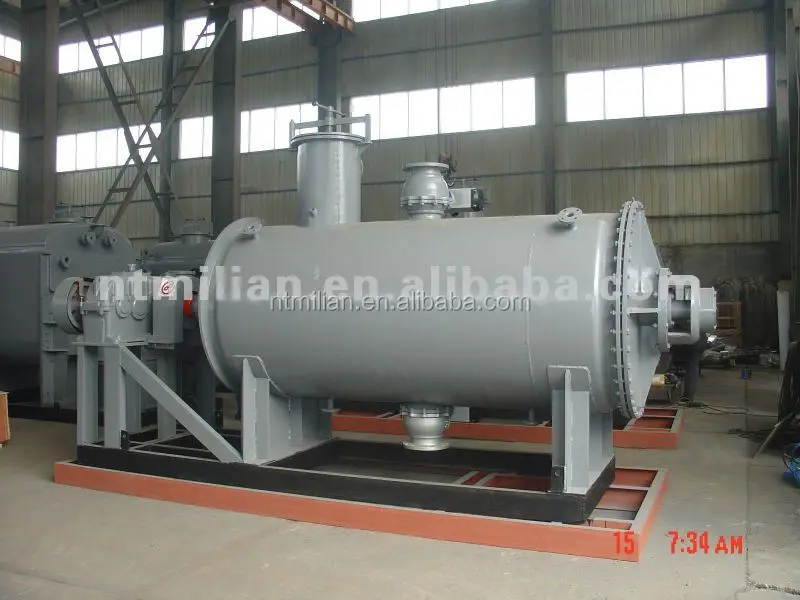

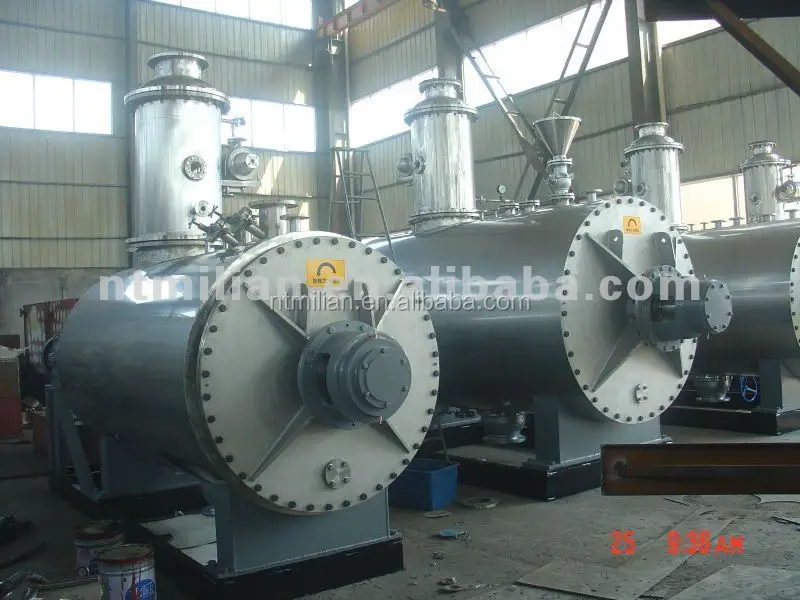

ZBG Vacuum Rake Dryer / Powder Materials Vacuum Dryer Machine
Specifications:
Vacuum dryer machine
The machines have passed ISO standard
Advanced technology
Supreme quailty
Steam stripping
Descriptions:
Based on the manufacture technology of vacuum dryers in China, the rake type vacuum dryer is our improved products for drying materials shaped like slurry, paste, grain, powder and fibre.

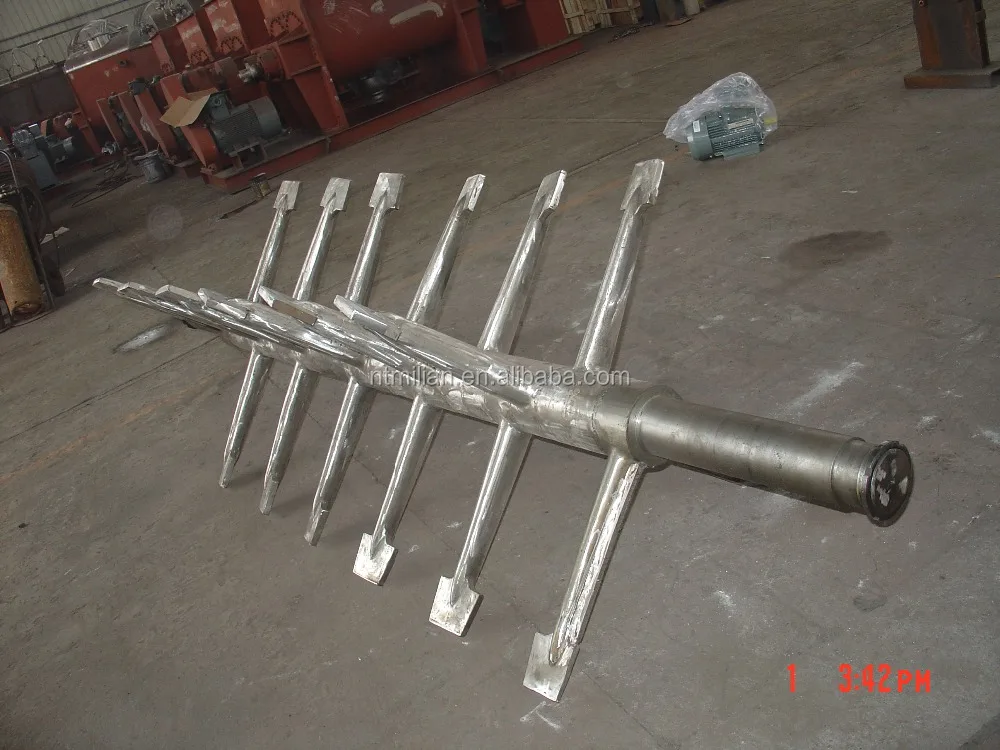

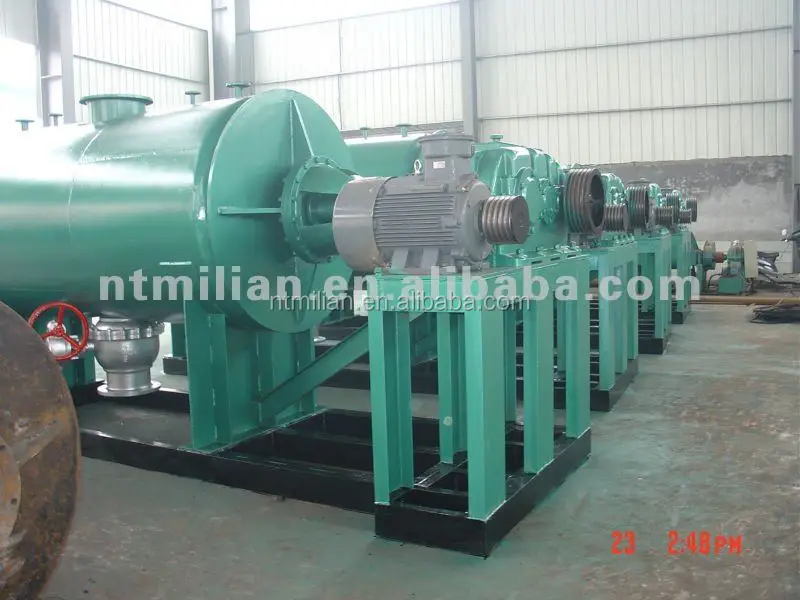

The drive system adopts column gear reducer which performs firm and wear well. The driving shaft is stainless steel thickened solid type. The rake teeth is made of high strength stainless steel, which guarantees the stable operation under all kind of odious conditions. Inside the shell can be added two or four impact rods for the purpose of high speed drying and smashing. The heating medium can be steam, heat conducting oil and hot water.
Applications:
It is especially used to dry materials that are heat sensitive, oxidable, and easy to harden and also materials whose vented steam during drying need to be reclaimed. The material is of powder shape after drying, so it is suitable for drying materials whose finished products are powder shaped. The materials can be directly packed after drying, and they don't need to be smashed. The feeded material for rake type vacuum dryer can contain 90% water. The materials to be dried can be shaped like slurry, grease, grain, powder, or fiber. Only 1% or even 0.5% water can be left after drying.The vacuum dryer is now widely used in the production of solid alcohol,sodium(kalium).
Characteristics:
1. Wide application range, high drying speed. Because the rake vacuum pump use jacket to heat and high vacuum to vent gases. So it can almost apply for all materials with different quality and different shape. It is especially suitable for flamable and oxidable materials.
2. High quality products. The rake teeth turns in two directions constantly, and the material is well mixed.
3. Small steam consumption.
4. Easy operation. It can be used to reclaim volatilizable gases, and reduce environment pollution
Main Technical Parameters:
Type | Volume /L | Electrical power /kw | Speed /rpm | Sandwich design pressure /Mpa | Chamber pressure /Mpa | Heating area/M2 |
ZBG-500L | 500 | 4 | 6-8 | 0.3 | -0.09-0.15 | 3.8 |
ZBG-1000L | 1000 | 5.5 | 6-8 | 0.3 | -0.09-0.15 | 5 |
ZBG-2000L | 2000 | 7.5 | 6-8 | 0.3 | -0.09-0.15 | 7.6 |
ZBG-3000L | 3000 | 15 | 6-8 | 0.3 | -0.09-0.15 | 10.6 |
ZBG-4000L | 4000 | 22 | 6-8 | 0.3 | -0.09-0.15 | 12.3 |
ZBG-5000L | 5000 | 22 | 6-8 | 0.3 | -0.09-0.15 | 14.1 |
ZBG-6000L | 6000 | 30 | 6-8 | 0.3 | -0.09-0.15 | 16.5 |
ZBG-7000L | 7000 | 30 | 6-8 | 0.3 | -0.09-0.15 | 17.9 |
ZBG-8000L | 8000 | 45 | 6-8 | 0.3 | -0.09-0.15 | 18.1 |
ZBG-9000L | 9000 | 45 | 6-8 | 0.3 | -0.09-0.15 | 20.33 |
ZBG-10000L | 10000 | 55 | 6-8 | 0.3 | -0.09-0.15 | 22.5 |
ZBG-15000L | 15000 | 55 | 6-8 | 0.3 | -0.09-0.15 | 22.5 |
Packaging & Shipping
Our Services
We furnish the best pre-sale and after sale service, it's our pleasure to furnish you any help during your purchase;
Manufacture factory with rich production experience;
Superior quality at reasonable price;
365 days' ongoing service;
Comprehensive technical support.
FAQ
1.Q:Are you a factory or trading company?
A:We are a factory and we have export licence.
2.Q:Where is your factory located? How can I visit there?
A:Our factory is located in Nantong, Jiangsu Province, China, about one and half hours drive from Shanghai . All our clients, from home or abroad, are warmly welcome to visit us!
3.Q:What is the material of your products?
A:The main material are steels,cylinder and other. We can also choose material as customers’ requirement.
4.Q:How can I kown more about the press machine?
A: We are honored to send you some pictures and vedio about our machine. And we welcome every customer visit our factory.
5.Q:How does your factory do regarding quality control?
A:Quality is priority. Factory director always attach great importance to quality controlling from the very beginning to the very end. Our factory has gained CE certificatioin and ISO9001.
Company Information
We, Nantong Kneading Mixing Machine Co., Ltd is a science & technology enterprise focusing on Design, Manufacture, Sales and Service. The top-grade management, excellent service and innovation created the first-class product quality. Our target is keep making progress courageously creat new high and strive for the first.
We have rich experience in design and manufacture, our company produce various of equipments such as dryer, kneader, internal mixer, mixing machine, alcohol distillation tower, condenser etc. The machine widely used in pharmacy, food, rubber, plastic, CMC, BMC, SMC, composite manhole cover, graphite, dye, pigment, modified starch, compound stabilizer,color master batch, carbon industry etc. We also have ability to take on the design, manufacture, installation and debugging the complete CMC production line, including corollary equipments.
Contact us
For the fast update of the technology, we will change the technical data without notice, and the right parameters are subject to the real product.
If you are not certain of which type to choose, please feel free to contact us and our profession sales engineers will recommend for you.
Похожие товары

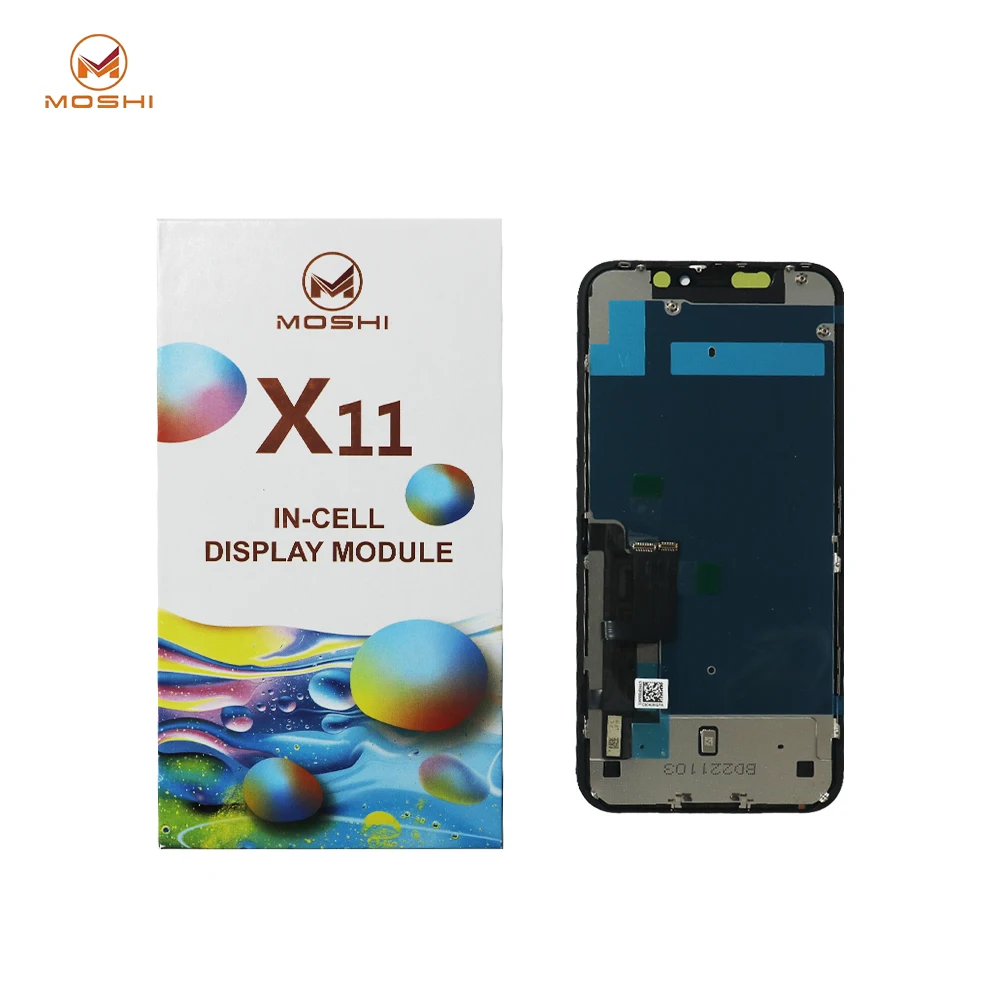

Запасные части для мобильных телефонов MOSHI incell lcd 4,7 дюймов, ЖК-дисплей для сотового телефона, замена экрана для iphone 11, полная сборка
