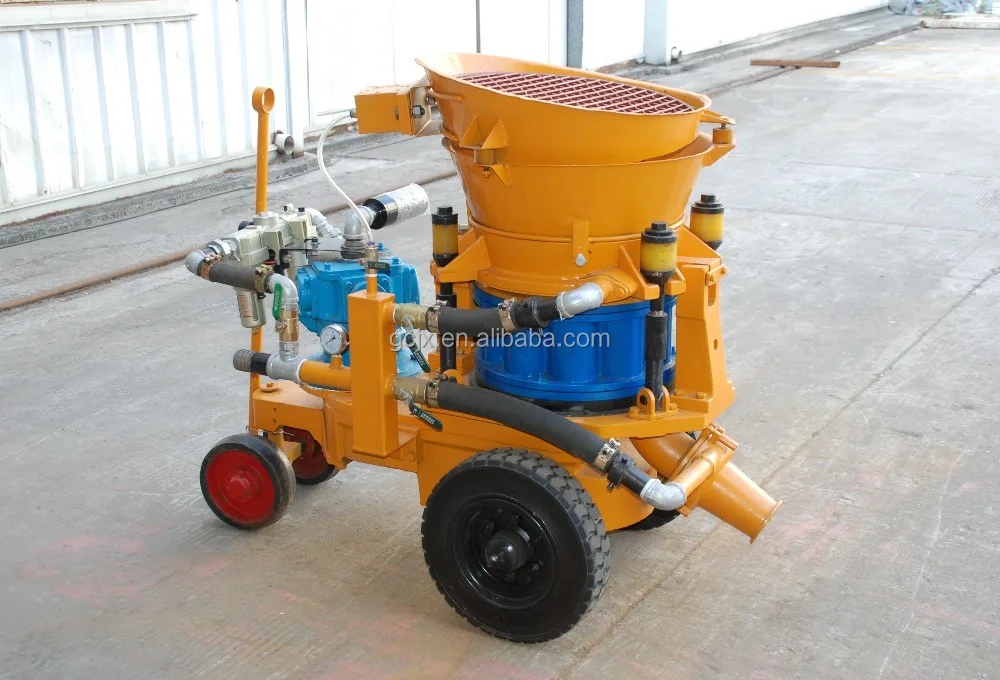

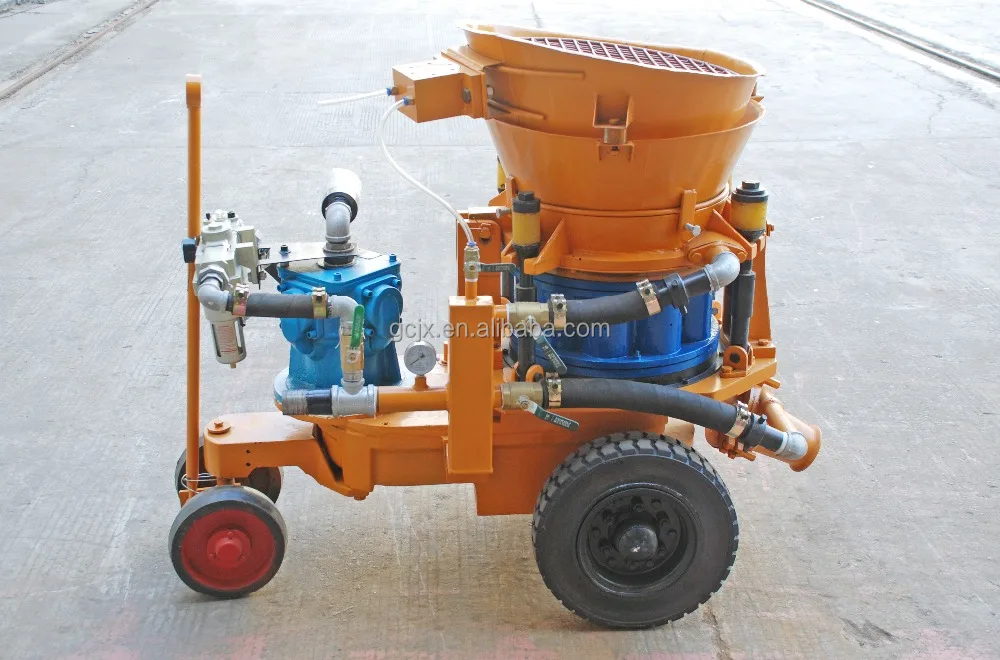

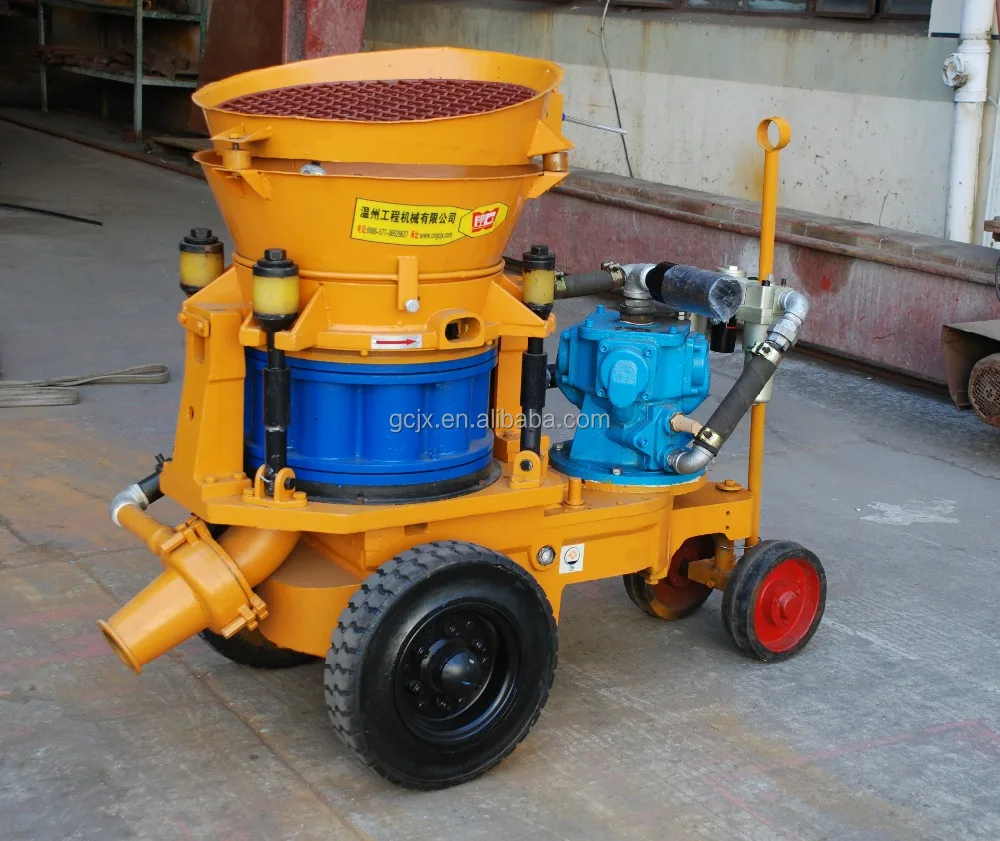

PZ 5A air motor dry shotcrete machine

Категория: Машина для торкретирования >>>
Поставщик: Wenzhou Engineering Machinery Co. Ltd.

Цена:4 000,00 $*

Количество:

В избранное

Описание и отзывы

Характеристики

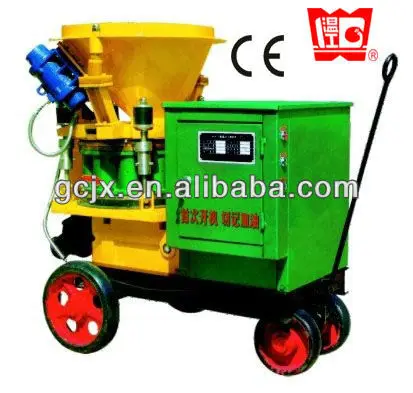

HPZ-5

PZ-5Q 2.jpg

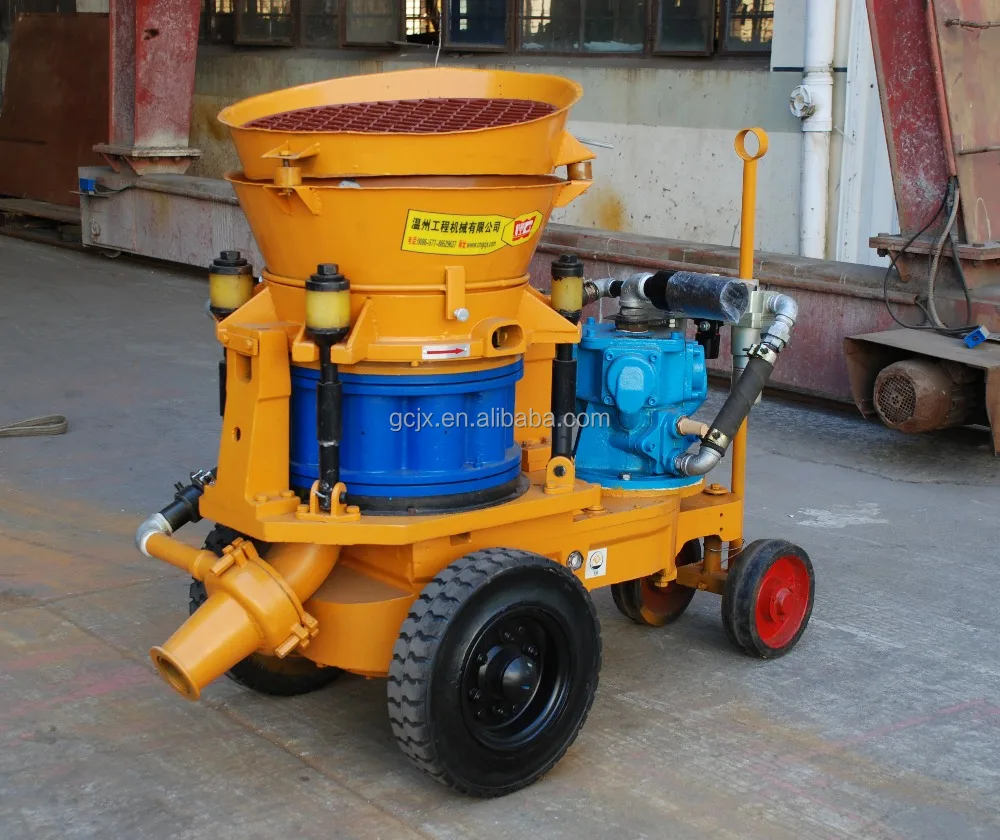

PZ-5A air motor concrete spraying machine

Model PZ-5A air motor concrete spraying machine is the most ideal device for the concrete anchor spray construction, wet spray and moist spray. And be widely used for the anchor spray supporting construction in tunnel, culvert and underground projects. The accelerating admixture conveying system in the machine is independent measured precisely by standard metering pump which is freely adjusted. And uniquely-made rubber bushing block on the swirler benefits mixture delivery.

Technical parameter

Model	PZ-3A	PZ-5A	PZ-9A
output	3 m3/h	5.5 m3/h	9 m3/h
Max.conv.dist	200 m	200 m	150 m
Water cement ratio	< 0.4	< 0.4	< 0.35
Max.Aggregate.size	10 mm	15 mm	20 mm
Hose inner size	φ42/50 mm	φ50 mm	φ64 mm
Operating air pressure	0.2-0.6 MPa	0.2-0.6 MPa	0.2-0.6 MPa
Air consumption	5-6 m³/min	7-8 m3/min	9-10 m3/min
Power Engine	Air Motor, 3kW	Air Motor, 5.5 kW	Air Motor, 7.5 kW
Diesel engine	430KG	720KG	900KG
Dimensions	1130×1020×540mm	1350×1200×750mm	1500×1320×830mm
