high pressure portable epoxy injection pump





Product Description

  1. Item: IE-01
  2. Weighing 9 KGS,portable, easy to carry & maintain, maximum output pressure up to 70MPa.
  3. Injection pressure:0-70Mpa(8000-10000Lb)
  4. 2 ways of material feed-in: pour & suck
  5. The Dill Brand is Matabo. The power consumption:560W/220V

Material of application



WPU and OPU foam stop leakage agent, Epoxy resin.

Application Field

Subway Station, Tunnel, Culvert, Foundation Improvement, Soil Settlement, Reservoir, Port Project, Top Slab, Crack, Construction Join, Shrinkage Crack, Basement hairline crack etc. water stop projects.



Specification



Weight

9 kg

Maximum output pressure

70MPa

Pressure of restarting

less than 20 MPa

Safe range of high-pressure hose

less than 70 MPa

Safe range of switch valve

less than 50 MPa







Full set of machine include:

  1. The machine
  2. Accessories, including high pressure hose(4.5m), on&off valve, grease head.
  3. Standby tools

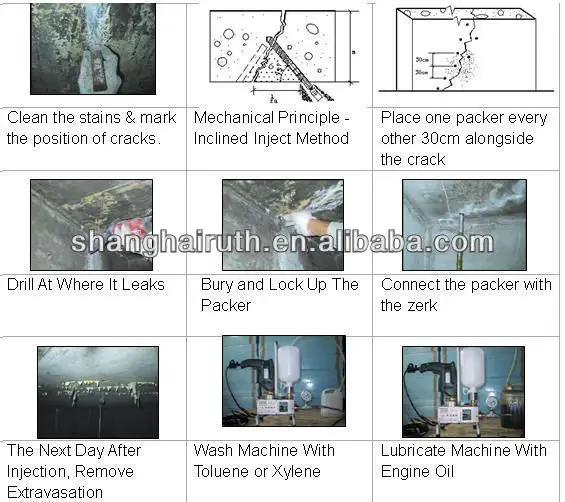

Ruth Injection machine.JPG

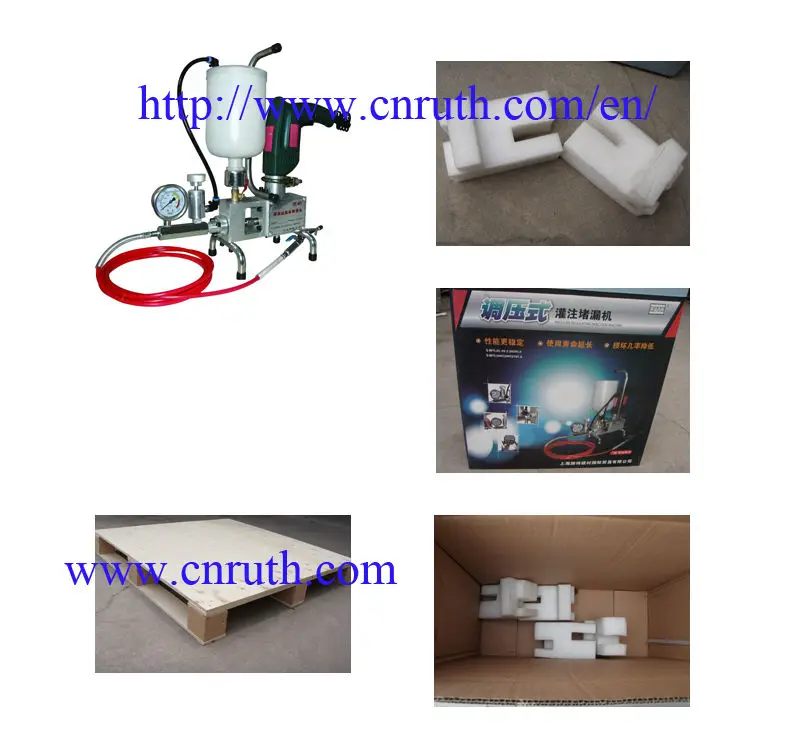

Standard Packing
