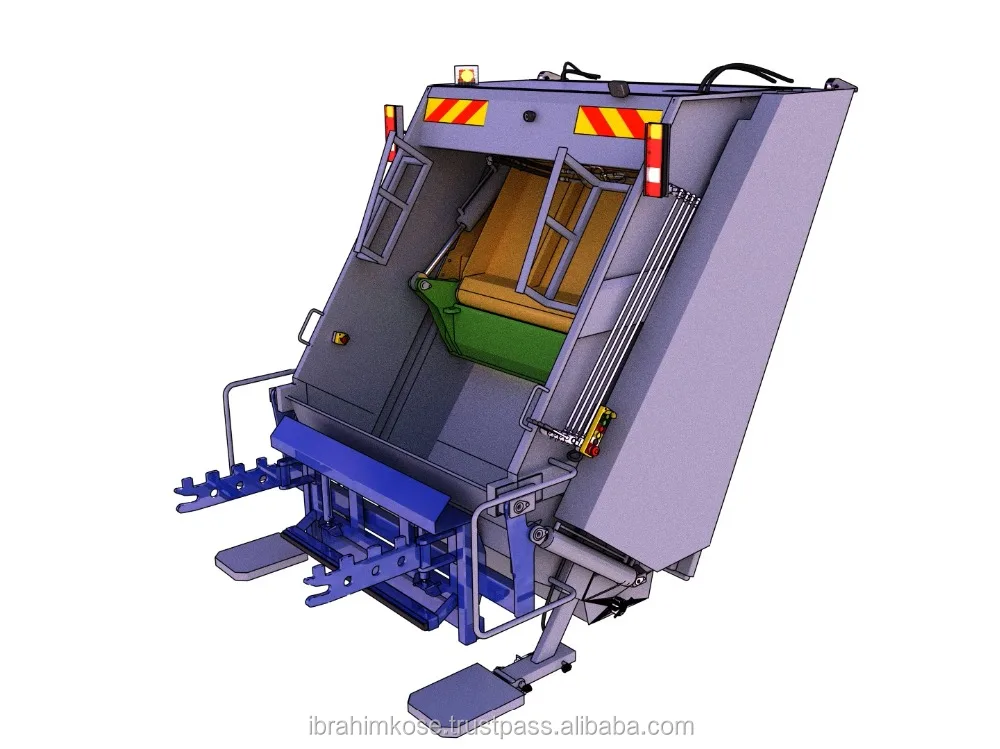

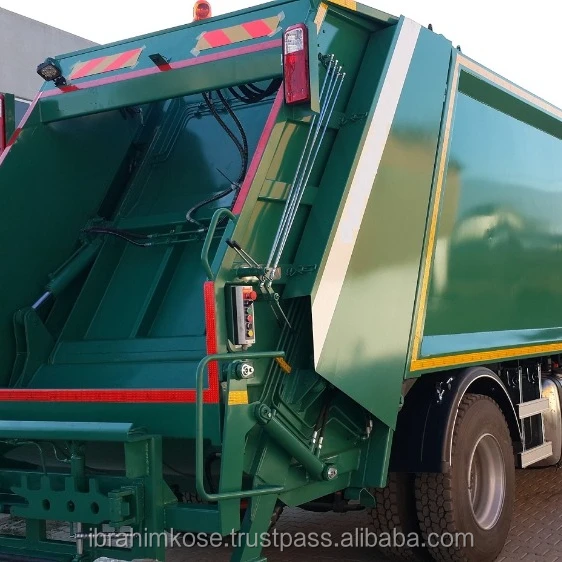

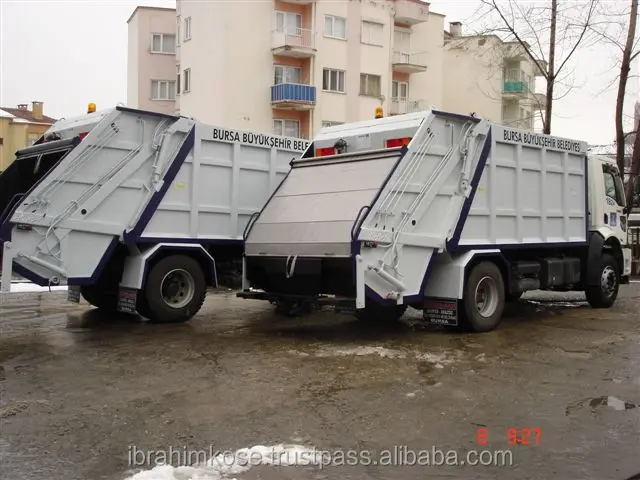

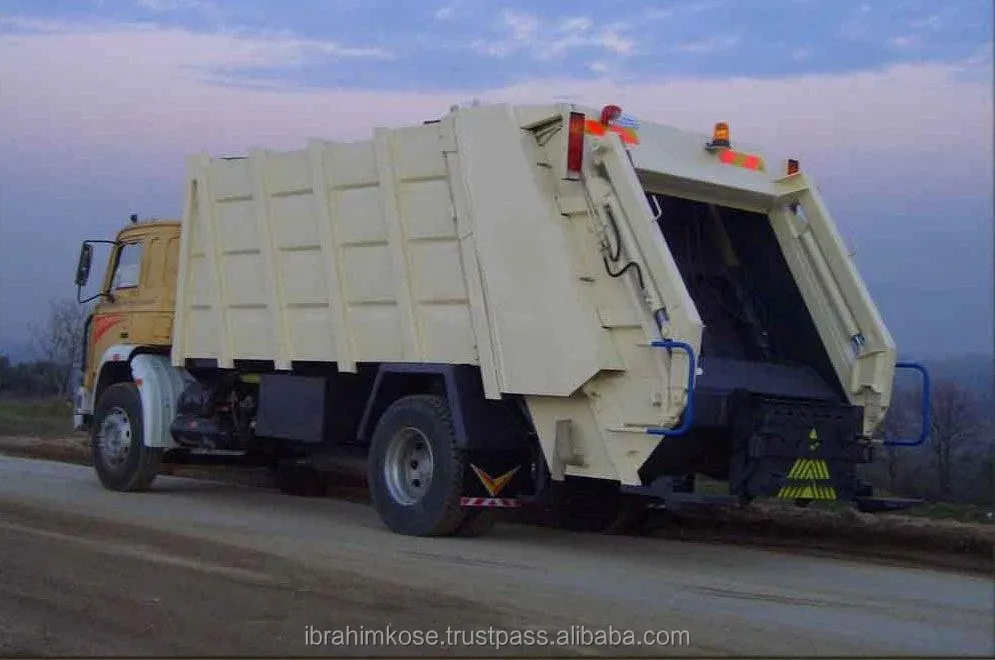

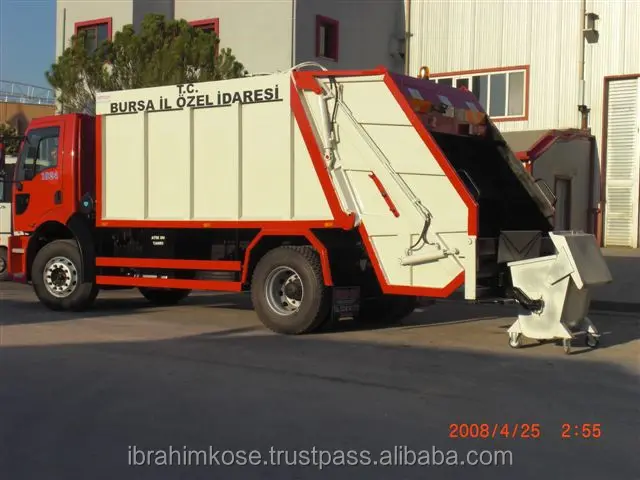

PRESS GARBAGE TRUCK TECHNICAL SPECIFICATIONS 10 +1,5 m3

1-      Capacity of garbage truck: 10 + 1,5 m3.

2-      Waste loading body is fixed on truck. Waste loading is from back side of body.

3-      Garbage Body will install flexiable on truck chassis.

4-      Loading platform height is 110 cm while truck is empty.

5-      Loading space is 1,5 m3. Garbage Body weight is nearly 3.250 KG. Base sheet is 5 mm. Side sheets are 3 mm.

6-      While body is empty, unloading will be from rear complete curtain.

7-      Unloading press curtain sledge place material is poliyamide sheet and it can changeble.

8-      Waste unloading working is with rear hydraulic cyclinders and sledge rear plate.

9-      Body welding is with SG2.

10-   Rear cover has special liquid prof gasket.

11-   Truck engine period can increase or decrease from truck cabin by driver.

12-   Body paint has two times undercoat painting and two times colourful painting.

13-   Rear cover has security valve on cyclinders. If hoses broken or damaged, rear cover would not fall down.

14-    Body has warning button for driver at rear body.

15-   Rear sledge palte manufactured from special long life non-corrosion steel. Unloading process working is with special double step hydraulic cyclinder.

16-   Hydraulic piston control valve can go forward and back.

17-   Body hydraulic oil tank volume is 100 lt.

18-   Hydraulic system cyclinders are cold-drawn piston pipes.

19-    Hydraulic pistons are chorme coated.

20-   Hydraulic cyclinders has bearings at front and back.

21-   Hydraulic system tank has sucking filter and feedback filter.

22-   All hydraulic pipes has security screws.

23-   Hydraulic system pressure is between 80 and 150 bar.

24-   Press unloading curtain hydraulic piston working with 150 bar.

25-   Getting of waste container and unloading of waste container to rear 1,5 m3 space is automatic system with rear hydraulic pistons and valves.

26-   Garbage body running system is with PTO from truck gearbox. Truck cabin has PTO button. Its running system is with air system.

27-   Rear of body has lights to take wastes in inght working.

28-   Garbage Body has warning light on body.

29-   Rear body has waste container taking and unloading system.

30-   TSE and CE certifcates will given.

31-   Warranty 1 years, Spare parts provide warranty 10 years.
