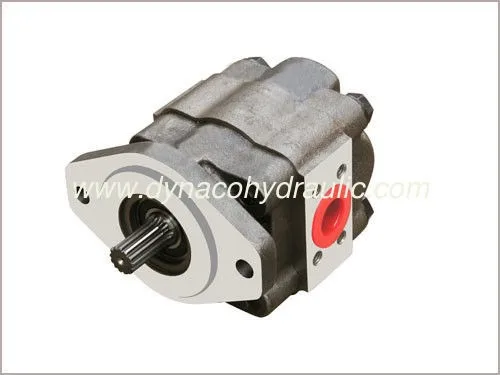

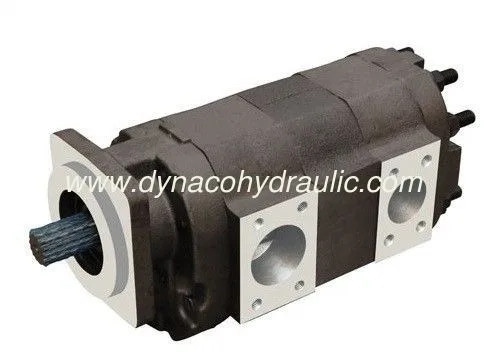

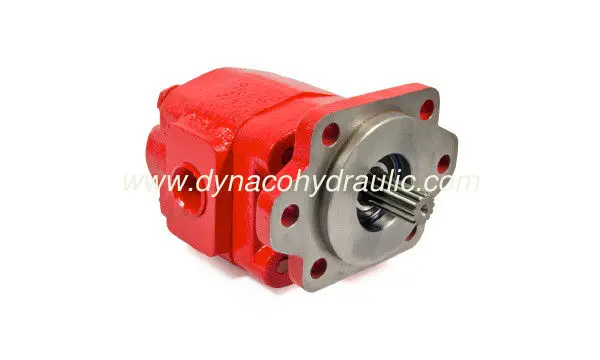

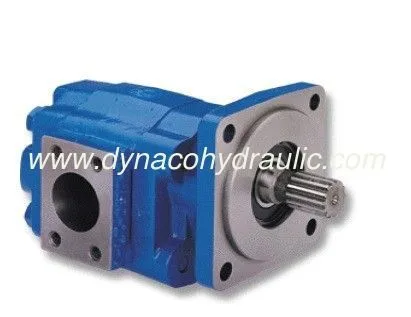

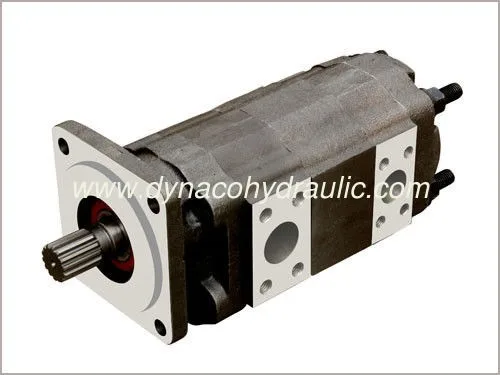

DYNACO P20 P21 P30 P31 P50 P51 P75 76 series gear pump and motor can be interchanged with Commercial type P20 P21 P30 P31 P50 P51 P75 P76 gear pump and motor. The Gear Pumps have the durability and reliability of this time tested design. Dynaco has combined this technology with cutting EDGE, state-of-the-art manufacturing processes to make the Gear products the highest quality and most dependable in the market place. We can also supply other Commercial type replacement gear pump. Please view below attachment technical product catalog
Product Description:
. Single or multiple units available;
. Piggy back options available;
. Gears widths 1/2" to 3";
. Min. Operating speed 400 rpm;
. Max. Continuous operating speed 2000 rpm;
. Max. Continuous operating pressure 2500 psi(172bar);
. Drive shaft PL factor: Integral 12000, Continental 10000;
. Cast iron construction;
. Dowelled units available;
Mounting Flange Options:
. SAE B 4 bolt, SAE C 2 bolt, SAE D 4 bolt;
Drive shaft options:
. SAE C 14 tooth, SAE D splined, SAE C keyed;
Various Porting options:
. BSP, SAE, NPT, JIC(ODT).
P20 P21 Pump Performance Data: | ||||||||||||
Gear Width (in) | Output | Reted Pressure (Psi) | Maximun Pressure (Psi) | Speed | Input | |||||||
(ml/r) | (RPM) | Power | ||||||||||
Min | Max | (KW) | ||||||||||
1/2" | 16.4 | 3000 | 3600 | 600 | 2400 | 14.6 | ||||||
3/4" | 24.6 | 21.8 | ||||||||||
1" | 32.8 | 29 | ||||||||||
1 1/4" | 41 | 36.3 | ||||||||||
1 1/2" | 49.2 | 43.5 | ||||||||||
1 3/4" | 57.3 | 2600 | 3000 | 43.4 | ||||||||
2" | 65.5 | 49.6 | ||||||||||
2 1/2" | 81.8 | 61.5 | ||||||||||
Gear Width (in) | Output Flow | |||||||||||
900RPM | 1200RPM | 1500RPM | 1800RPM | 2100RPM | 2400RPM | |||||||
GPM | LPM | GPM | LPM | GPM | LPM | GPM | LPM | GPM | LPM | GPM | LPM | |
1" | 6.5 | 24.5 | 9 | 34 | 11.5 | 43.5 | 14 | 53 | 16.5 | 62.5 | 19 | 72 |
1 1/4" | 8 | 30 | 11.5 | 43.5 | 14.5 | 55 | 18 | 68 | 21 | 79.5 | 24 | 91 |
1 1/2" | 10 | 38 | 14 | 53 | 17.5 | 66 | 21.5 | 81.5 | 25 | 94.5 | 29 | 110 |
1 3/4" | 12 | 45.5 | 16 | 60.5 | 20.5 | 77.5 | 25 | 94.5 | 29.5 | 112 | 34 | 120 |
2" | 13.5 | 51 | 18.5 | 70 | 23.5 | 89 | 29 | 110 | 34 | 129 | 39 | 148 |
P20 P21 Motor Performance Data: | ||||||||||||
M20/21 Speed (RPM) | 1" Gear Width | 1 1/2" Gear Width | 2" Gear Width | |||||||||
Output (2000Psi) | Input Flow | Output (2500Psi) | Output (2000Psi) | Input Flow | Output (2500Psi) | Output (2000Psi) | Input Flow | Output (2500Psi) | ||||
Torque | Power | Torque | Torque | Power | Torque | Torque | Power | Torque | ||||
800 | 550 | 7 | 9 | 675 | 870 | 11 | 13 | 1035 | 1150 | 14.5 | 17 | 1385 |
in-lbs | HP | GPM | in-lbs | in-lbs | HP | GPM | in-lbs | in-lbs | HP | GPM | in-lbs | |
62 | 5 | 34 | 80 | 98.5 | 8 | 49 | 120 | 130 | 11 | 64.5 | 160 | |
Nm | KW | LPM | Nm | Nm | KW | LPM | Nm | Nm | KW | LPM | Nm | |
1200 | 550 | 10.5 | 13 | 685 | 870 | 16.5 | 18 | 1055 | 1150 | 22 | 23.5 | 1410 |
in-lbs | HP | GPM | in-lbs | in-lbs | HP | GPM | in-lbs | in-lbs | HP | GPM | in-lbs | |
62 | 8 | 49 | 80 | 98.5 | 12.5 | 68 | 120 | 130 | 16.5 | 89 | 160 | |
Nm | KW | LPM | Nm | Nm | KW | LPM | Nm | Nm | KW | LPM | Nm | |
1600 | 550 | 14 | 16 | 680 | 860 | 22 | 23 | 1030 | 1140 | 29 | 30.5 | 1390 |
in-lbs | HP | GPM | in-lbs | in-lbs | HP | GPM | in-lbs | in-lbs | HP | GPM | in-lbs | |
62 | 10.5 | 60.5 | 80 | 97 | 16.5 | 87 | 120 | 129 | 21.5 | 115 | 160 | |
Nm | KW | LPM | Nm | Nm | KW | LPM | Nm | Nm | KW | LPM | Nm | |
2000 | 550 | 17.5 | 19.5 | 660 | 850 | 27 | 28 | 1010 | 1125 | 36 | 37 | 1370 |
in-lbs | HP | GPM | in-lbs | in-lbs | HP | GPM | in-lbs | in-lbs | HP | GPM | in-lbs | |
62 | 13 | 74 | 75 | 96 | 20 | 106 | 1150 | 127 | 27 | 140 | 160 | |
Nm | KW | LPM | Nm | Nm | KW | LPM | Nm | Nm | KW | LPM | Nm | |
P30 P31 Pump Performance Data: | ||||||||||||
Gear Width (in) | Output (ml/r) | Reted Pressure (Psi) | Maximun Pressure (Psi) | Speed (RPM) | Input Power (KW) | |||||||
Min | Max | |||||||||||
1/2" | 16.4 | 3000 | 3600 | 600 | 2400 | 14.6 | ||||||
3/4" | 24.6 | 21.8 | ||||||||||
1" | 32.8 | 29 | ||||||||||
1 1/4" | 41 | 36.3 | ||||||||||
1 1/2" | 49.2 | 43.5 | ||||||||||
1 3/4" | 57.3 | 2600 | 3000 | 43.4 | ||||||||
2" | 65.5 | 49.6 | ||||||||||
2 1/2" | 81.8 | 61.5 | ||||||||||
Gear Width (in) | Output Flow | |||||||||||
900RPM | 1200RPM | 1500RPM | 1800RPM | 2100RPM | 2400RPM | |||||||
GPM | LPM | GPM | LPM | GPM | LPM | GPM | LPM | GPM | LPM | GPM | LPM | |
1" | 6.5 | 24.5 | 9 | 34 | 11.5 | 43.5 | 14 | 53 | 16.5 | 62.5 | 19 | 72 |
1 1/4" | 8 | 30 | 11.5 | 43.5 | 14.5 | 55 | 18 | 68 | 21 | 79.5 | 24 | 91 |
1 1/2" | 10 | 38 | 14 | 53 | 17.5 | 66 | 21.5 | 81.5 | 25 | 94.5 | 29 | 110 |
1 3/4" | 12 | 45.5 | 16 | 60.5 | 20.5 | 77.5 | 25 | 94.5 | 29.5 | 112 | 34 | 120 |
2" | 13.5 | 51 | 18.5 | 70 | 23.5 | 89 | 29 | 110 | 34 | 129 | 39 | 148 |
P30 P31 Motor Performance Data: | ||||||||||||
M30 performance data at 2000 PSI(138 bar) | ||||||||||||
M30 Speed (RPM) | 1" Gear Width | 1 1/2" Gear Width | 2" Gear Width | |||||||||
Output | Input Flow | Output | Input Flow | Output | Input Flow | |||||||
Torque | Power | Torque | Power | Torque | Power | |||||||
800 | 550 in-lbs | 7 HP | 9 GPM | 870 in-lbs | 11 HP | 13 GPM | 1150 in-lbs | 14.5 HP | 17 GPM | |||
62 Nm | 5 KW | 34 LPM | 98.5 Nm | 8 KW | 49 LPM | 130 Nm | 11 KW | 64.5 LPM | ||||
1200 | 550 in-lbs | 10.5 HP | 13 GPM | 870 in-lbs | 16.5 HP | 18 GPM | 1150 in-lbs | 22 HP | 23.5 GPM | |||
62 Nm | 8 KW | 49 LPM | 98.5 Nm | 12.5 KW | 68 LPM | 130 Nm | 16.5 KW | 89 LPM | ||||
1600 | 550 in-lbs | 14 HP | 16 GPM | 860 in-lbs | 22 HP | 23 GPM | 1140 in-lbs | 29 HP | 30.5 GPM | |||
62 Nm | 10.5 KW | 60.5 LPM | 97 Nm | 16.5 KW | 87 LPM | 129 Nm | 21.5 KW | 115 LPM | ||||
2000 | 550 in-lbs | 17.5 HP | 19.5 GPM | 850 in-lbs | 27 HP | 28 GPM | 1125 in-lbs | 36 HP | 37 GPM | |||
62 Nm | 13 KW | 74 LPM | 96 Nm | 20 KW | 106 LPM | 127 Nm | 27 KW | 140 LPM | ||||
M31 performance data at 2500 PSI(172 bar) | ||||||||||||
M31 Speed (RPM) | 1" Gear Width | 1 1/2" Gear Width | 2" Gear Width | |||||||||
Output | Input Flow | Output | Input Flow | Output | Input Flow | |||||||
Torque | Power | Torque | Power | Torque | Power | |||||||
800 | 675 in-lbs | 8.5 HP | 9 GPM | 1035 in-lbs | 13 HP | 13 GPM | 1385 in-lbs | 17.5 HP | 17 GPM | |||
76.5 Nm | 6.5 KW | 34 LPM | 117 Nm | 9.5 KW | 49 LPM | 156.5 Nm | 13 KW | 64.5 LPM | ||||
1200 | 68.5 in-lbs | 13 HP | 13 GPM | 1055 in-lbs | 20 HP | 18 GPM | 1410 in-lbs | 27 HP | 23.5 GPM | |||
77.5 Nm | 9.5 KW | 49 LPM | 119 Nm | 15 KW | 68 LPM | 159.5 Nm | 20 KW | 89 LPM | ||||
1600 | 680 in-lbs | 17.5 HP | 16 GPM | 1030 in-lbs | 26 HP | 23 GPM | 1390 in-lbs | 35 HP | 30.5 GPM | |||
77 Nm | 13 KW | 60.5 LPM | 116.5 Nm | 19.5 KW | 87 LPM | 157 Nm | 26 KW | 115 LPM | ||||
2000 | 660 in-lbs | 21 HP | 19.5 GPM | 1010 in-lbs | 32 HP | 28 GPM | 1370 in-lbs | 43.5 HP | 37 GPM | |||
74.5 Nm | 15.5 KW | 74 LPM | 114 Nm | 24 KW | 106 LPM | 155 Nm | 32.5 KW | 140 LPM | ||||
P30 P31 GEAR PUMP PART NUMBER
Item Type PN#
613 M30C1878*BEYS10-7 3129310021 0.00
614 M31A1897BEYS10-25 3129718477 0.00
615 M31B-.75/P31A-1.75 H5883 3129529035 0.00
706 P30A-1.5 ** 3129310398 0.00
707 P30A205BEOH*25-25* C230-29 3129310020 0.00
708 P30A296BEYT10-65 3129112539 0.00
709 P30A396BEPO17-67* SEWR0507 3129110010 0.00
710 P30A597BEAG15-25 3129115407 0.00
711 P30B N.E.N ASSY ** 3129132413 0.00
712 P30B-505BIOM17-25DOG12-1 3129125119 0.00
713 P30B178BIYQ12-25NBYQ12-1 3129121409 0.00
714 P30B205HIEG10-25BAB07-1 3129122120 0.00
715 P30B542BI**17-30JCAB07-1 3129320591 0.00
716 P30B578BIEC10-25RNAB05-1 3129125469 0.00
717 P30B578BIOG15-25DOG15-1RB*AB05 3129330268 0.00
718 P30B578BIOG15-25RB*AB05-1 3129320221 0.00
719 P30B578BIOG15-25RBAB05-1 3129125454 0.00
720 P30B578BIOH*15-25RB*AB05-1
721 P30B578CIAB10-25XMAB10-1XMAB05 3129135452 0.00
738 P31A187*BE**07-30* :4079066 3129610411 0.00
739 P31A187*BERV10-30* :4079055 3129610412 0.00
740 P31A187*BEUX15-30* :4079033 3129610414 0.00
741 P31A205BEOH17-25 3129612155 0.00
742 P31A287BEUG10-30 :4080190 3129612021 0.00
743 P31A297BEVY15-25 3129612451 0.00
744 P31A497BESO20-25 3129614479 0.00
745 P31A497BEVI20-25 3129614483 0.00
746 P31A597BEHW17-25 3129615510 0.00
747 P31A597BEQO17-25* 3129610174 0.00
748 P31B-1.5-1 H5883 ** 3129620026 0.00
749 P31B196KORV10-65/P31A191BERV10 3129529079 0.00
750 P31B197BIUJ10-25CUJ10-1 3129621451
751 P31B205BIEC12-25BFEC12-1 3129622155 0.00
752 P31B205HIOH17-25DAB07-1 3129622160 0.00
753 P31B297CEAB07-25**AB07-1 3129620173 0.00
754 P31B442BIVD10-43NRAB07-1 3129624217 0.00
755 P31B597BIUL*15-25*WF*AB05-1 3129620154 0.00
756 P31B642*BIOL17-25**AB10-1 3129620140 0.00
757 P31C-1.25 H5883** 3129610204 0.00
P50 P51 Pump Performance Data: | ||||||||||||
Gear Width | Output | Reted | Maximun | Speed | Input | |||||||
(in) | (ml/r) | Pressure | Pressure | (RPM) | Power | |||||||
(Psi) | (Psi) | Min | Max | (KW) | ||||||||
1/2" | 20 | 3000 | 3600 | 600 | 2400 | 18.7 | ||||||
3/4" | 31.3 | 27.9 | ||||||||||
1" | 41.8 | 37.3 | ||||||||||
1 1/4" | 52.3 | 46.6 | ||||||||||
1 1/2" | 62.8 | 55.9 | ||||||||||
1 3/4" | 73.1 | 65.3 | ||||||||||
2" | 86.6 | 74.5 | ||||||||||
2 1/4" | 94.1 | 2600 | 3000 | 71.9 | ||||||||
2 1/2" | 104.6 | 79.9 | ||||||||||
Gear Width | Output Flow | |||||||||||
(in) | 900RPM | 1200RPM | 1500RPM | 1800RPM | 2100RPM | 2400RPM | ||||||
GPM | LPM | GPM | LPM | GPM | LPM | GPM | LPM | GPM | LPM | GPM | LPM | |
1" | 8.5 | 32 | 12 | 46.5 | 15 | 57 | 18 | 68 | 21.5 | 81.5 | 25 | 94.5 |
1 1/4" | 10.5 | 39.5 | 15 | 57 | 19 | 72 | 23 | 87 | 27 | 102 | 31 | 117 |
1 1/2" | 13 | 49 | 18 | 68 | 23 | 87 | 27.5 | 104 | 32.5 | 123 | 37 | 140 |
1 3/4" | 15 | 57 | 21 | 79.5 | 27 | 102 | 32.5 | 123 | 38.5 | 146 | 44 | 167 |
2" | 17 | 66 | 24 | 91 | 31 | 117 | 37.5 | 142 | 44 | 167 | 51 | 193 |
2 1/4" | 20 | 75.5 | 27 | 102 | 35 | 132 | 42 | 159 | 48.5 | 187 | 57 | 216 |
2 1/2" | 22 | 83.5 | 30 | 114 | 39 | 146 | 47 | 178 | 55 | 208 | 63.5 | 240 |
P50 P51 GEAR PUMP PART NUMBER
Item Type PN#
623 M50A878BEOL15-7 3139218201 0.00
624 M50A878BEOP25-11 3139218202 0.00
625 M50A999*BE**17-53 3139310099 0.00
626 M50A999*BEOF12-53 H2264 3139310094 0.00
627 M51A1878BEUM12-7 3139718053 0.00
628 M51A1898BEUM12-7 3139718408 0.00
629 M51A878*BE**25-7 3139710001 0.00
630 M51A997BEOL22-25 3139719351
631 M51A999*BEOF*12-53 3139710168 0.00
894 P50A N.E.N ASSY ** 3139310068 0.00
895 P50A-1.75 H5883 ** 3139310184 0.00
896 P50A242BEJR25-11 3139115126 0.00
897 P50A278BEOM17-7 3139112203 0.00
898 P50A278BEON25-7 H5883 3139112214 0.00
899 P50B-1.75-1.75-1-1 H5883 3139340030 0.00
900 P50B178BI**17-7NBYD15-1**
901 P50B178BIOQ20-7COP17-1 3139121507 0.00
902 P50B197*BIOQ20-25CEJ10-1 3139320144 0.00
903 P50B278BIOM15-7DOM15-1 3139320001 0.00
904 P50B278BIOM20-7DOM20-1 3139320112 0.00
905 P50B278BIOS20-7DOS20-1 3139122239 0.00
906 P50B278BIOS20-7DUG10-1 3139122483 0.00
907 P50B378ZIPO17-7BAB07-1 3139123210 0.00
908 P50B442BIIS25-43**AB05-1 3139320010 0.00
909 P50B542BI**20-11JC*AB07-1 3139320050 0.00
910 P50B578BIQO15-7DQO15-1 3139320094 0.00
911 P51 A178BEOV25-7 ** 3139611004 0.00
912 P51A1**BEJM20-61* :4079099 3139610517 0.00
913 P51A1**BEJQ25-61* :4079077 3139610515 0.00
914 P51A178BEJQ25-7 3139611010 0.00
915 P51A198*BESO17-7 3139610540 0.00
916 P51A278BEOM25-11 3139612052 0.00
917 P51A478BEOV25-7 3139614014 0.00
918 P51A498BEOK22-11 3139614031 0.00
919 P51A498BEOK25-11 SEWR1014 3139614032 0.00
920 P51A542BEJN25-7 3139615177 0.00
921 P51A578BEOH20-7 SEWR1209 3139615182 0.00
922 P51A578BEOS25-7 SEWR0710 3139615029 0.00
923 P51A597BE**15-11* 3139610528 0.00
924 P51B178GI*OK17-7CAB07-1 3139620256 0.00
925 P51B197BIUX12-7CUX12-1 3139621364 0.00
926 P51B278***ON25-7DOSEWR1103 3139630152 0.00
927 P51B278*BI*OM20-7DOM20-1 3139620145 0.00
928 P51B278BIOH17-7DOH17-1 3139622051 0.00
929 P51B299BIOS22-53JFAB10-1 3139622451 0.00
930 P51B478BI**22-7NBOSEWR0320 3139620326
931 P51B498BI*UK12-7CUK12-1CUK12-1 3139630008 0.00
932 P51B578BI**17-11***AB*07-1 3139620051 0.00
933 P51B578BIQO17-7DVU15-1DVT12-1 3139635034 0.00
934 P51B578BY*OM17-7DOSEWR0810 3139640035 0.00
P75/76 Pump Performance Data:
Gear Width (in) | Output (ml/r) | Reted Pressure (Psi) | Maximun Pressure (Psi) | Speed (RPM) | Input Power (KW) | |
Min | Max | |||||
1/2" | 33.1 | 3000 | 3600 | 600 | 2200 | 26.8 |
3/4" | 49.7 | 40.3 | ||||
1" | 66.3 | 53.7 | ||||
1 1/4" | 82.8 | 67.1 | ||||
1 1/2" | 99.4 | 80.6 | ||||
1 3/4" | 116 | 94 | ||||
2" | 132.5 | 107.4 | ||||
2 1/4" | 149.1 | 120.8 | ||||
2 1/2" | 165.7 | 134.3 | ||||
2 3/4" | 182.2 | 2600 | 3000 | 126.6 | ||
3" | 198.8 | 138.1 |
Gear Width (in) | Output Flow | |||||||||||
900RPM | 1200RPM | 1500RPM | 1800RPM | 2100RPM | 2400RPM | |||||||
GPM | LPM | GPM | LPM | GPM | LPM | GPM | LPM | GPM | LPM | GPM | LPM | |
1" | 11.5 | 43.5 | 17 | 64.5 | 22 | 83.5 | 27.5 | 104 | 33 | 125 | 38 | 144 |
1 1/4" | 15.5 | 58.5 | 22 | 83.5 | 29 | 110 | 35.5 | 134 | 42 | 159 | 49 | 185 |
1 1/2" | 19.5 | 74 | 27 | 102 | 35.5 | 134 | 43.5 | 165 | 51.5 | 195 | 59.5 | 225 |
1 3/4" | 23 | 87 | 32 | 121 | 41.5 | 157 | 51 | 193 | 60 | 227 | 70 | 265 |
2" | 27 | 102 | 37.5 | 142 | 48 | 182 | 59 | 223 | 69.5 | 263 | 80 | 303 |
2 1/4" | 30.5 | 115.5 | 42 | 159 | 54.5 | 206 | 66 | 250 | 78 | 295 | 90 | 341 |
2 1/2" | 34.5 | 130.5 | 48 | 182 | 61 | 231 | 74 | 280 | 87 | 329 | 101 | 382 |
2 3/4" | 38 | 144 | 52.5 | 199 | 67 | 254 | 81.5 | 308 | 96.5 | 365 | 111 | 420 |
3" | 42 | 159 | 58 | 220 | 74 | 280 | 90 | 341 | 106 | 401 | 122 | 462 |
P75 P76 GEAR PUMP PART NUMBER
Item Type PN#
636 M75A978BEOL30-7* 3169310003 0.00
637 M76A878BEOF22-7 3169718051 0.00
638 M76A878BEOR22-7 3169718009 0.00
639 M76C878BE*SV*17-11 3169710074 0.00
968 P75A-2.75 H5883 ** 3169310225 0.00
969 P75A178*BEOP20-7 3169310107 0.00
970 P75A278*BEON25-7 3169310137 0.00
971 P75A278BEOM17-7 3169112209 0.00
972 P75A278BEOS20-7 3169112206 0.00
973 P75A298BEON17-7 H6514 3169112408 0.00
974 P75B278BIOS20-7DOG10-1 3169122209 0.00
975 P75B278LOOS22-7/P30A292FEAB07- 3169520085 0.00
976 P75B298BION*20-7B*OM*15-1 3169320389 0.00
977 P76A478BEOP22-7 3169614059 0.00
978 P76A578BEON22-7 3169615006 0.00
979 P76B-1.5(4X) H5883 3169640038 0.00
980 P76B278*BION17-7D.H5883 3169620105 0.00
981 P76B278*BIOT27-7D* H5883 3169630037 0.00
982 P76B278LOON17-7/P31A292FEAB07- 3169520059 0.00
Новинки товаров от производителей по оптовым ценам
