Клеммная колодка TA 020 Din Rail M4 Screw 20A проводной соединитель
- Категория: >>>
- Поставщик: SHINING E&E INDUSTRIAL CO. LTD.
Сохранить в закладки 500343550:
Описание и отзывы
Характеристики
| TA-020 Din Rail Terminal Block M4 Screw 20A Wire Connector |
| General Product Information | |
| Item number: | TA-020 |
| Rating: | 600V, 20A |
| Size: | 27.2*38.0*28.0mm (L*W*H) |
| Wire Size: | 4.0 mm2 / AWG 12 |
| Screw Size: | M4 |
| Dimensions [mm] | ||||
| Item No. | Poles (P) | Length (L) | Width (W) | Height (H) |
| TA-020-01P | 1 | 10.7*1+16.5=27.2 | 38.0 mm | 28.0 mm |
| TA-020-02P | 2 | 10.7*2+16.5=37.9 | ||
| TA-020-03P | 3 | 10.7*3+16.5=48.6 | ||
| TA-020-04P | 4 | 10.7*4+16.5=59.3 | ||
| TA-020-05P | 5 | 10.7*5+16.5=70.0 | ||
| TA-020-nP | n | 10.7*n+16.5 | ||
| 16.5 mm = Length of End Plate | ||||

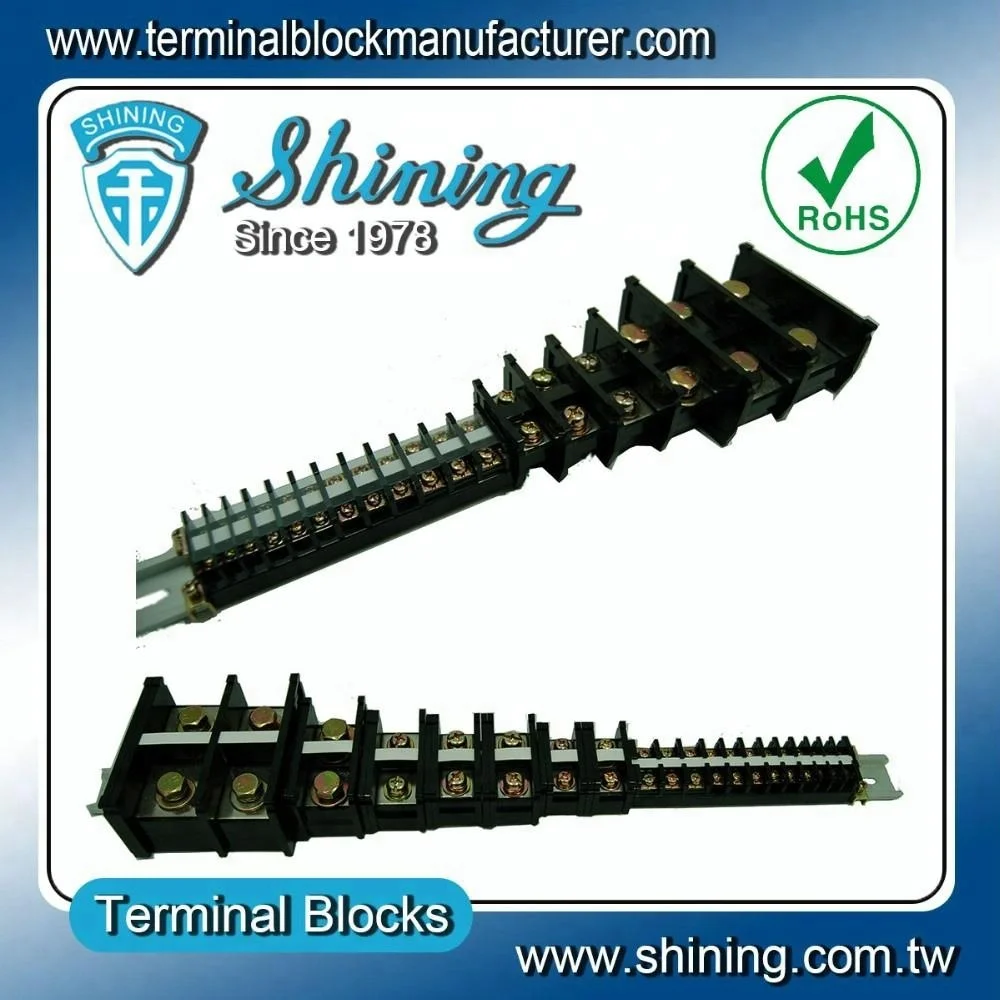

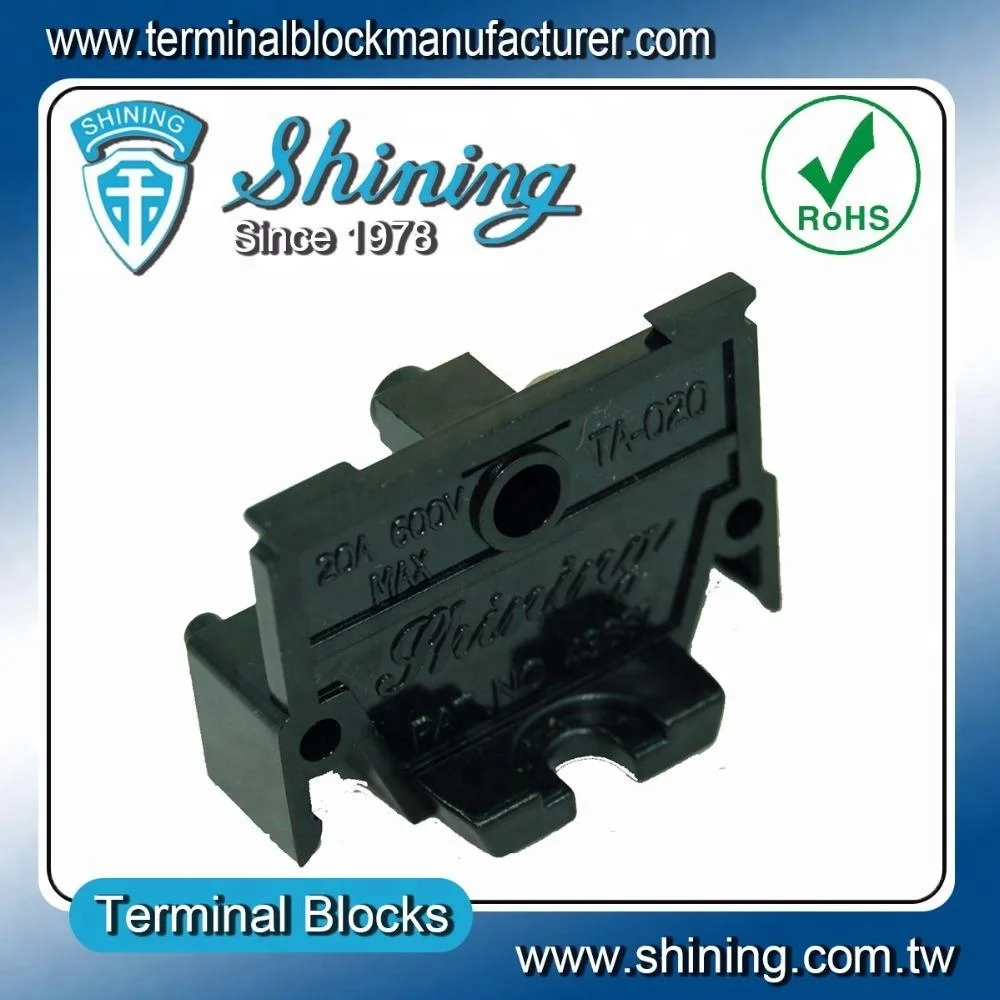

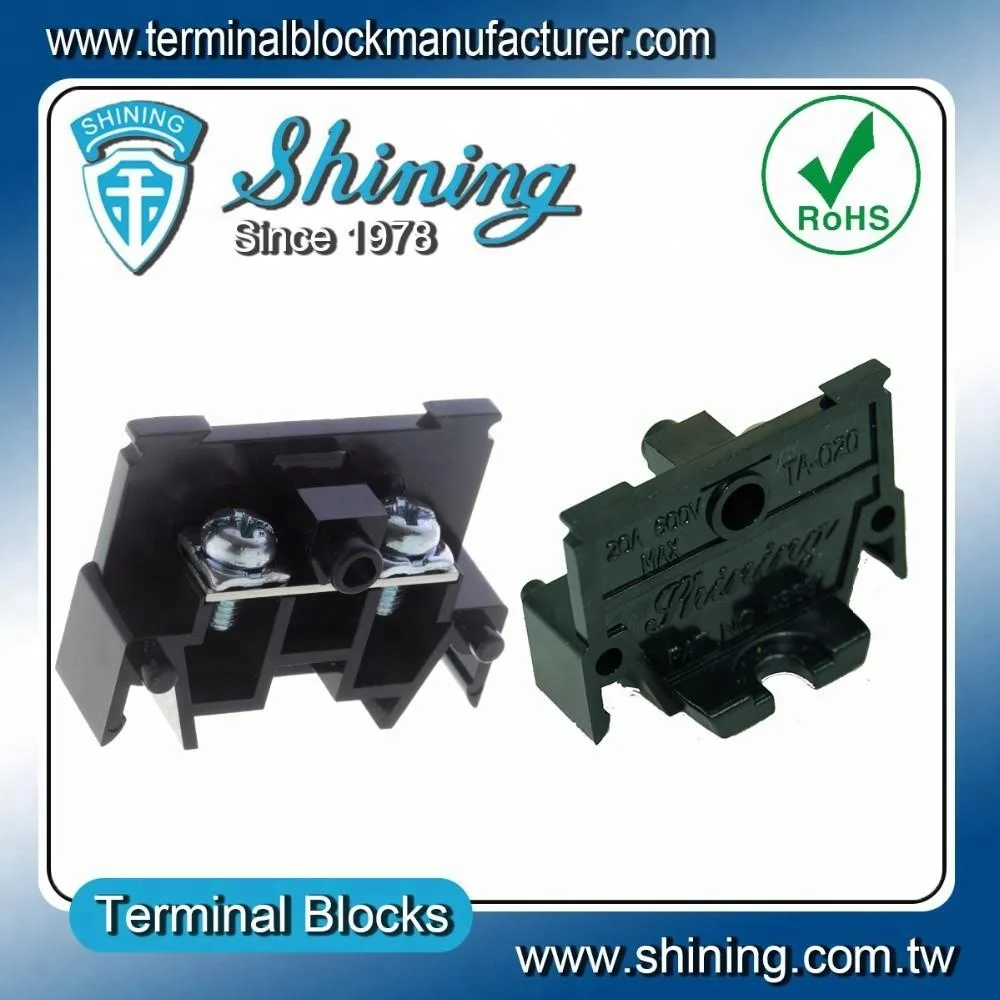

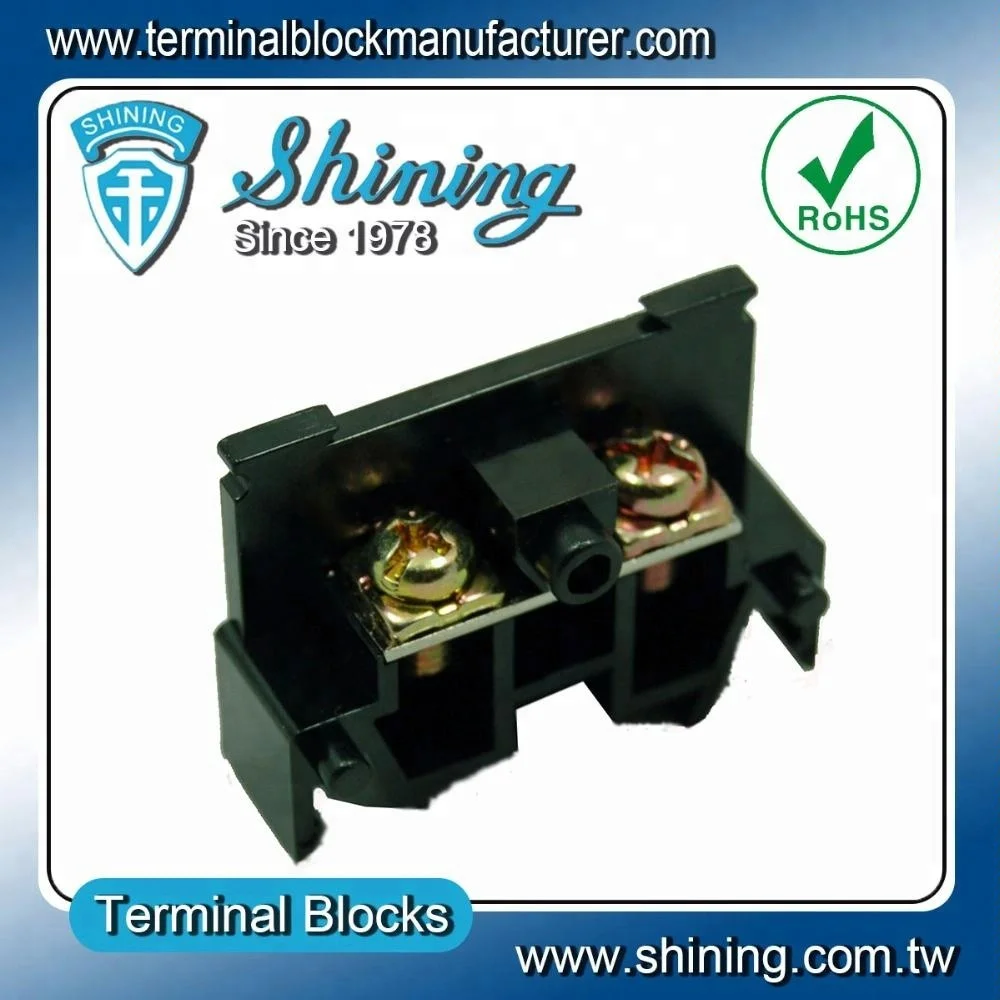

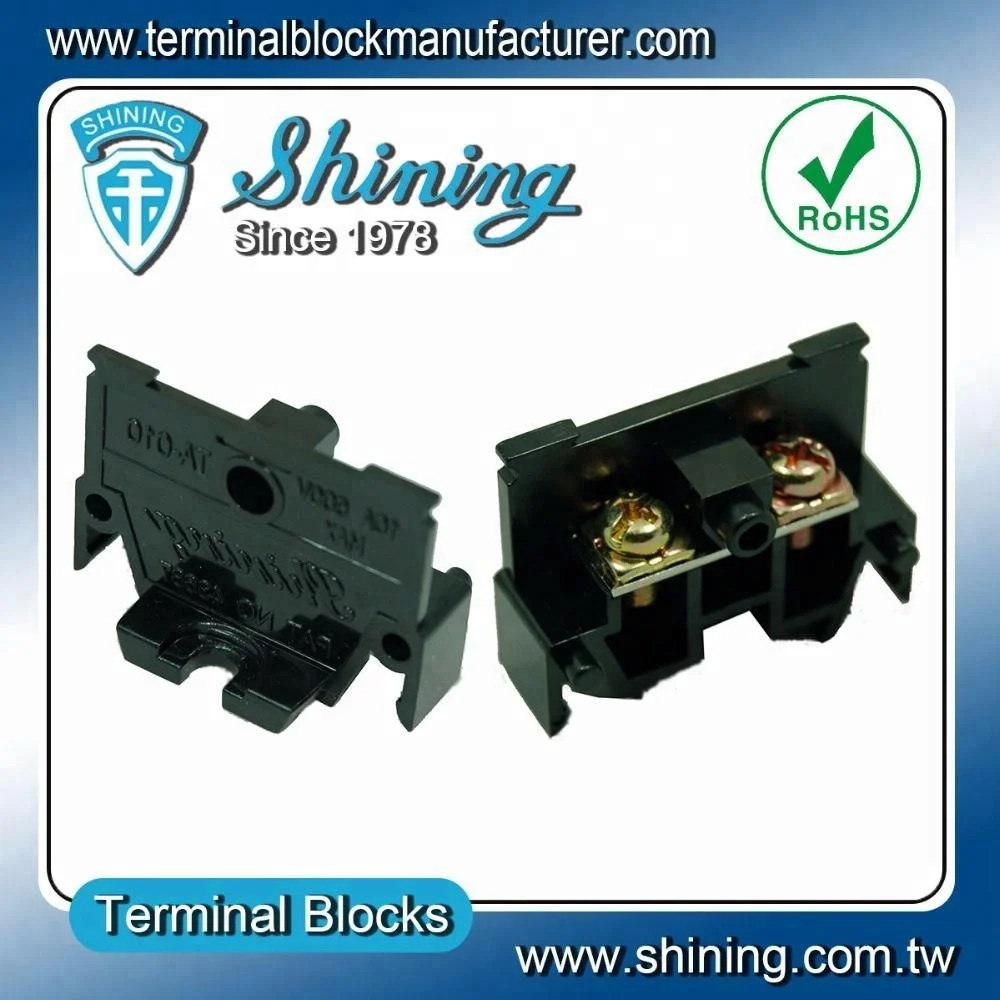

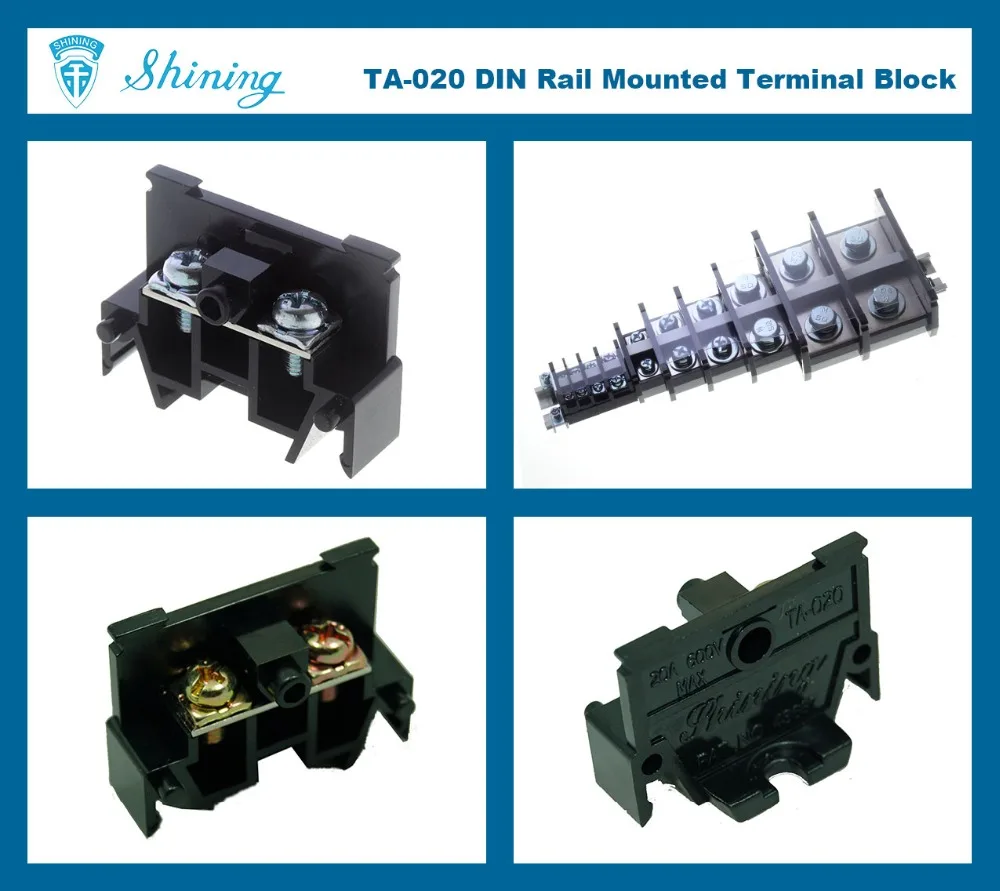

| Product Photos |
Product Description
| Product Features |
Item Number: TA-020 Rated Voltage: 600V Rated Current: 20A Install Type: By 35mm Din Rail / Panel Mounted Pole: Any Pole Assembly is available Certificate: RoHS Assembly with Din Rail TA-001A / TA-001S TA Series Terminal Block is Din Rail Mounted Terminal Blocks, the basic color is black. The product color can be changed according to customer requirements. They can also be installed without rail. There are reserved install holes on both sides. Load current can be 10A, 20A, 30A, 40A, 60A, 100A, 150A, 200A, 300A, 400A. The products are with a Transparent Cover or Protective Cover, whose materials are PVC, this makes the products are durable. Any number of poles can be assembled into the cartridge. About Paper Marker Strip, We can also provide Typing Service according to the customer requirements. Please see the specification sheet of our TA Series 35mm Din Mounting Rail Terminal Blocks Below: |
| Specification Sheet | ||||
| TA Series Drawing |  | |||
| Item No. | TA-010 | TA-020 | TA-030 | TA-040 |
| Specification | ||||
Total Length (L) [mm] | 8.8*n+17.0 | 10.7*n+16.5 | 13.0*n+17.0 | 15.0*n+17.0 |
| Ref. Length (L1) [mm] | 8.8*n+12.0 | 10.7*n+11.0 | 13.0*n+11.0 | 15.0*n+11.0 |
| Gap (A) [mm] | 7.0 | 8.0 | 10.0 | 12.0 |
| Pitch (B) [mm] | 8.8 | 10.7 | 13.0 | 15.0 |
| Width (W) [mm] | 38.0 | 38.0 | 38.0 | 38.0 |
| Ref. Width (W1) [mm] | 20.5 | 20.5 | 20.5 | 20.5 |
| Height (H) [mm] | 28.0 | 28.0 | 28.0 | 28.0 |
| Screw (C) (Steel, Zinc Plated) | M3 | M4 | M4 | M5 |
| Rated Torque [N-m] | 0.5 | 1.2 | 1.2 | 2.0 |
| Rated Torque [in-lb] | 4.4 | 10.6 | 10.6 | 17.7 |
| Poles/Positions (P) | Any (n: the Number of Poles) | |||
| Electrical Specification | ||||
Rated Voltage [V] | 600V | |||
| Rated Current [A] | 10A | 20A | 30A | 40A |
| Wire Size [mm2] | 1.6 mm2 | 4.0 mm2 | 6.0 mm2 | 10.0 mm2 |
| Wire Size (AWG) | AWG 16 | AWG 12 | AWG 10 | AWG 8 |
| Material | |||
| Insulator Materials | PC | |||
| Color | Black (White, Blue, Red, Brown, ...) | |||
| Flame Retarded Grade | UL94V-2 (UL94V-0) | |||
| Operating Temperature [℃] | -40℃~+110℃ (Max: +220℃) | |||
| Conductor | Brass, Nickel Plated (Copper, Tin Plated) | |||
| Accessories & Parts | Paper Marker Strips & Transparent Cover come with products for free. Others are optional. Protective Cover is optional for the alternative of Transparent Cover. | |||
| End Plate | TA-010EP | |||
| End Clamp | TE-002 / TA-002 / TA-002H / TF-ECL / TF-ECH | |||
| DIN Mount Rail | TA-001A / TA-001S (35mm DIN Rail) | |||
| Protective Cover | M-PCV-A010 (=TA-003) | |||
| Transparent Cover | M-CV-010 | |||
Paper Marker Strip (Free) | M-MKS-010 (-XXX: Length) | |||
| Mounting Rod [mm] (Steel) | M-MRD-010S (-XXX: Length) | |||
| Remarks | Ex: TA-010-07P (7 poles assembly of TA-010) | |||
| TA Series Drawing | | |||||
| Item No. | TA-060 | TA-100 | TA-150 | TA-200 | TA-300 | TA-400 |
| Specification | ||||||
Total Length (L) [mm] | 20.5*n+34.0 | 26.5*n+35.5 | 30.0*n+34.0 | 35.0*n+35.0 | 42.0*n+34.0 | 50.0*n+35.0 |
| Ref. Length (L1) [mm] | 20.5*n+17.0 | 26.5*n+18.5 | 30.0*n+16.0 | 35.0*n+18.0 | 42.0*n+17.0 | 50.0*n+17.0 |
| Gap (A) [mm] | 16.5 | 22.5 | 26.0 | 31.0 | 37.0 | 45.0 |
| Pitch (B) [mm] | 20.5 | 26.5 | 30.0 | 35.0 | 42.0 | 50.0 |
| Width (W) [mm] | 50.0 | 64.0 | 70.0 | 80.0 | 106.0 | 106.0 |
| Ref. Width (W1) [mm] | 24.0 | 24.0 | 24.0 | 24.0 | 24.0 | 24.0 |
| Height (H) [mm] | 38.0 | 41.0 | 42.0 | 47.0 | 50.0 | 50.0 |
| Screw (C) (Steel, Zinc Plated) | M6 | M8 | M8 | M10 | M10 | M10 |
| Rated Torque [N-m] | 2.5 | 6.0 | 6.0 | 10.0 | 10.0 | 10.0 |
| Rated Torque [in-lb] | 22.1 | 53.1 | 53.1 | 88.5 | 88.5 | 88.5 |
| Poles/Positions (P) | Any (n: the Number of Poles) | |||||
| Electrical Specification | ||||||
Rated Voltage [V] | 600V | |||||
| Rated Current [A] | 60A | 100A | 150A | 200A | 300A | 400A |
| Wire Size [mm2] | 16.0 mm2 | 35.0 mm2 | 60.0 mm2 | 100.0 mm2 | 175.0 mm2 | 280.0 mm2 |
| Wire Size (AWG) | AWG 6 | AWG 2 | 1/0 | 3/0 | 350 | 550 |
| Material | ||||||
| Insulator Materials | PC (PA66) | |||||
| Color | Black (White, Blue, Red, Brown, ...) | |||||
| Flame Retarded Grade | UL94V-2 (UL94V-0) | |||||
| Operating Temperature [℃] | -40℃~+110℃ (Max: +220℃) | |||||
| Conductor | Brass, Nickel Plated (Copper, Tin Plated) | |||||
| Accessories & Parts | Paper Marker Strips & Transparent Cover come with products for free. Others are optional. Protective Cover is optional for the alternative of Transparent Cover. | |||||
| End Plate | TA-060EP | TA-100EP | TA-150EP | TA-200EP | TA-300EP | TA-400EP |
| End Clamp | TA-002H / TF-ECH | |||||
| DIN Mount Rail | TA-001A / TA-001S (35mm DIN Rail) | |||||
| Protective Cover | N/A | |||||
| Transparent Cover | M-CV-060 | M-CV-100 | M-CV-150 | M-CV-200 | M-CV-300 | M-CV-300 |
Paper Marker Strip (Free) | M-MKS-060 (-XXX: Length) | |||||
| Mounting Rod [mm] (Steel) | M-MRD-060S (-XXX: Length) | |||||
| Remarks | Ex: TA-400-04P (4 poles assembly of TA-400) | |||||
Packaging & Shipping
| Packaging |
| 200pcs/box, 1,600pcs/8boxes/N.W. :16.2kgs /carton |
| Shipping Method |
| 1. For small quantity, shipment is preferred to shipping with express by UPS, DHL, EMS, TNT or FedEx to meet your deadline on time worldwide basis. |
2. For regular mass production, shipments can be arranged by air-shipping, sea-shipping or express. Let us know on your requirement we will try to save your budget and meet the deadline. |
Our Services
Company Information
