WDESK G IP67 весовой индикатор комплектующие для электронных весов производство

WDESK G IP67 весовой индикатор комплектующие для электронных весов производство

Категория: >>>
Поставщик: LAUMAS ELETTRONICA S.R.L.

Цена:*

Количество:

В избранное

Описание и отзывы

Характеристики

Product Description

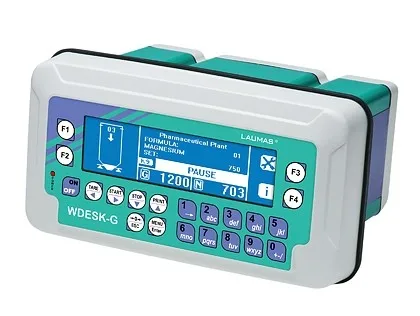

WDESK-G

\tIP67 WEIGHT INDICATOR (for weighing and batching)

Components for Weighing Systems: Industrial Automation, Chemical & Pharmaceutical, Food Machinery, Construction (i.e. concrete mixers), Transport & Handling Systems, Weighing Platforms, Packaging & Filling Systems, Load Lifting, ATEX, Agricolture & Livestock Factories, Plants & Machinery.

-ABS Weight Indicator.

-Dimensions 122 x 226 x 164 mm.

-IP67 protection rating.

-21-key membrane keyboard

-Real time clock/calendar.

Different versions for various types of electrical connections: cable glands, D-SUB connectors, removable terminal.

OPTIONS & INPUT\\OUTPUT

Possible installations: wall, panel, column, desk.

Multiprogram: single loading/unloading and multi-product batchings, max 99 formulas

Backlit LCD graphic display, 133x39 mm, 240x64 pixel

RS232 and RS485 ports (Modbus RTU/Laumas ASCII protocol)

3 logic inputs, 5 relay outputs

OIML R76:2006 approved, class III, 10000 divis. 0.2μV/VSI

OIML R61 approved - WELMEC Guide 8.8:2011 (M.I.D.)

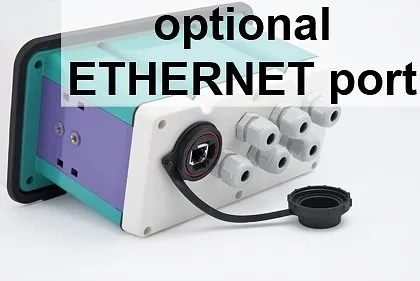

Optional fieldbuses: Profibus DP, DeviceNet, CANopen, Profinet IO, Modbus/TCP, Ethernet/IP. Ethernet TCP/IP port for remote management via internet from PC, smartphone or tablet, etc.

A/D converter 24bit (16000000 points) 4.8 kHz

Display range 999999

Some optional features:

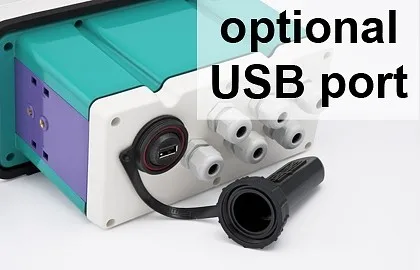

Data storage on USB pen drive
Barcode reader and PC keyboard management via USB
ATEX II 3GD version
16-bit Analog output: 0/4-20 mA; 0-5/10 V; ±5/10 V

European Community registered design.
Patent pending.

MAIN FUNCTION:

-5 setpoints (4 setpoints if Analog Output is present) confi gurable as normally open or normally closed. The operator can decide the setpoints activation for the net weight value, gross weight value, otherwise for positive weights or for positive and negative weights.

- Setting of hysteresis value for each setpoint.
- 12 groups selection by 5 setpoint from selector switch or contacts (EC/E options).
- Peak holder displaying by closing the Peak contact.
- Net/Gross function by keyboard or external contact.
- Manual adjustment of zero value in case of zero-setting not possible.
- Auto zero function.
- Auto zero-tracking function.
- Manual or automatic totalization.
- Piece counter with totalization.
- Statistical checking of prepackages.
- High/low checkweigher display.
- Item database (max 99) with presetted tare and setpoint.
- Settable production lot name.
- USB barcode scanner support to select current item or set lot name.
- Weighings progressive number resettable by user.
- Barcode printing of lot name, item name and progressive number.
- Print of the weight via keyboard or external contact with date and time.

Operation: The inputs can work as: net/gross weight, zero-setting, peak, print or can be remotely read via protocol.
The outputs can works as setpoints or can be remotely switched via protocol.

-Maximum number of verifi cation scale intervals n=10000

- Minimum input-voltage per VSI 0.2 μV
- Weighing range single range or multi range (max 3) or multi interval (max 3)
- Calibration via keyboard is protected through seals for the access to a setting jumper or installer password
- Semi-automatic zero and tare, predetermined tare funcions.
- Weight subdivisions displaying (1/10 e)
- The following values can be printed from external contact: net/gross weight; tare; predetermined tare; date; time; ID code (if alibi memory is present)

ETHERNET PORT USB PORT

PANELS

IP67 IP40

Nickel-plated circular connectors. D-SUB connectors

VERSION

IP67

extractable terminal board ATEX II 3GD

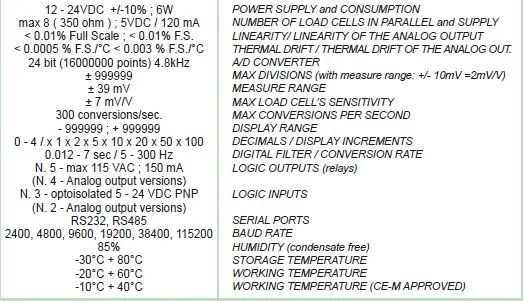

Technical Features
