olt hioso hot selling equipment gepon olt sfp for wholesales 3U rack 2PON 4PON 8PON 16PON 24PON 32PON
Hot selling equipment gepon olt sfp for wholesales

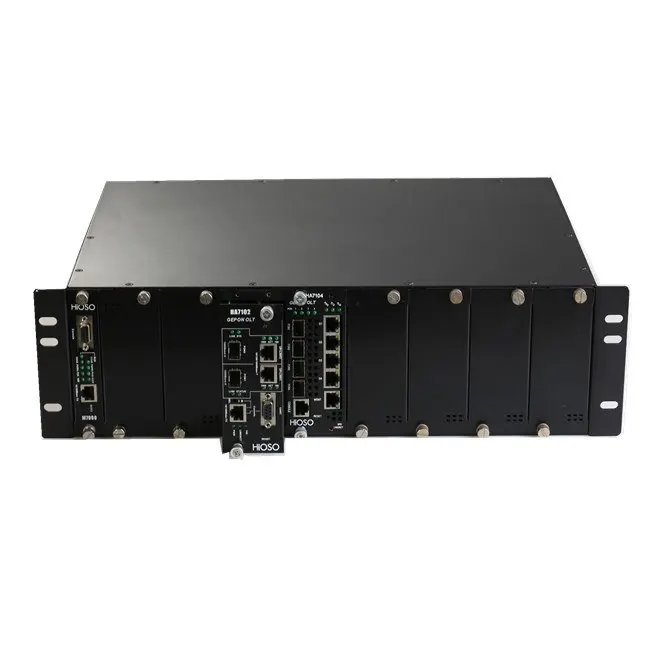

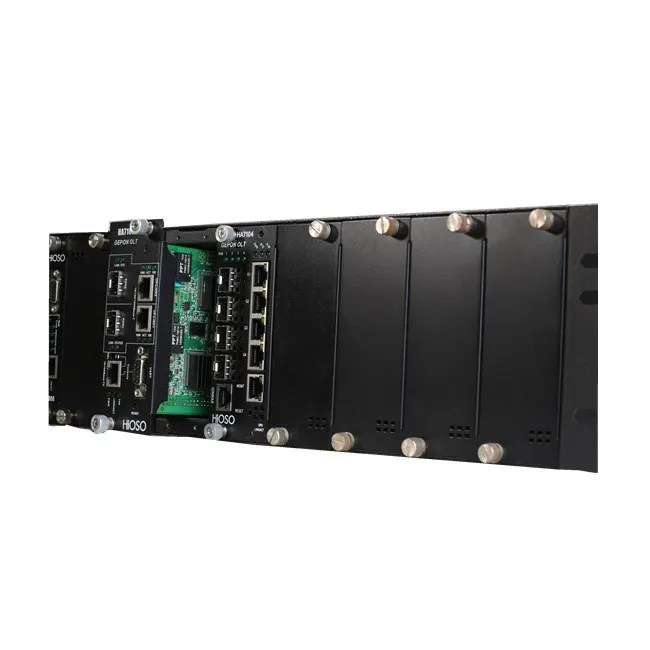

HA7000 is HIOSO EPON rack. HA7000 adopts 19 inch, 3U height rack, and supports dual-power supply. The rack supports 8pcs HA7100/HA7102/HA7102CS/HA7104 OLT cards. Each PON supports 32pcs ONU access within 20KM (64pcs ONU access within 10KM). It supports integrated management through the network management card.
Technical Specification
Parameter | Specification |
Slots | 8 slots for OLT cards, 1 slot for NMS card M7000 |
Working temperature | -10~55℃ |
Storage temperature | -40~70℃ |
Humidity | 5%~90% non-condensing |
Power supply qty | 2 |
Weight | 10.69kg |
Power supply | Dual power AC220V/DC-48V or AC220V+DC-48V |
Dimension | 132mm(H) ×481mm(W) ×309mm(D) |
Order information
Product code | Specification | Qty |
HA7000 | 3U, 19" rack, with 8 slots, 2 box type power, 2 fan | 1 |
M7000 | NMS card | 1 |
HA7102 | EPON OLT, with 2 fixed PON ports and 2 10/100/1000M RJ45 uplink ports,1 Console port, 1 RJ45 management port | 1-8 |
HA7102CS | EPON OLT, with 2 SFP PON ports and 2 10/100/1000M RJ45 uplink ports,1 Console port, 1 RJ45 management port | 1-8 |
HA7104 | EPON OLT, with 4 SFP PON ports and 4 Combo uplink ports,1 Console port | 1-8 |
