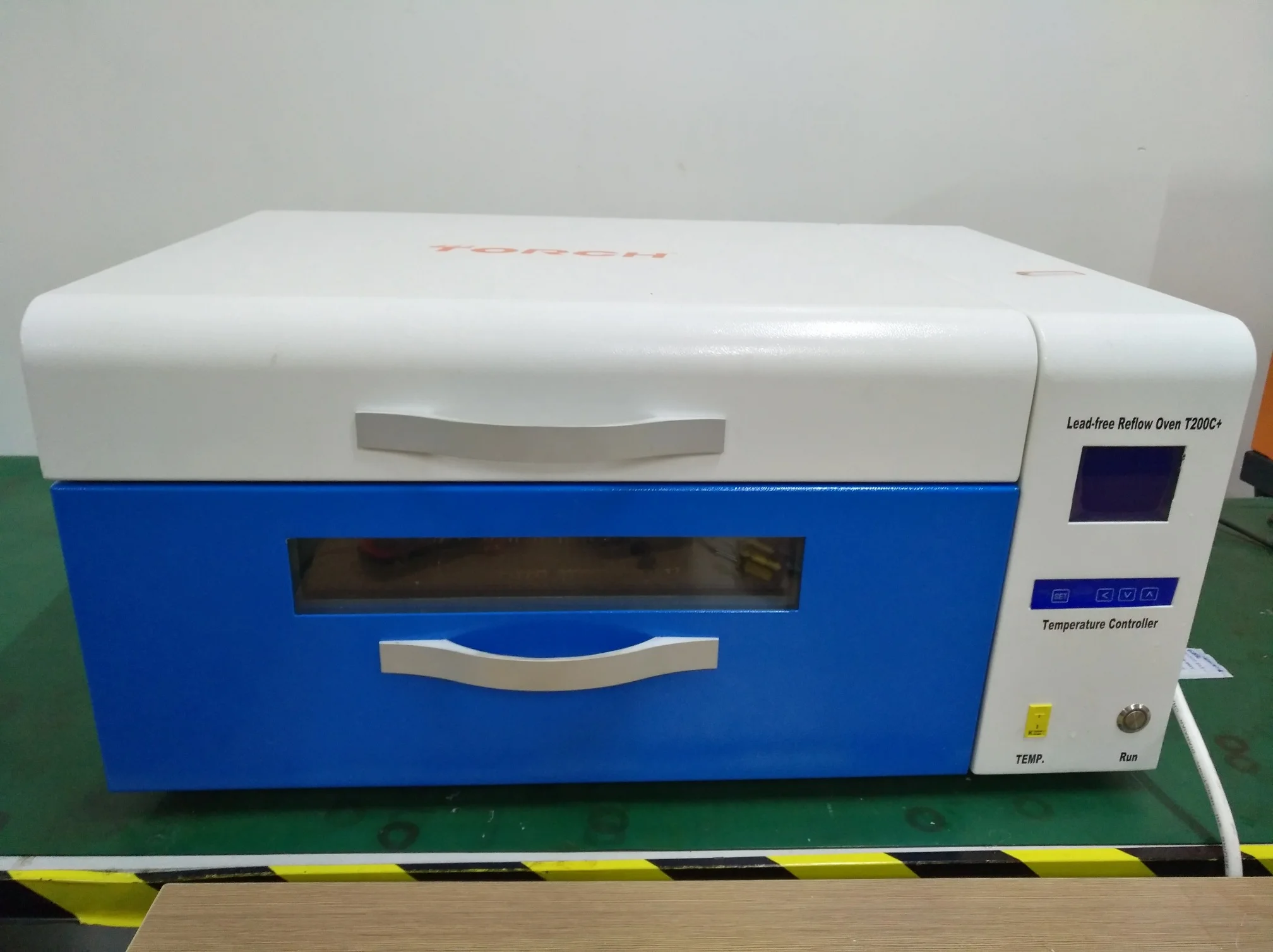

Desk lead free reflow oven
Model No : T200C /T200C+
Honor user:
TORCH brand desktop reflow oven has got purchse order from TOP 500 enterprises: GE, CISCO, 3M,
TI, NVIDIA, Nortel Network ect last year, especially GE and CISCO, totally purchased for more than
12 sets.
1. 1.5mm cold-roll steel sheet, impact molding formed for one time
2. The guide of the drawer is the Torch patent three section drive guide system, Completely solve the
problem of shaking drawer, and add two pcs high temperature magnet on the door.

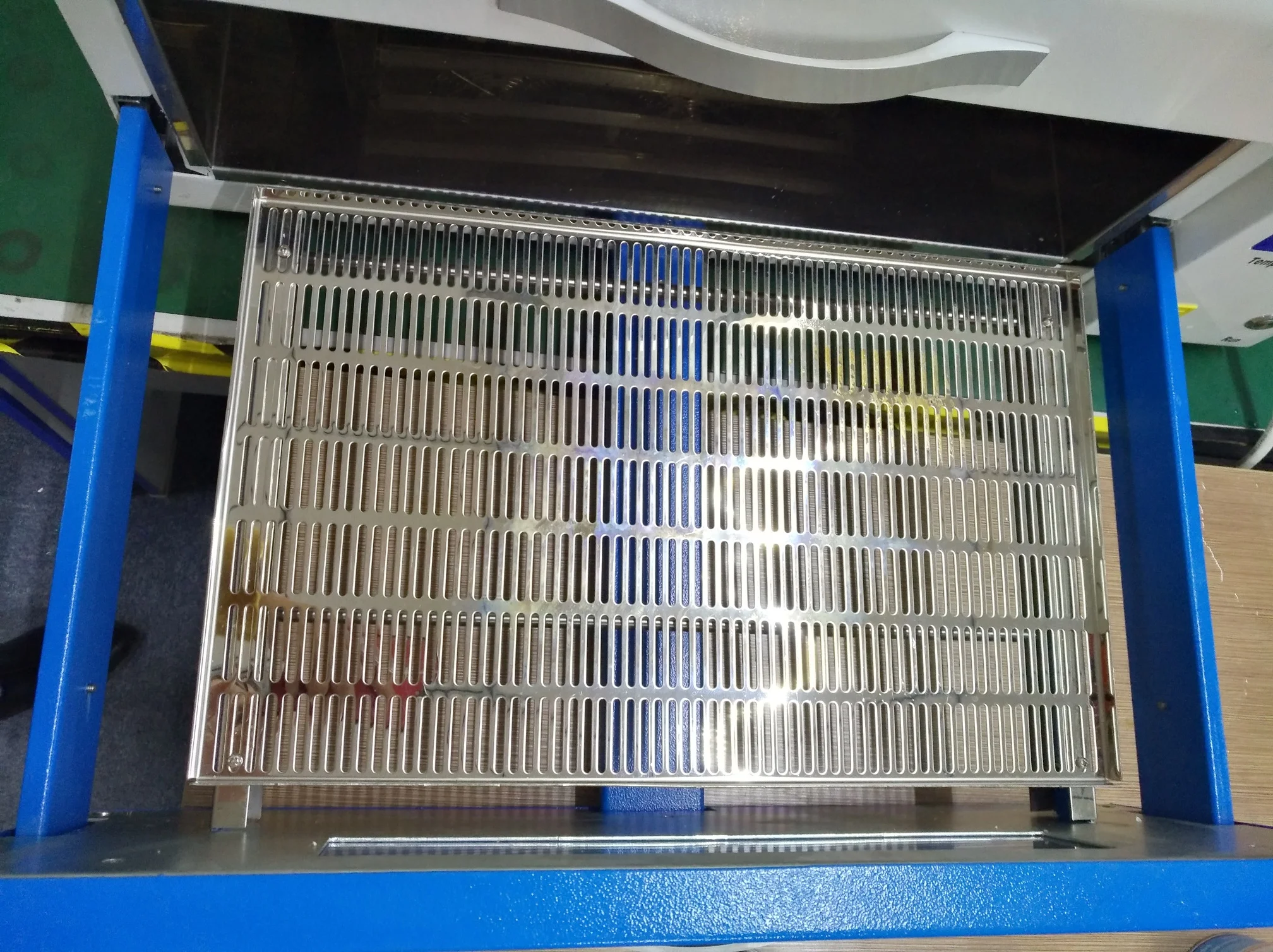

3. 8K mirror 314 stainless steel as furnace

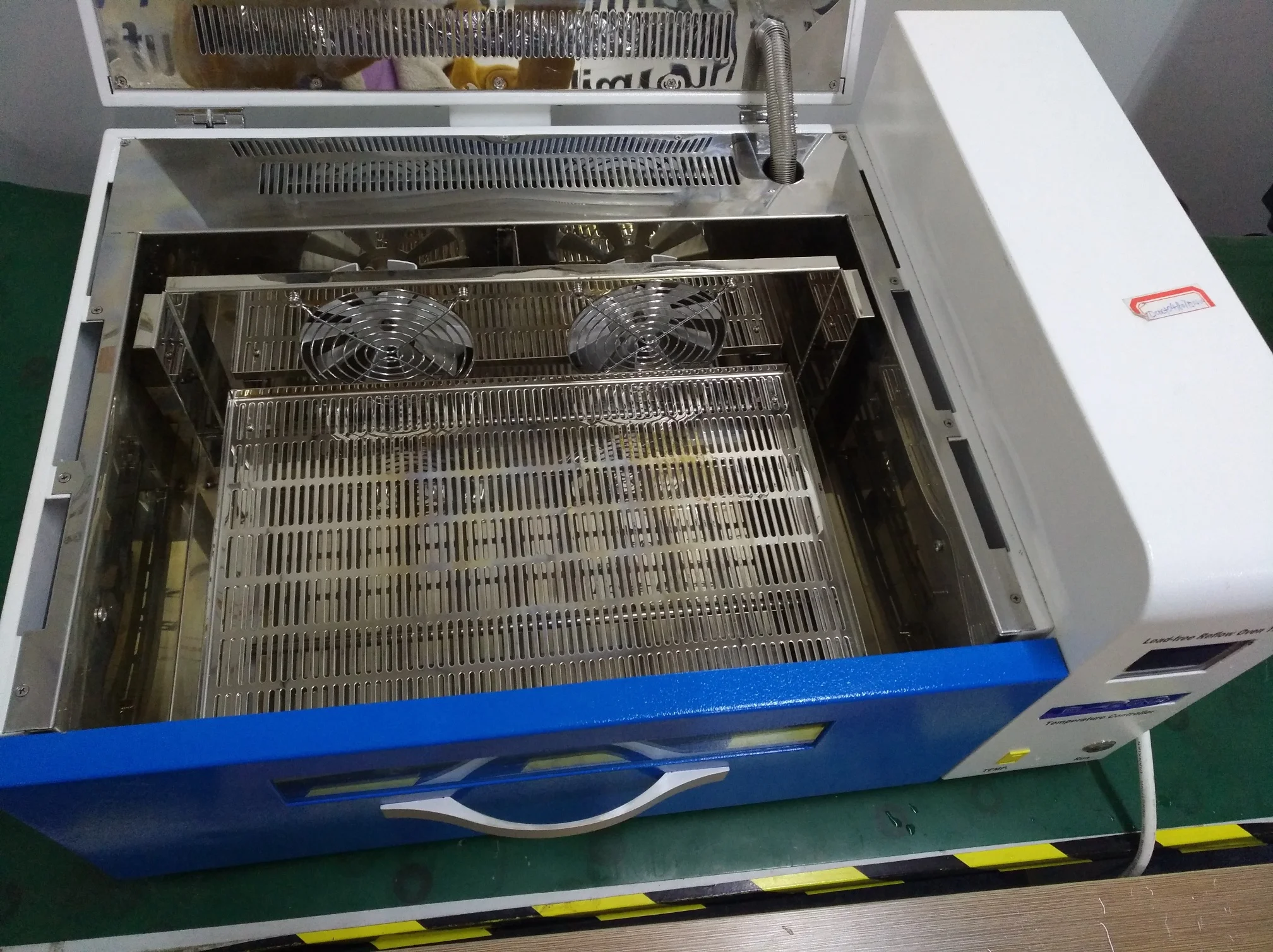

4. Unique hot air cycling system in furnace

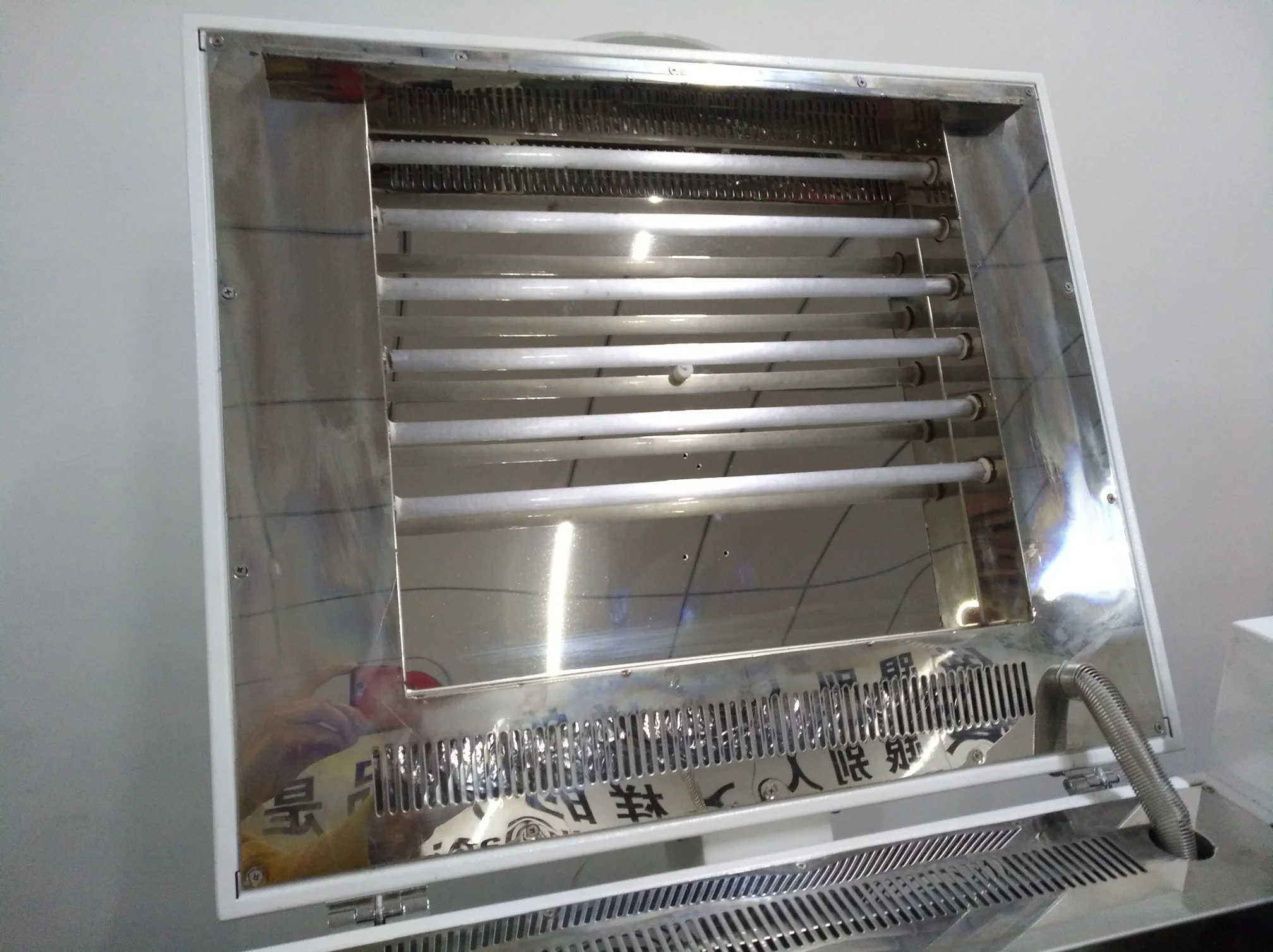

5. Heating system uses TORCH heating technology
6. Uses the 6th generation of multi-channel high precision temperature control system

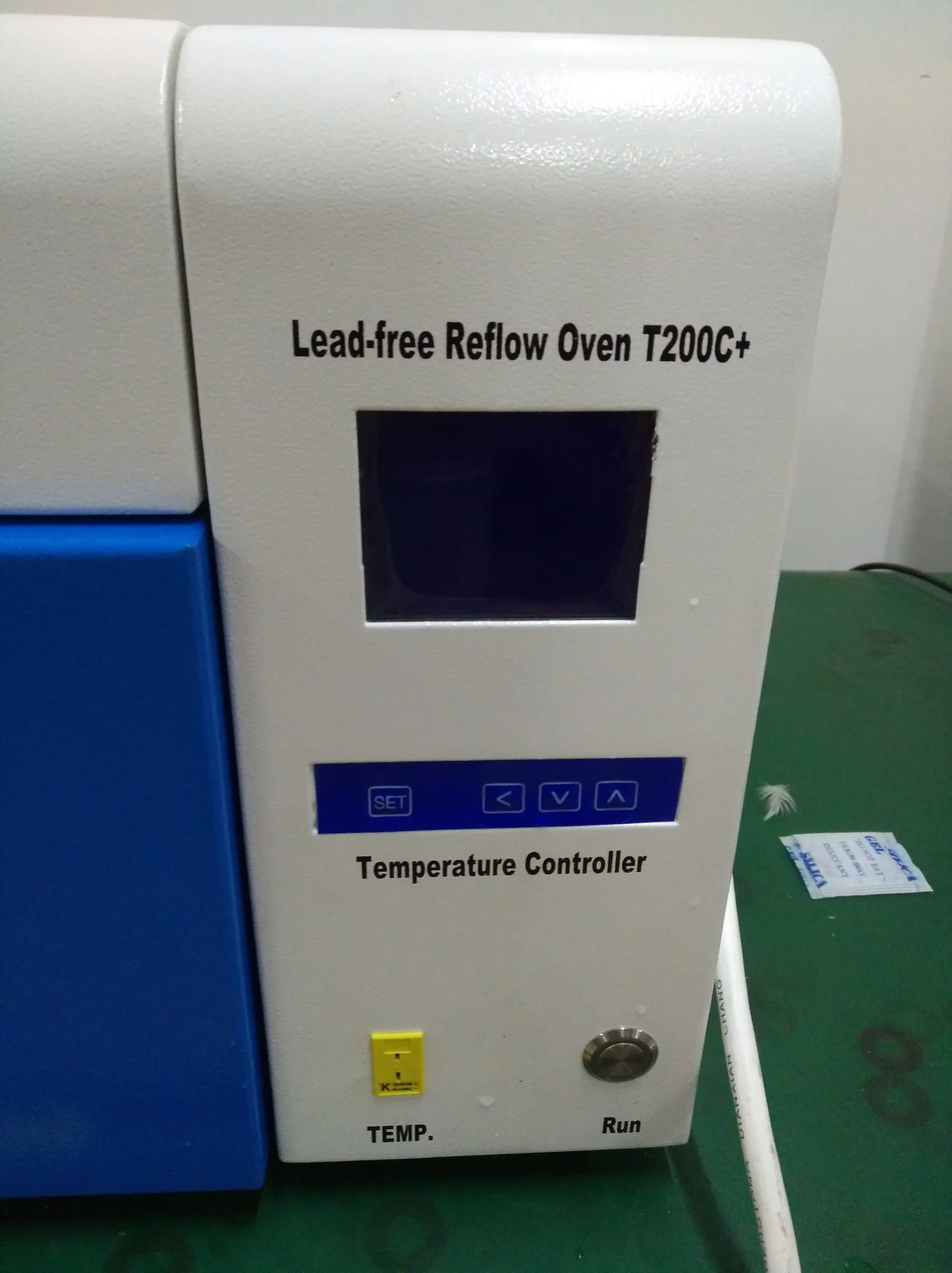

7. LED displayer temp control interface, digital measuring scale shows power output
8. America Omega sensor as temperature testing system, which is the only one in china
9. Has waste smoke filtration system, which is the only one in China.
10. Appearance, color
11. 2 suits of independent protection device on electric control system

Features
12. Firstly developed professional temperature control software of desktop reflow oven, leading small oven
steps into computer-control age
TORCH, as a famous brand Desk Reflow Oven supplier, enjoy good reputation in china and oversea market.
it own its own core technoly in SMT industries that other supplier doesn't have
13. Intelligent software system of desktop reflow oven , which is the only one in China
14. Software can satisfy multi operation system and multi language environment of Chinese and English ,
which is the only one in China.
15. Remote control function
16. Realize RS485 communication and USD interface
17. Configure cool-down system on oven
18.4 layers of industrial package case
19. Stainless steel switch on operation panel
20. Temperature testing function, which is the only one in China.
Technology parameters:
Model No T200C+ T200C
Actual temperature tester Yes No
Max PCB size 360*230mm
Heating supply Infrared ray + Hot air convection
Temperature range Room-temperature -360 ℃
Welding time 3min ± 1min
Warm-up time 3min
Temperature accuracy ± 2 ℃
Temperature control system PC control system, SSR non-contact output
Temperature control segment 40 segments, The segment can be set in computer according to the
actual requirement.
Temperature-zone numbers Single-zone and multi-segment
Temperature curve It can be set, adjusted and tested according to the actual
requirement.
Cooling system Transverse flow equal cooling
Power supply AC single-phase, 220V; 50Hz
compressed air 80psi(0.5Mpa)
Power supply 220V,50Hz,1KW ,Rated power : 3.8KW; Mean power:1.6kw
Weight 39 kg
Dimension 700(L) *460(W) *310(H)mm
