China Leading Sintered Automatic Mud Brick Making Machine
RUB 14,526,728.80 - RUB 15,163,600.00

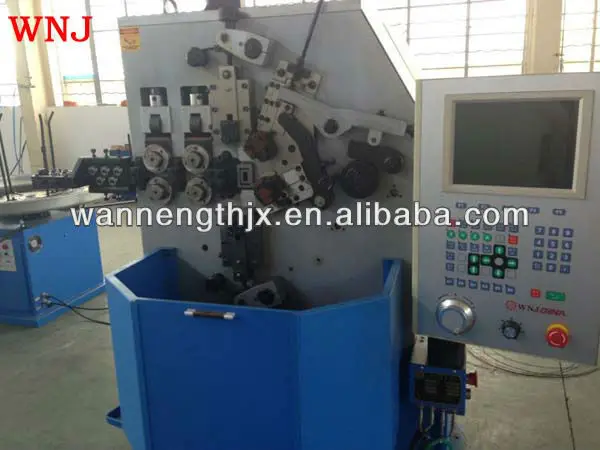

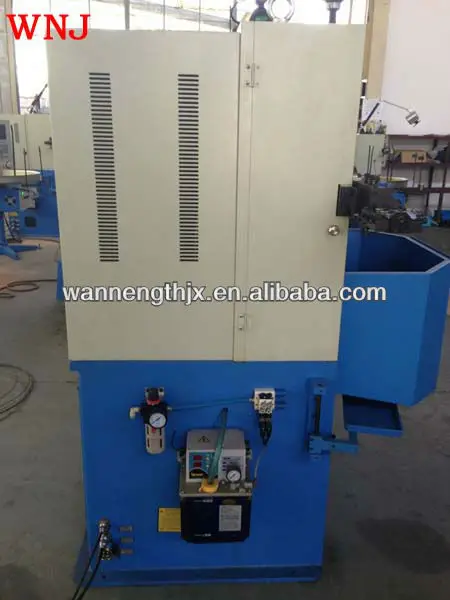

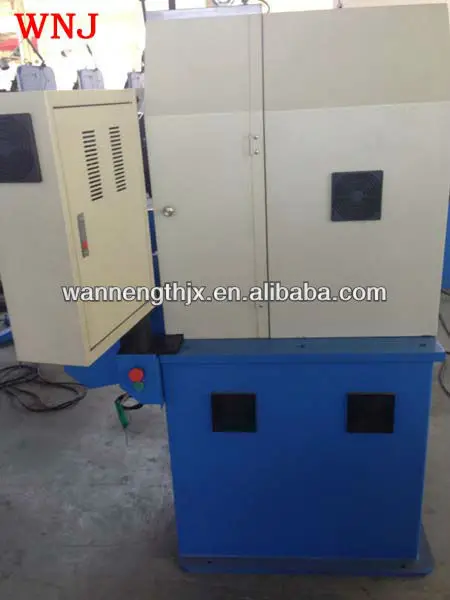

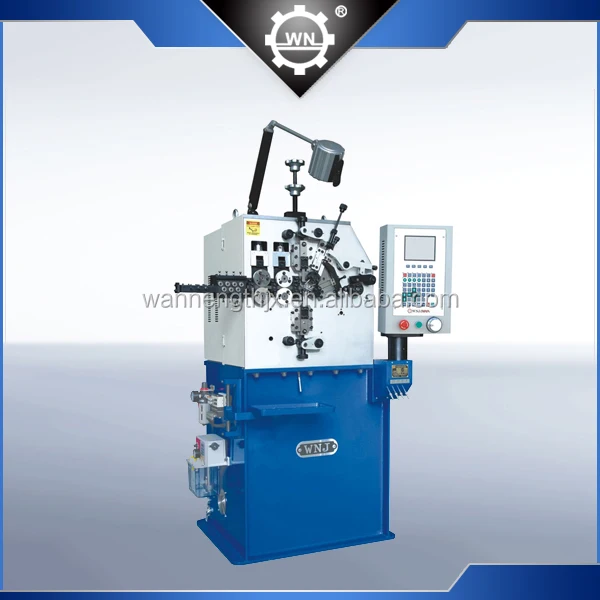

TK 335 The Hot CNC Spring Coiler Machine in 2018
- Категория: >>>
- Поставщик: Zhejiang Omnipotent Spring Machine Co. Ltd.
Сохранить в закладки 51599445:
Описание и отзывы
Характеристики
Product Description
Diameter of The Wire: Φ1.5~Φ3.5mm
Max. Outside Diameter: Φ50mm
Number of Axis:3 axis
Speed of Wire Feed:100m/min
Instruction Valve of Wire Feed:±0.01~±9999.99mm
Instruction Valve of Cam:±0.1°~±359.9°
Number of Wire Feed Wheel:2pairs
Servo Motor of Wire Feed:5.5kw
Servo Motor of Cam:5.5kw
Servo Motor of Space:1.0kw
Main Machine:1280*810*1850mm
Packing size:1550*1120*1800mm
Net Weight:1060kg
Gross weight:1200kg
Power:3AC380V/50HZ
Company Information
Zhejiang Omnipotent Spring Machinery Co., Ltd. is a national high-tech company specializing in the production of CNC spring machinery and supporting products and equipment, the drafting unit of China Spring machinery standard, the director unit of China spring professional association, the national torch plan project and the national key new product plan project, and is listed as a key enterprise of domestic spring machinery. The company has a doctoral guidance station. Long-term cooperation has been set up with Xiamen University,experts from German and other institutions. Adopts international advanced technology, and is a scientific research project integrating spring machinery research, testing and software development. The company has set up a number of sales and service agents in European countries and Southeast Asia. "WNJ" is favored by customers at home and abroad for its high quality, high precision and reasonable price.
"Quality first, customer first" is our quality policy!
Technology creates the future, WNJ is with you!
Our Services
Packaging & Shipping
FAQ
| Item Name | TK-335 The Hot CNC Spring Coiler in 2014 |
| Style | TK-335 |
| Color | Grey/Blue |
| Machining Wire Diameter (mm) | Φ1.5- Φ3.5 |
Maximum Machining Outside Diameter(mm) | Φ50 |
| Speed of The Wire Feed | 100m/min(max) |
| Instruction Value of Wire Feed | ±0.01-±9999.99 |
| Instruction Value of Cam | ±0.1°-± 359.9° |
| Servo Motor of Feed (kw) | 5.5 |
| Servo Motor of Cam (kw) | 5.5 |
| Servo Motor of Pitch(kw) | 1.0 |
| Weight (kg) | 1060 |
| Power | Three phase 380V. AC.50HZ |
PRODUCT PARAMETERS
- Pitch Z axis separate control.
- Three axis can work in high speed separately or synchronously.
- Computer interface displayed in Chinese and English makes which the operation easy .
- Equipped with right and left-handed winding blade rest .
- Make sample by hand wheel.
OUR SERVICE
- Two-years (computer ) &one-year (mechanical) warranty.
- Permanent technical service .
- One week free training with accommodation and food.
- Engineer can be sent aboard for installation, debugging and training.
MAIN PRODUCTS
COMPANY INFORMATION
CERTIFICATION
PARTNERS
AGENTS
FAQ
- What is your machine controller and motors?
- Controllers are imported from Hust, Taiwan. Motors from Sanyo,Janpan.
- Can you offer training in our plant?
- Basically, we have sales and service teams in Euro, Turkey, Korea,Japan, South American, India. If you are out of these countries, our enginner will be sent to your place for training if you need.
- How many years you exported? Do you have CE?
- Definitely, we have exported spring machines in past 9 years, and all of the machines have CE certificates.
