VC87 Electrical measuring instrument portable multimeter manufacturer



Product Description


VC87 advantages.jpg


Features:


1. True RMS ACV and ACA for accurate measurements on nonlinear signals.

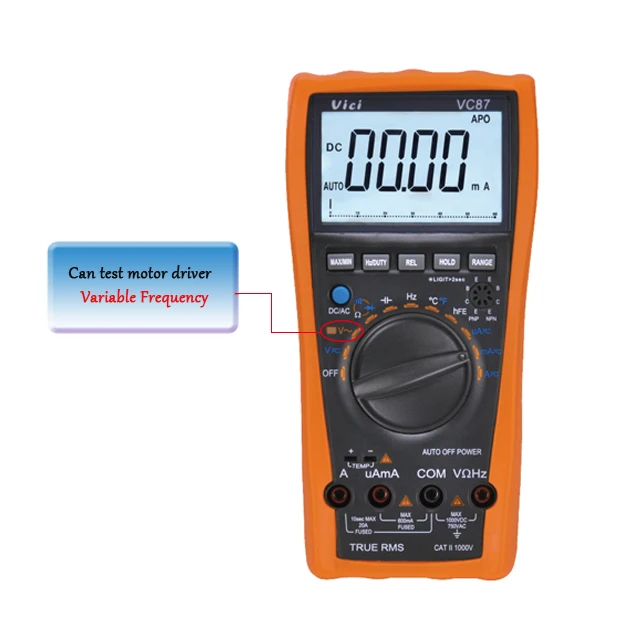

2. Accurate measurement of voltage and frequency on motor drive.
3. 12 kinds of measuring function, with VSD, diode, hFE, duty cycle, resistance, continuity, etc.


4. Analog display, manual or auto range.


5. Strong antimagnetic and anti-jamming performance. Full function protection, with anti high voltage circuit design.


6. Large LCD display, white backlight, unit symbol display, very easy to read.


7. Relative value, Max/Min value measuring, data hold.


8. Low battery indication.VC87 size.png


...........................................................................................................................................VC87 details.png


Technical data:
















































































































































Basic function



Range



Accuracy



DCV



600mV/6V/60V/600V/1000V



±(0.5%+4)



ACV (TRMS)



6V/60V/600V/750V



±(1.0%+10)



VSD-V (TRMS)



6V/60V/600V/750V



±(2.0%+10)



DCA



600uA/6000uA/60mA/600mA/6A/20A



±(1.0%+10)



ACA (TRMS)



600uA/6000uA/60mA/600mA/6A//20A



±(1.2%+20)



Resistance



600Ω/6kΩ/60kΩ/600kΩ/6MΩ/30 MΩ



±(0.8%+3)



Capacitance



40nF/ 400nF/4uF/40uF/400uF/2000uF



±(2.5%+5)



Frequency



10Hz~30MHz



±(0.5%+4)



Centigrade temperature



-40℃~1000℃



±(0.8%+4)



0℉~1832℉



±(0.8%+5)



Special function



VC87



VSD





True RMS





Diode test





hFE test





Continuity test



Approx. less than 30Ω±10Ω



Low battery indication



Approx less than 5.5V



Duty cycle measuring





Data hold



MAX./MIN. HOLD



Auto power off



Approx.15minutes



Analog bar





Backlight display





Function protection





Input impendence



10MΩ



Sampling rate



3times/s



AC frequency response



30Hz-60Hz or 60Hz-200Hz



Operation method



Manual or auto range



Max. display



6000



LCD size



65x41mm



Battery



9V(6F22)



Power dissipation



Quiescent current approx. 4.6mA



General characteristic






































Color



Orange and Grey



Weight



290g(including battery)

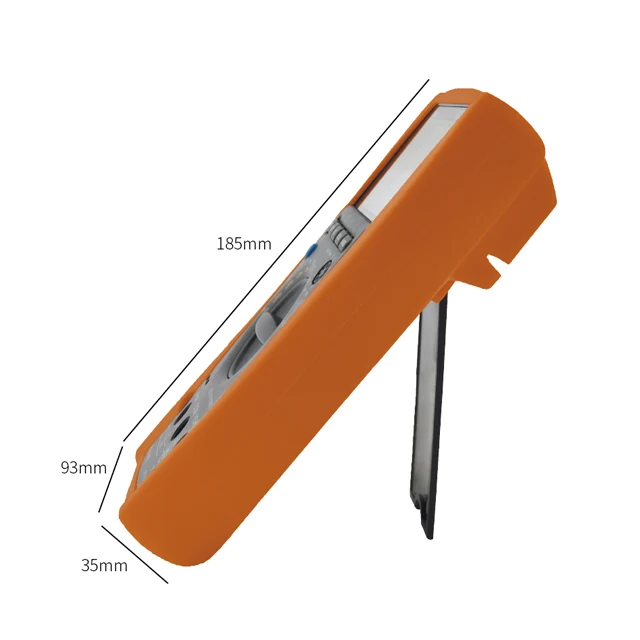

Meter size



185×93×35mm



Standard accessory



Test leads, battery, manual, TP01 temperature probe,Crocodile clip



Packing



Gift box



Standard qty per carton



30pcs



Carton size



43.5×29.5×40.5cm



Standard G.W per carton



16.5kg
