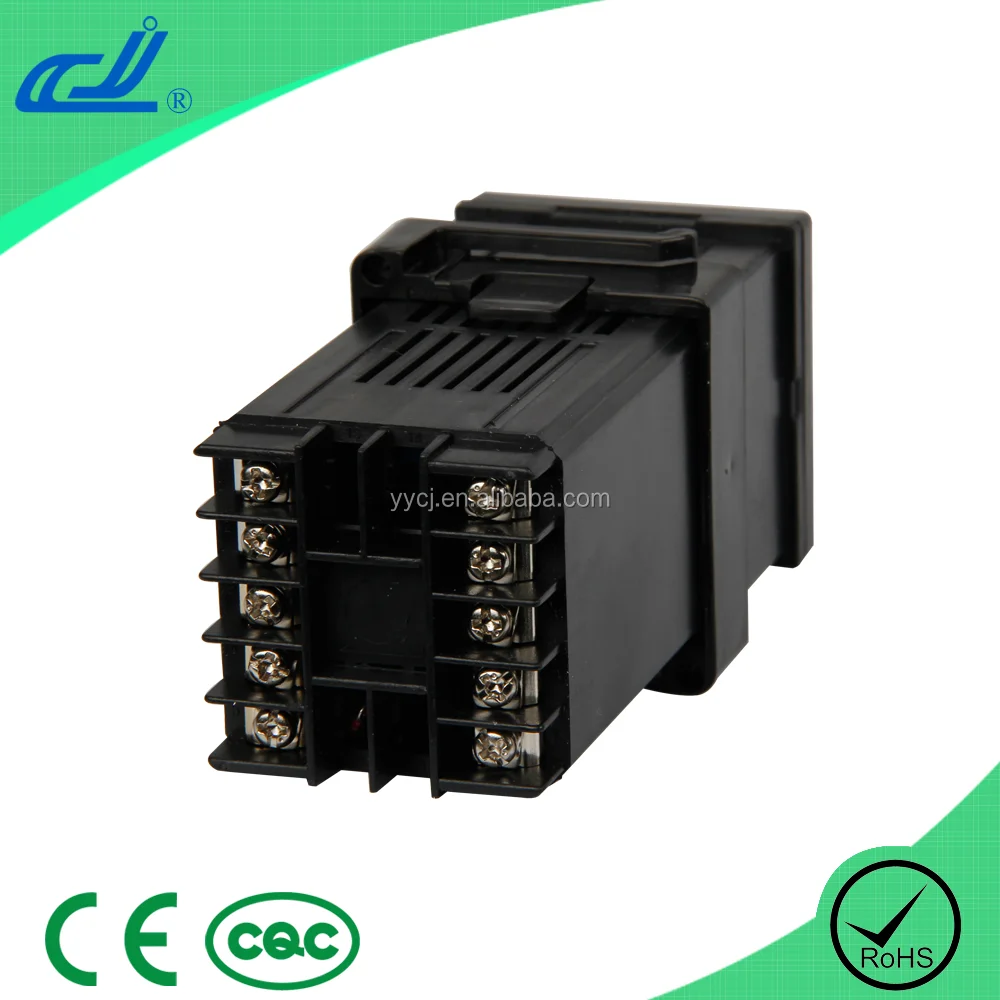

                Instrument panel and connection scheme XMTG-608 intelligence dual row 3-LED display controller ,is double row 3-LED display, respectively display temperature measurement value (PV) and setting value (SV). The controller can input kinds of signals which are used interchangeably, three-button operation, adopts ON/OFF control and PID control .It allows an easy parameter setting and convenient inputting, is used widely temperature automatic control systems of machinery,chemical,ceramics,light industrial,metallurgy,petrifaction and heat treatment and so on.

XMTG-608 intelligence dual row 3-LED display controller Main Technical Indexs

1. Measurement deviation: Class±0.5F.S±1, additional cold end compensation deviation±1°C
2. Input signal: CU50; PT100; K; E; J; T (one meter can be compatible)

3. Relay output contact capacity: AC240V 7A (resistance load)

4. Sampling period: 0.5s

5. Driving solid relay signal output: driving electric current> 15mA voltage>12V, period is 2S
6. Power: AC85-242V , 50HZ7.

7. Work environment: temperature 0-50.0°C, relative humidity≤85%RH, without corrode and strong electric radiation

XMTG-608 intelligence dual row 3-LED display controller Model sense

                 XMT(    )—6   (    )     8     (   )

                        1          2     3     4        5

1:External size and Installation hole(mm)

Empty   160×80×90    152×76         A   96×96×90   92×92

D   72×72×90     68×68         E    48×96×90   44×92

F   96×48×90    92×44          G    48×48×100   44×44

S   80×160×90   76×152      B    60×120×90   56×116

C   80×120×35   wall set installation

2. Operation display method:‘6’: 3-key gentel push-switch setting, double row digital display, have PID adjustment

3. An additional alarm:

Blank or ‘0’: indicates no alarm;‘1’: High limit touch alarm;‘2’: low limit touch alarm

4. Input signal classification: ‘8' : Input signal can interchange free

5. Suffix:  None: relay output           G: solid state relay output
