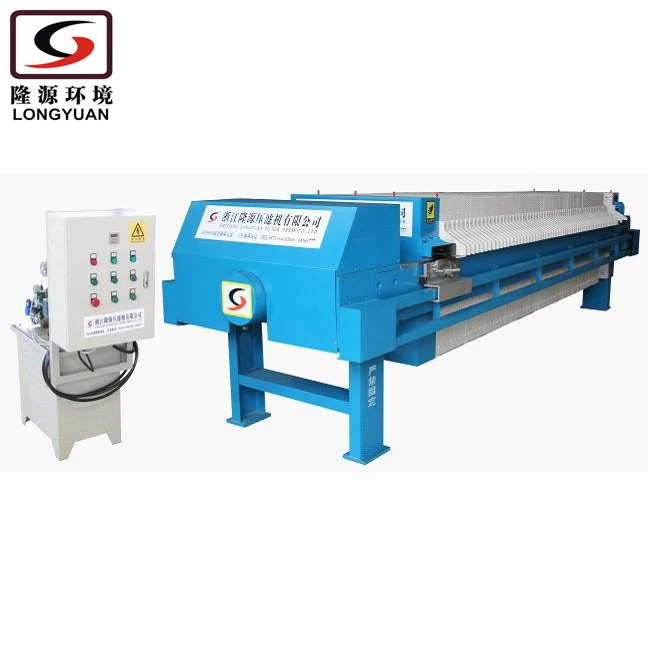

Твердый и жидкий мембранный фильтр пресс Zhejiang Longyuan

Сохранить в закладки 526325877:


Цена:*

Количество:

  • В избранное

Описание и отзывы

Характеристики

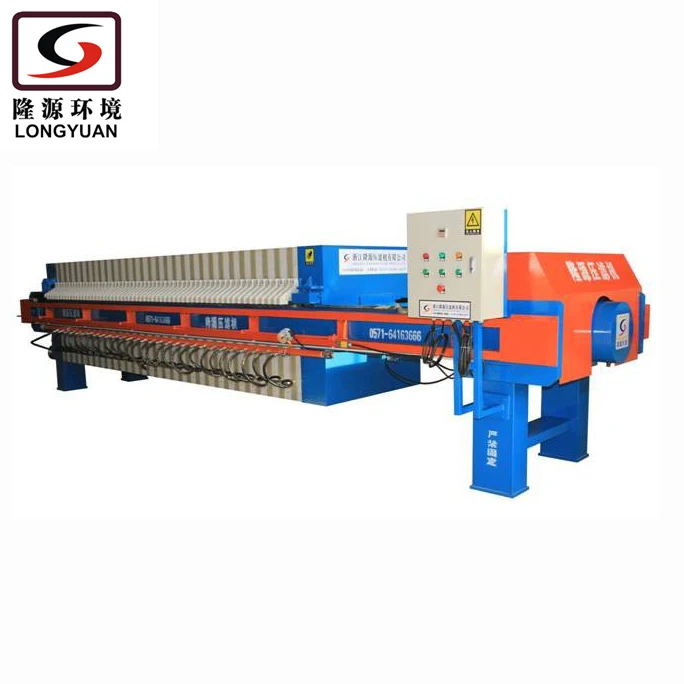

  Solid Liquid Seperation  Filter Unit

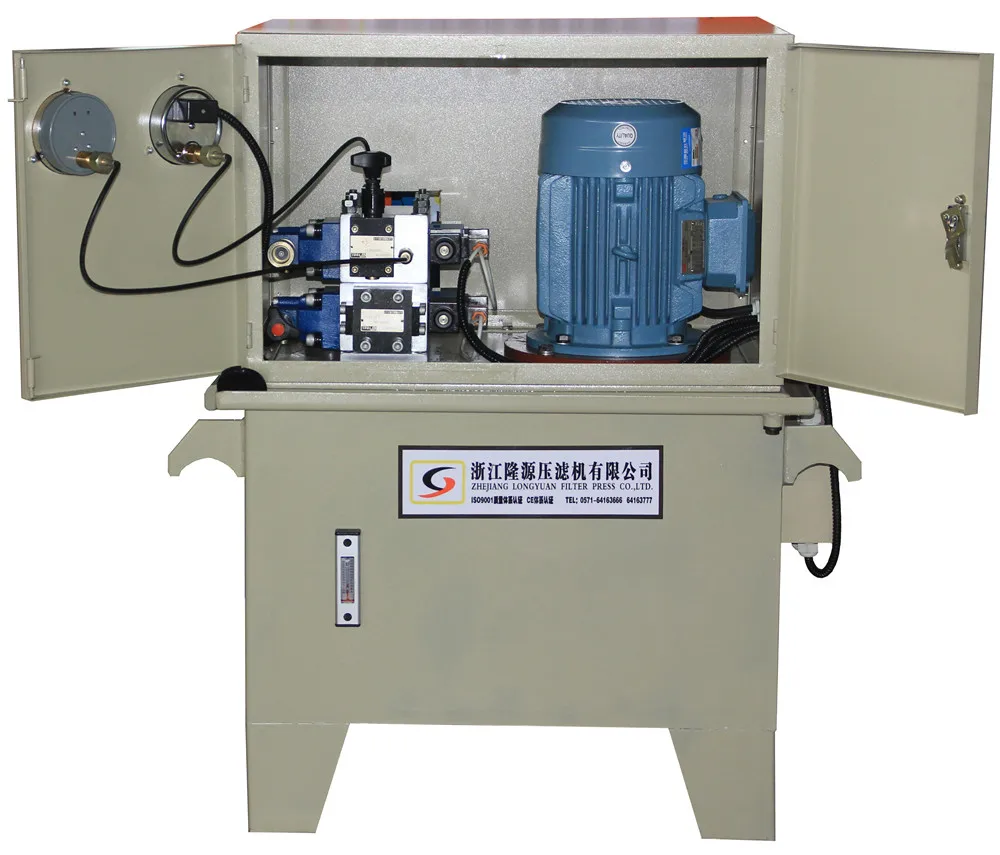

1. Hydraulic compressing, automatic maintaining pressure

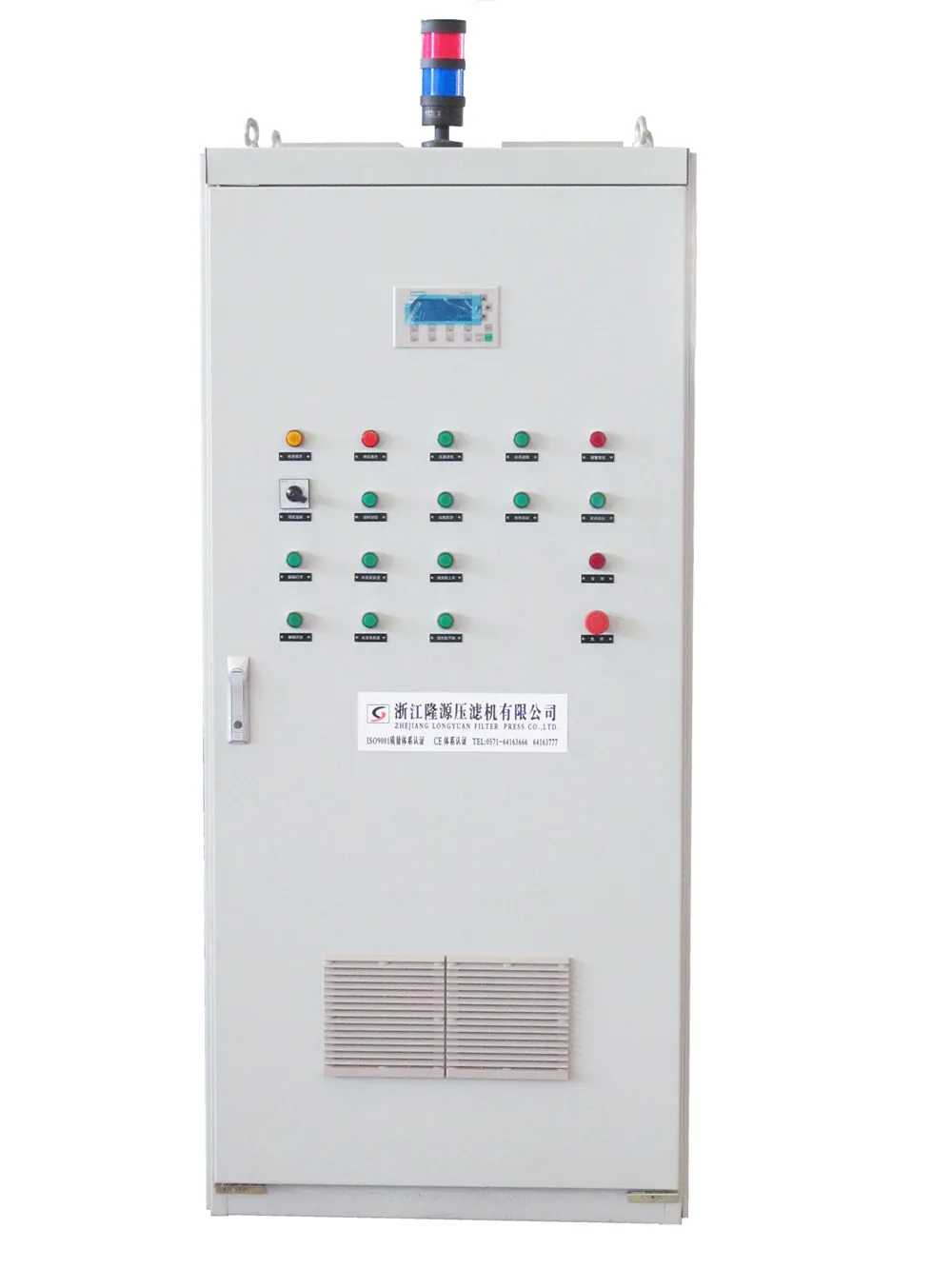

2. Relay control

3. Good sealing

4 .Feeding pressure 1.0 Mpa

5. Manual shifting and discharging

6. SUS slide way

7. Welded steel structure

8. Raw reinforced polypropylene filter plate

9. The side bar is made from Q235-A solid steel plate

10. ISO9001:2008 quality management system, ISO14001:2004 environmental management system and CE certified

11. Warranty period 1 year



Outsourcing components

Item No.

Description

Manufacturer

1

Motor of hydraulic station

ABB

2

Major electric components

Schneider

3

Hydraulic valve, Germany Rexroth Series

Beijing Huade

4

Filter cloth

Southwest filter cloth



Technical parameter(The " * " signal means midship mounting)

Filter Area(m2)

60

80

100

120

140

160

Cake Thickness(mm)

30

30

30

30

30

30

Qty of plate/Membrane plate( pcs)

18/19

24/25

30/31

36/37

42/43

48/49

Chamber volume(m3)

0.923

1.125

1.507

1.798

2.090

2.381

Distance of foundation(A/mm)

4050

4800

5550

6300

7050

7800

The length of the machine(mm)

XG/1000

4860

5610

6360

7110

7860

8610

XZG/1000

5160

5910

6660

7410

8160

8910

Weight of machine(kg)

XG/1000

6395

7115

7835

8625

9345

10065

XZG/1000

6500

7230

7960

8760

9480

10200







Company Information

1.We are Zhejiang Longyuan Environment Technology Co., Ltd., the leading filter press manufacturer in China, specialized in chamber filter press, membrane filter press and automatic filter press

2.Our company has obtained ISO9001:2008 certificate of quality management system and ISO14001:2004 certificate of environment management system.

3.The filter press machine has been exported to America, Italy, Australia, Poland, Russian, Thailand, Philippine, Vietnam and etc.

4.We have 140 employees, including 35 technicians. We have foundation property of RMB 10, 000,000 and cover an area of 26000 square meters. We had the sales sum over RMB 100 million in 2010 including exporting value USD2.5 million.

5.Our company has firstclass domestic industry production and processing equipment, such as large hydraulic machines, CNC automatic cutting machines and CNC machines.

6.The top filter press we produce is very large and high complexity. We can provide users with filter presses with the features of materials testing and selection and other related products.

7.We also offer equipment installation, user training, technical support and after-sales services to our customers.

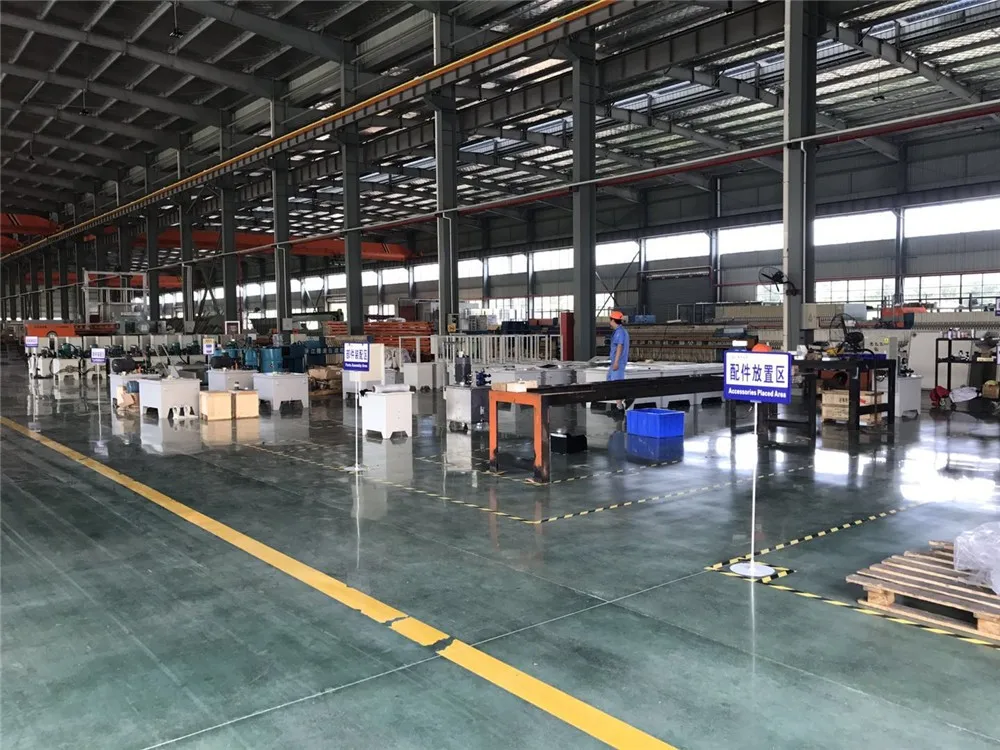

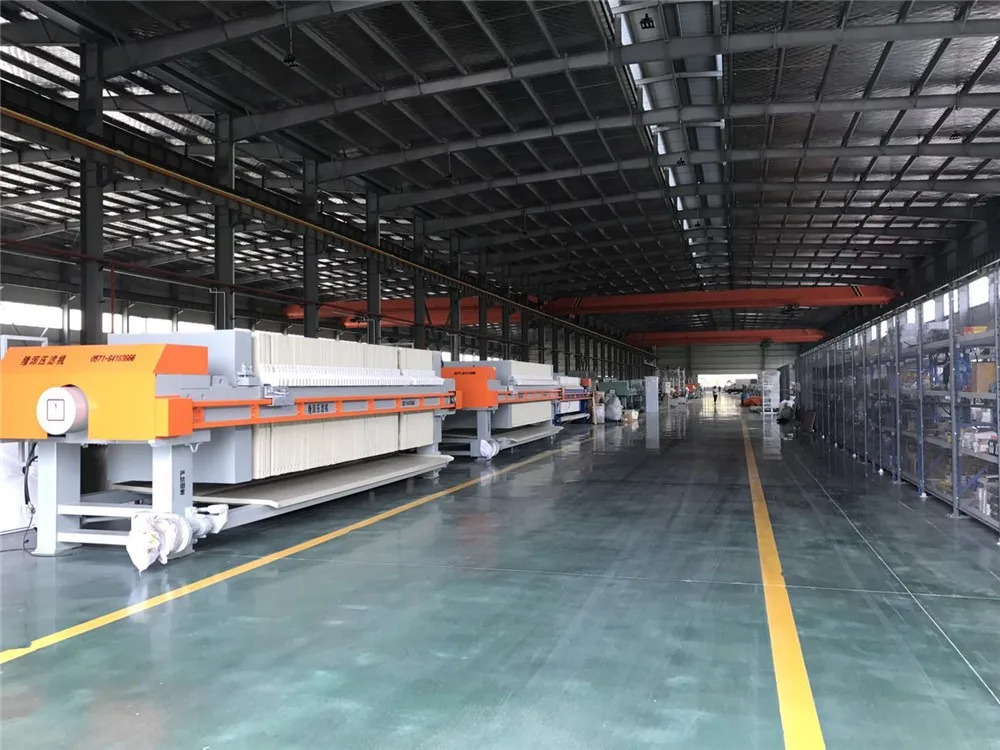

Filter press workshop



421

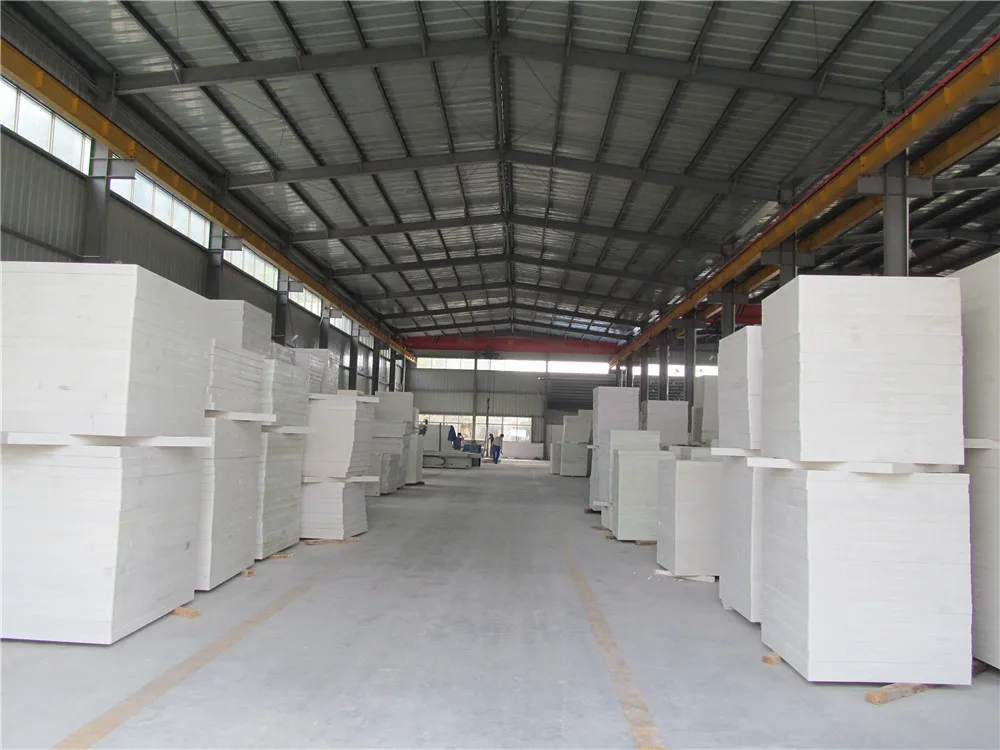

Filter plate workshop



1

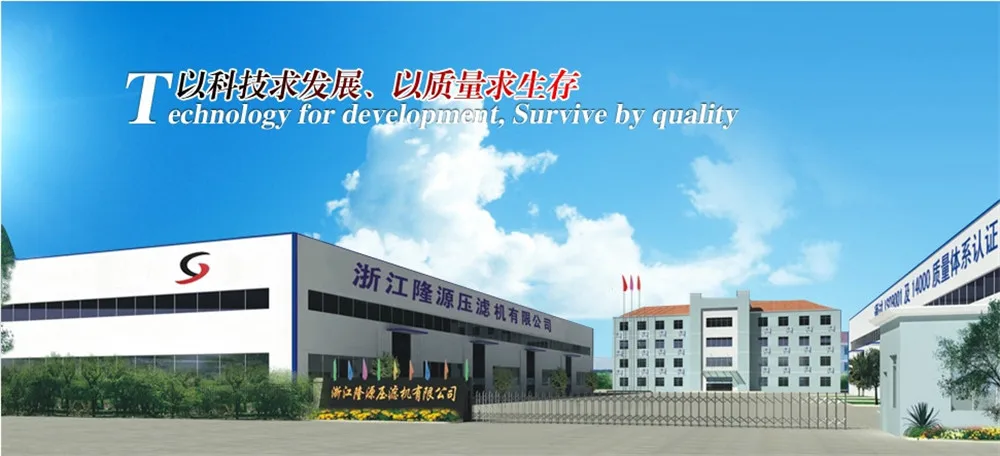

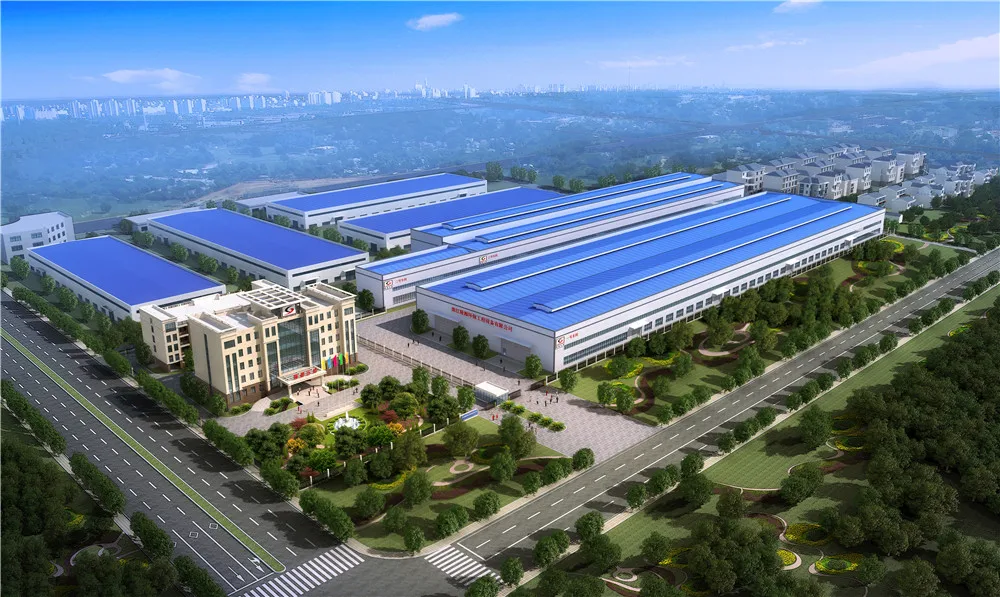

Tonglu Factory









Jiande Factory

 2







Field of Application

1) Chemical
Coating, paint, silica, caustic soda, soda ash, alkali, salt mud, new, water purification machines (aluminum, aluminum

 polymerization acetylacetonate, gypsum, insurance, phosphor, lithopone)

2)Foods
Vegetable oil, monosodium glutamate, glucose, starch sugar, plant sweet, maltose, starch, maize, rice, Joan, seaweed,

 kara glue, milk, oral liquid, beer yeast, soy sauce, rice wine, white wine, fruit juice, beverage, plant protein, and spices

3)Sewage
Printing and dyeing wastewater, sewage, smelting, leather, pharmacy sewage water brew, electroplating wastewater,

sewage and waste, chemical electrolysis of water environment

4) Pharmacy
Strain, HuangLianSu, aureomycin and McGrady enzymes enzyme, Wells, inositol guangzhoumetro, phytic acid, calcium,

 Chinese traditional medicine, saccharification, growth hormone, organophosphate, pig’s blood

5) Pottery clay
Bentonite, electronic ceramic soil, kaolin, active soil, porcelain clay, limestone, granite furnaces

6) Metallurgy, coal
Gold, silver, copper, zinc ore mineral powder, etc

7) Petroleum
Diesel oil, sesame oil, shortening dewaxing etc

Packaging & Shipping

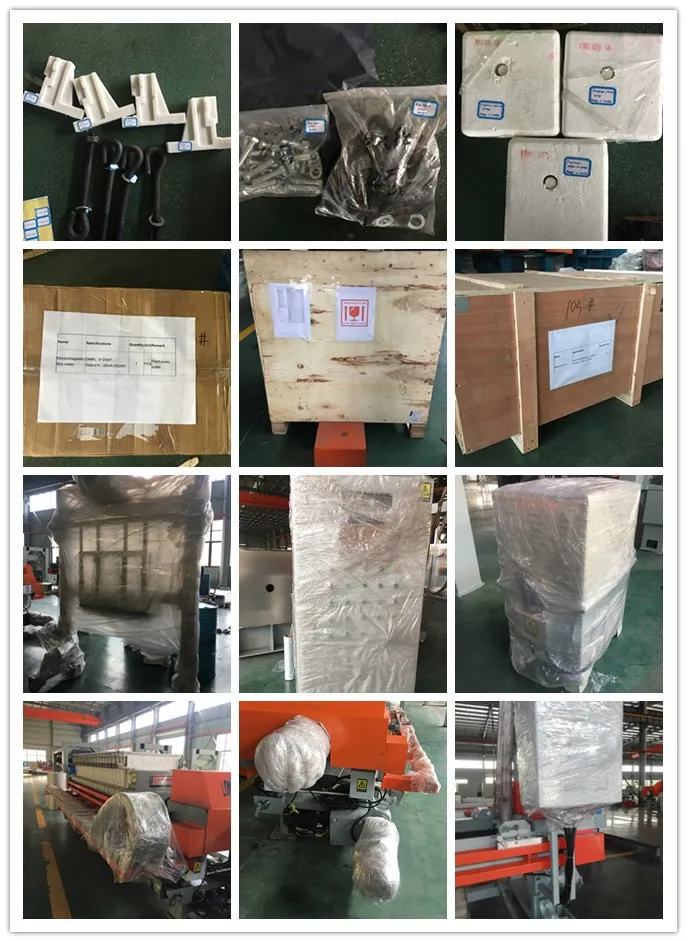

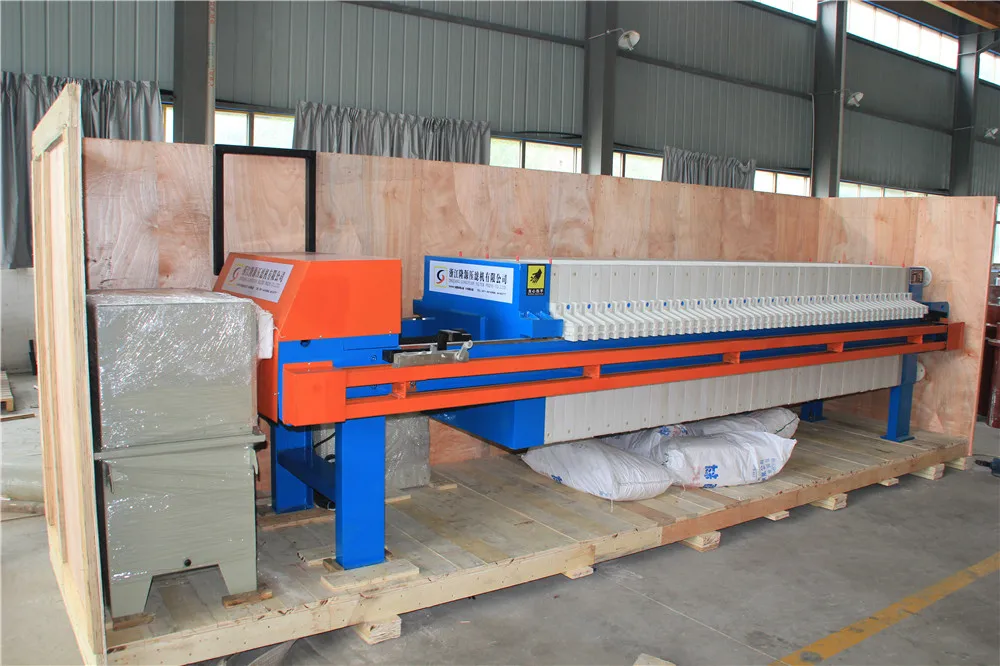

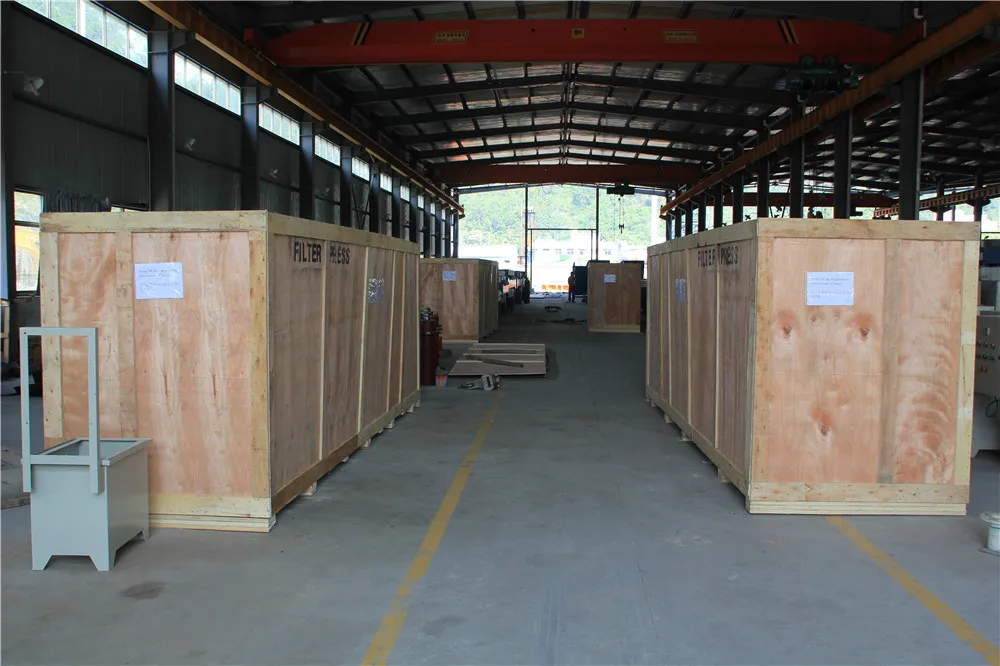

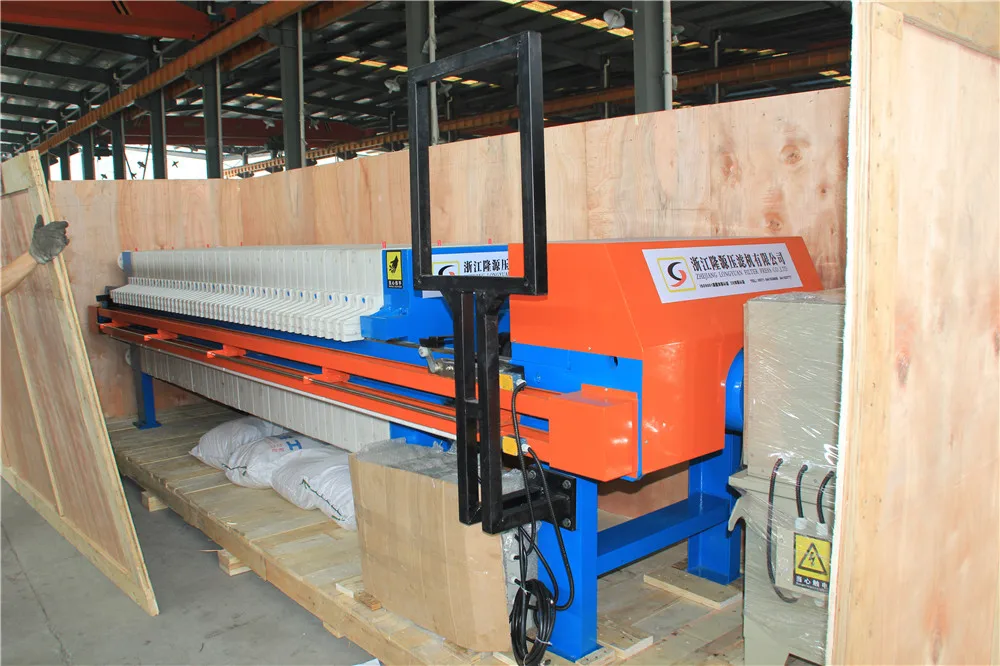

Package pictureWooden Package 3Wooden Package 2Wooden Package 1

Certifications

ISO9001()ISO14001()CE3A

Our Services

One year guarantee for the machine

24 hours technical support by e-mail

Calling and paid door to door service

Use friendly English user manual
