Гибридный шаговый двигатель Nema 23 (Размер: 57 мм)

Описание и отзывы

Характеристики

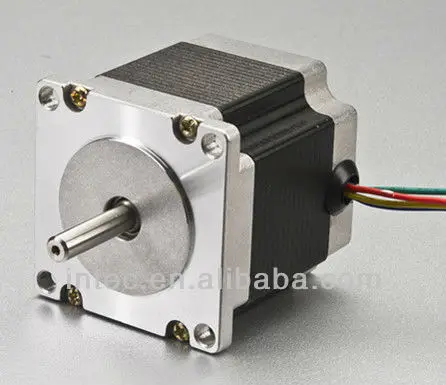

Nema 23 Stepper Motor

• NEMA 23 Frame Size(57 x 57mm)
• 1.8° Step Angle
• High Torque - Up to 396 oz-in
• High Step Accuracy and Resolution
• Low Vibration and Noise
• CE Certified and RoHS
• Can be Customized for
  • -Winding Current
  • -Shaft Options
  • -Cables and Connectors
• Typical Applications of Nema 23 Stepper Motor: Dispense Robot, Analytical and Medical Instruments, Textile Equipment, Precision Telescope Positioning Systems, CNC Foam Cutters, Small CNC Mills, CNC Lathes, CNC Routers, and Desktop PCB Engravers and Mills

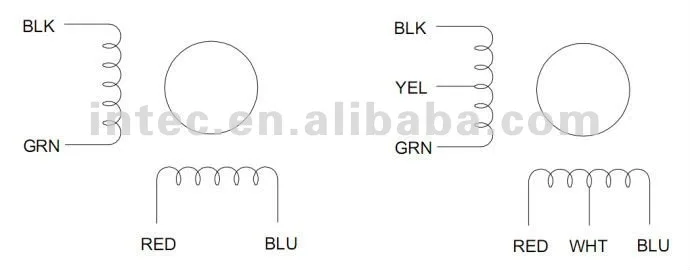

• These Nema 23 Stepper Motor series offers high resolution and is employed with economically priced drives for precision applications. These Nema 23 Stepper Motor are widely use on small to mid-sized CNC mills & milling machines , CNC lathes, Pick-n-place machines, Laser Engravers and Laser Cutters, Vinyl Sign Cutters, CNC Plasma Cutters, and CNC Foam Cutters. These Stepping Motor are also called CNC Stepper Motor. The Nema 23 Stepper Motor comes in a standard 8-lead configuration with a broad line of motor windings and stack lengths available off-the-shelf. We can customize the Stepper Motor winding to perfectly match your voltage, current, and maximum operating speed for maximum flexibility. These High Torque Nema 23 Stepper Motor can be specified in place of standard motors to reduce system size and cost, or increase system performance, without the need to go to larger sized Stepping Motor or drivers.

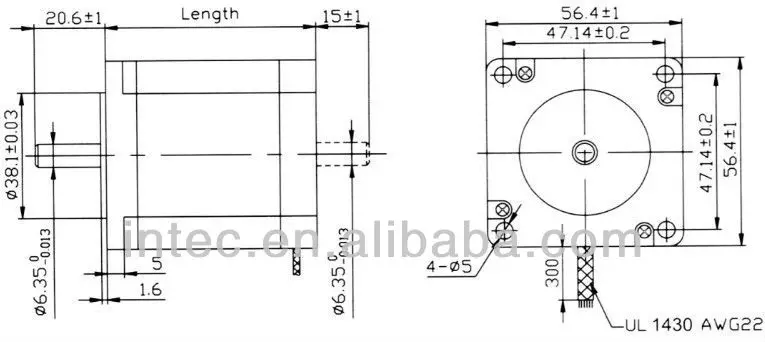

DIMENSION

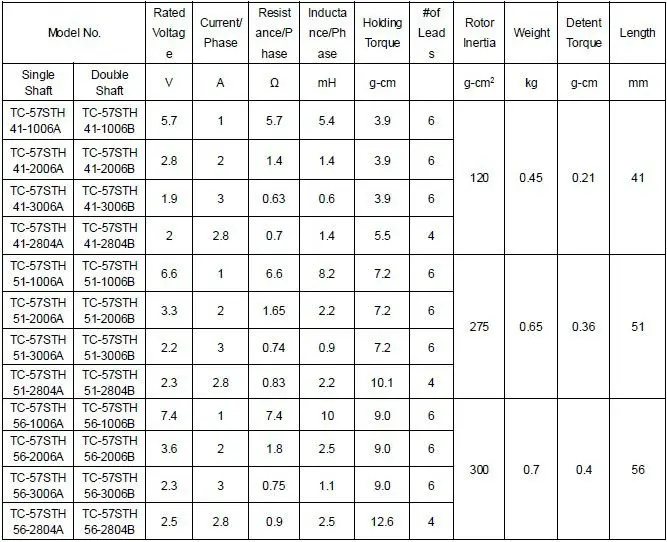

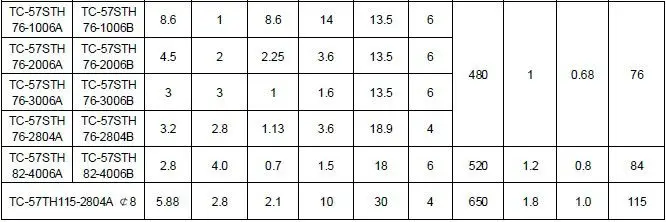

TC57STH41-1006A

TC57STH41-2006A

TC57STH41-3006A

TC57STH41-2804A

TC57STH51-1006A

TC57STH51-2006A

TC57STH51-3006

TC57STH51-2804A
