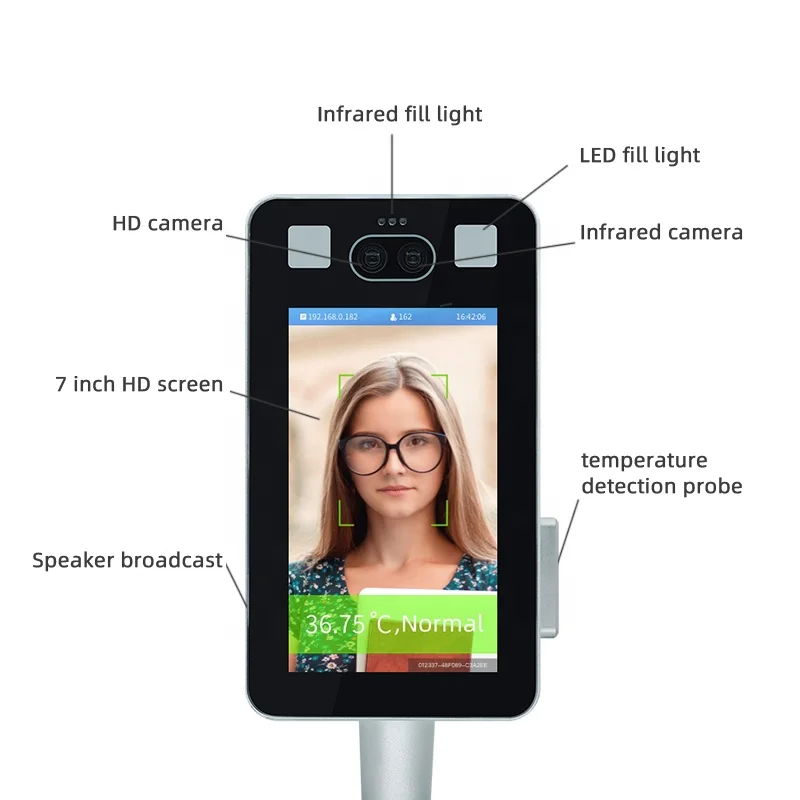

TOMMI Горячая продажа термо сканер распознавания лица рекордер времени сканирование устройство контроля доступа с измерением
320,00 $ - 370,00 $

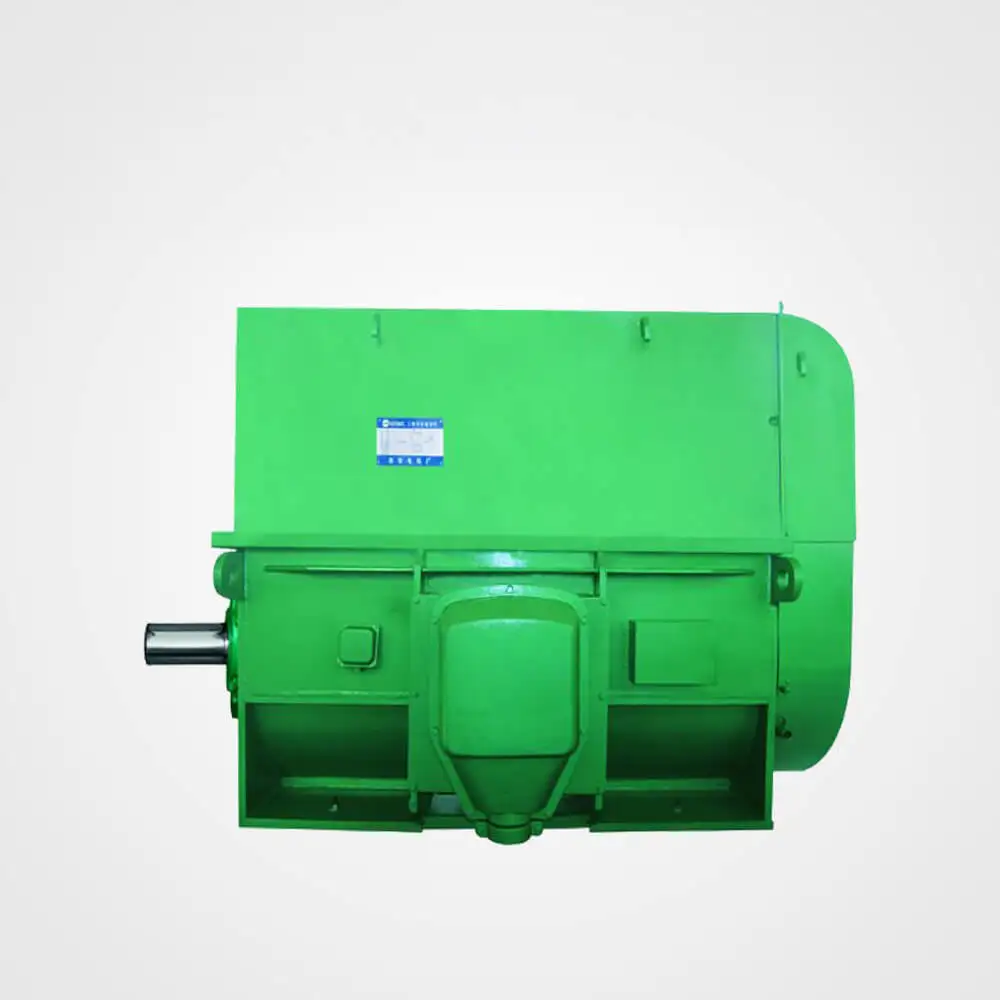

Закрытый трехфазный асинхронный электродвигатель беличьей
- Категория: >>>
- Поставщик: Xinxiang Simo Blower Co. Ltd.
Сохранить в закладки 528278765:
Описание и отзывы
Характеристики

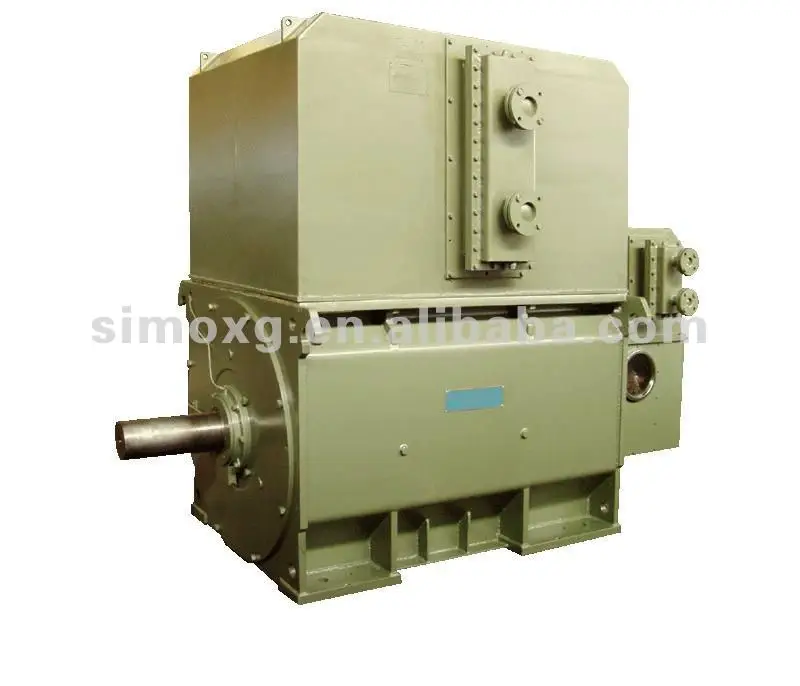

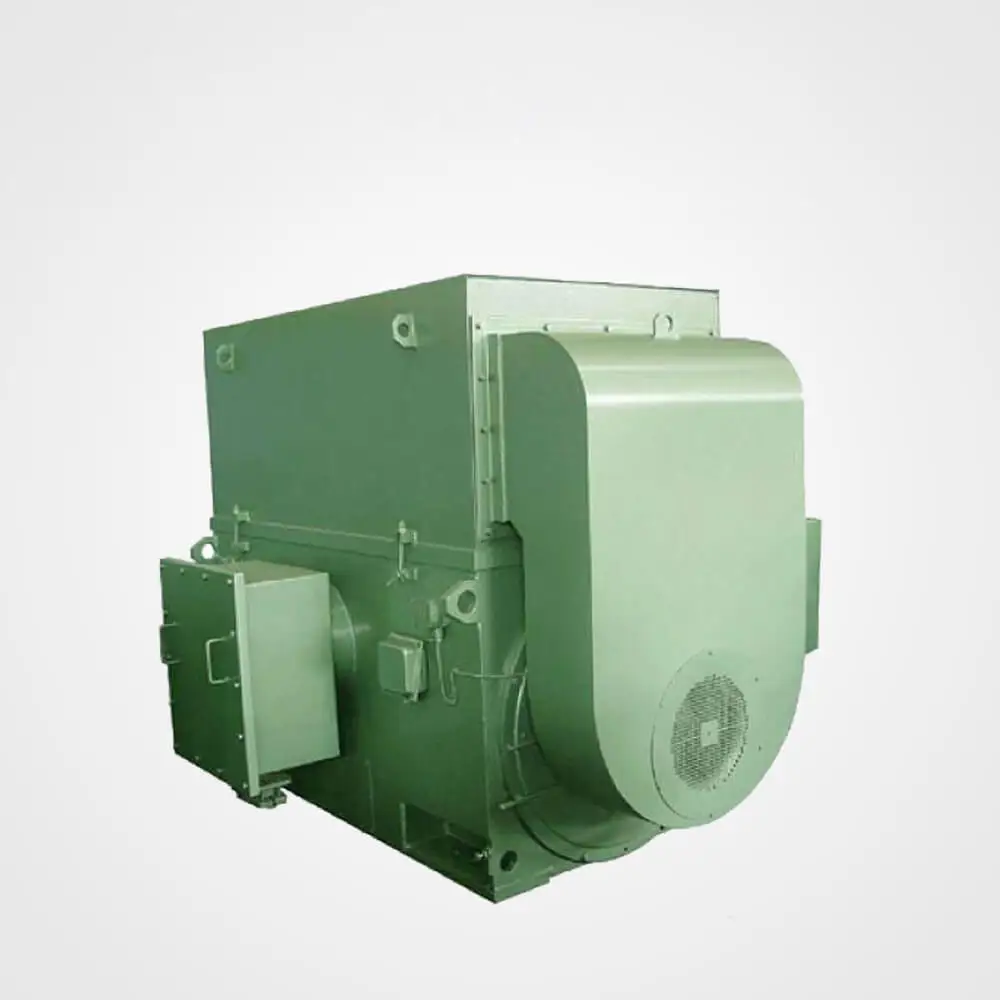

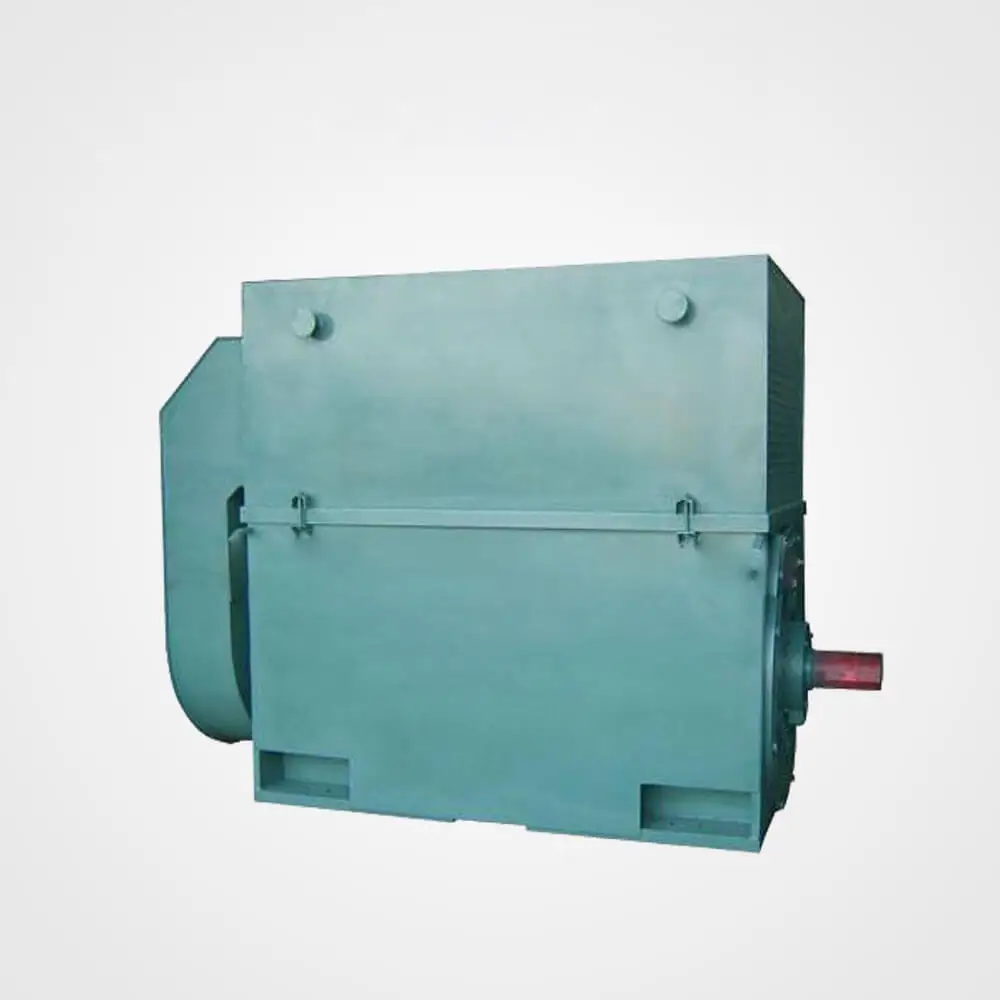

Closed squirrel cage three phase asynchrinous electric motor
Pursue excellent quality, make perfect product!
1. Brief description
YKK series (6kv) motor is of closed squirrel cage three phase asynchronous motor (center height from 355mm to 630mm),which complies with JB/T10315.2-2002 .The protection degree of the Y series motor is of IP44/IP54 and cooling method is of IC611.
The motor has such advantage as high efficiency, energysaving ,low noise ,low vibration, light weight and reliable performance .They are easy for installation and maintenance .
This motor is used to drive various mechanical equipments such as blowers, compressors, pumps, crushers, stock removing machines .It can serve as the prime movers in coal mines, mechanical industries, power plants and various industrial enterprises.
The structure and the mounting type is of IMB3 with continuous duty (S1).The related frequency is 50HZ and the rated voltage is 6kv,other voltage requirements or special requirements should be negotiate with the manufacture before order is placed .
2. The meaning of type
YKK :Squirrel cage induction motor with a closed air cooler.
3551:Center height is 355mm, NO.1 iron core
4: Pole number
3. The technical data see the following tables.
4. Mounting and contour dimensions
5. When ordering, the following requirements should be specified:
Motor type:YKK3551-4
Rated power:220kw
Rated voltage:6kv
Frequency:50HZ
Synchronous speed:1500r/min
Mounting type:IMB3
Protection degree:IP44/IP54
Cooling method :IC611
Insulation class: class F
Ambient conditions :aititude should not be over 1000 mters above sea level ,the vary of ambient temperature should not be exceed 40°C.
Note:Belt driving is not allowed on the motor of 2 poles and 4 poles ,belt driving applied on the motor of other poles ,should be negotiated with manufacturer .
Application
Industrial centrifugal fan have widely used in industrial systems,such as
Building materials:Cement mill, Glass product,Brick klin,mineral waste esidue
Metallurgy: coke blast-furnace,steel-making,electrolytic aluminium,
Power Generation: biomass energy,coal furnace ,waste incineration
Company Information
Xinxiang SIMO BLOWER Limited Company which was founded in 1955, mainly designs and manufactures Centrifugal fans and Axial flow fans which are applied to industrial systems, which is the senior member of China General Machinery Industry Association. SIMO BLOWER is one of the main large fan manufacturers in Central China, whichcovers an area of 100,000 square metres, owns more than 200 employees and the production capacity of 15000 sets one year.
There is an advanced Air flow Test Laboratory in our company. We master mature fan designing, testing, manufacturing technology, and can design and manufacture multipurpose fans according to users' requirements. So, we are able to meet users' complex and professional applications. SIMO BLOWER's products have been widely used in thousands of customers' industrial systems, such as Coal-fired power, Metallurgy, Papermaking, Cement and Glass production, Chemical industry, Material handling, Sewage treatment, Waste incineration, Subway ventilation, Industrial boiler and Dust removal systems etc.
At present, SIMO BLOWER' s customers distribute in these countries:
EUROPE: British, Denmark, Italy, Romania, Russia, Ukraine.
AMERICA: USA, Mexico, Peru.
ASIA: China, India, Indonesia, Israel, Korea, Malaysia, Pakistan, Philippines, Saudi Arabia, Thailand, UAE, Vietnam. Bangladesh
FAQ&Contact us
1. How many years your company has experience in centrifugal fan machines?
Answers: Xinxiang SIMO BLOWER Co.,Ltd was founded in 1955. We have more than 60 years experience on centrifugal fan. We are manufacturer. Our product has been delivered to more than 40 countries and cities.
2. How about your company’s pre-sales service and after-sales service?
Answers: before our cooperation, we have the professional technical team to help you make the technical solution according to your working condition. To make sure the centrifugal fan efficiency operation. And also welcome to visit SIMO BLOWER to see the products production process and quality monitoring system. After sales service, we will offer 12 months’ repairing service, and provide lifelong follow-up services. Besides, our engineers are available for going abroad to offer the repairing service.
3. Does your company have qualifications?
Answers: all of our product are produced by our company will pass ISO 9001-2008 and CE.
Похожие товары
Dike новейший многофункциональный KT-03 для электроинструмента
3,60 $ - 3,80 $

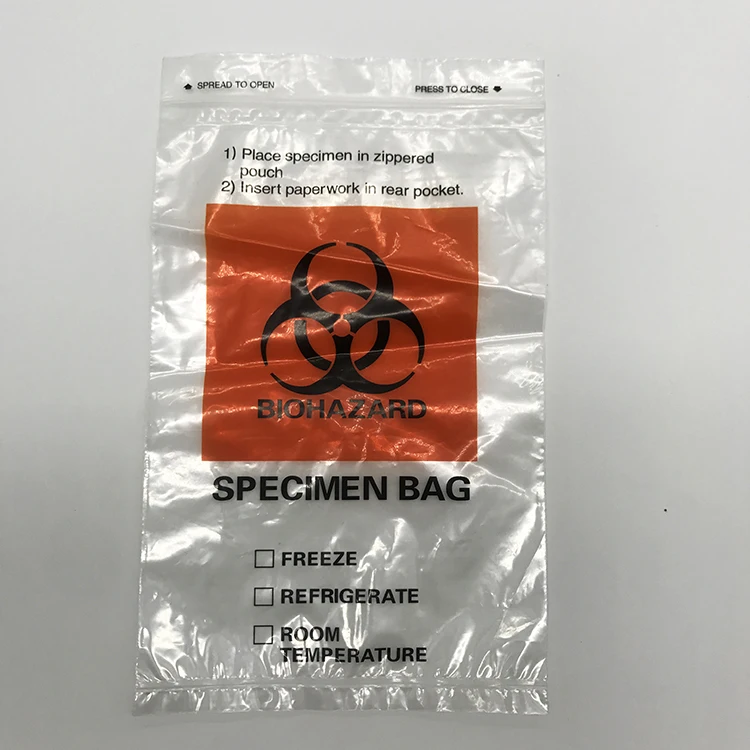

Лабораторный медицинский биоопасный пластиковый пакет для

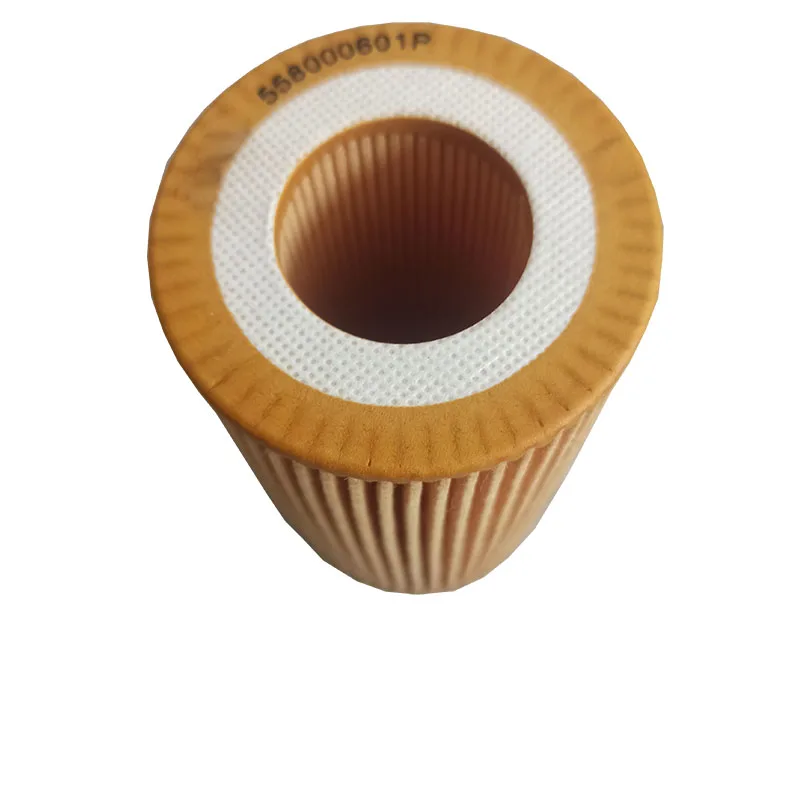

Масляный фильтр воздушного компрессора 558000601p, подходит для воздушного компрессора Boge

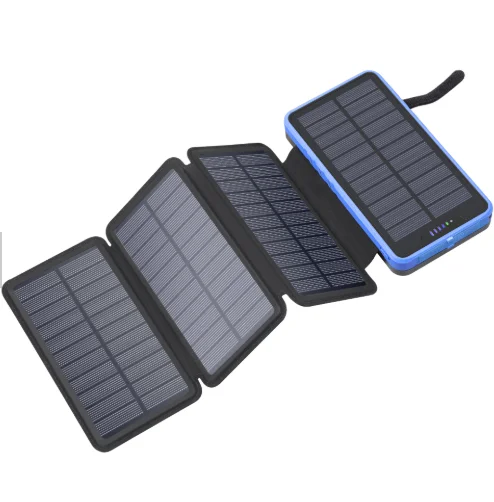

Для отдыха на открытом воздухе 16000 мА/ч, портативное зарядное устройство от солнечной энергии с регулятор окна Солнечная энергия Банк кемпинговый фонарь для отдыха на открытом воздухе
11,80 $ - 14,90 $
Оптовая продажа по индивидуальному заказу Рождественская бумажная подкладка скрапбукинг 24 листа для фотоальбома «сделай
Новое поступление 2020 года, Ночная одежда, сексуальный женский комбинезон с красочным знаком Водолея, комбинезон для взрослых
4,80 $ - 7,80 $

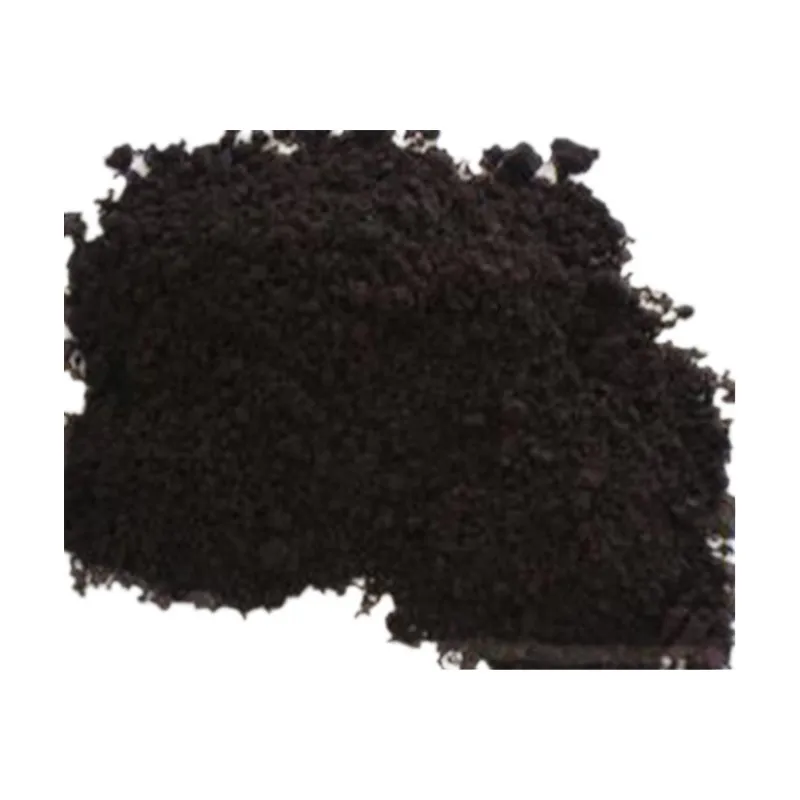

SUOYI высокое качество 99.9% 30 нм нано оксид никеля Ni2O3 черный порошок заводская цена CAS 1314-06-3 используется в батареи электрода
