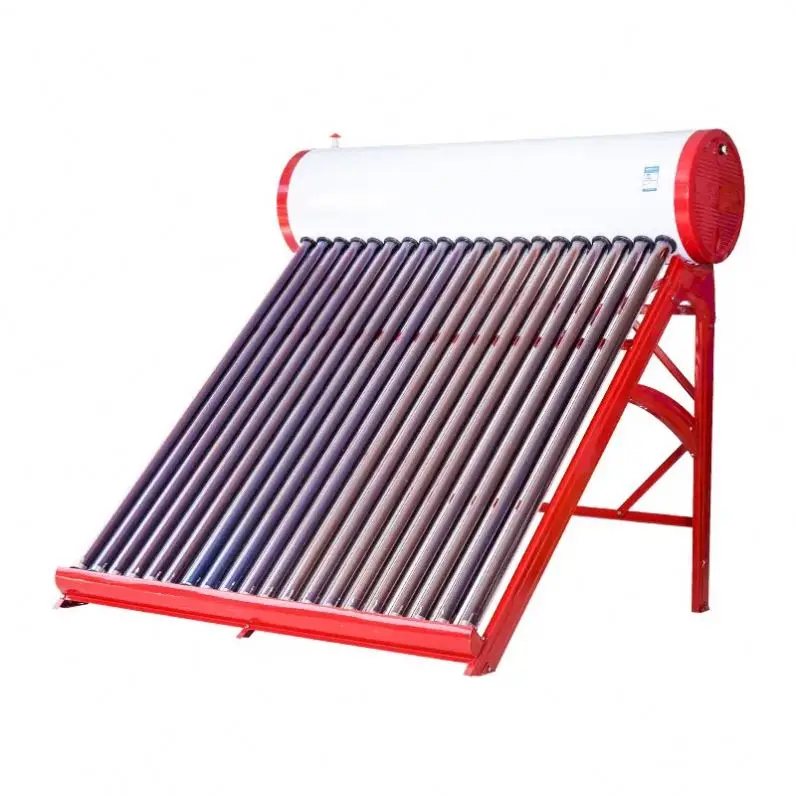

  de alta presion calentador de agua solar -ChaoBa series is pressurized solar water heater with enamel inner tank or stainless steel inner tank.

Specifications:

1) Highly efficient heat pipe technology -Heat Pipe Plus Vacuum Tube structure, no any water in tube, if tube broken, the water not lose.
2) High pressure storage tank (Testing pressure = 9 bar),
3) Inner tank material -enamel tank,2.0mm or stainless steel 1.2mm
4) No sealing rubber is needed and hence no leaking problem
5) Easy plug-in installation, Anti-freeze

Technical Info:

Inner Tank
304/316L Stainless steel or Porcelain enamel
Outer Shell of Tank
Stainless steel sheet
Supporting Frame
Stainless steel sheet/Aluminum alloy
Insulating Layer
Foaming polyurethane, Thickness-55mm
Working Pressure
Normal working pressure: 6bar Test pressure-9bar
Electric Booster
1500W


Model:

Model
Absorb Area
(m2)
Heat pipe
Qty (20’/40’ FCL)
diameter
length
No.
IPCB58/18
2.59
Ø 58mm
1800mm
18
39/96
IPCB58/20
2.88
Ø 58mm
1800mm
20
38/90
IPB58/24
3.46
Ø 58mm
1800mm
24
31/76
IPB58/30
4.32
Ø 58mm
1800mm
30
26/63

QQ20130814164107_.jpgQQ20130814164118_.jpgQQ20130814164144_.jpgQQ20130814164148_.jpgQQ20130814164152_.jpgQQ20130814164212_.jpg
