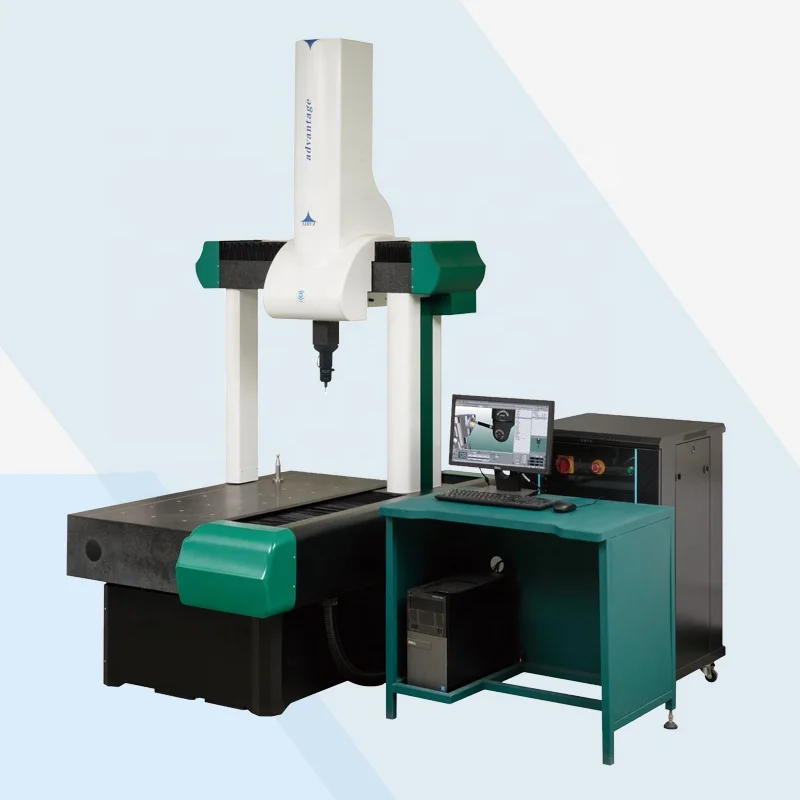

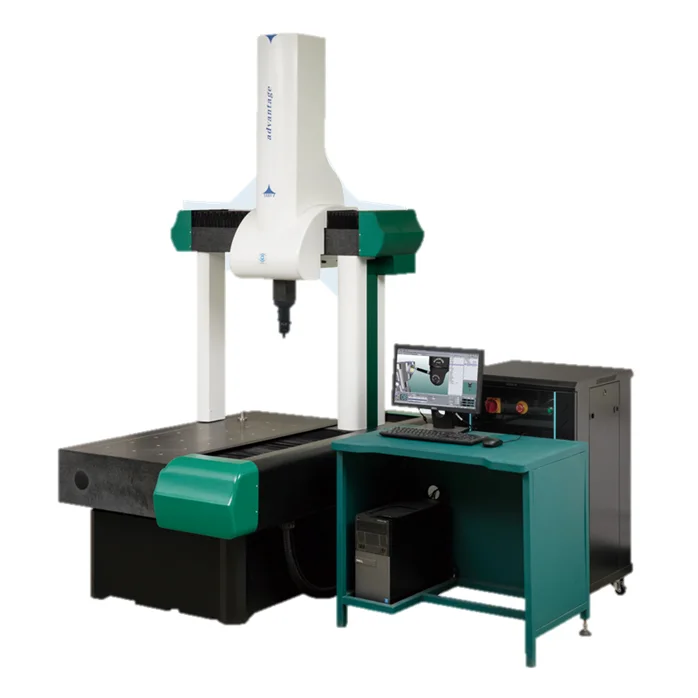

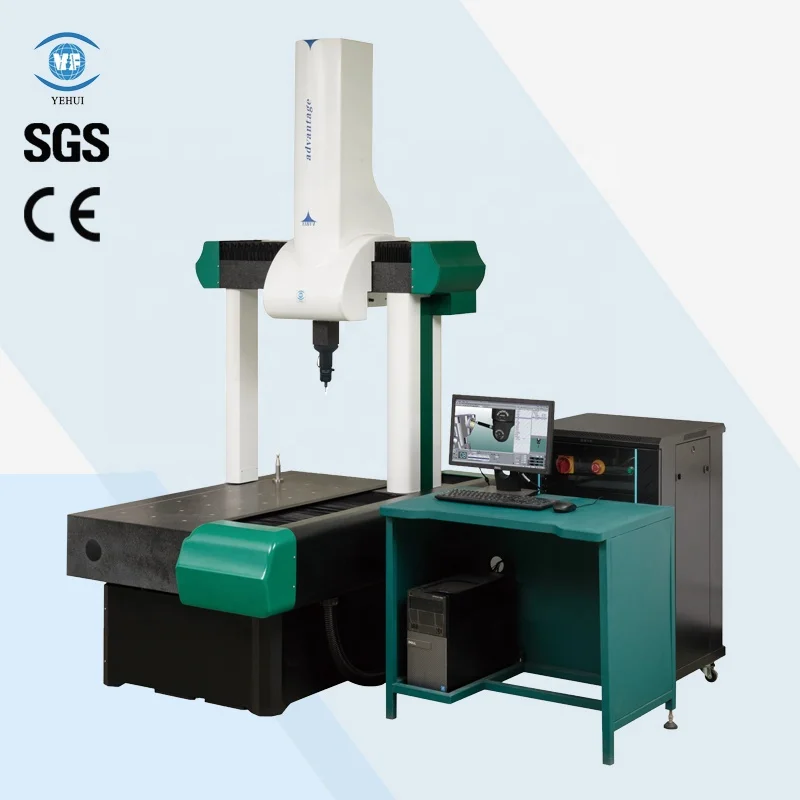

MQ 564 машина для измерения координат CMM

Описание и отзывы

Характеристики

MQ-564 Coordinate Measure Machine CMM:

• MQ Series measuring machine adopts the international advanced finite element analysis and design methods, it has a mechanical structure, rigidity, geometric error, high-precision,high performance and high stability advantages.


• Mechanical overall struction is a rigid structure, a good and light weight closed framework for moving the entire bridge structure.Its structure is simple ,compact ,bearing capacity and exercise performance is good.


• Fixed high-quality granite table ,so that it has a strong bearing capacity,loading and unloading space for a broad and conventient.


• Y Guides has dovetail type and high positioning accuracy.Its stability is very good.


• Three-axis with high-quality granite and thermal expansion coefficient is small, three-axis have the same temperature characteristics which has good temperature stability,the effectiveness of anti-deformation capacity ,good rigidity and dynamic deformation of small geometric errors.


• Three-axis are used by the self-cleaning pre-load high-Precision air bearing ,static pressure air flotation-style guide ,Its bearing span large, anti-keratin swing ability,resistance is small, no wear, sports is more stable.


• Beams using sophisticated technology(patented),light weight low center of gravity,rigid and dynanic error to ensure the machine's stability.


• It uses imported reflective metal strip grating measuremetn systems.Withthe majority of the workpiece has a similar coefficient of thermal expansion compared to ensure a good repeatability.


• Dive system uses the internationally famous brands of high-performance DC servo motors,toothed belt drive device to ensure the transmission faster and more accurate,better sports performance.


• Z-axis using cylinder balancing device ,greatly improved the Z-axis positioning accuracy and stability.


• Control system uses the SB-Specific coordinate Geermany's well-known numerical control system,with international advanced machine-style upper and lower pairs of computer systems,thus greatly improving system reliability, anti-jamming capability and  reduced maintenance costs.


• Software using an independent intellectual property rights and the powerful AC-DMIS measurement software package,its features adn online capabilities provides the user with aperfect measurement solutions.

Specification:
