Тестер коэффициента трения

Категория: >>>
Поставщик: Guangzhou Biaoji Packaging Equipment Co. Ltd.

Цена:*

Количество:

В избранное

Описание и отзывы

Характеристики

Plastic Coefficient of Friction Tester

Standards:

ASTM D 1894 -1990,GB 10006 -1988, TAPPI 816 wd-00,ISO 8295 -1995.

Function:

By testing the friction efficient number judges the smoothness, uniformity of film, efficiently to prevent it’s smoothness level avoiding the quality defects

Application :

* Films
rigid films, shrik films, stretch films, plastic films, plastic composite films, paper-plastic composite films,aluminized films, aluminum foil, aluminum composite films, high barrier films and many others. Eg. PET, OPP, CPP, LDPE, BOPP

* Sheet
engineering plastics, rubber, waterproof building materials, and thermal insulation materials, e.g. PP, PVC, PVDC, and nylon

*Packages
paper, plastics, rubber, paper, paper-plastic composite, glass, and metal packages, eg: bottles, containers,

Techinical Parameter

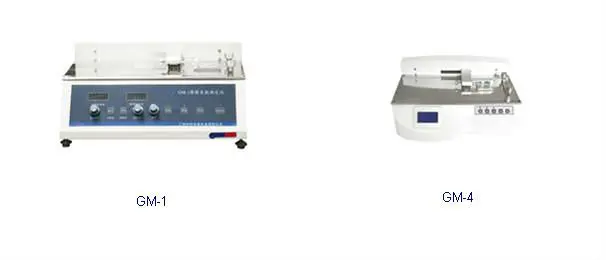

Model	GM-1	GM-4
Testing range	0.01~0.99	0.001-0.999
Testing precision	0.01	0.001
Force measurement range	0~2N
Sample thickness	≤2mm
Sliding piece size	63×63mm
Sliding piece weight	200±2g
Working table size	200×470mm

Features:

1.Stable performance, accurate test data;

2.Use friendly and durably;

3.Computer control, test results directly show in the window; connecting computer with professional software online show the test curve and can save the test report as well as print;

4.Import superior components, longer lift time;

5.Simple calibration method;

6.Versatile operation language support

Service

1: One year guarantee and all lifetime techinical support

2: USA, Australia Aisa Local agent for service

3 Speedy reply, 12hrs response to customer questions

4 Software free update

5. Minor maintenance ---parts ship within 24 hrs

6 Major maintenance---Technical will be sent within 15 days

Certificate:

ISO CERTIFICATE
