Гидравлическая формовочная машина для эпоксидной смолы композитного изолятора/втулочной пластины/CT/кабельного соединения/инструментного трансформатора

Описание и отзывы

Характеристики

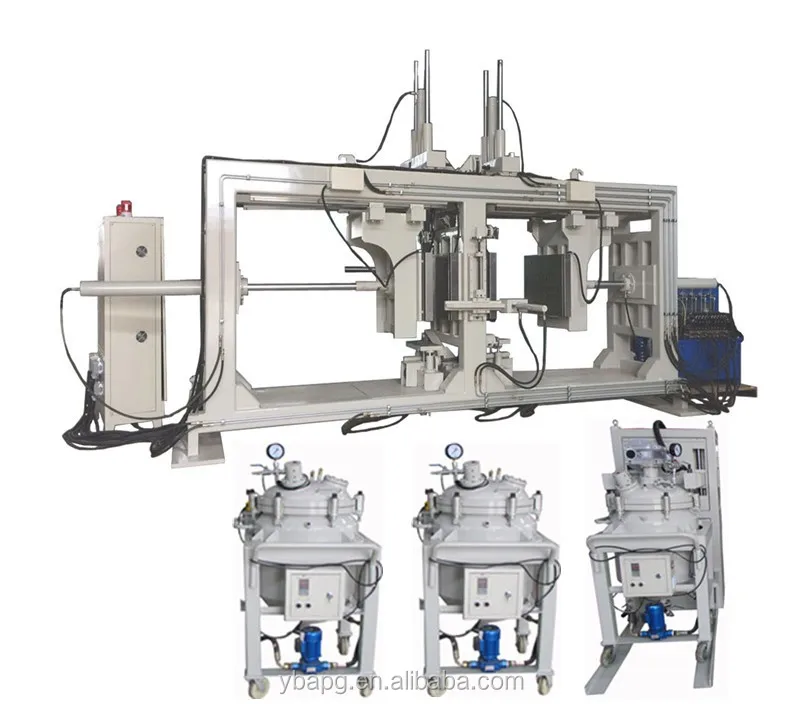

1.APG-898 APG clamping machine Application:

It is mainly used for producing epoxy resin products such as transformers,12KV-1250A,3150A insulation cylinder,spout,bushings,wall bushings,bending plate,SF6 ,insulating cover,Bushing SF6 ect.

2.APG-898 APG clamping machine technical parameters:

 3. APG machine operating guide:

Welcome to visit APG machine working video saty links:

1. https://www.youtube.com/watch?v=rRcR_ZFnLXs  (for producing 10KV current transformer)

2. https://www.youtube.com/watch?v=kSAJEbfjhUo   (Yibo workshop)

3. https://www.youtube.com/watch?v=plamm5tUk3M

4. https://www.youtube.com/watch?v=NJTtDC-ha2U (for wall bushing)

5. https://www.youtube.com/watch?v=SJdU89FMcsA   (for producing zero current transformer)

1.Installing and heating molds on mold plates, lock mold, heating molds up to 60°c,open molds,brush mold release agent, close molds, until temperature up to 145-150°c.

2.Pre-mixing compound (resin,curing agent,pigment and Quartz)

3.Injection mixed compound into molds, push mixing pot nearby APG machine, connect pipe from mixing pot to mold, pressure compound into mold until full injection.

4.Post Curing,  release air before open mold, move the ready products into oven start to post curing.

4. Why choose Yibo:

1.The only manufacturer who can supply one-stop complete solution service for electric industry of resin products,we professional manufacture APG machine, APG molds,casting molds,Toroidal winding machine,laser marking machine for whom produce CT,PT,insulators,contact box,etc,with best factory price and fast shipment.

2.Professional rich experience engineers and research team, we offer free APG technique training. our engineers have 23 experience who serviced many years in ABB, not only well controlled APG machine and APG mold designing and processing,but also master product producing technique.

3.Have a line and lab special for producing epoxy resin products, this is possible for us to offer careful testing to our clients,we promise make qualified samples with APG machine, APG molds,testing in our lab,then delivery equipments and molds to clients.

4.Professional APG Technique training, our engineer available training APG technique overseas or you send engineers learn technique from our factory.We have all equipments and raw materials for clients learning APG technique.We 100% promise teach APG technique to you even you are newcomer.

5. 5 series APG machine,can satified all products production with different sizes and specifications.

APG-858   clampplate dimension: 800*600mm for producing epoxy resin products within 10KV two workstations

APG-865 clampplate dimension:800*600mm for producing epoxy resin products with 10KV

APG-888 clampplate dimension:800*800mm for producing epoxy resin products with 0~20KV

APG-898 clampplate dimension:1000*1000mm for epoxy resin products with 0~35KV

APG-1210 clampplate dimension:1000*1200mm for producing  resin products with 0~35KV

 5.APG technology Advantages:

1.Good product quality, fine surface finish of products without bubbles.

2.  High efficiency,This increases the clamping machine capacity by up to 60%.

3.Chemical resistance,electrical insulation,stenght resistance greatly improved.

4.High automation only need 1-2 workers operate APG machine,efficiency greatly raised but the intensity of labor is decreased.

5.Power saving,APG machine is power saving design,save a lot of cost.

6. More clean  The cast compound won’t split out from mold while producing, not only keep workplace clean but also save a lot of cast compound.

6. Guarantee and after-sale service :

1.One year guarantee for whole machine

2.Within 24 hours technical support by e-mail or call.

3.Offer door to door service.

4.Use friendly English software or user manual.

Most of our Apg machines are 0 after-sale service within 5 years,such as machines sell to Iran,Brazil,Indonisia,Thaliand,India.

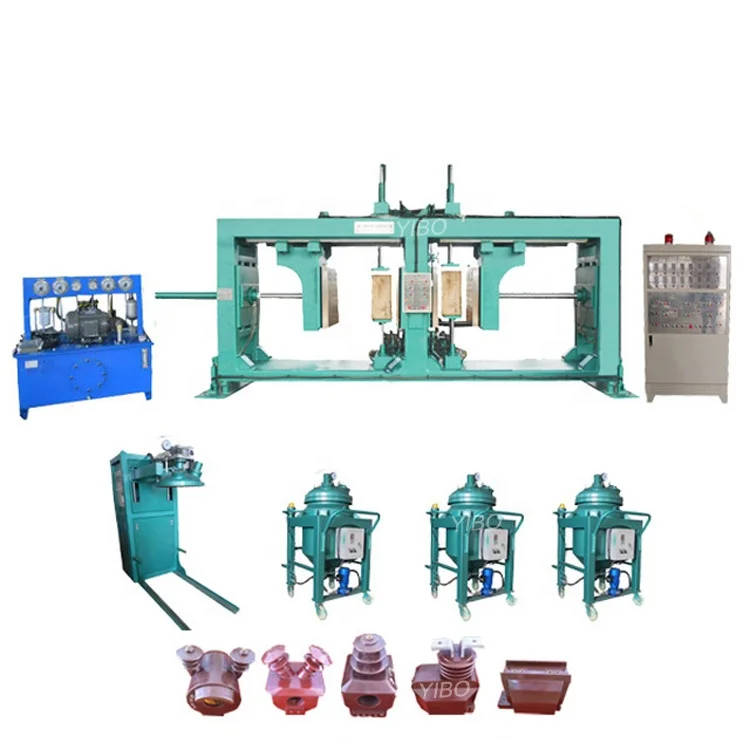

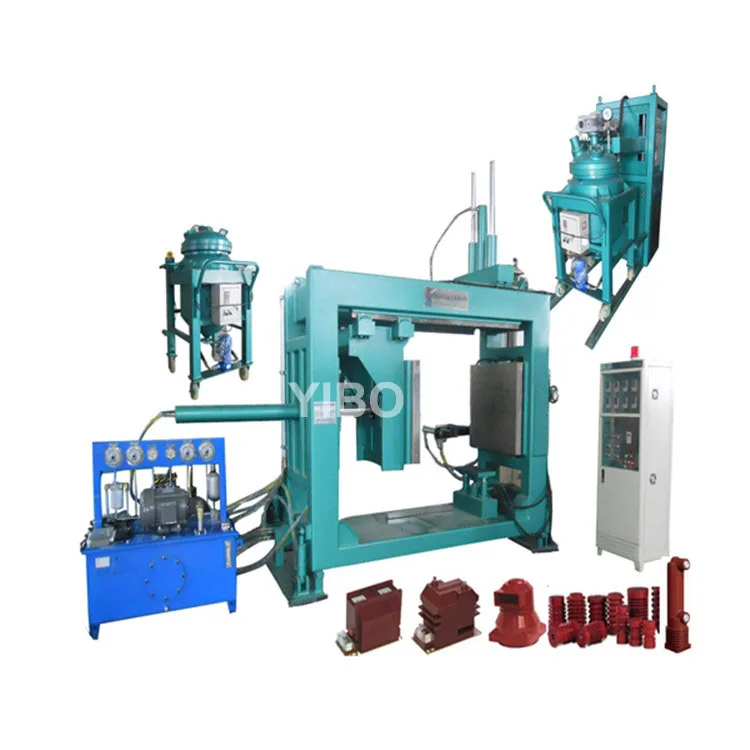

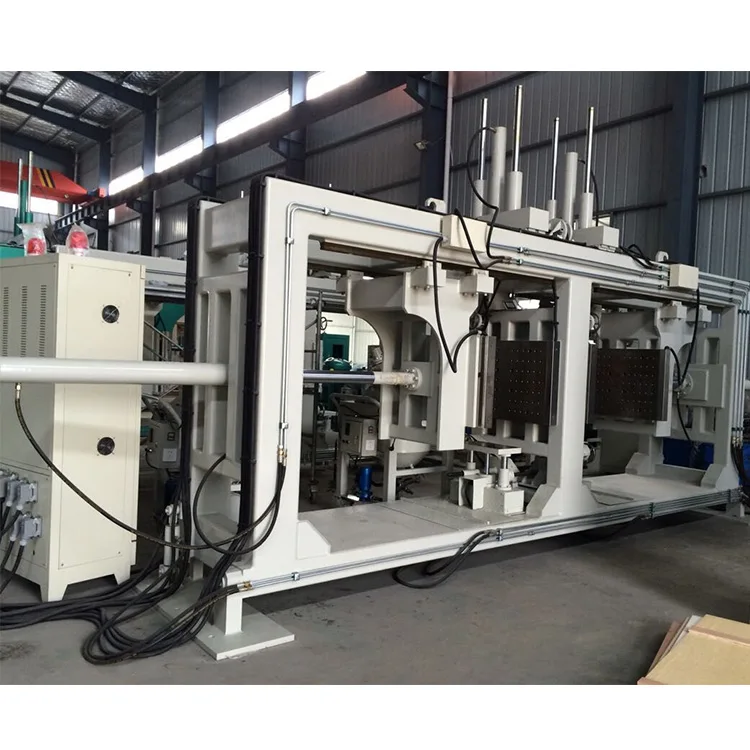

 7.APG machine related images:
