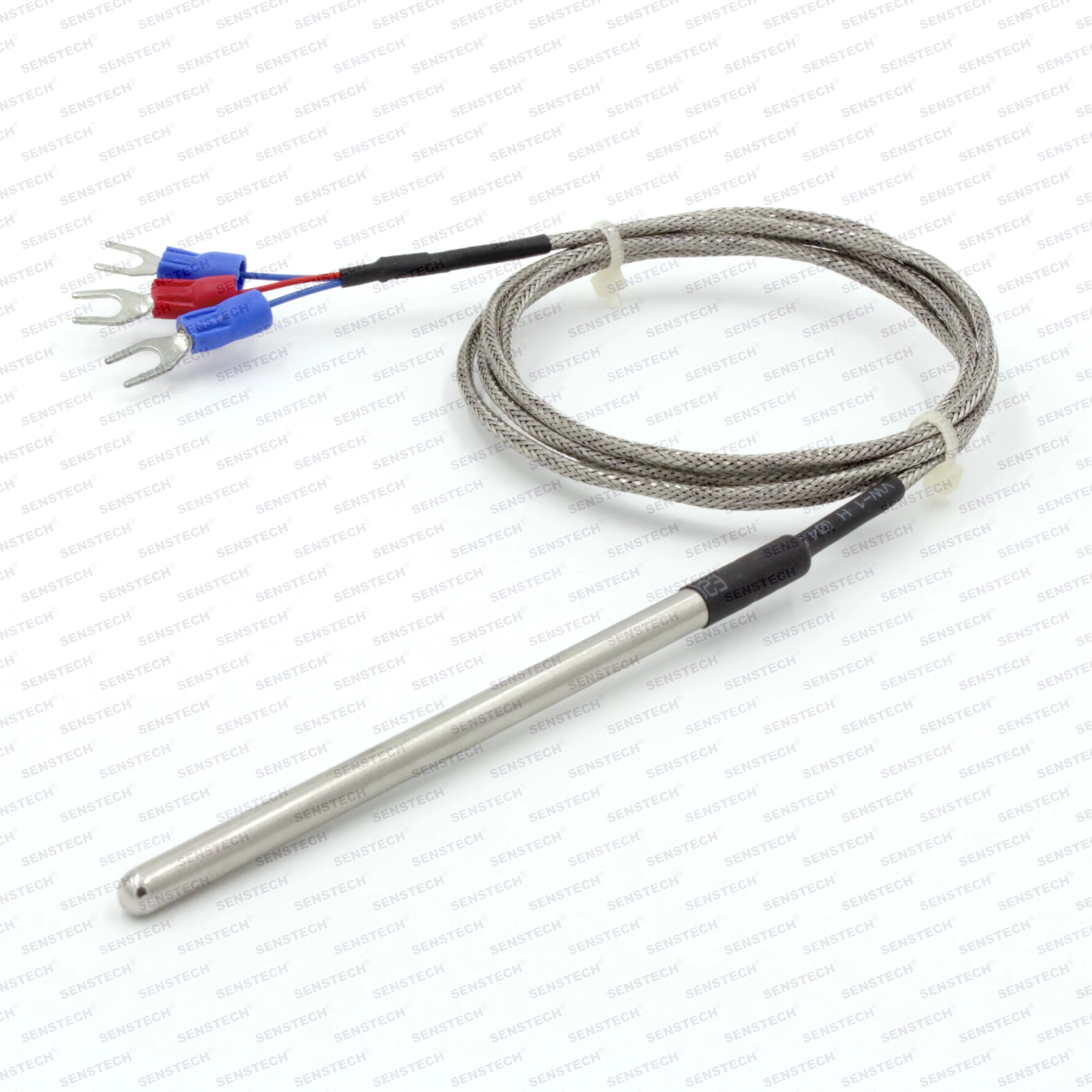

Корпус водонепроницаемых датчиков температуры RTD PT100 производство нержавеющей стали 5*50 мм черный Водонепроницаемый аналоговый датчик SST0013

Корпус водонепроницаемых датчиков температуры RTD PT100 производство нержавеющей стали 5*50 мм черный Водонепроницаемый аналоговый датчик SST0013

Категория: >>>
Поставщик: Senstech Ltd.

Цена:*

Количество:

В избранное

Описание и отзывы

Характеристики

5*50mm Stainless Steel Casing Water Resistant RTD PT100 Temperature Sensors

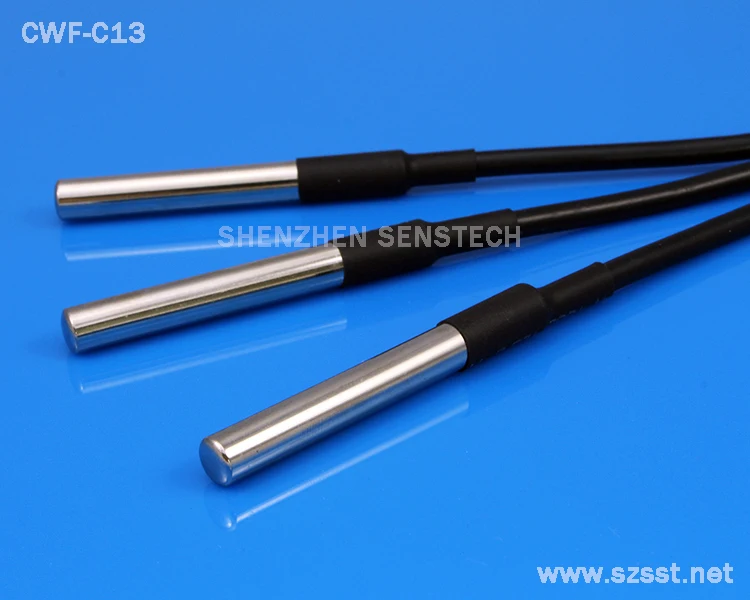

temperature sensor pt-100.jpg

Description:

The RTD pt100 temperature sensors is used for precise temperature monitoring applications, where errors in measurement have to be excluded. The linear relationship of the resistor to temperature, simplifies its use in many electronic applications. The precision of the Pt100 allows its universal use for temperature monitoring, control and switching in windings, bearings, machines, motors, transformers and many other industrial applications.

Features :

Nominal resistance:100Ωat 0°C(Pt100)

Basic thermistor values: for platinum measuring resistors as in chart

Measuring range: -40°C to 105°C, other ranges on request

Measuring current: max.1mA(no self-heating!)

Circuit: 2-wire 3-wire or customized

Tell us your request

Working environment :_________________________________________

Operating temperature range:___________________________________

Any requirement about probe dimension or material:_______________

Cable length:________________________________________________

Connector model (if necessary) :________________________________

Please CLICK HERE for more information !!!

More RTD Options

Type	Measuring Range°C		Accuracy	Tolerance	Temperature Coefficient
Pt100	-50~+300		Class A	±(0.15+0.002) \|t\|	3.85·10^-3K^-1
	-70~+500		Class B	±(0.30+0.005) \|t\|	3.85·10^-3K^-1
Pt100	-50~+300		Class A	±(0.15+0.002) \|t\|	3.85·10^-3K^-1
	-70~+500		Class B	±(0.30+0.005) \|t\|	3.85·10^-3K^-1
Pt1000	-50~+300		Class A	±(0.15+0.002) \|t\|	3.85·10^-3K^-1
	-70~+500		Class B	±(0.30+0.005) \|t\|	3.85·10^-3K^-1
Construction		Water Proof/Abrasion-proof/Anti-explosion
Cable		2-wire, 3-wire, 4-wire
Cable Material		PVC cable, Silicone cable, TPE cable, PTFE cable, Fiberglass cable
Ways of Mounting & Fixing		1: Without fixing device 2: Fixed compression thread 3: Movable compression thread 4: Fixed compression flange 5: Movable compression flange 6: Shock-resistant & Anti-leakage compression thread
Diameter of thermowell		1: Ø12 3: Ø3 4: Ø4 5: Ø5 6: Ø6 8: Ø8

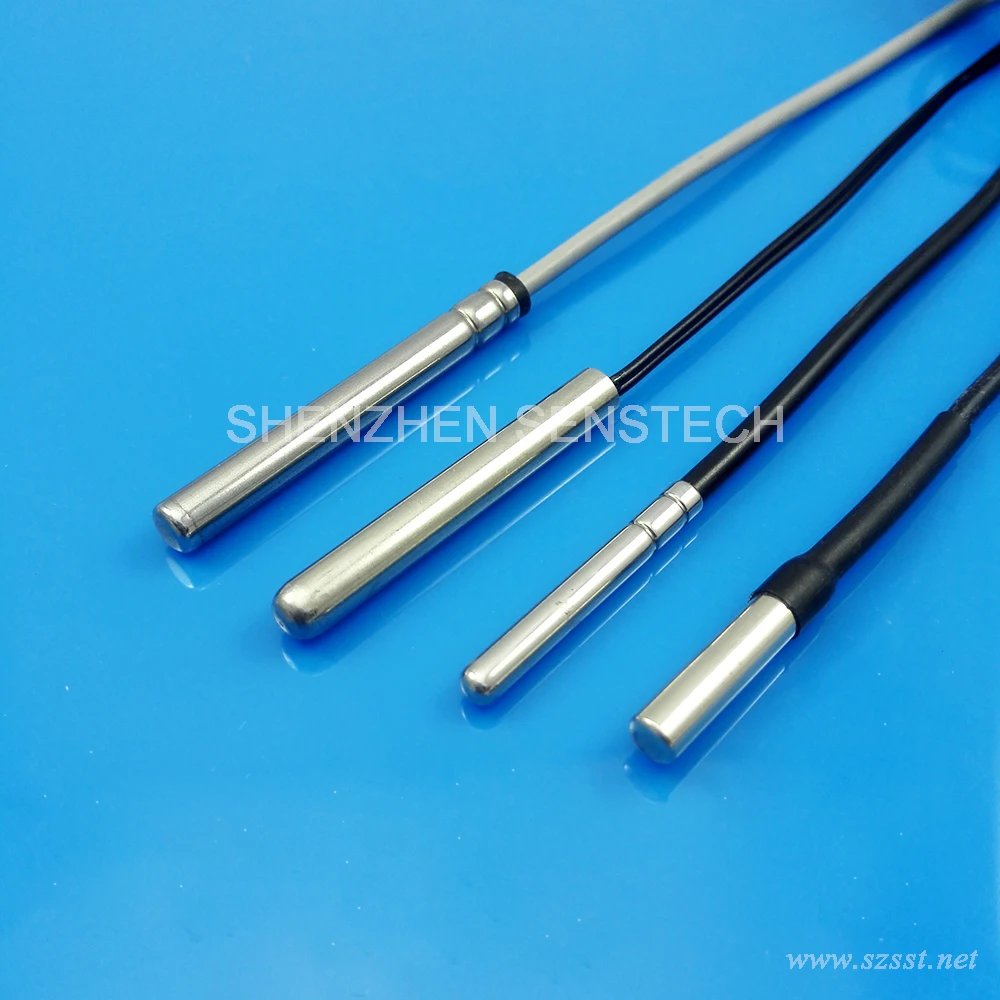

DS18B20 temp probes.jpg

Please CLICK HERE for more information !!!

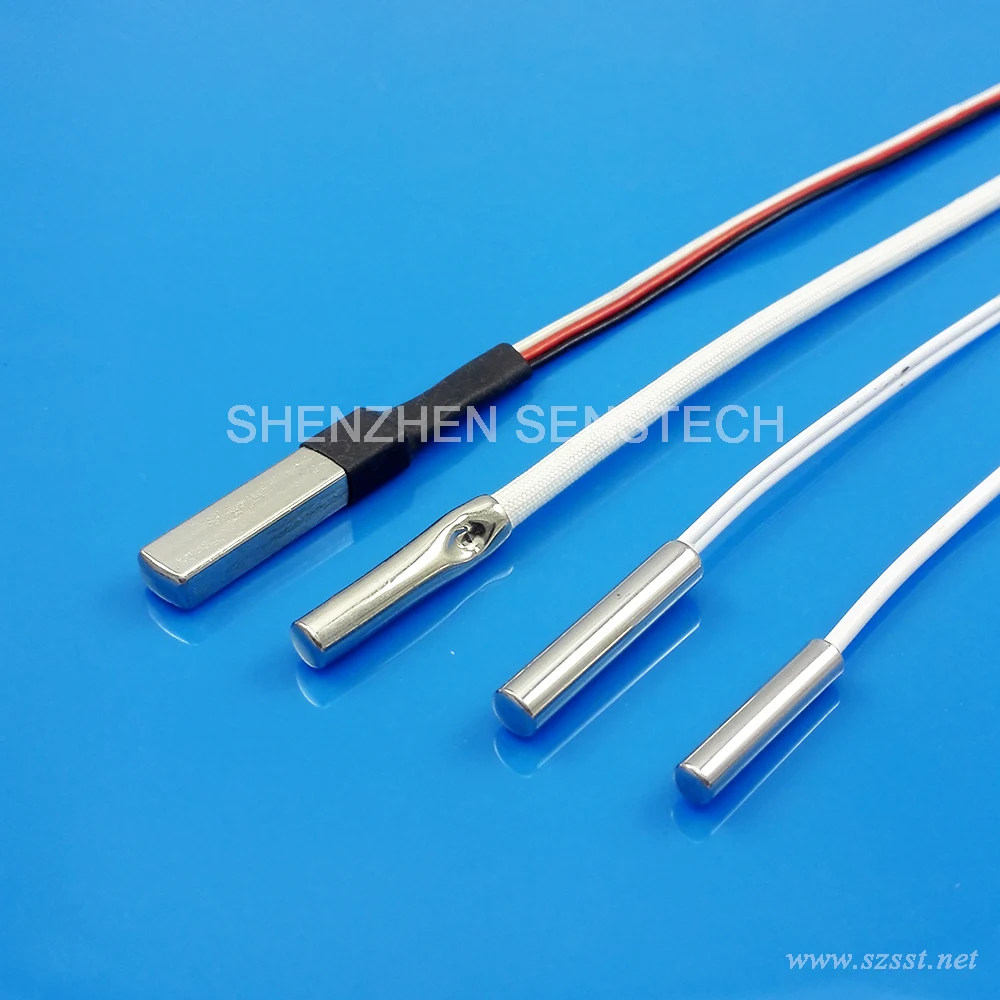

metal casing rtd sensor.jpg

Please CLICK HERE for more information !!!

scew-in ntc sensors.jpg

Please CLICK HERE for more information !!!

oven sensor.jpg

Please CLICK HERE for more information !!!

scew-on sensors.jpg

Please CLICK HERE for more information !!!

Lug sensors ntc.jpg
