Complete Tungsten Ore Processing Plant



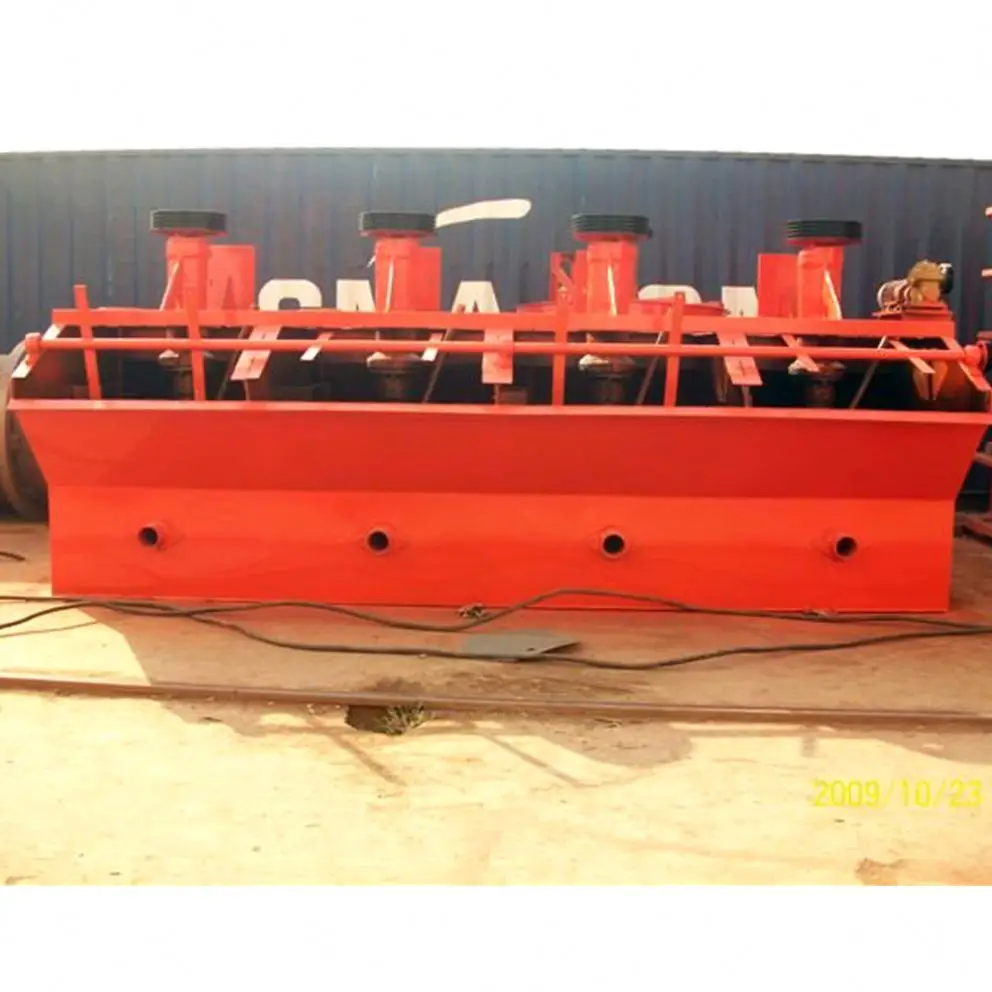

Gelin has a strong production capacity and the products cover full range of equipments for beneficiation engineering such as feeding & conveying, crushing, screening, grinding, flotation, separation etc.

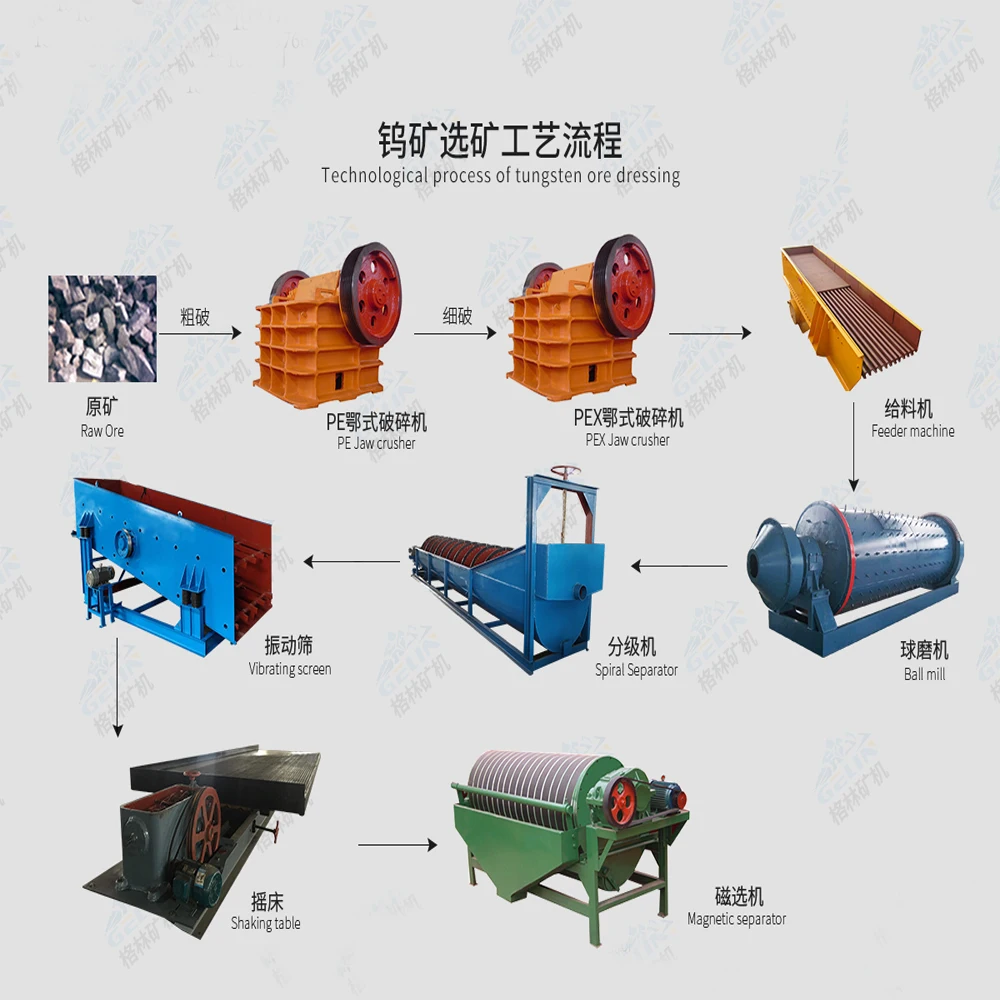

Below is the flowchart for tungsten ore processing plant:









Jaw crusher
Jaw Crusher is mainly used to crush kinds of mining stones primarily, and the largest compression resistance of the material to be crushed is 320MPa. The jaw crusher is widely used in mining, metall-urgical industry, building material, highway, railway, and chemical industry.


Features:

1. Movable jaw plate is more advanced and very durable,which is made of high quality steel cast and moved through two big flywheel.

2. Crushing cavity is enough deep to improve the capacity and feeding ability.

3.Lubrication system is reliale and safe which makes it more easily change spare parts and maintain.

4.Simple structure, reliable work, strong crushing capacity, and easy maintenance.


Working Principle:

Motor drives V-belt & belt pulley to make moving jaw with periodic motion by eccentric shaft.
Moving jaw moves upwards to the fixed jaw, the materials are crushed in this process.
Moving jaw moves downwards from fixed jaw by pulling rod and spring, then final crushed materials are discharged from the outlet.


Data Parameter:



Model
Feeding Mouth Size
(mm)
Max Feeding Size
(mm)
Adjusting Range
of Output Size
(mm)
Capacity
(t)
Rotation Speed
(r/min)
Motor Power
(kw)
Weight
(t)
Dimension L*W*H
(mm)
mm
mm
mm
t/h
r/min
kw
Ton
mm
PE-200*300
200*300
180
15-50
2-6
260
7.5
1
910*750*990
PE-200*350
200*350
180
18-70
3-10
260
11
1.3
1000*870*990
PE-250*400
250*400
210
20-60
5-20
300
15
2.8
300*1090*1270
PE-400*600
400*600
340
40-100
16-60
275
30
7
730*1730*1630
PE-500*750
500*750
425
50-100
40-110
275
55
12
1980*2080*1870
PE-600*900
600*900
500
75-200
60-200
250
75
20
2290*2290*2400
PE-750*1060
750*1060
630
80-140
115-330
250
110
29
2660*2430*2800
PE-870*1060
870*1060
660
200-260
290-336
250
110
31.5
2810*2430*2800
PE-900*1060
900*1060
685
230-290
160-400
250
110
33
2870*2420*2940
PE-900*1200
900*1200
750
95-165
220-450
200
110
52
3380*2870*3330
PE-1000*1200
1000*1200
850
195-265
315-500
200
110
55
3480*3876*3330
PE-1200*1500
1200*1500
1020
150-300
400-800
180
160
100.9
4200*3300*3500
PEX-150*750
150*750
120
18-48
8-25
320
15
3.8
1200*1530*1060
PEX-250*750
250*750
210
25-60
13-35
330
30
5.5
1380*1750*1540
PEX-250*1000
250*1000
210
25-60
16-52
330
37
7
1560*1950*1390
PEX-250*1200
250*1200
210
25-60
20-61
330
45
8.5
2140*1660*1500
PEX-300*1300
300*1300
250
20-90
16-105
300
75
11
2720*1950*1600




Vibrating Feeder


Vibrating Feeder is mainly used to feed materials evenly and continuously into belt conveyor, bucket elevator, screening and crushing equipment before primary crusher, also used for screening fine materials to increase the processing capacity of crusher.The feeding amount can be adjusted flexibly to achieve centralized control and automatic control in the production process. It is applied to crusing and screening production lines on crushing site,in mining,metallurgy,building material,chemistry,mineral processing,and coal industries.

Features:
♦ Simple structure; Uniform feeding; Remarkable continuity; Exciting force is adjustable;
♦ The flow can be changed and controlled at any time; The eccentric block is the exciting source;
♦ Low noise and electricity consumption; Good adjustability;
♦ The fully enclosed frame can avoid dust pollution -- Closed Type Vibration Feeder;
♦ Stable vibration; Reliable performance; Long service life

Working Principle:
The vibrating feeder electromotor drives the eccentric block of the exciter to rotate with high speed through the v-shaped belt.The eccentric block can produce big eccentric force, and the exciting screen box will do circular motion with certain amplitude.The materials on the slant screen will be influenced by the impulse transmitted from the screen box and do continuous throwing motion, and the materials smaller than the screen hole will go through the screen, thus realizing classifying.
the vibrating feeder is widely used for mining plant,stone crushing plant,sand making plant,etc.

Technical Data:



Model
Max. Input size (mm)
Capacity
Eccentric shaft Speed (r/min)
Installation slope
Power
Weight
(t/h)
(kw)
(t)
GL2400*800
480
30-80
400-500
7.5
2.8
GL3800*950
520
96-160
500-714
11
4
GL4200*1100
590
120-240
500-800
15
4.7
GL4900*960
550
120-240
500-800
15
5.35
GL4900*1100
620
120-280
500-800
15
5.3
GL5900*1100
650
220-350
500-800
22
6
GL6000*1300
760
400-550
500-800
22
7.5

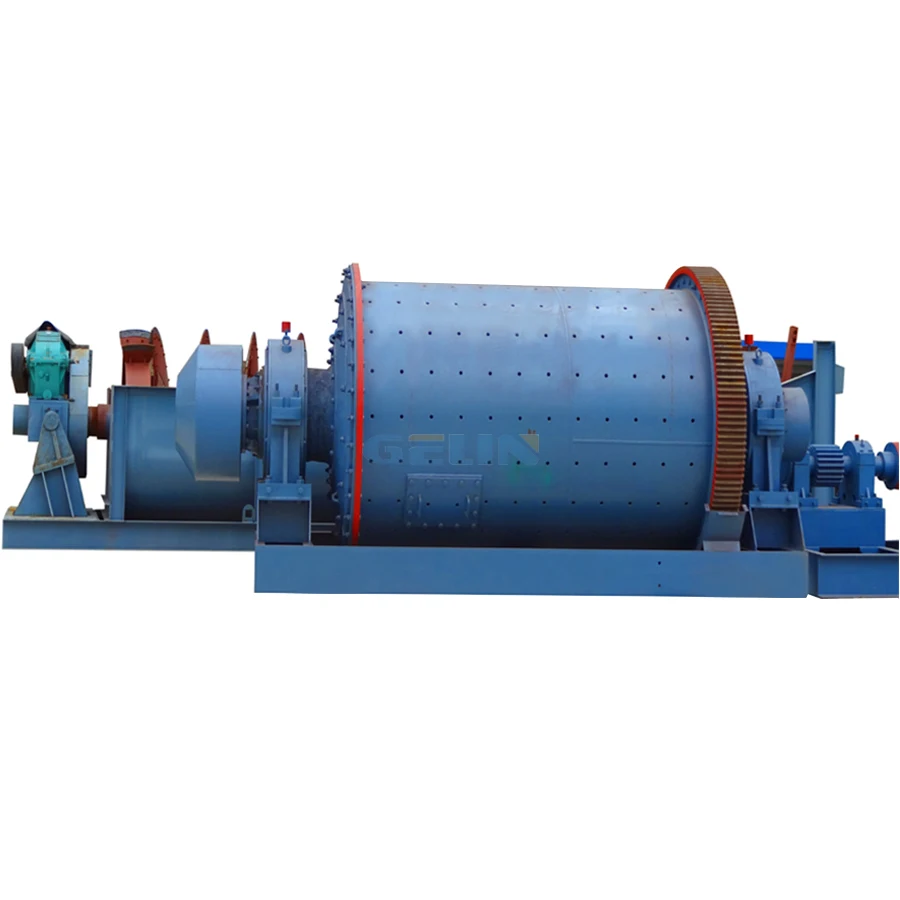

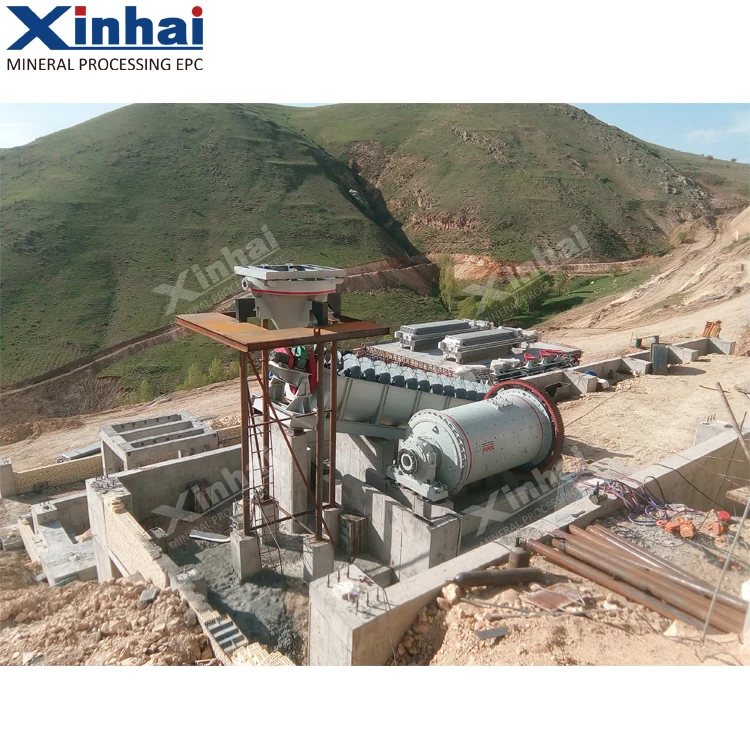

Ball mill
Ball mill is the key re-crush eqipment after the crushing. Ball mill is widely used in cement, silicate products, new building materials, refractories, chemical fertilizer, black and non-ferrous metal ore-dressing, as well as the production industry of glass or ceramics, for carry though dry or wet grinding of a variety ores and other materials.


Features:
♦ Energy-saving.
♦ Simple structure and split installation
♦ Easy to installing and maintaining
♦ 2 types feeders: combined feeder and cylinder feeder
♦ Dry ball mills & wet ball mills for option according to different materials & discharging methods


Working Principle:

Ball mill is a horizontal rotating device transmitted by the outer gear. materials are transferred to the grinding chamber through the quill shaft uniformly. There are ladder liner, ripple liner and different specifications of steel balls in the chamber.

The centrifugal force caused by rotation of barrel brings the steel balls to a certain height then impact and grind the materials.The ground materials are discharged through the discharging board thus the grinding process is finished.


Data Parameter:



Model
Shell rotation speed(r/min)
Ball load(t)
Feeding size(mm)
Discharging size(mm)
Capacity
Motor power (kw)
Weight(t)
(t/h)
Ø900*1800
36-38
1.5
<=20
0.075-0.89
0.65-2
18.5
4.6
Ø900*3000
36
2.7
<=20
0.075-0.89
1.1-3.5
22
5.6
Ø1200*2400
36
3
<=25
0.075-0.6
1.5-4.8
30
12
Ø1200*3000
36
3.5
<=25
0.074-0.4
1.6-5
37
12.8
Ø1200*4500
32.4
5
<=25
0.074-0.4
1.6-5.8
55
13.8
Ø1500*3000
29.7
7.5
<=25
0.074-0.4
2-5
75
15.6
Ø1500*4500
27
11
<=25
0.074-0.4
3-6
110
21
Ø1500*5700
28
12
<=25
0.074-0.4
3.5-6
130
24.7
Ø1830*3000
25.4
11
<=25
0.074-0.4
4-10
130
28
Ø1830*4500
25.4
15
<=25
0.074-0.4
4.5-12
155
32
Ø1830*6400
24.1
21
<=25
0.074-0.4
6.5-15
210
34
Ø1830*7000
24.1
23
<=25
0.074-0.4
7.5-17
245
36
Ø2100*3000
23.7
15
<=25
0.074-0.4
6.5-36
155
34
Ø2100*4500
23.7
24
<=25
0.074-0.4
8-43
245
42
Ø2100*7000
23.7
26
<=25
0.074-0.4
8-48
280
50
Ø2200*4500
21.5
27
<=25
0.074-0.4
9-45
280
48.5
Ø2200*6500
21.7
35
<=25
0.074-0.4
14-26
380
52.8
Ø2200*7000
21.7
35
<=25
0.074-0.4
15-28
380
54
Ø2200*7500
21.7
35
<=25
0.074-0.4
15-30
380
56
Ø2400*3000
21
23
<=25
0.074-0.4
7-50
245
54
Ø2400*4500
21
30
<=25
0.074-0.4
8.5-60
320
65
Ø2700*4000
20.7
40
<=25
0.074-0.4
12-80
400
94
Ø2700*4500
20.7
48
<=25
0.074-0.4
12-90
430
102
Ø3200*4500
18
65
<=25
0.074-0.4
-----
800
137

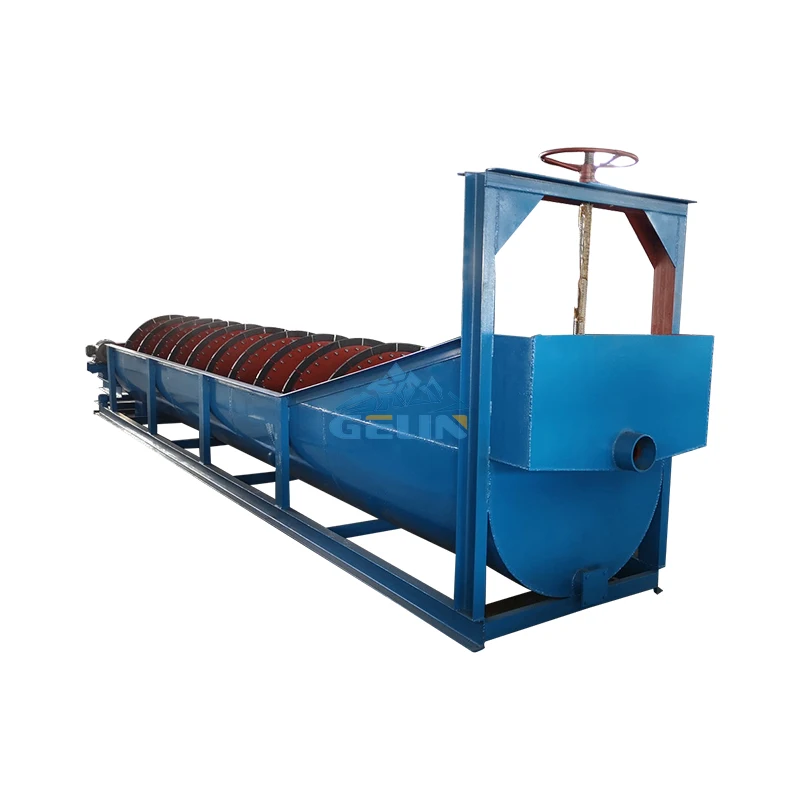

Spiral Classifier
Spiral classifier is widely used to form a closed cycle process to split mineral sand with ball mill in ore dressing plants, grade ore and fine mud in the gravity ore dressing plant, or for the pulp size classification in the metal beneficiation process, as well as desliming and dehydration in washing operations. Spiral classifier has the characteristics of simple structure, reliable work, convenient operation, etc.


Features:

1.Large processing capacity

2.Easy operation, Large particle size of ore washing

3.Suitable for all kinds of ore and stones


Working Principle:

Different sizes of crushers have different weights, so their sedimentation rates are also different. In the working process, fine ore grains float on the surface of water, and rough grains sink on the bottom of the cell. Screw grader can classify materials from mill, and then bring the rough grains to the entrance mouth of mill with the help of flights, and discharge the fine ore grins though pipe. The pedestal spiral classifier is made of box iron. The body is made of welding steel plates. The faucet and spindle nose of screw shaft are made of pig iron set which is wear-resisting durable. The take-up sets include two types power-driven and manual operation.


Data Parameter:



Model
Spiral Dia. (mm)
Trough Length (mm)
Rotation Speed (r/min)
Capacity (t/d)

Power (kw)
Dimension
L*W*H (mm)
Weight
(t)
Sand-return
Overflow
For Driving
For Lifting
FG-3
300
3000
12-30
/
/
1.1
/
3850*490*1140
0.7
FG-5
500
4500
8-12.5
135-210
32
1.1
/
5430*680*1480
≦1.9
FG-7
700
5500
6-10
340-570
65
3
/
6720*980*1820
≦3.1
FG-10
1000
6500
5-8
675-1080
110
5.5
/
7590*1240*2380
≦4.9
FC-10
8400
675-1080
85
7.5
/
9600*1240*2680
≦6.2
FG-12
1200
6500
4-6
1170-1870
155
7.5
2.2
8180*1570*3110
≦8.5
FC-12
8400
1170-1870
120
7.5
2.2
10370*1540*3920
≦11
2FG-12
6500
2340-3740
310
15
4.4
8230*2790*3110
≦15.8
2FC-12
8400
2340-3740
240
15
4.4
10370*2790*3920
≦17.6
FG-15
1500
8300
4-6
1830-2740
235
7.5
2.2
10410*1880*4080
≦12.5
FC-15
10500
1830-2740
185
7.5
2.2
12670*1820*4890
≦16.8
2FG-15
8300
2280-5480
470
15
4.4
10410*3390*4080
≦22.1
2FC-15
10500
2280-5480
370
15
4.4
12670*3370*4890
≦30.7
FG-20
2000
8400
3.6-5.5
3290-5940
400
11-15
3
10790*2530*4490
≦20.5
FC-20
12900
3210-5940
320
11-15
3
15610*2530*5340
≦28.5
2FG-20
8400
7780-11880
800
22-30
6
11000*4600*4490
≦35.5
2FC-20
12900
7780-11880
640
22-30
6
15760*4600*5640
≦48.7
FG-24
2400
9130
3.67
6800
580
15
3
11650*2910*4970
≦26.8
FC-24
14130
6800
490
18.5
4
16580*2930*7190
≦41
2FG-24
9130
13600
1160
30
6
12710*5430*5690
≦45.8
2FC-24
14130
13700
910
37
8
17710*5430*8000
≦67.9
2FG-30
3000
12500
3-2
23300
1785
40
8
16020*6640*6350
≦73
2FC-30
14300
23300
1410
40
8
17091*6640*8680
≦84.8

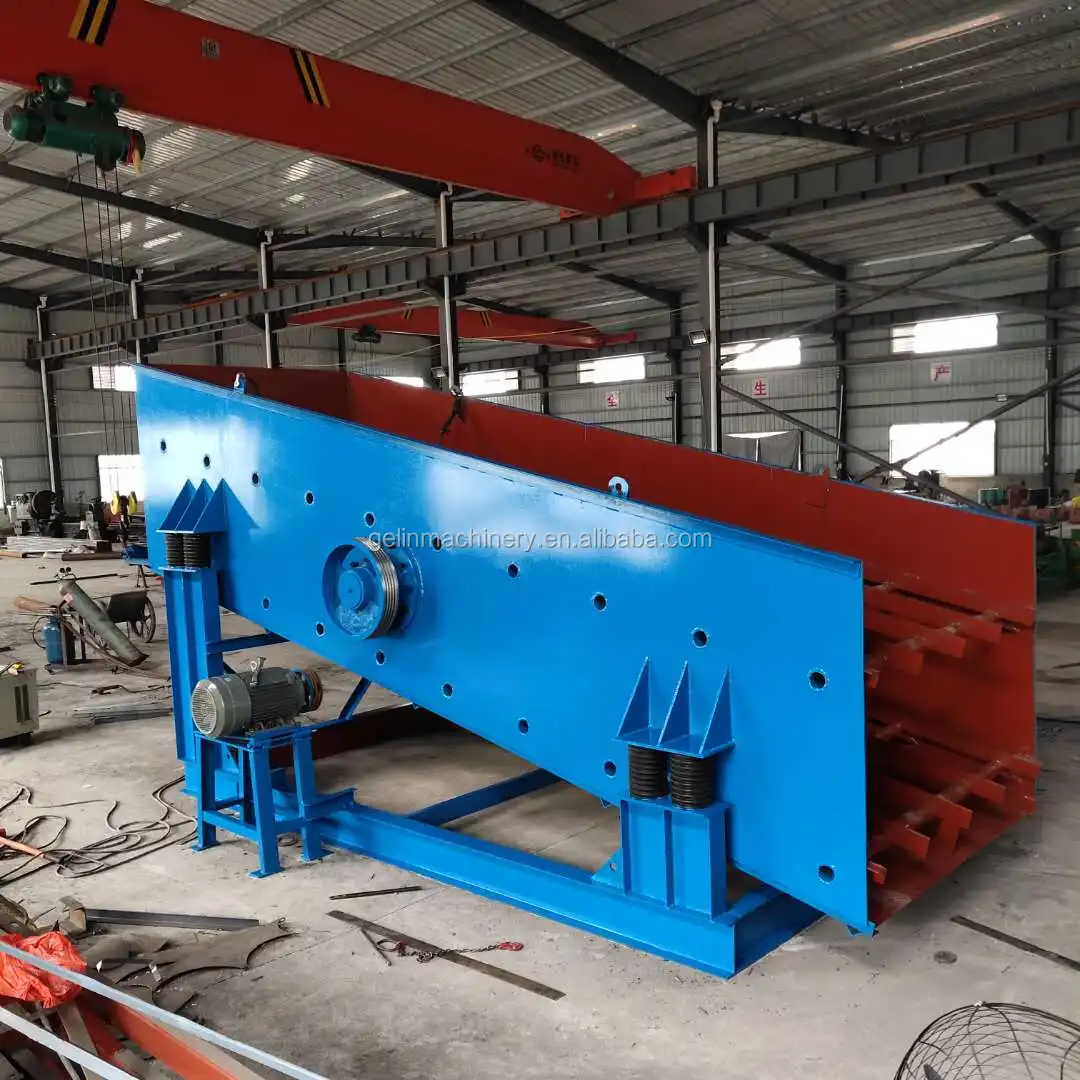

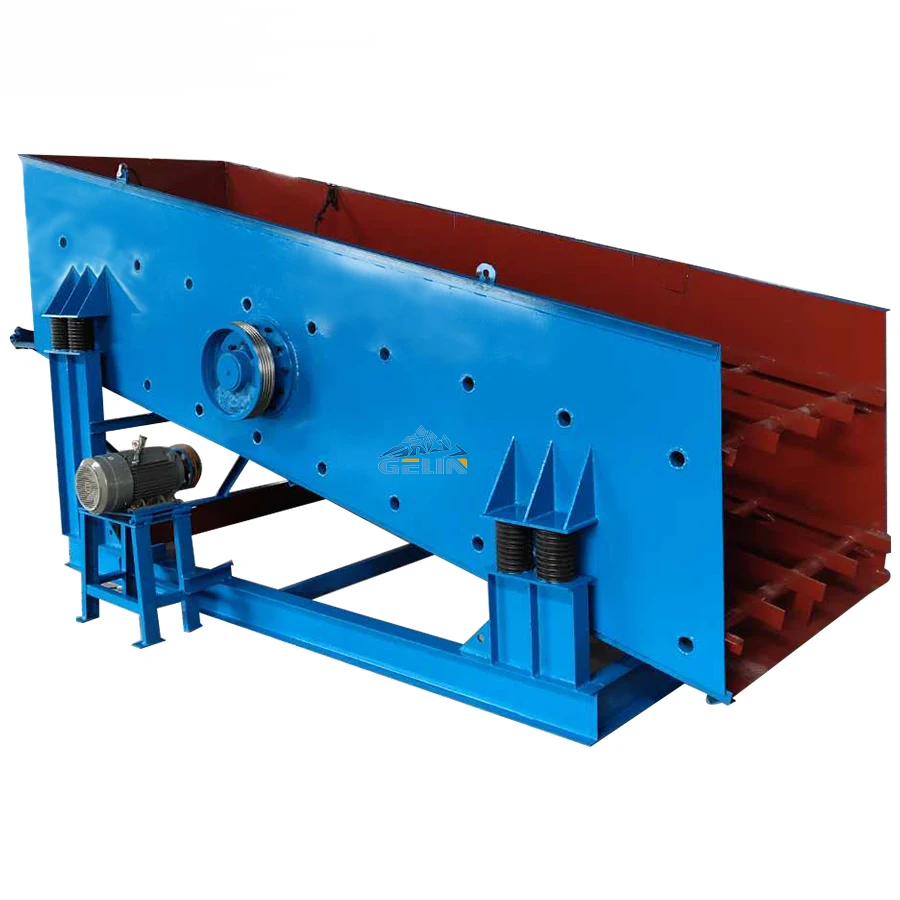

Vibration Screen
Gelin's circular motion vibrating screens are used for screening of granulous bulk material and are robust in design and build. The screen frame consists of both side panels and cross beams being bolted and glued to the panels carrying the screen deck substructure. The excitation is made with in-house manufactured unbalanced shaft or with a single unbalanced motor. The vibrating screens can be equipped with all different kinds of screen mats available on the market and it 's best suitable for long-living and economical operation.


Features:

1.High vibrating force with unique eccentric structure.
2.Simple structure, great capacity, easy to remove screen surface.
3.The beam and case of the screen are connected with high strength bolts without welding.
4.Adopt tire coupling and soft connection makes operation smooth.
5.High efficiency and low consumption,easy maintenance with longer service life.



Working Principle:

The motor makes the exciter rotaring speedily through the V-blet.
The powerful centrifugal force produced by rotating eccentric block makes the sieve box do a circular motion of some amplitude.the materials on the screen surface will be continuously tossed forward by the impulse transmitted through sieve box on the slope surface.Thus the classification is achieved during the process of thrown-up as the smaller size materials are falling through mesh.


Data Parameter:



Model
Layer
Max. Feeding size
(mm)
Sieve Size
(mm)
Capacity
(t/h)
Vibration Frequency
(r/min)
Angel
(°)
Power
(kw)
Boundary Size L*W*H(mm)
Weight
(kg)
SZZ600×1200
1
40
2-25
10-20
1000
15-25
2.2
1370x890×330
340
SZZ2600×1200
2
40
2-25
10-20
1000
15-25
2.2
1370x890×430
360
SZZ900×1800
1
40
2-25
20-25
1000
15-25
2.2
2150×1358x575
550
SZZ2900×1800
2
40
2-25
20-30
1000
15-25
3
2489×1358×770
620
SZZ1250×2500
1
100
2-40
50-150
850
15-20
5.5
2762×1714×680
1100
SZZ21250×2500
2
150
2-40
50-150
850
15-20
5.5
2702×1714×740
1300
SZZ1500×3000
1
100
2-40
70-220
800
15-25
7.5
3320×1449×787
2100




Shaking Table


GELIN ShakingTable is one of the main equipments of gravity concentration. It is not only widely applied on separating tungsten, the tin, the tantalum niobium and other rare metals and the noble metal ore.


Features:

1.The large range of transverse slope adjustment(0 -10°) and adjustable stroke available (be stably operation when
change them).

2. The deck surface is smooth with good corrosion resistance, strong and durable, not easy to deform, and isconvenient for local repair.

3. Spring is installed in the case with compact structure.

4. The head of the deck is reliable. with less wear parts and no oil-leakage.

5. Without reagents consumption, little electricity consumption.


Working Principle:

It's to allow loose layering of ores on the bed surface and fan-shaped zoning by combined action of the specific gravity difference of sorted minerals, alternating movement of bed surface, and transverse oblique water flow and riffle (or notch groove),Then different products is produced.


Data Parameter:



Model
6s -7.6
6s- 7.6
6s- 7.6
6s- 4.08
6s- 1.95
6s- 0.5
Deck Type
Coarse Ore Deck
Fine Sand Deck
Slurry/Slime Deck
Three Deck Types Available
Beneficiation Area ㎡
7.6
7.6
7.6
4.08
1.95
0.5
Deck Size
(mm)
Length (mm)
4450
4450
4450
3000
2100
1100
transmission end width (mm)
1855
1855
1855
1320
1050
500
Concentrate end width (mm)
1546
1546
1546
1100
850
430
Maximum Feeding Size (mm)
2
0.5
0.15
Sand--2
Slime--0.1
Sand--2
Slime--0.074
Sand--2
Slime--0.074
Feeding Capacity (ton/hour)
0.8-1.5
0.8-1.5
0.8-1.5
0.4-1.5
0.3-0.8
0.05-0.2
Feeding Density (%)
25-30
20-25
15-25
10-30
Stroke (mm)
16-22
11-16
8-16
6-30
12-28
9-17
Frequency (t/s)
45-48
18-53
50-57
210-320
250-450
280-460
Water added (t/h)
1-3
1-3
1-3
0.4-2
0.2-1
0.1-0.5
Transverse Slope of Deck (°)
2.3°-4. 3°
1.3°-3.3°
1° -2°
0 -10°
0 -8°
0 -10°
Longitudinal Slope of Deck (°)
1.4
0.92
/
/
/
/
Cross-Section Shape of Deck
rectangle
Saw-Tooth/
Indention
Triangle
Rectangle, Saw Tooth, Triangle Available
Motor Power (KW)
1.1
1.1
1.1
1.1
1.1
0.55
Transimission Mechanism
Eccentric Linkage Type


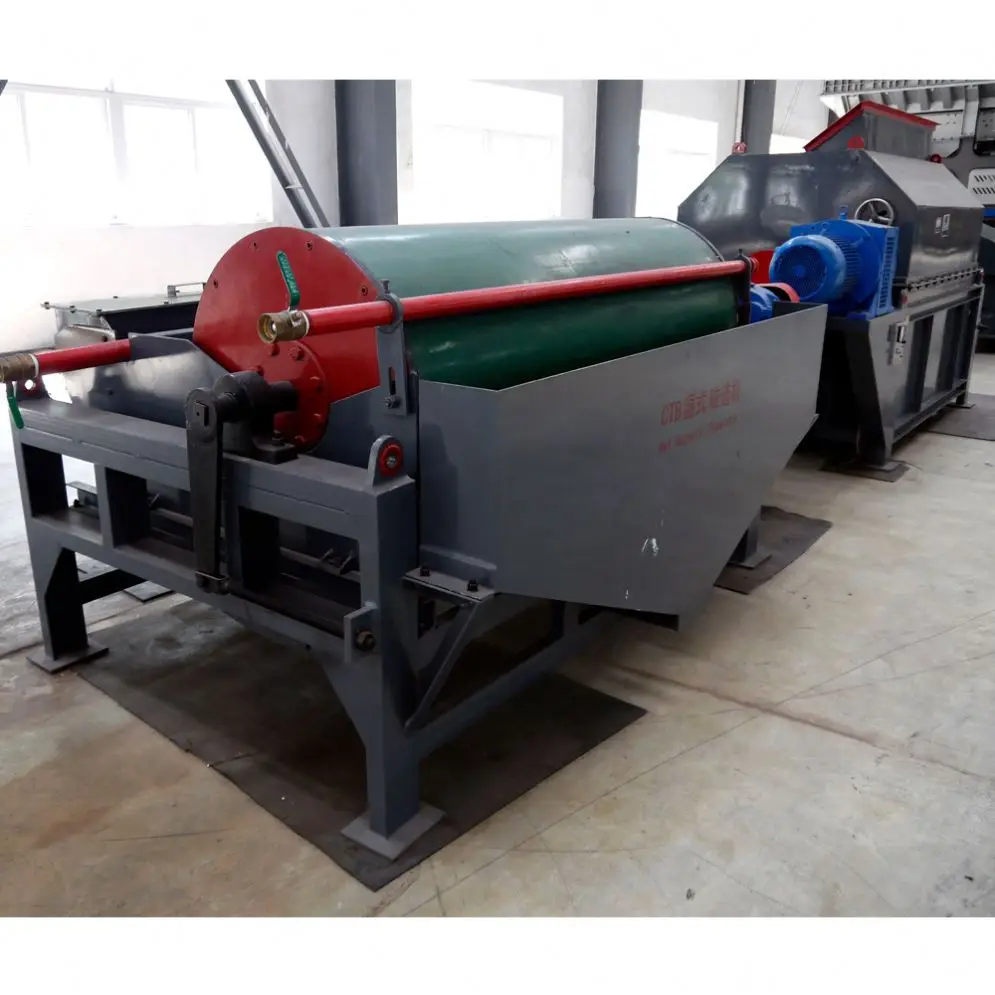

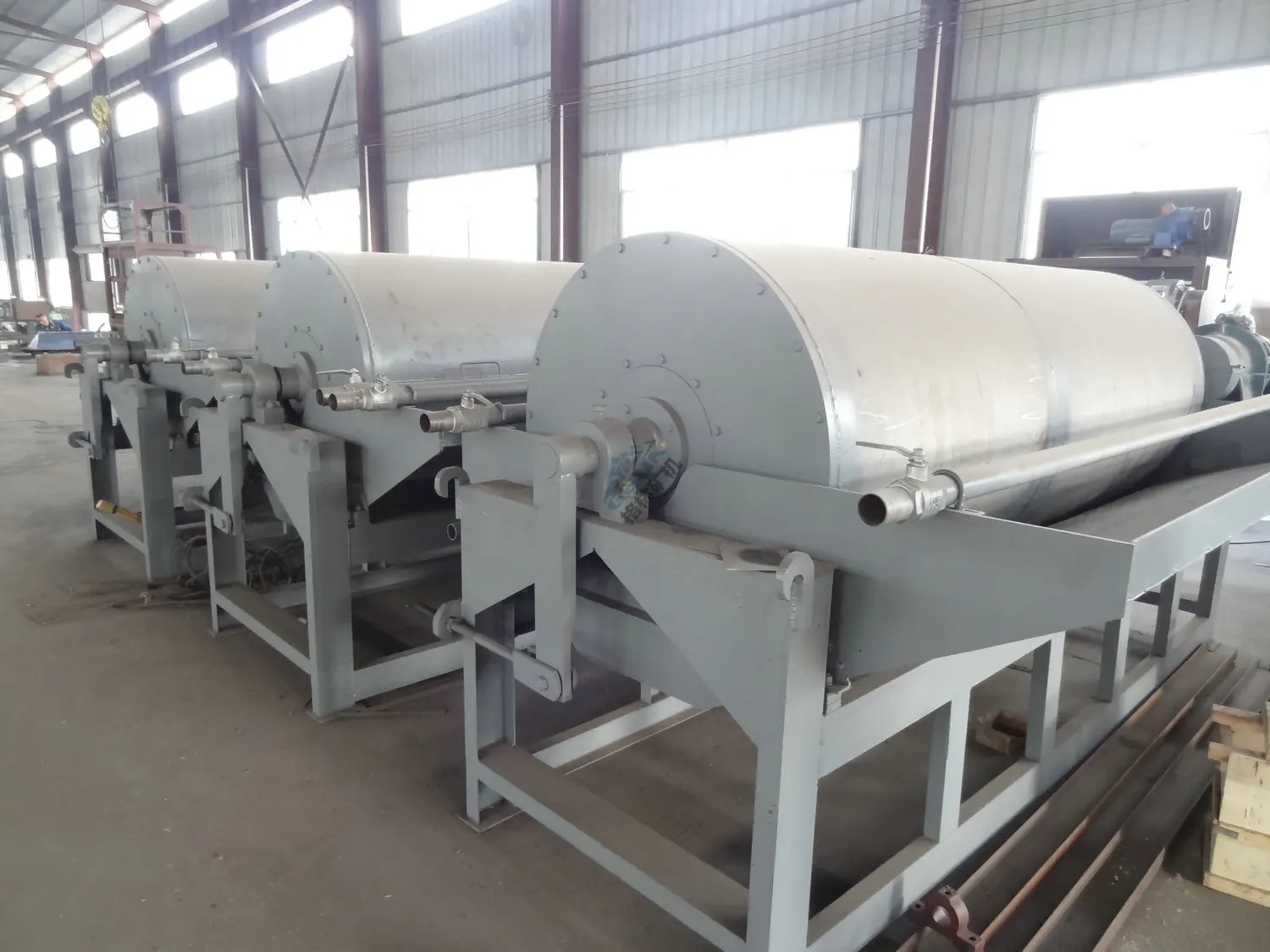

CTS(N.B) One drum(Single drum) magnetic separator
This machine has three kinds of tank: CTB, CTS and CTN, the same kind of drum could match those three tanks, to suitable different separation work and different requirement:
* CTS is suitable for the roughing and cleaning of particle size in 6-0mm;
* CTN is suitable for the cleaning and scavenging of fine particle size in 0.6-0mm ,and it is often applied to recycle heavy medium in coal;
* CTB is suitable for the roughing and cleaning of ores in size of 0.5-0mm, especially suitable for the cleaning of ores in size of 0.15-0mm.

Working Principle:
When the ore pulp entering magnetic field area, the ferromagnetic materials are sucked up on the surface of the drum, weak magnetic substance and nonmagnetic minerals are washed away by water, the absorbed magnetic minerals on the surface of drum are rotated with the drum and taken out of magnetic field area .The rotary one is suitable to dry separate the fine particle strong magnetic ore, because of speedy rotation, the magnetic particle rolling more times than other magnetic separator, which is effectively destroy the reunite of magnetic and arise the high-grade ore, the ore are divide into magnetic and nonmagnetic after separation, and discharge from the own road. This machine is suitable for the roughing and cleaning of particle size in 6-0mm size.

Data Parameter:


Model
Shell size
(diameter×length) mm
Magnetic induction on shell surface mT
6s- 7.6
6s- 7.6
Capacity
6s- 1.95
Power (KW)
Shell ratation speed (r/min)
Weight (T)
Magnetic pole
geometric centre
Average
Max. Magnetic Strength
T/h
m³/h
CTS(N.B)-46
400×600
130
160
1-3
5
1.1
45
600
CTS(N.B)-66
600×600
145
170
5~10
16
1.1
40
705
CTS(N.B)-69
600×900
145
170
8~15
24
1.1
40
830
CTS(N.B)-612
600×1200
145
170
10~20
32
2.2
40
990
CTS(N.B)-618
600×1800
145
170
15~30
48
2.2
40
1330
CTS(N.B)-712
750×1200
120
155
180
15~30
48
3
35
1500
CTS(N.B)-718
750×1800
120
155
180
20~45
72
3
35
2100
CTS(N.B)-918
900×1800
148
165
190
25~55
90
4
28
2900
CTS(N.B)-924
900×2400
148
165
190
35~70
110
4
28
3500
CTS(N.B)-1018
1050×1800
148
165
190
40~75
120
5.5
22
4000
CTS(N.B)-1021
1050×2100
160
240
280
45~88
140
5.5
22
4500
CTS(N.B)-1024
1050×2400
160
240
280
52~100
160
5.5
22
5000
CTS(N.B)-1030
1050×3000
160
240
280
65~125
200
7.5
22
6200
CTS(N.B)-1218
1200×1800
160
240
280
47~90
140
5.5
19
5800
CTS(N.B)-1224
1200×2400
160
240
300
82~120
192
7.5
19
6200
CTS(N.B)-1230
1200×3000
160
240
280
80~150
240
7.5
19
7200
CTS(N.B)-1530
1500×3000
180
240
300
90~170
270
11
14
8100
CTS(N.B)-1540
1500×4000
180
240
300
115~220
350
11
14
9300


Packing & Delivery




Packing
Normally the machines are taken apart before delivery and are packed by suitable packing ways, the packing ways are as below:
1. Nude packing. Used to pack some equipments that not easy to be disassembled.
2. Bundle packing. Used for the goods which are small, large quantities and wear resistant.
3. Grass rope packing. Used for easily damaged equipments like bearings etc.
4. Water proof packing. Suitable for electric motors, electric control panels etc.
5. Wooden pallets packing. Used for goods with large quantities, easily apart and rolling such as the frames and support rollers of belt conveyor.
6.Wooden box packing. Normally used for small goods like spare parts,laboratory equipments, tools etc.

Delivery
Usually the equipments are delivered aboard by tracks,trains,or container(sea transportation). and some spare parts or very small goods also support to send by express, our company have built good relationships with large cargo agent and shipping companies which guarantee our products delivered safely and promptly.Sea transportation includes three delivery ways as below:
1.40HQ container: used for goods without overlength, overheight and overweight;
2.FR(Flat Rack) container:suitable for large equipments with overlength,overheight like ball mill,excavator,etc.
3.Bulk cargo shipment (LCL): used for some goods without loading in full container,normally it requires good packing with marks for safety and easy to be trackable.


Related Products


- Jig Machine

It mainly used to handle placer gold,tungsten, tin, hematite and beach placer and other minerals.

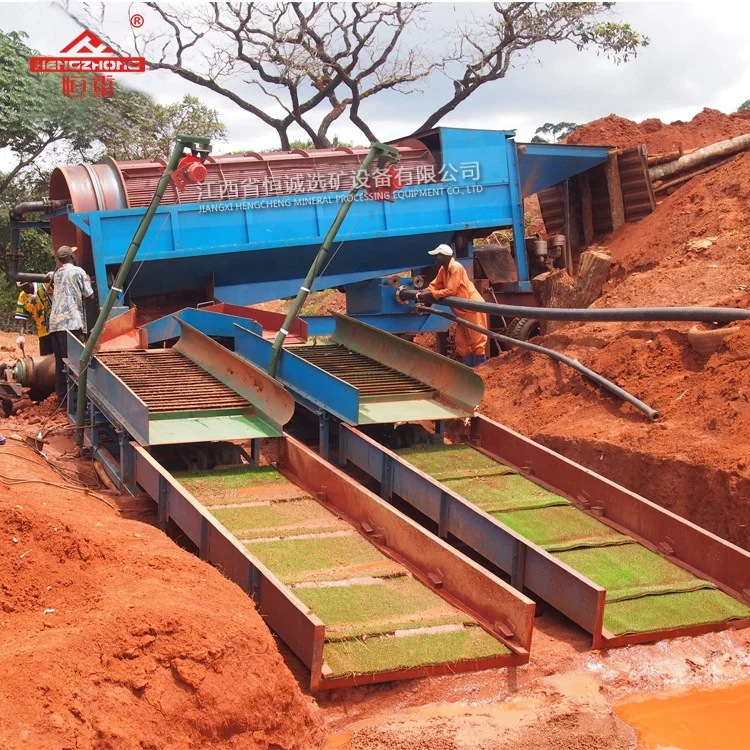

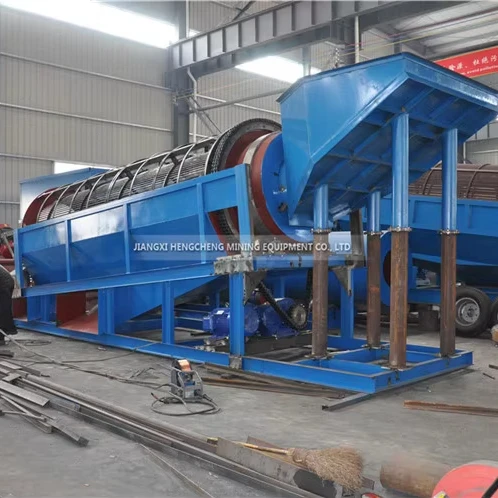

- Rotary Scrubber

It is mainly applied to placer with high mud content and high stickiness.

- Gold Shaking Table

It widely used in mining, metallurgical and coal industry to transfer sandy or lump material, or packaged material.



About Company


Ganzhou Gelin Mining Machinery Co., Ltd is an professional manufacturer of mining machines and mining engineering service provider in China.Located in Guzhang Industrial Zone, Shicheng county, Jiangxi province,covering an area of more than 30,000 square meters.Gelin has a strong production capacity and the products cover full range of equipments for beneficiation engineering such as feeding&conveying,crushing,screening,grinding,flotation,separation etc. It has more than 30 sets of heavy processing equipment and with an annual output of more than 2000 sets of mining machinery.Gelin also have a strong R&D team and can provide complete and perfect technical support for mining engineering and construction. Gelin have a complete service system which can provide customer full service in mining field and after sales service.By now, Gelin’s equipments and services are exported to over 60 countries,include America, Russia, India, Africa, Brazil, Chile etc.
Sincerely welcome customers to visit our factory.






Successful Cases & Client Distribution




Our Services


One Stop solution for beneficiation plant:
1.Engineering consulting available,it makes clients have a comprehensive understanding of beneficiation plant,including mine value,useful elements,mineral processing technology,plant scale,essential equipments,etc.
2.Arrange mineral beneficiation experiment after received the material sample and beneficiation test report will be done after test.
3.After reaching agreement with client,we start to engineering design,including planning,investigation,data collection,project evaluation etc. and then comes up with design scheme of beneficiation plant construction and working drawings.
4.Manufacturing the necessary equipments and arrange the shipment. 3.Complete services for Installation and commissioning and technical training(operating training,common problem solving training).

After-sale Service
Regularly visit customers to provide after- sale technical supports and to solve problems of beneficiation plant. For equipments supplied,we could provide one-year warranty and provide spare parts with preferential price in the long term and be responsible for any problems with the them.


FAQ


For accurate equipment selection and quotation, better learn below info:
Q: 1). What type is the mining? what materials you want to process?
2). What is particle size(mm) of the material?
3). How about the handling capacity(T/H) you want?
4). What is the elements of the raw ore? How much percent % of each minerals?
Others:
Q:Are you a trading company or a factory?
A:We are a factory with 110 workers, 6 workshops covered 17,000㎡, office covered 2,500㎡.
Q: Is it possible to provide sample for your factory to do ore-dressing experiment?
A: Yes, engineering consulting is available and we’d like to arrange mineral beneficiation experiment after received your sample and provide the test report.
Q: How long is the guarantee period of your products?
A: The guarantee period of Gelin equipments is 1-2 years, pls ask staff for more details, And we will supply the spare parts for you for life-long time at lowest cost.
Q: If I need the complete mineral processing line, will you be able to help me build it?
A: Yes, we have strong and skilled R&D team,we can provide even mineral beneficiation experiment, engineering design,scheme of plant construction an working drawings,necessary equipment delivery,installation and commissioning until the full mineral processing line completed.You can believe our quality and service.


Похожие товары

Новые поступления

Новинки товаров от производителей по оптовым ценам
