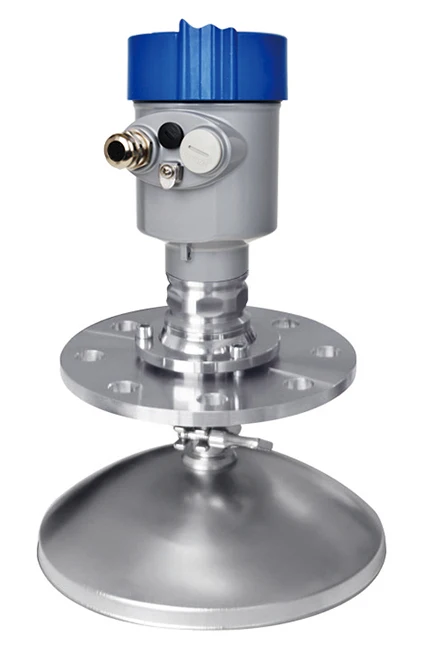

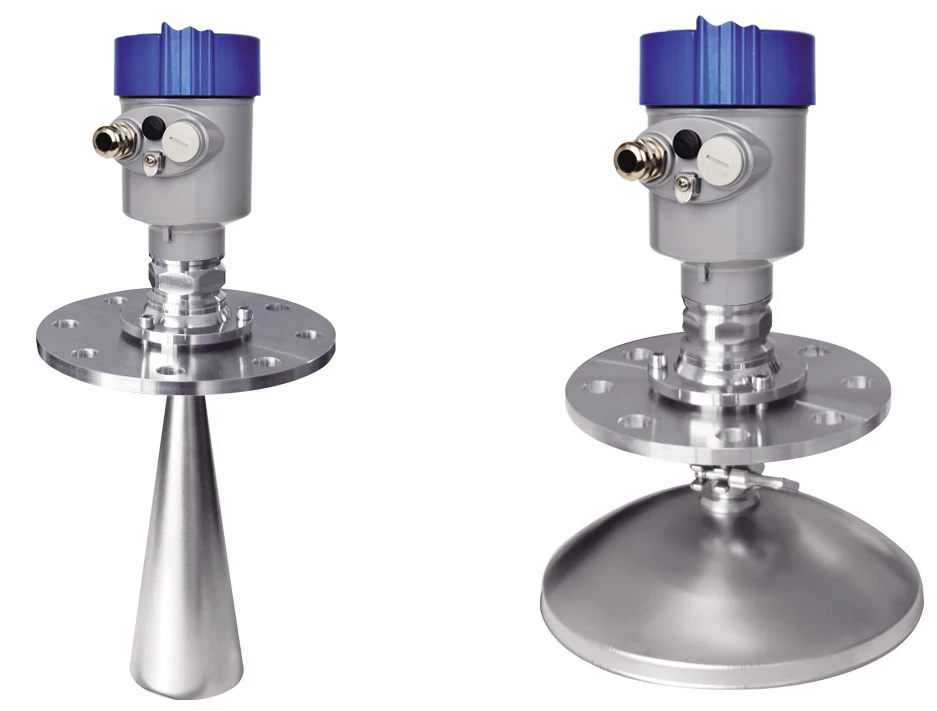

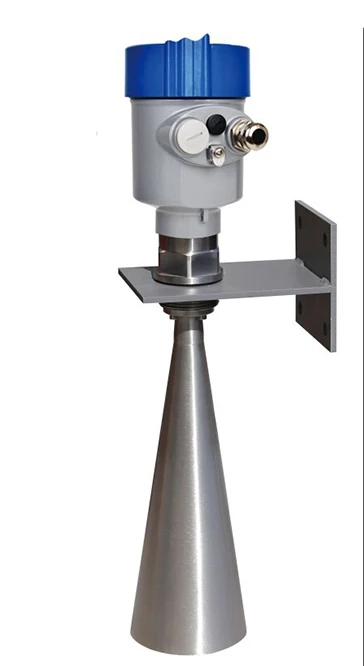

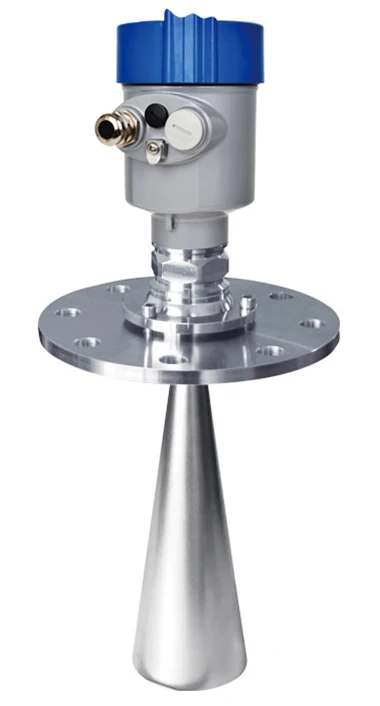

CX-RLM Fuel Level Measuring Instrument Radar Level Meter

A.[Features of radar level transmitter]

Various Mediun of Radar level transmitter

The CX-RLM Fuel Level Measuring Instrument Radar Level Meter could measure the liquid and solid medium.

Superior performance

The level meter with high frequency and high temperature range to statifis your working condition.

The large measuring range of radar level transmitter

The CX-RLM Fuel Level Measuring Instrument Radar Level Meter mesuring range is 0~10meters,the intelligent level meter's max measuring range is 30meters.

The various applications of radar level trnasmitter

Sewage level measuring/Industrial course testing/Laboratory equipment Oil

B.[Parameters]

C.[Installation]

1. Installation Location

• The distance from tank to level meter must more than 1/6 diameter of tank;


• The min distance from the tank wall is 300mm;


• Can not installa the level meter on the top of feed inlet;


• Can not installa the radar level meter at central location;


• Within the signal beam,there should be no installation.

2.Guide wave installation

• Do not tilt the antenna to the pipe wall;


• To min temperature effects,pls installa the washer at the flange connection;

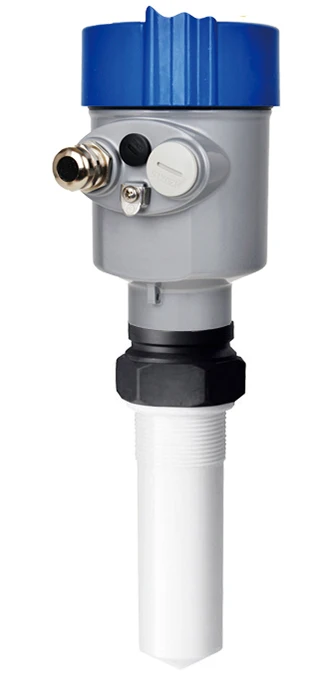

• The rod antenna must have a short pole at the launch of the radar;


• Vertical antenna rod, do not let the radar wave pointing to the tank wall.

3.Intelligent radar level meter installation

• Should installa the level meter at 1/4 or 1/6 diameter;


• Bell mouth alignment level surface is sloped pls adjust the angle of flange.

D.[Company Info]

• Our Company is Top 10 Manufacture on Alibaba;


• We have about 30 years of experience in Manufacture;


• Our products have been exported to more 100 coutries and area;


• ISO, ,CE and more ceterficates for you reference;


• Patent technology and more than 3 years working life.
