Новый стиль рекламный Электрический выключатель питания для гостиничного номера

Technical parameters

Operating voltage: 50/60Hz   100-150v   180v-240VAC (other voltages can be customized)

Maximum load current: 40A
Maximum load power: 6000W
Quiescent operating power: 1W
Delay power-off time :10- 15 seconds
Non-working condition: light blue
Service life: When relay contacts 220V in the full load, life expectancy greater than 10 million
Operating temperature: -10 - 60
Working humidity: 50 10-95% RH
Overall dimensions: W86mm * H86mm * D35mm
Case Material: Imported fire retardant PC plastic

Shell Color: Gold, Silver, White, (other can be customized, your logo, your language)

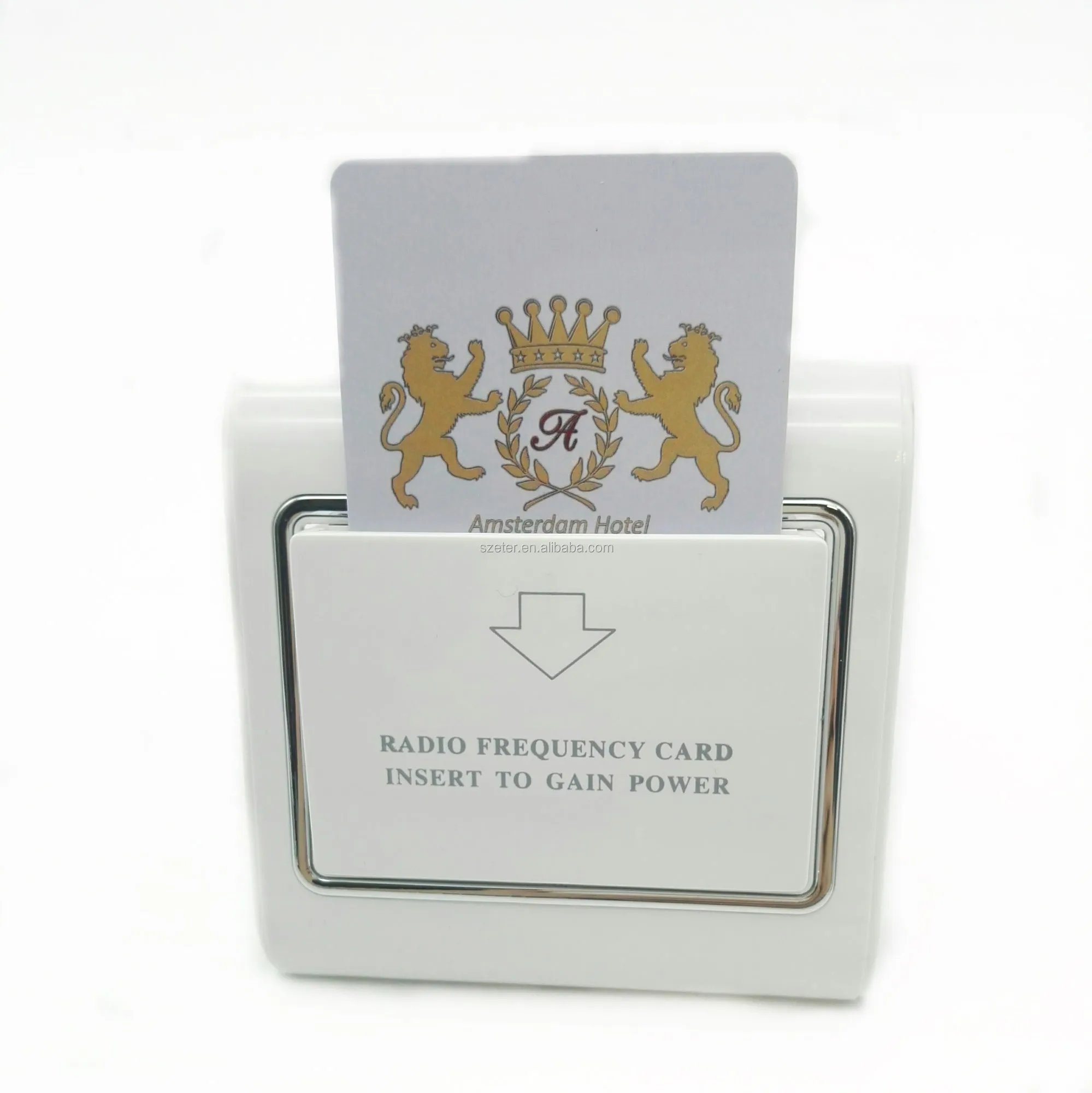

1 .With the special card, you can open the door, and just insert the same card, you can gain power of the room. Also there is option of our swiches which suitable for any kinds of the same size cards.


2. LED indicator design

LED indicator light-emitting design, more convenient to use at night.

3. Delay power off design
When leaving the room, the guest draw the key card, and then the general power supply can be automatically shut off within 15 seconds, convenience to guests, and also protect the electric device safety.

Picture of touch switch

Tips: All the Language will be in English !

Qty More than 100pcs, print logo or your brand free !

1.How to use Hotel card key switch

When guest get in the room, insert card for power of the room appliance, when he/she leaves the room and withdraw the card, power cut delay to protect the circuit.

2.Used in different areas:

Suitable for hotels, apartment, motel, schools, colleges, universities, hospitals, leisure centres and offices etc.

3.Customzie Service:

1. The language on the panel

2. Logo Printing

3. Color printing

4. How to purchase?

If you have cards already, please tell us which chip it is, M1? RFID? IC ? Magnetic?

If you don't have cards yet, we can recommand one model to you!

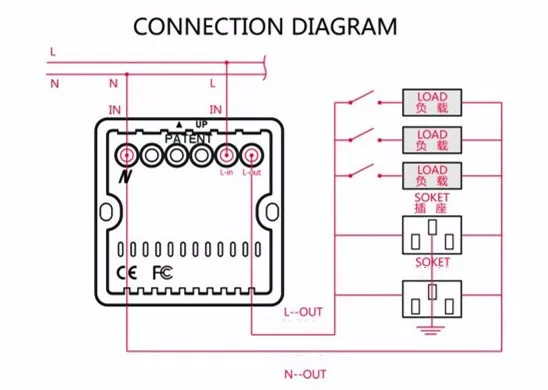

5. How to connect the wires , folloing is our diagram!

For more details and document, please contact with our sales now!

Assembly line and Test Line:
