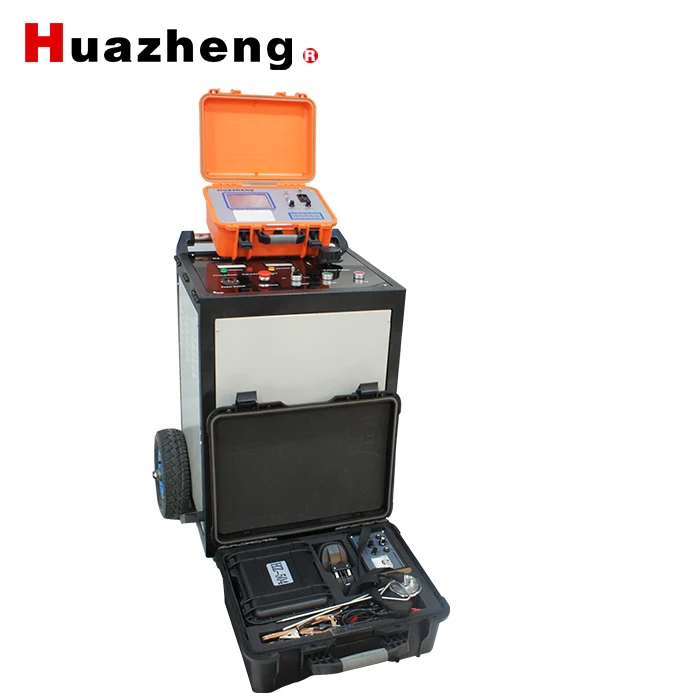

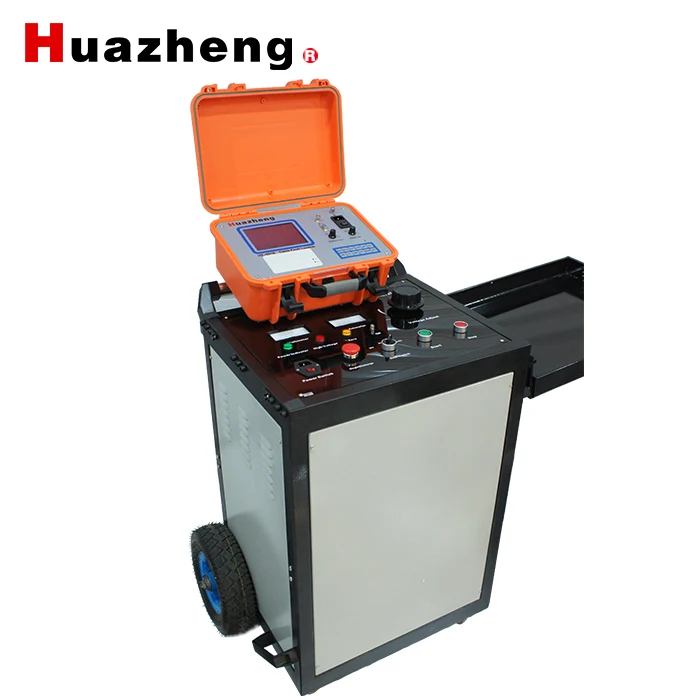

Подземный высоковольтный точечный подземный TDR локатор неисправностей кабеля

The Main Technical Parameter

1) SCM operation, button operation mode, micro printer integrated design, can be printed the test waveform and related content at any time;

2) System function: measure the distance of fault, fault location, transmission speed test, fault resistance and cable route search and buried depth detection;

3) Test methods: low voltage pulse, flashover method, audio frequency method, acoustic magnetic synchronous method, the valley value method, the peak method, the electromagnetic induction method and so on;

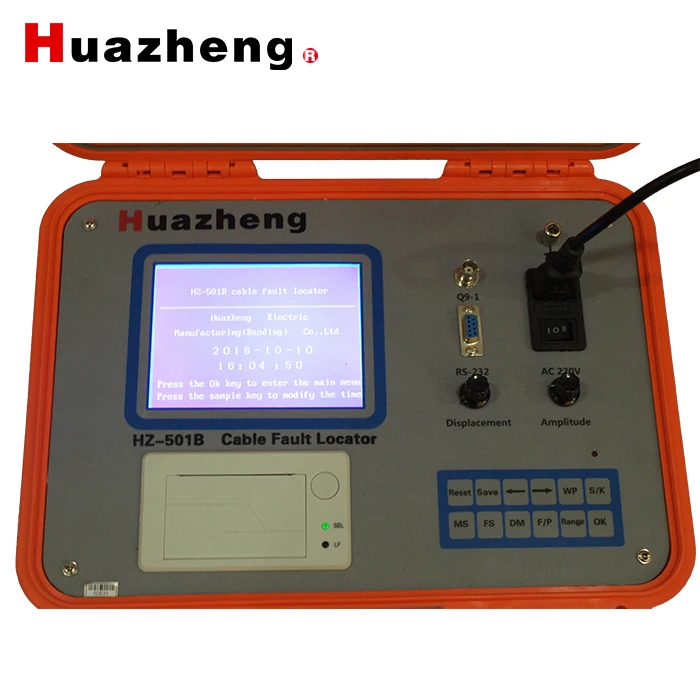

4) Display control: HZ-501B: 5.7”industrial grade LCD, built-in 24V/7Ah DC power supply, can work continuously for 6 hours;

5) Test range: test distance: 60km, detection depth: 6-7m;

6) Measurement accuracy: Pre-location accuracy: + 10m (absolute value) or 1% (relative value), precision measurement accuracy: + 0.2m (pin-pointing, path, depth);

(7) Sampling frequency: 100MHz, minimum resolution 0.5m (100m/us)

8) Sampling methods: automatic continuous sampling, never miss any discharge waveform

9) Low voltage pulse: width: 0.1uS and 2uS amplitude: 100Vpp

10) Output power: path power: 100W, impact power: 0 ~ 400W

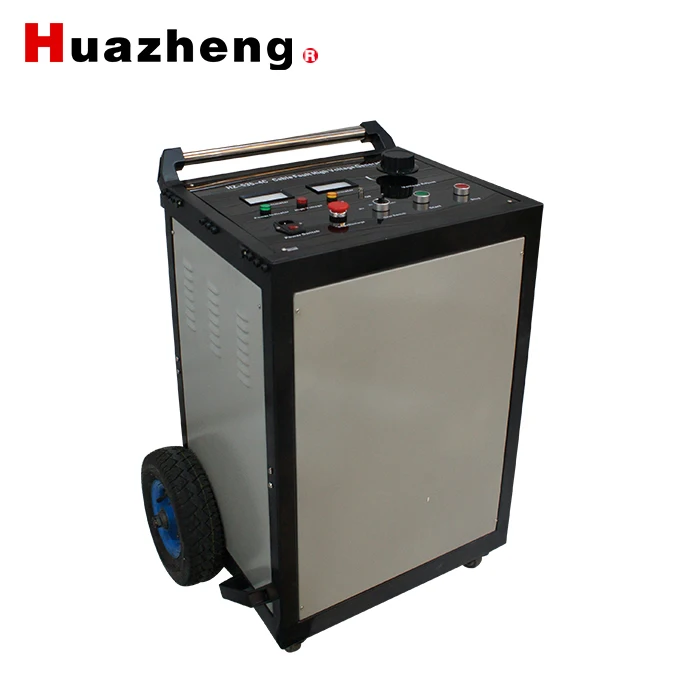

11) Surge high voltage: 0 ~ 35kV

12) Short circuit current: 0 ~ 320mA

13) Surge energy: 0 ~ 1225J

From the date of purchase within one year instrument, is a product quality problem free repair replacement, lifetime supply of maintenance and technical services. The instrument has found anomalies or malfunctions please contact us to arrange the most convenient treatment options.
