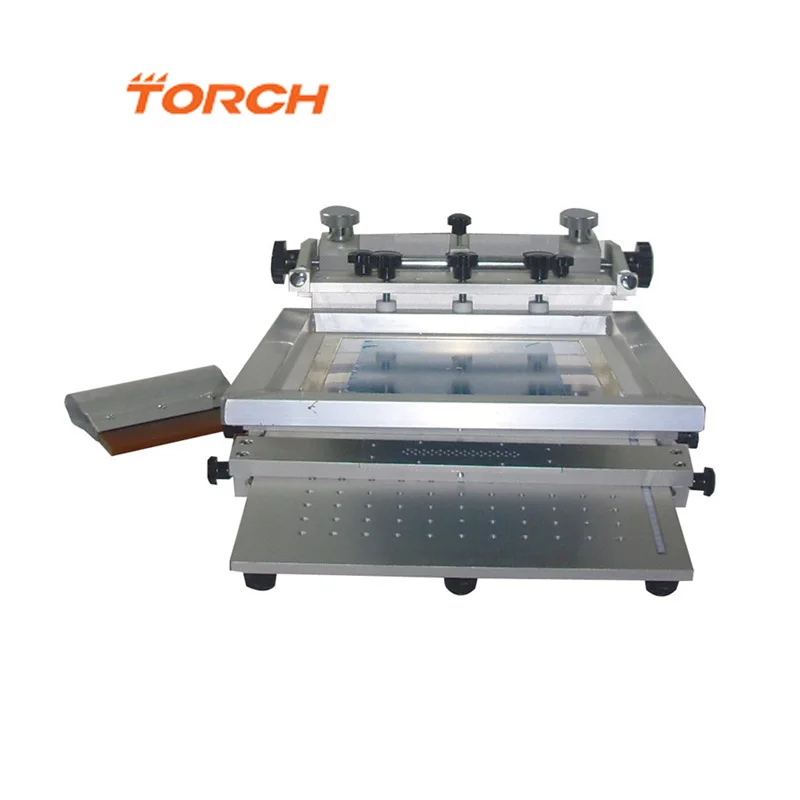

Факельный полуавтоматический Трафаретный светодиодный принтер с электронными компонентами

Описание и отзывы

Характеристики

Max Printing size: 400*300mm

Adjustment method: contrapuntal calibration

Refined adjustment method: adjust through accuracy screen pole, the accuracy is 0.1mm

Suitable range: silk screen and steel screen

Expected printing accuracy : 0.5mm IC; BGA > 0.5mm Raster

Weight: 20kg

Dimension: 700*600*350mm

Introduction of screen printer machine

The rapid development of the electronics industry, the integration and the rise of emerging

chips make the accuracy of the printer a great challenge. This is especially true for small

Manual printer, which, among other things, may have the following problems:

    1. The countertop can support any high-precision pressure.

    2. The manual speed, attack angle and pressure can not properly be controlled.

    3. The continuity of printing is a problem.

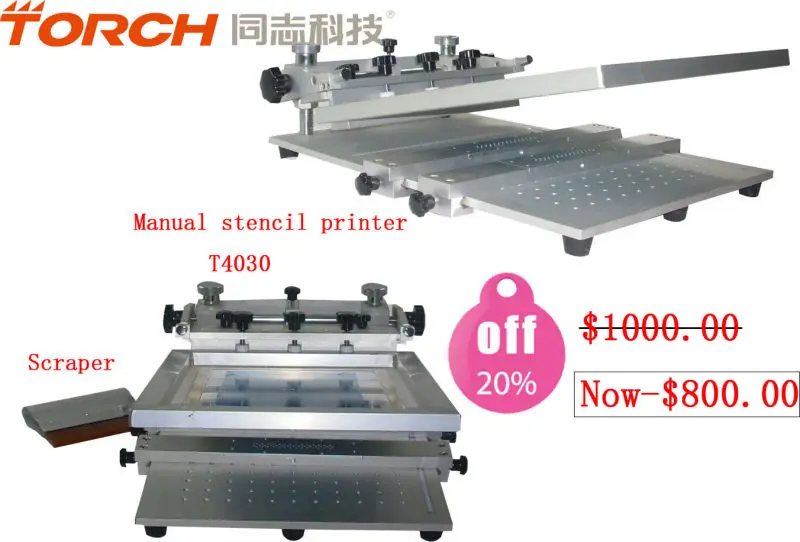

The manual SMD screen printers T4030 eliminates the above problems. The T4030 in China

patent pending, similar functions such as automatic screen printer has, however at a lower cost.

The T4030 reduced production costs andimproved performance on the other hand.

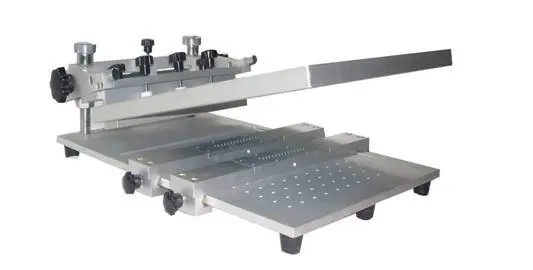

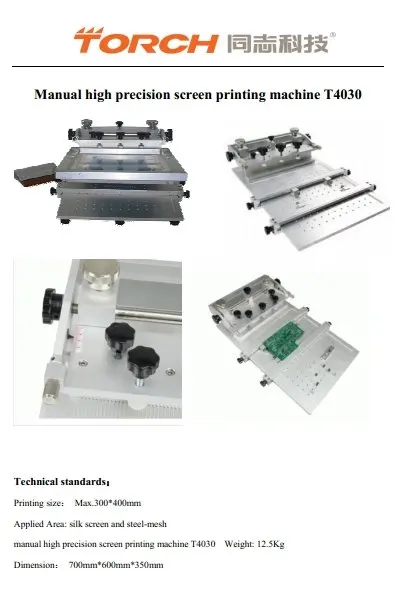

T4030 is a manual high precision screen printer, without electrical components and without the

need for  compressed air. X, Y, Z axes and the blade angle can be adjusted. A match between

PCB and screen or stencil is reached via the setting of the axes.

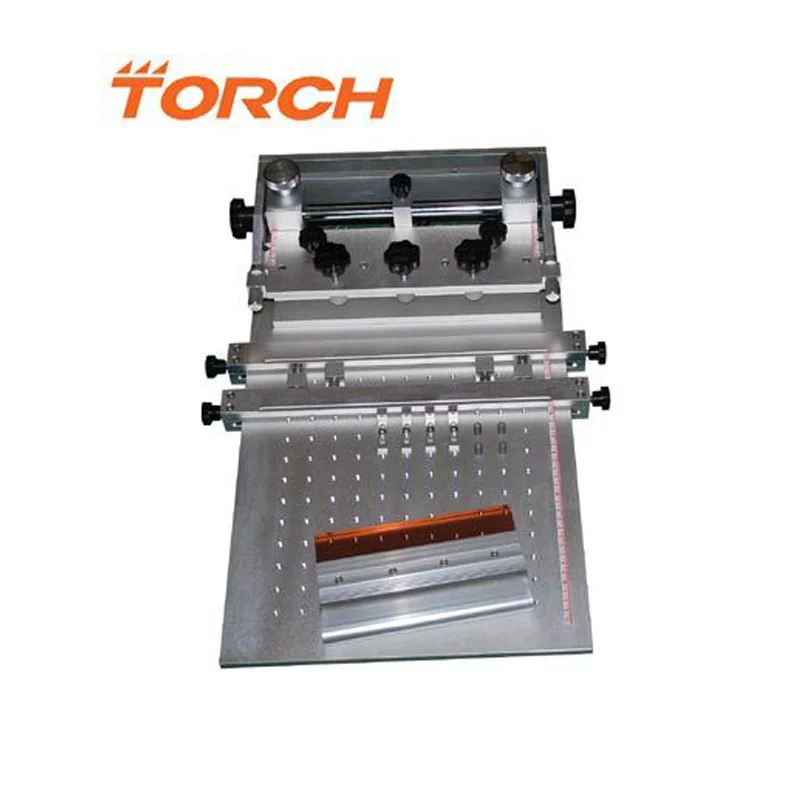

Description of detail of screen printer machine:

1. Screw vertical                                       2. Printing templates support

3. Aluminium base plate                           4 .locking block

5. Board fixation support                           6 support bolt

 7 .Insertion holes for support bolt              8 PCB holder

  9. Fixing screws of the Platinenhalters     10 locking screw for printing stencils

11 Knurled screw horizontal                      12 fine adjustment of parallelism

13 Knurled screw vertical                          14 knurled screw vertical

screen printer machine Features:

1. Screw vertical: height adjustment of the stencil frame

2. Print stencil holder: holds the print template

3. Base plate: Workspace

4. Locking block: longitudinal fixation of the Board

5 Board fixation support: holds the Board in width

6. Support bolts: bolts to support the Board

7 Base plate with mounting holes: holes for inserting the support bolt

8 PCB holder: fixing of the Board on both sides

9 Fixing screws of the Platinenhalters: setting of the Platinenhalters

10 Locking screw for printing stencils: adaptation to the height of the print frame

11 Knurled screw horizontal: adjustment of the pressure measures in length.

12 Fine adjustment of parallelism: setting of the pressure frame width

13 Knurled screw vertical: the vertical direction fixed

14 Knurled screw vertical: the level of fixed
