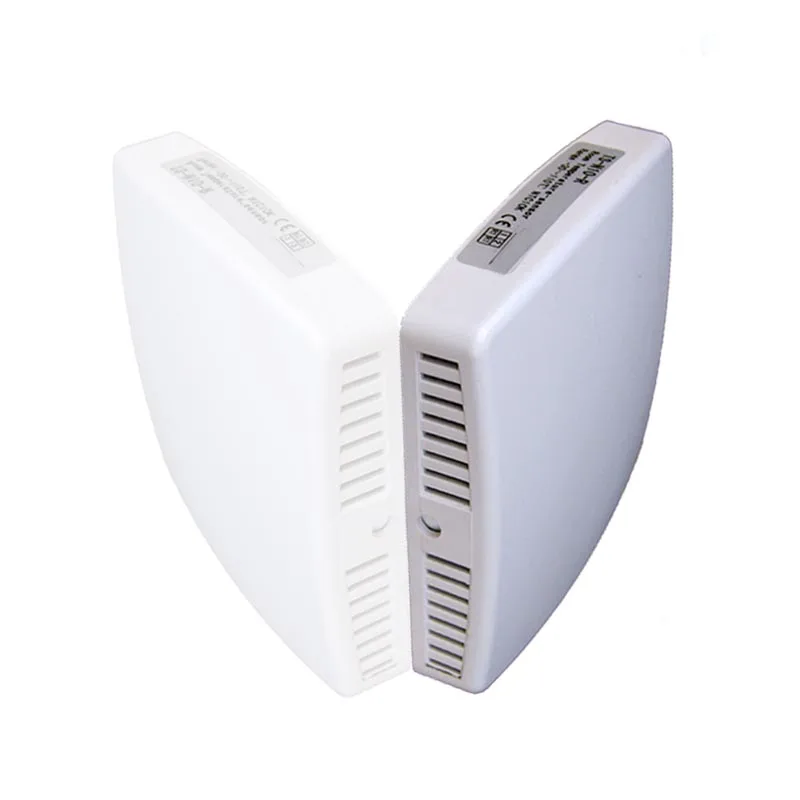

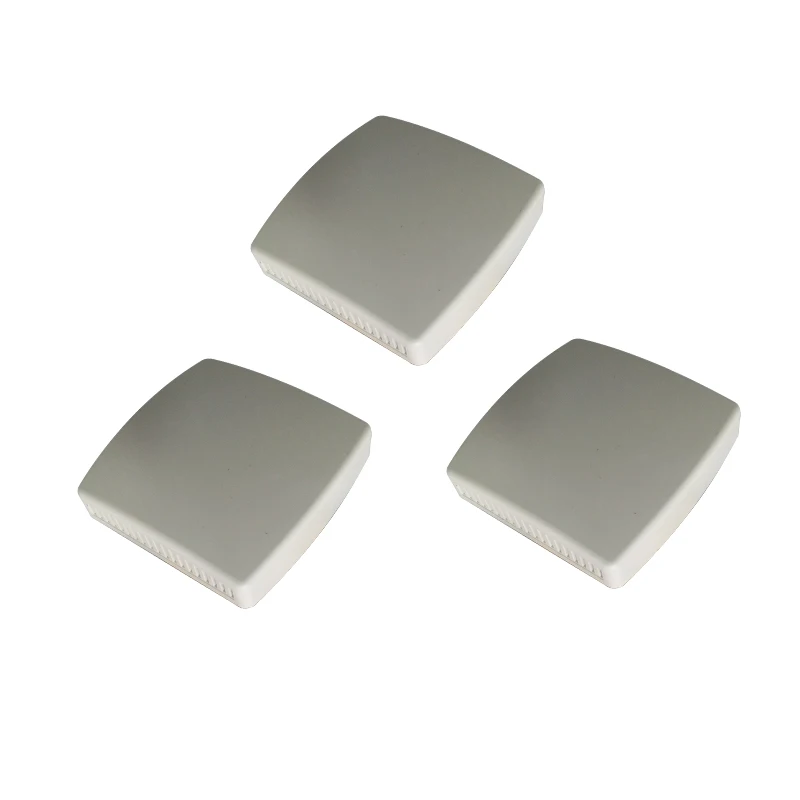

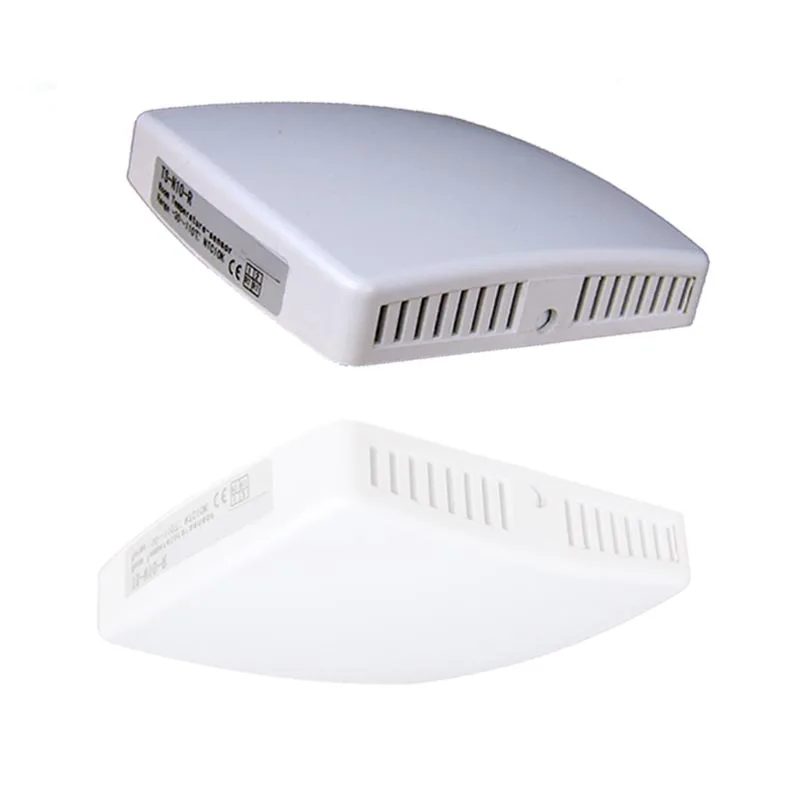

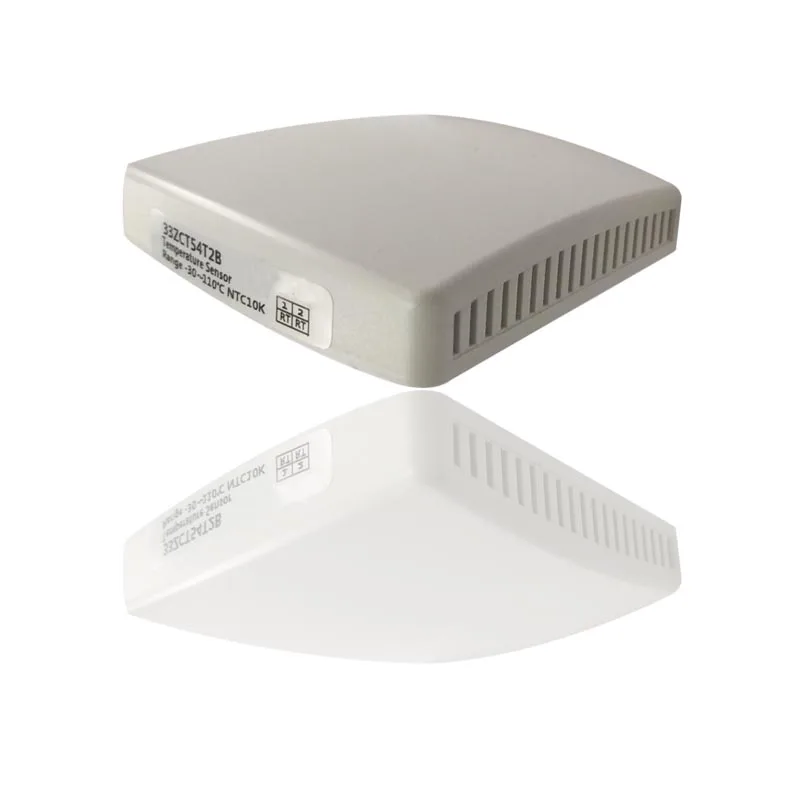

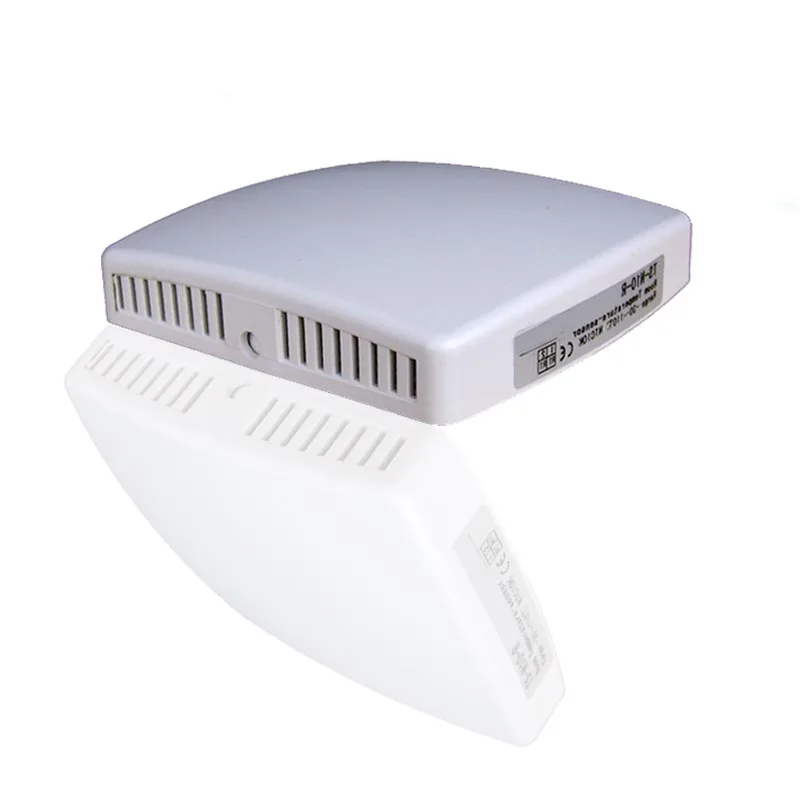

Китайский заводской Датчик Температуры комнатного

Name: Китайский заводской Датчик Температуры комнатного
SKU: 60080842144
Availability: InStock

Цена:*

Количество:

Product display

Specification

Sensing Element	Thermistor: Range Accuracy	NTC -30----70°C ±0.5k
	Platinum-Film: Range Accuracy	PT, 0.3851ohm/k -30----70°C ±0.3k
	Nickel Thin Layer Range Accuracy	NI, 5000 ppm/k -30----70°C ±1k
Connection	Connection Terminals	2.5 mm²
Environment	Operation Climatic Conditions Temperature Humidity	To IEC 721-3-3 class 3 K5 -4070°C <95% r.h.
Environment	Transport & Storage Climatic Conditions Temperature Humidity Mechanical Conditions	To IEC 721-3-2 and IEC 721-3-1 class 3 K3 and class 1 K3 -4080°C <95% r.h. class 2M2
Standards	conform according to EMC Standard 89/336/EEC EMEI Standard 73/23/EEC	EN 61 000-6-1/ EN 61 000-6-3
	Automatic electrical controls for household and similar use Special requirement on temperature dependent controls	EN 60 730 1 EN 60 730 2 - 9
	Pollution Class	Normal acc. To EN 60 730,RoHS compliant
	Degree of Protection	IP56 to EN 60 529
	Safety Class	III (IEC 60536)
Housing Materials	Cover & Mounting Plate	Fire proof ABS plastic
General	Dimensions [mm]	Cover: 42 x 112 x 88 (H x W x D)
General	Weight (including package)	135g

Item name	Sensing element	Curve	Compatible with
N18	Thermistor 1.8k at 25 °C	Curve 5	TAC, CSI
N3	Thermistor 3k at 25 °C	Curve 6	Alerton
N10	Thermistor 10k at 25 °C	Curve 24	Hysine, Alerton,ALC, Delta,Trane, CSI
N11	Thermistor 10k at 25 °C	Curve 7	Andover, Invensys, Carrier, KMC
N20	Thermistor 20k at 25 °C	Curve 20	Honeywell
N100	Thermistor 100k at 25 °C	Curve 9	Siemens SBT
Tp1	PT100	0.3851ohm/K	Honeywell
Tp2	PT1000	3.851ohm/K	Johnson Control
TK5	NI1000	5000ppm/k	Siemens SBT
